This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0496242090
Active
4.20mm (.165") Wire-to-Wire TPA™ Connector for Female Housing, 20 Circuits,
UL94V-2, White
Documents:
3D Model
Drawing (PDF)
Product Specification PS-49624-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Product Name
Crimp Housings
49624
N/A
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
20
20
White
94V-2
Female
No
None
Yes
Nylon
2
Bag
No
0.165 In
4.20 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
49624Series
Mates With
4.20mm (.165") Wire-to-Wire Male TPA™
49623 , 49627
Use With
5556 Mini-Fit® Crimp Terminal
Electrical
Current - Maximum per Contact
6A
Material Info
Reference - Drawing Numbers
Product Specification

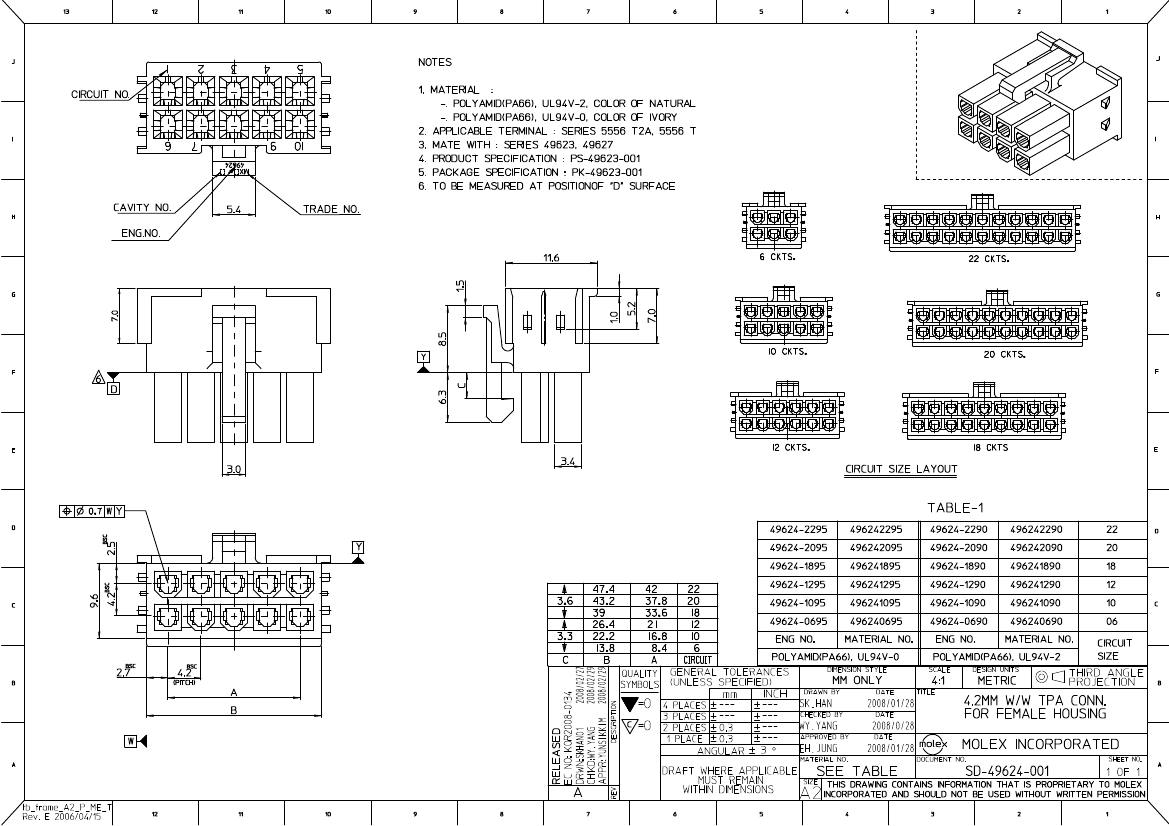

Sales Drawing
PS-49624-001
SD-49624-001
