Part Number

Search

54F350/BEA

Description
Shifter, F/FAST Series, 4-Bit, TTL, CDIP16,
Categorylogic    logic
File Size207KB,6 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

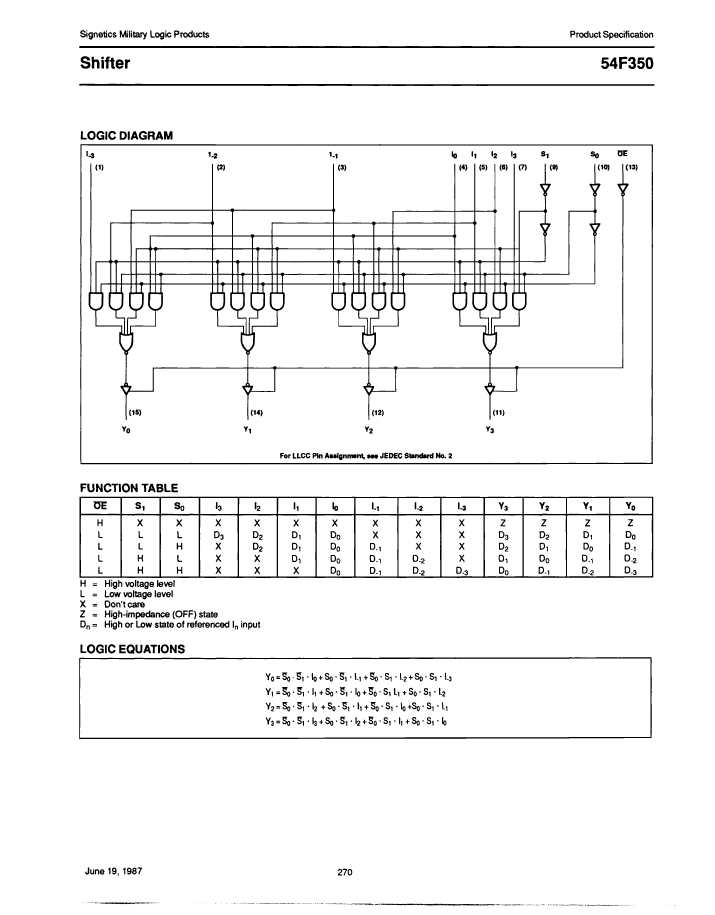

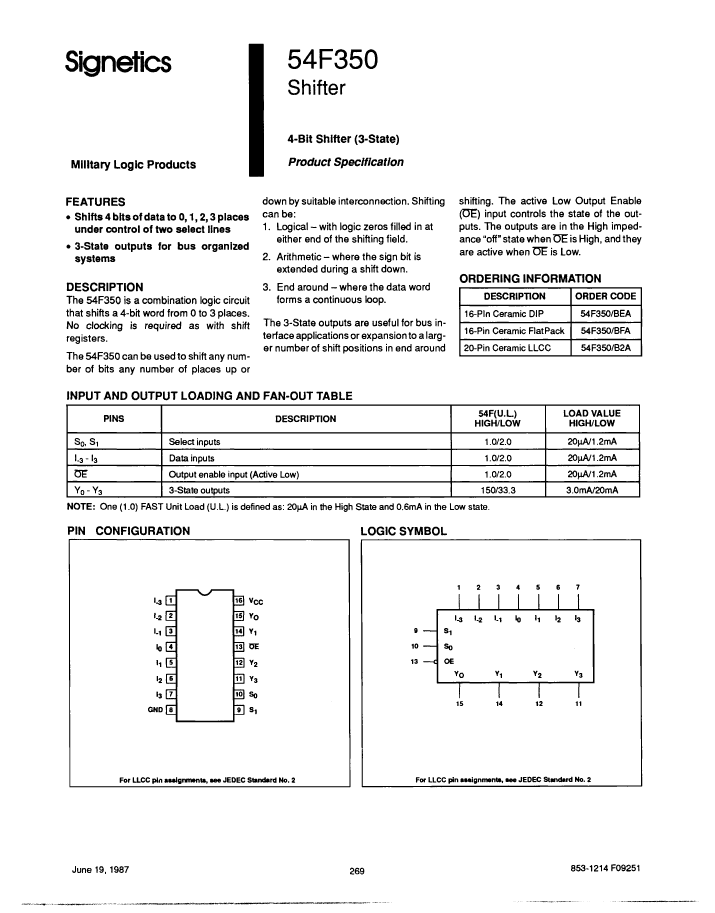

54F350/BEA Overview

Shifter, F/FAST Series, 4-Bit, TTL, CDIP16,

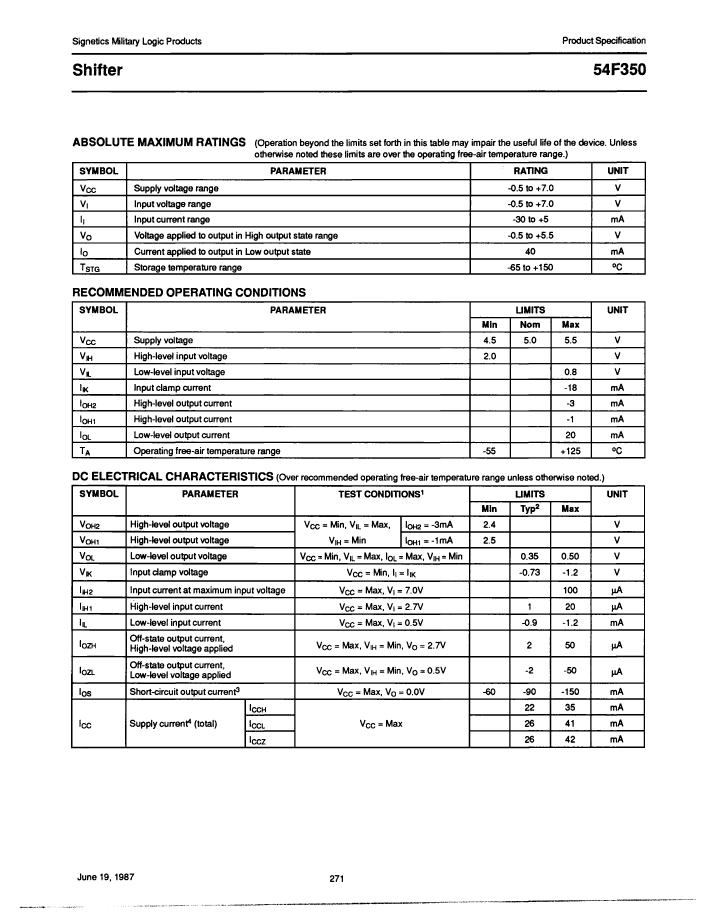

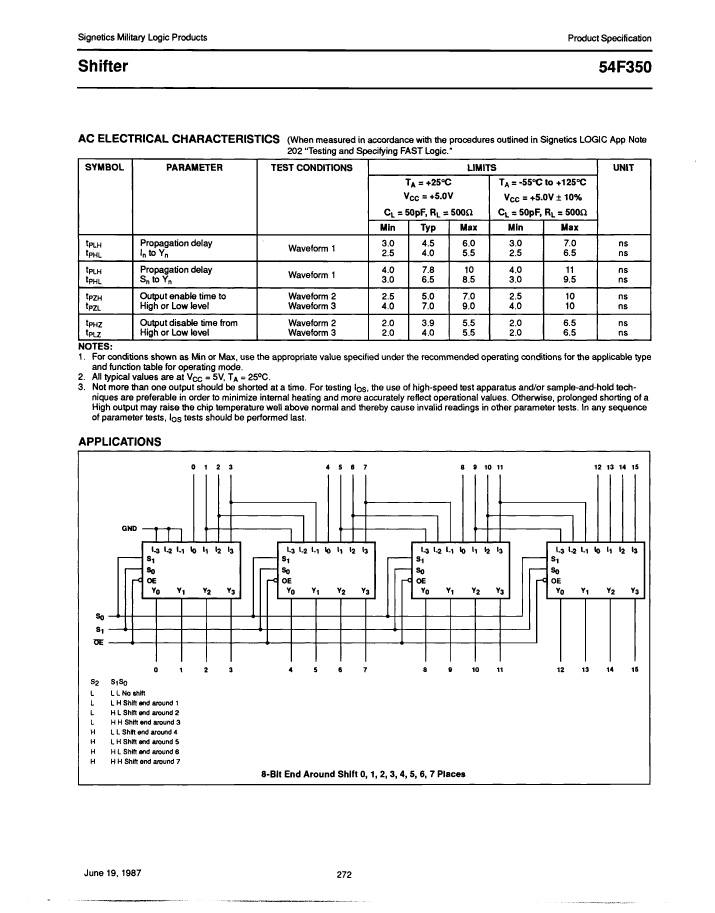

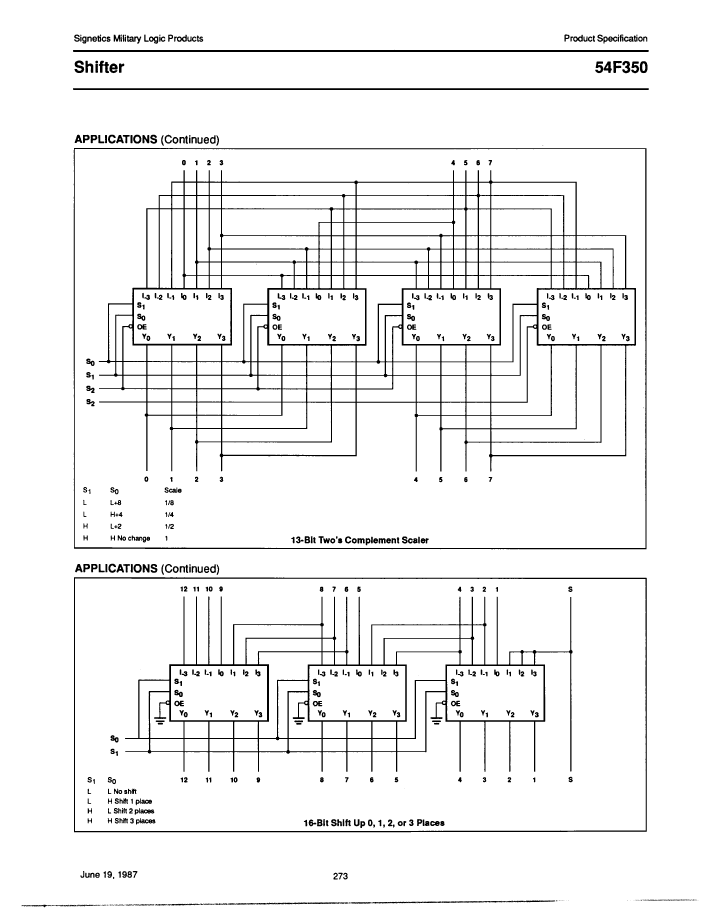

54F350/BEA Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknow
Other featuresWITH BARREL SHIFTING
seriesF/FAST
JESD-30 codeR-CDIP-T16
Load capacitance (CL)50 pF
Logic integrated circuit typeSHIFTER
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formIN-LINE
Maximum supply current (ICC)41 mA
propagation delay (tpd)6.5 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1

54F350/BEA Related Products

54F350/BEA SIT9501AE-02P2-YY10-644.531250D 54F350/BFA
Description Shifter, F/FAST Series, 4-Bit, TTL, CDIP16, LVDS Output Clock Oscillator, 644.53125MHz Nom, PQFD, 6 PIN Shifter, F/FAST Series, 4-Bit, TTL, CDFP16,
Reach Compliance Code unknow unknown unknown
Other features WITH BARREL SHIFTING ENABLE/DISABLE FUNCTION WITH BARREL SHIFTING
Number of terminals 16 6 16
Maximum operating temperature 125 °C 105 °C 125 °C
Minimum operating temperature -55 °C -40 °C -55 °C
surface mount NO YES YES
series F/FAST - F/FAST
JESD-30 code R-CDIP-T16 - R-CDFP-F16
Load capacitance (CL) 50 pF - 50 pF
Logic integrated circuit type SHIFTER - SHIFTER
Number of digits 4 - 4
Number of functions 1 - 1
Output characteristics 3-STATE - 3-STATE
Package body material CERAMIC, METAL-SEALED COFIRED - CERAMIC, METAL-SEALED COFIRED
Package shape RECTANGULAR - RECTANGULAR
Package form IN-LINE - FLATPACK
Maximum supply current (ICC) 41 mA - 41 mA
propagation delay (tpd) 6.5 ns - 6.5 ns
Certification status Not Qualified - Not Qualified
Maximum supply voltage (Vsup) 5.5 V - 5.5 V
Minimum supply voltage (Vsup) 4.5 V - 4.5 V
Nominal supply voltage (Vsup) 5 V - 5 V
technology TTL - TTL
Temperature level MILITARY - MILITARY
Terminal form THROUGH-HOLE - FLAT
Terminal location DUAL - DUAL
Base Number Matches 1 - 1
