DATA SHEET
PHOTOCOUPLER
PS2501-1,-2,-4, PS2501L-1,-2,-4
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
−NEPOC
TM
Series−
DESCRIPTION
The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode
and an NPN silicon phototransistor.
The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type
(Gull-wing) for surface mount.
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High-speed switching (t
r
= 3
µ
s TYP., t
f
= 5
µ
s TYP.)
• Ordering number of taping product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4
• UL approved: File No. E72422 (S)
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
The information in this document is subject to change without notice.
Document No. P10025EJ7V0DS00 (7th edition)
Date Published April 1998 NS CP(K)
Printed in Japan
The mark
•
shows major revised points.
©
1988
PS2501-1,-2,-4,PS2501L-1,-2,-4

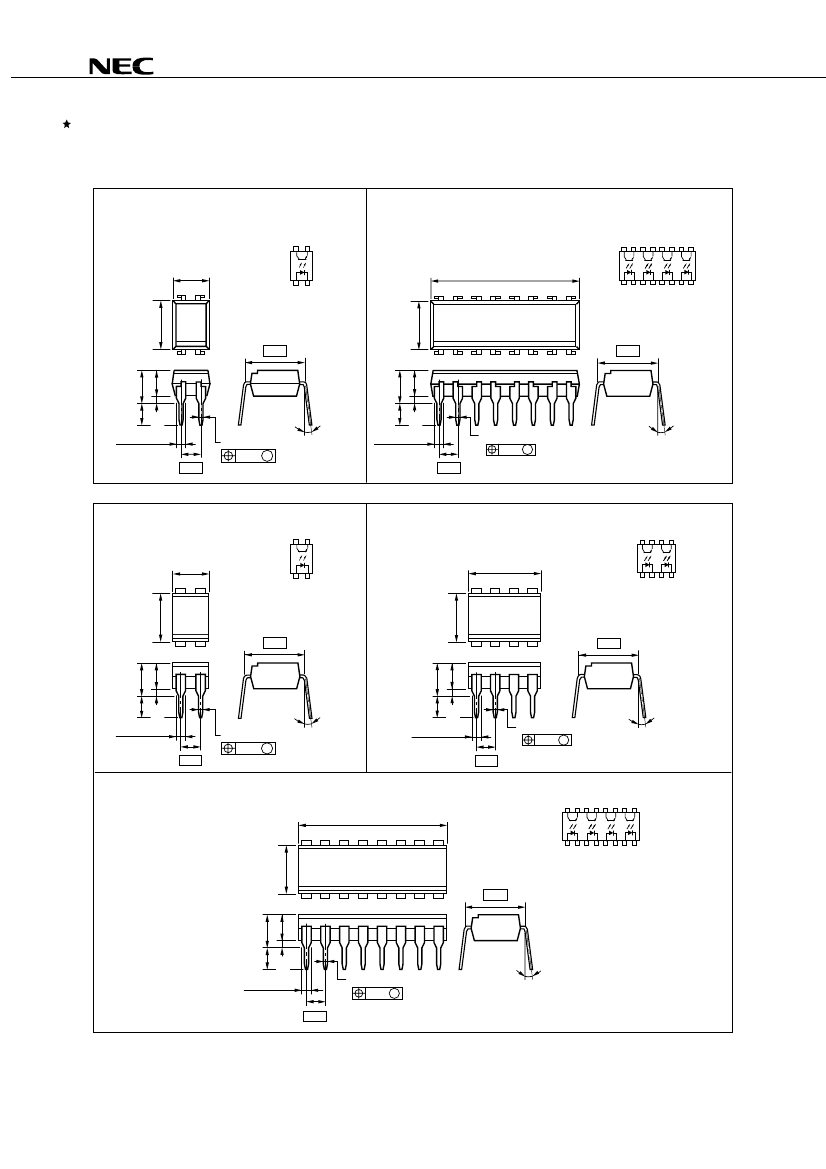

PACKAGE DIMENSIONS (in millimeters)
DIP Type
PS2501-1 (New Package)
TOP VIEW
4 3
PS2501-4 (New Package)
TOP VIEW
16 15 14 13 1211 10 9
4.6 ± 0.35
1 2
1. Anode
2. Cathode
3. Emitter
4. Collector
20.3 MAX.
1 2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9,11,13,15. Emitter
10,12,14,16. Collector
6.5
7.62
6.5
7.62
3.8
MAX.
2.8 4.55
MIN. MAX.
2.8 4.55
MIN. MAX.
0.65
0.65
3.8
MAX.
1.25±0.15
2.54
0.50 ± 0.10
0.25
M
0 to 15˚
1.25±0.15
2.54
0.50 ± 0.10
0.25
M
0 to 15˚
PS2501-1
TOP VIEW
4 3
PS2501-2
10.2 MAX.
TOP VIEW
8 7 6 5
5.1 MAX.
1 2
1. Anode
2. Cathode
3. Emitter
4. Collector
1 2 3 4
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
6.5
7.62
6.5
7.62
3.8
MAX.
2.8 4.55
MIN. MAX.
2.8 4.55
MIN. MAX.
0.65
0.65
3.8
MAX.
1.25±0.15
2.54
0.50 ± 0.10
0.25
M
0 to 15˚
1.25±0.15
2.54
0.50 ± 0.10
0.25
M
0 to 15˚
PS2501-4
20.3 MAX.
TOP VIEW
16 15 14 13 12 11 10 9
7.62
1 2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9,11,13,15. Emitter
10,12,14,16. Collector
2.8 4.55
MIN. MAX.
0.65
3.8
MAX.
6.5
1.25±0.15
2.54
0.50 ± 0.10
0.25
M
0 to 15˚
Caution New package 1-ch, 4-ch only
2

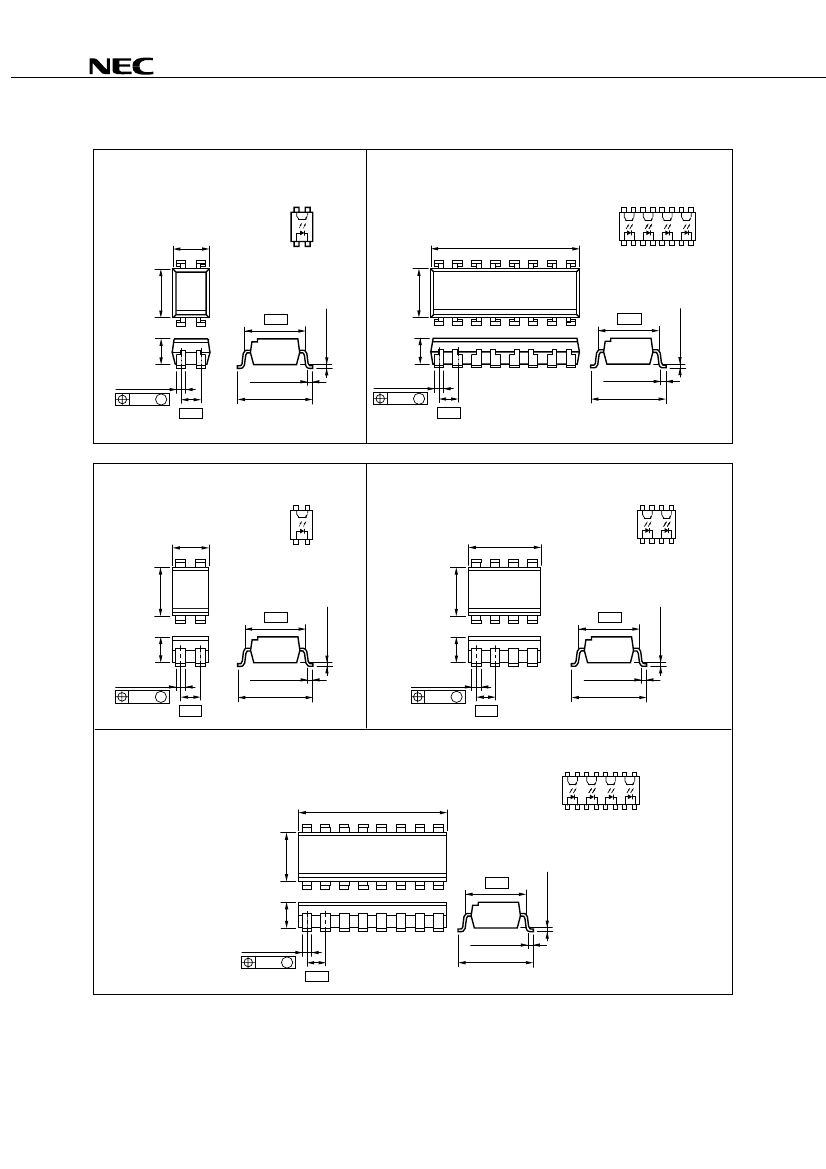

PS2501-1,-2,-4,PS2501L-1,-2,-4
Lead Bending Type
PS2501L-1 (New Package)
TOP VIEW
4 3
PS2501L-4 (New Package)
TOP VIEW
16 15 14 13 1211 10 9
4.6 ± 0.35
1 2
1. Anode
2. Cathode
3. Emitter
4. Collector
20.3 MAX.
1 2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9,11,13,15. Emitter
10,12,14,16. Collector
6.5
6.5
0.05 to 0.2
7.62
3.8
MAX.
7.62
3.8
MAX.
1.25±0.15
0.25
M
2.54
0.90 ± 0.25
9.60 ± 0.4
1.25±0.15
0.25
M
2.54
0.90 ± 0.25
9.60 ± 0.4
PS2501L-1
TOP VIEW
4 3
PS2501L-2
TOP VIEW
8 7 6 5
5.1 MAX.
1 2
1. Anode
2. Cathode
3. Emitter
4. Collector
10.2 MAX.
1 2 3 4
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
6.5
6.5
0.05 to 0.2
7.62
3.8
MAX.
7.62
3.8
MAX.
1.25±0.15
0.25
M
2.54
0.90 ± 0.25
9.60 ± 0.4
1.25±0.15
0.25
M
2.54
0.90 ± 0.25
9.60 ± 0.4
PS2501L-4
TOP VIEW
16 15 14 13 12 11 10 9
20.3 MAX.
1 2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9,11,13,15. Emitter
10,12,14,16. Collector
6.5
7.62
3.8
MAX.
1.25±0.15
0.25
M
2.54
0.90 ± 0.25
9.60 ± 0.4
Caution New package 1-ch, 4-ch only
0.05 to 0.2
0.05 to 0.2
0.05 to 0.2
3
PS2501-1,-2,-4,PS2501L-1,-2,-4
ABSOLUTE MAXIMUM RATINGS (T
A
= 25
°
C, unless otherwise specified)
Ratings
Parameter
Symbol
PS2501-1,
PS2501L-1
6
80
1.5
150
1
80
7
50
1.5
150
5 000
−55
to +100
−55
to +150
1.2
120
1.2
120
PS2501-2,-4
PS2501L-2,-4
Unit
Diode
Reverse Voltage
Forward Current (DC)
Power Dissipation Derating
Power Dissipation
Peak Forward Current
*1
V
R
I
F
V
mA
mW/°C
mW/ch
A
V
V
mA/ch
mW/°C
mW/ch
Vr.m.s.
°C
°C
∆
P
D
/°C
P
D
I
FP
V
CEO
V
ECO
I
C
Transistor
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Derating
Power Dissipation
∆
P
C
/°C
P
C
BV
T
A
T
stg
Isolation Voltage
*2
Operating Ambient Temperature
Storage Temperature
*1
PW = 100
µ
s, Duty Cycle = 1 %
*2
AC voltage for 1 minute at T
A
= 25
°C,
RH = 60 % between input and output
4
PS2501-1,-2,-4,PS2501L-1,-2,-4
ELECTRICAL CHARACTERISTICS (T
A
= 25
°
C)
Parameter
Diode
Forward Voltage
Reverse Current
Terminal Capacitance
Transistor
Collector to Emitter Dark
Current
Current Transfer Ratio
*1
(I
C
/I
F
)
Collector Saturation
Voltage
Isolation Resistance
Isolation Capacitance
Rise Time
Fall Time
*2
Symbol
V
F
I
R
C
t
I
CEO
I
F
= 10 mA
V
R
= 5 V
Conditions
MIN.
TYP.
1.17
MAX.
1.4
5
Unit
V
µ
A
pF
V = 0 V, f = 1.0 MHz
V
CE
= 80 V, I
F
= 0 mA
50
100
nA
Coupled
CTR
I
F
= 5 mA, V
CE
= 5 V
80
300
600
%
V
CE (sat)
I
F
= 10 mA, I
C
= 2 mA
0.3
V
Ω
R
I-O
C
I-O
t
r
t
f
V
I-O
= 1.0 kV
DC
V = 0 V, f = 1.0 MHz
V
CC
= 10 V, I
C
= 2 mA, R
L
= 100
Ω
10
11
0.5
3
5
pF
µ
s
*2
*1
CTR rank ( * : only PS2501-1, PS2501L-1)
K* :
L* :
M* :
D* :
H* :
W* :
Q* :
N :
300 to 600 (%)
200 to 400 (%)
80 to 240 (%)
100 to 300 (%)
80 to 160 (%)
130 to 260 (%)
100 to 200 (%)
80 to 600 (%)
*2
Test circuit for switching time
I
F
Pulse Input
V
CC
PW = 100
µ
s
Duty Cycle = 1/10
V
OUT
R
L
= 100
Ω
50
Ω
5
