Preliminary
LGA Packaged Phase Shifter
for PCS Base Stations
PS196-315
Features
■
Designed for PCS 1960 ± 30 MHz Band
■
100 Degree Phase Shift Range
■
1.5 Degree Phase Deviation
■
0.3 dB Insertion Loss Deviation
■
0–12 V Control Voltage Range
■
Specified 33 dBm IP3
■
Small Footprint LGA Package
Description

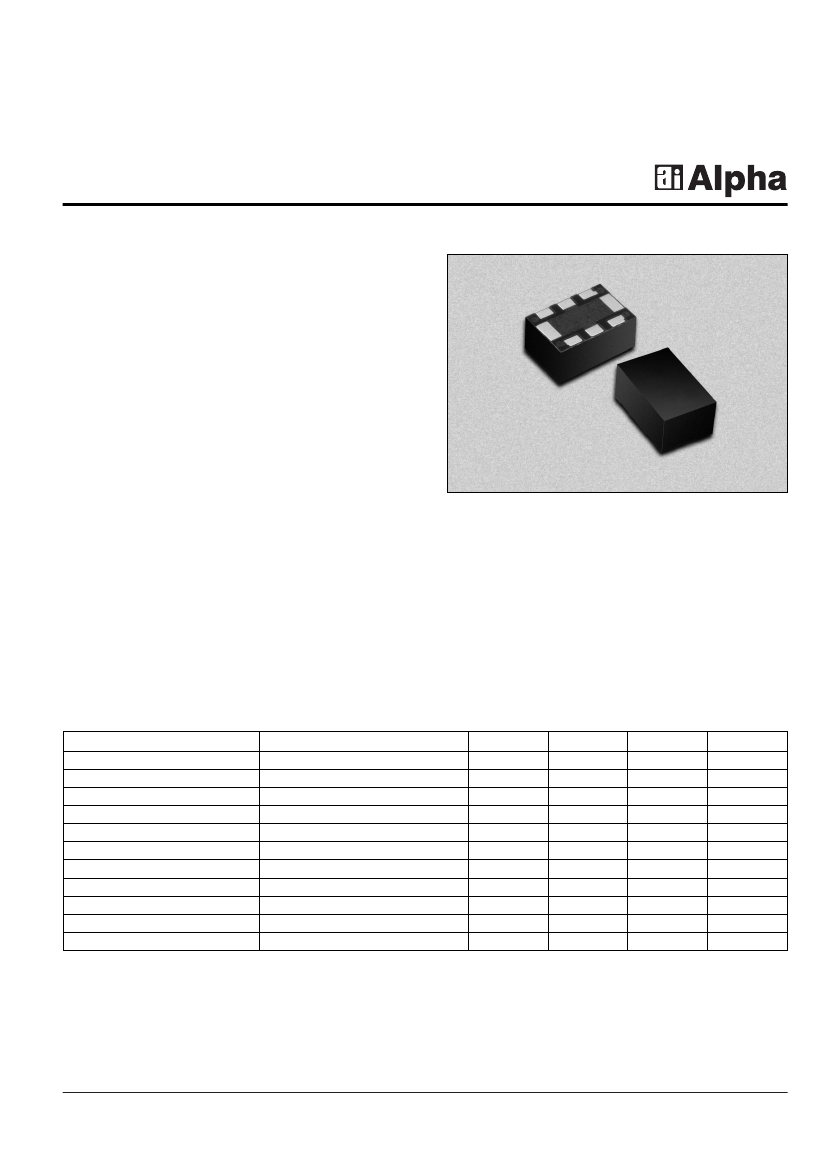

The PS196-315 is a voltage controlled phase shifter
specifically designed for use in power amplifier distortion
compensation circuits centered at 1960 MHz in PCS band
base stations. Its characteristics are specified in a 60 MHz
bandwidth. The PS196-315 employs a monolithic
quadrature hybrid and a pair of selected silicon varactor
diodes to achieve 100-degree phase shift and low insertion
loss. The PS196-315 is packaged in the small outline LGA
(Land Grid Array) surface mount package with the internal
elements affixed to an organic BT substrate.
Electrical Specifications at 25°C
Parameter
Frequency Range (BW)
Phase Shift
Phase Deviation in BW
Control Voltage (C
V
) Range
Control Current
Insertion Loss in BW
I.L. Deviation in BW
I.L. Variation
VSWR in BW
IM3
IP3
P
IN
= 8 dBm, 1900/1905 MHz, C
V
= 0 V
Derived from IM3
33
C
V
= 12 V
(C
V
= 0 V)
C
V
= 0–12 V
At F
O
, C
V
= 0–12 V
F
O
= 1946
At F
O
, C
V
= 12 V
C
V
= 0–12 V
0
Condition
Min.
1916
100
1.5
2.0
12
1
2.3
0.3
0.75
1.8
-50
dBc
dBm
Typ.
Max.
1976
Unit
MHz
Deg.
Deg.
V
µA
dB
dB
dB
Alpha Industries, Inc.
[978] 241-7000
•
Fax
[978] 241-7906
•
Email
sales@alphaind.com
•
www.alphaind.com
Specifications subject to change without notice. 1/02A
1
LGA Packaged Phase Shifter for PCS Base Stations
PS196-315
Typical Performance Data
-1.5
-1.6
-1.7
0.5
0.4
0.3
12 V
8V
0V
4V
Flatness (dB)
-1.8
0.2
0.1
0
-0.1
-0.2
-0.3
-0.4
-0.5
Loss (dB)
-1.9
-2.0
-2.1
-2.2
-2.3
-2.4
-2.5
1.93
1.94
1.95
1.96
1.97
1.98
1.99
0
2
4
6
8
10
12
Frequency (GHz)
Control Voltage (V)
Insertion Loss vs.
Frequency and Control Voltage
0
-10
12 V
8V
4V
0V
Insertion Loss Flatness vs. Control Voltage
120
100
12 V
8V
Return Loss (dB)
Phase (Degrees)
-20
-30
-40
-50
-60
1.93
80
60
40
4V
20
0
1.93
0V
1.94
1.95
1.96
1.97
1.98
1.99
1.94
1.95
1.96
1.97
1.98
1.99
Frequency (GHz)
Frequency (GHz)
Input/Output Return Loss vs.
Frequency and Control Voltage
2.5
2.0
1.5
1.0
0.5
0
-0.5
-1.0
-1.5
-2.0
-2.5
0
2
4
6
8
10
12
Phase vs. Frequency and Control Voltage
50
48
46
Intermod (dBm)
Flatness (dB)
44
42
40
38
36
34
32
30
0
2
4
6
8
10
12
Control Voltage (V)
Control Voltage (V)
Phase Flatness vs. Control Voltage
3rd Order Intermod vs. Control Voltage
RF
1
= 1.900 GHz, RF
2
= 1.905 GHz @ 8 dBm
2
Alpha Industries, Inc.
[978] 241-7000
•
Fax
[978] 241-7906
•
Email
sales@alphaind.com
•
www.alphaind.com
Specifications subject to change without notice. 1/02A
LGA Packaged Phase Shifter for PCS Base Stations
PS196-315
Pin Out (Bottom View)
Vcontrol
Vcontrol
GND
Connection Diagram
RF IN/OUT
Vcontrol
10 pF
C
1
GND B
1
A
1
IN/OUT
C
2
C
3
B
3
GND
A
3
IN/OUT
RF IN/OUT
Vcontrol
CONTROL
CURRENT
PS196
A
2
GND
10 pF
Terminal No.
A
1
A
2
A
3
B
1
B
3
C
1
C
2
C
3
Terminal Name
IN/OUT
GND
IN/OUT
GND
GND
Vcontrol
GND
0.000
0.027 (0.68 mm)
0.058 (1.48 mm)
0.081 (2.05 mm)
0.112 (2.85 mm)
0.135 (3.42 mm)
0.166 (4.22 mm)
0.193 (4.90 mm)
0.126
B
(3.20 mm)
1
0.193 (4.90 mm)
A
1
-315
0.091 (2.32 mm)
Vcontrol
0.079 (2 mm)
ENCAP
0.014 (0.36 mm)
SUBSTRATE
Absolute Maximum Ratings
Characteristic
RF Input Power
Control Voltage
Operating Temperature
Storage Temperature
Value
0.000
20 dBm
15 V
-40 to +85°C
-40 to +85°C
C
1
B
1
A
1
C
2
C
3
B
3
0.037 (1.00 mm)
0.047 (1.20 mm)
0.079 (2.00 mm)
0.024 (0.60 mm)
A
2
A
3
0.031
(0.775 mm) 0.054 (1.370 mm)
Alpha Industries, Inc.
[978] 241-7000
•
Fax
[978] 241-7906
•
Email
sales@alphaind.com
•
www.alphaind.com
Specifications subject to change without notice. 1/02A
3
