ZWD100PAF0524/TA datasheet, PDF

Datasheet> All Categories > semiconductor> Power management> ZWD100PAF0524/TA

ZWD100PAF0524/TA: DescriptionAC/DC converter 5V 24v 100w; Categorysemiconductor Power management; File Size137KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

ZWD100PAF0524/TA Overview

AC/DC converter 5V 24v 100w

ZWD100PAF0524/TA Parametric

Parameter Name	Attribute value
Datasheets
ZWD-PAF Series
Standard Package	1
Category	Power Supplies - External/Internal (Off-Board)
Family	AC DC Converters
Type	Enclosed
Number of Outputs	2
Voltage - Inpu	85 ~ 265 VAC
Voltage - Output 1	5V
Voltage - Output 2	24V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	5A, 4A
Power (Watts)	100W
Applications	ITE (Commercial)
Voltage - Isolati	3kV (3000V)
Efficiency	79%
Operating Temperature	-10°C ~ 70°C
Features	Adjustable Output, Remote On/Off, Universal Inpu
Mounting Type	Chassis Mou
Size / Dimensi	8.74" L x 2.95" W x 1.38" H (222.0mm x 75.0mm x 35.0mm)
Minimum Load Required	-
Approvals	CE
Power (Watts) - Max	121W

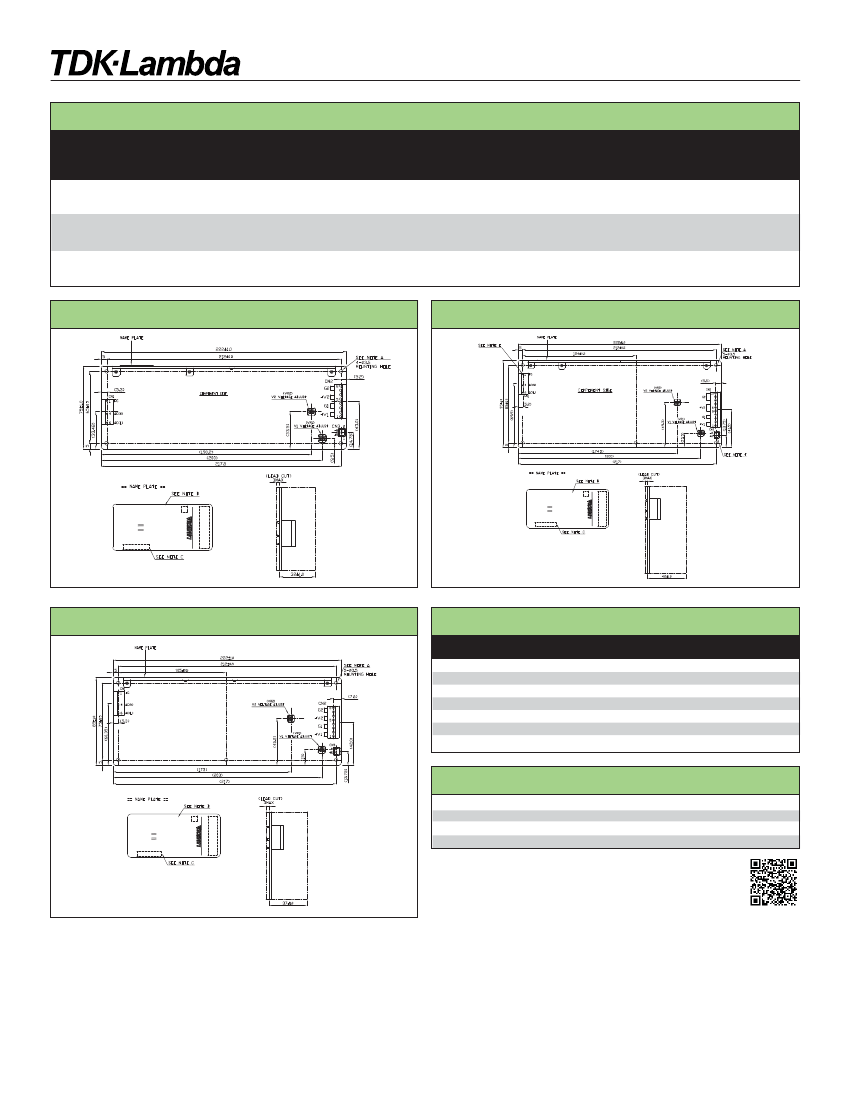

Preview

Download Datasheet

View All

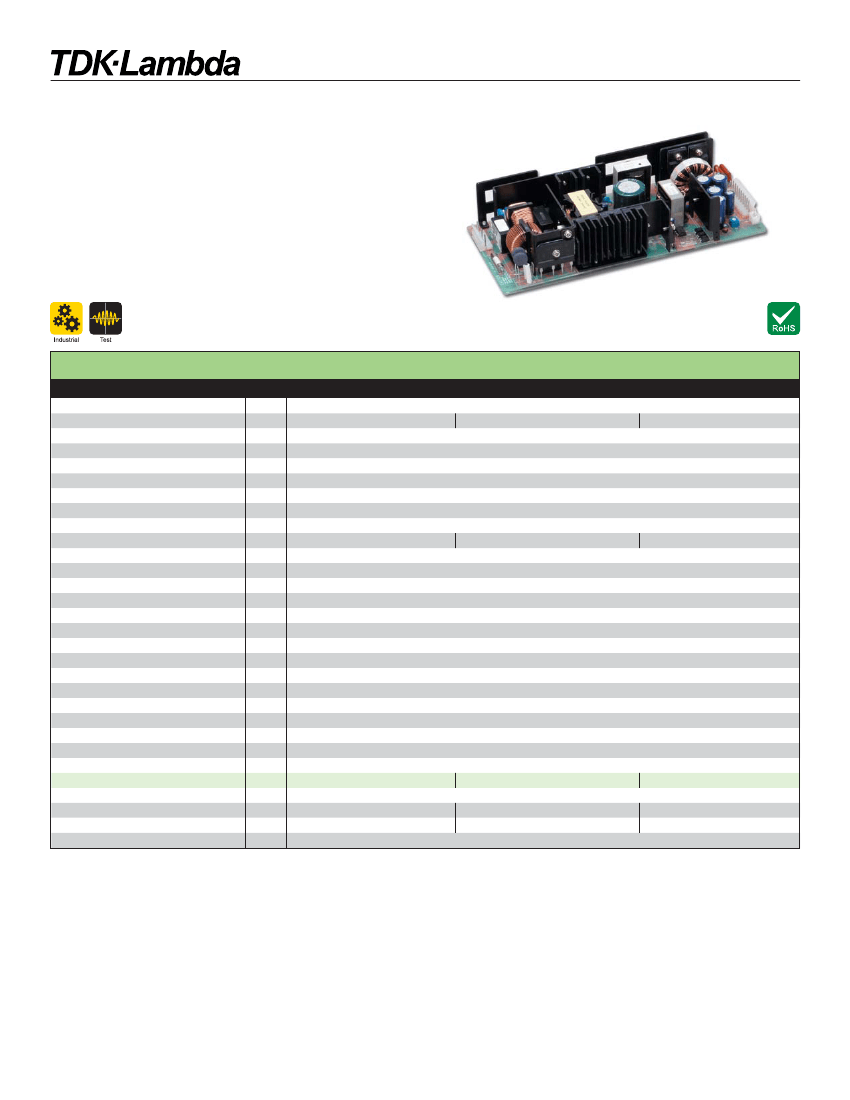

ZWD-PAF Series

100W to 440W Dual Output Power Supplies

Features



Universal Input (85 - 265VAC)



Power factor Corrected



200% Peak Power capability on 24V output



Individual output adjustment



2 year warranty



Input Transient Protected

Key Market Segments & Applications

Speciﬁcations

Model

Input Input Voltage

Input Current (1)

Inrush Current (1)(2)

Power Factor

Leakage Current

Temperature Coefﬁcient

Overcurrent Protection (3)

Overvoltage Protection (4)

Hold Up Time (Typ) (1)

Efﬁciency (2)

Remote On/Off

Line Regulation

Load Regulation

Ripple & Noise

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Approvals

Conducted & Radiated EMI

Recommended EMI Filter

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

yrs

ZWD150PAF-0524

ZWD225PAF-0524

85-265VAC (47-63Hz), 120-370VDC

1.3 / 0.65

1.9 / 0.97

2.81 / 1.43

15 / 30

0.99 at 100VAC, 0.95 at 200VAC, Meets EN61000-3-2

0.75mA max

<0.02%/°C

5V output: >105%, 24V output: >205%

120 - 145%

5V output: 40ms, 24V output: 20ms

79 / 81

80 / 82

81 / 83

On 24V output only, remove jumper to shutdown

5V output: 20mV, 24V output: 96mV

5V output: 40mV, 24V output: 150mV

5V output: 120mV, 24V output: 100W, 150mV; 150/225W, 240mV

(Open frame or L bracket) -10°C to +70°C, derate linearly to 0% load from 50°C to 70°C

(With /A cover option) -10°C to +60°C, derate linearly to 0% load from 40°C to 60°C

-30 to +85°C

Operating: 20 - 90%RH, Non-operating: 10 - 95% RH

Convection cooled

I/P to Gnd 2kVAC (20mA), I/P to O/P 3kVAC (20mA), O/P to Gnd 500VAC (100mA) for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178, CE Mark

EN55022-B, FCC Class B, VCCI-B

RSEL-2002W

RSEL-2003W

RSEL-2006W

EN61000-4-2, -3, -4, -5, -6, -8, -11

460 (780 with cover)

530 (885 with cover)

670 (1065 with cover)

2.95 x 8.74 x 1.38

3.35 x 8.74 x 1.57

3.74 x 8.74 x 1.77

Two Years

ZWD100PAF-0524

Notes: See installation manual for full speciﬁcation.

(1) 100/200VAC

(2) 25°C ambient (cold start)

(3) Avoid prolonged operation in overload

(4) OVP on 24V output will shutdown 24V output only

1-800-526-2324 • www.us.tdk-lambda.com/lp/
