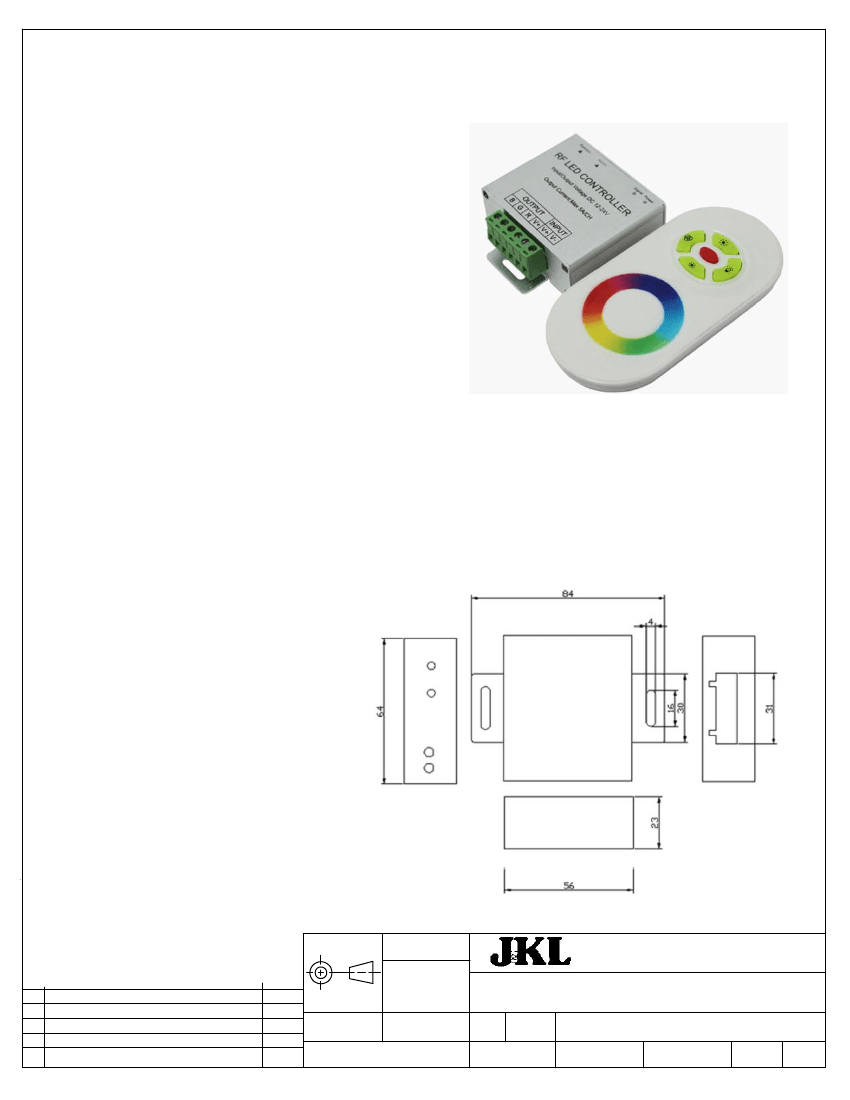

FIVE KEY LED CONTROLLER
TECHNICAL
PARAMETERS
Touch Remote Control
Working Temperature: -20-60℃
Power Supply Mode: AAA * 3
Supply Voltage: 1.5V * 3
Transmission Frequency: 433.92 Mhz
Standby Power Consumption: 0.015mW
Standby Current: 3uA
Working Current: 200uA
Emission Current: 10mA
Remote Distance: about 30m
Standby Time: 6 months
Remote Control Weight: 85g
Controller
Working Temperature: -20-60℃
Supply Voltage: DC12V-24V
Output: 3 channels
Connection Mode: common anode
External Dimension: L84
Χ
W64
Χ
H23mm
Packing Size: L200
Χ
W146
Χ
H36mm
Net Weight: 78g
Gross Weight: 200g
Static Power Consumption: <1W
Output Current: <5A (each channel)
Output Power: 12V:<180W, 24V:<360W
External Dimension (mm)
Dimensions are for reference only
JKL PART NO.: ZCTR-06
METRIC
THIRD ANGLE
PROJECTION
DRAWN BY
DIMENSIONS ARE
IN mm (INCHES)
TOLERANCE UNLESS
OTHERWISE SPECIFIED
COMPONENTS CORPORATION
TITLE
1 PL +/-
2 PL +/-
ANGLE +/-
APPV'D BY
REF.
LED RGB REMOTE CONTROLLER
SIZE
SCALE
DATE
RELEASE
REV.
NO.
DESCRIPTION/ECO
NUMBER
8/31/14
APPV'D
DATE
L. WENGSTROM
L.R.
8/31/14
MANUAL REVISIONS NOT PERMITTED
- CAD DRAWING -
A
55335
NONE
FSCM NO.
DRAWING
NO.
RELEASED
DATE
ZCTR-06
REVISION
DATE
REV.
NO.
8/31/14
1
SHEET
OF
3

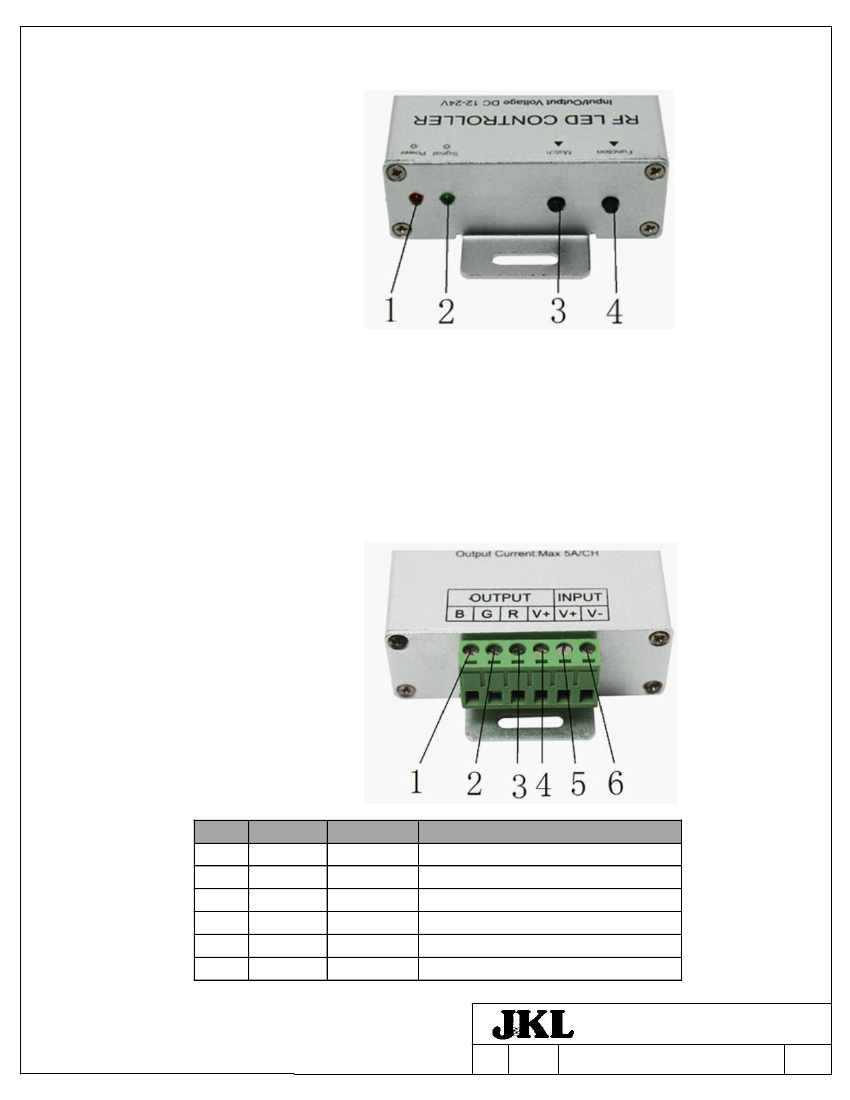

CONTROL DESCRIPTIONS
Button Indicator Descriptions
1. Power: power indicator, lights when connected with a external power supply.
2. Signal: RF signal indicator, it flashes when receiving correct remote control signal.
3. Match: match code and clear code key, clear code: hold the key power on, removes remote control address
code; no remote control will work. Match code: Press the key during work process, it executes match
code operation, after matching code, only the remote control with the same address code can be used.
4. Function: on/off and mode key, a long press of the button, can turn on/off the output of controller, short
press of the button, can switch the mode.
Terminals Descriptions
No.
1
2
3
4
5
6
Name
B
G
R
V+
V+
V-
Type
Output
Output
Output
Output
Input
Input
Description
Blue
Green
Red
Common terminal
The positive power supply
The negative power supply
COMPONENTS CORPORATION
SIZE
A
55335
FSCM NO.
DRAWING
NO.
ZCTR-06
2
OF
3
SHEET

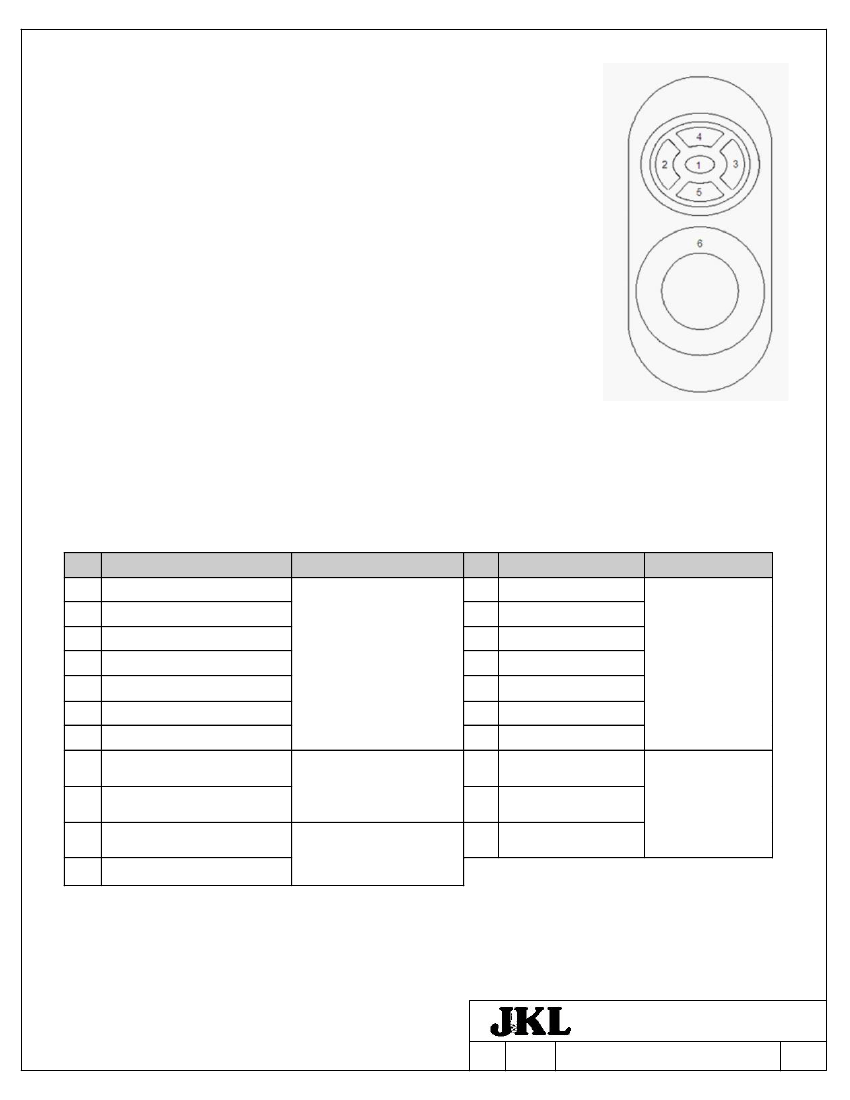

DIRECTION FOR USE OF REMOTE CONTROL
(1) On/Off Key: can turn on/off controller output in any state.
(2) Mode Key: is used for switching mode of controller.
(3) White Light Switch Key: it is used for switching white
light and full-color.
(4) Brightness/Speed Increase Key: you can adjust brightness
in static mode (25 levels), you can adjust speed in dynamic
mode (100 levels).
(5) Brightness/Speed Reduce Key: you can adjust brightness
in static mode (25 levels), you can adjust speed in dynamic
mode (100 levels).
(6) Color Ring, Static Mode Selection Key: up to 55 touch points.
It is used for selecting the color indicated by current color ring.
Battery Power Management: stop using the remote for more than 15-20s, the remote control will enter the
standby state, to extend the battery life. Color ring cannot be used at this time, slightly shake once, then
the remote will come back to the normal working state.
The standard change functions are as shown in the following table:
No
1
2
3
4
5
6
7
8
9
10
11
Patterns
Static Red
Static Green
Static Blue
Static Cyan
Static Purple
Static Yellow
Static White
Three-color jumpy changing
Seven-color jumpy changing
Three-color gradual changing
Seven-color gradual changing
Speed and Brightness are
Adjustable
Speed is Adjustable,
Brightness is Unadjustable
Brightness is Adjustable,
Speed is Unadjustable
Remarks
No
12
13
14
15
16
17
18
19
20
21
Patterns
Red stroboflash
Blue stroboflash
Purple stroboflash
Green stroboflash
Yellow stroboflash
Cyan stroboflash
White stroboflash
R/B crossfade
B/G crossfade
G/R crossfade
Speed is
Adjustable,
Brightness is
Unadjustable
Speed and
Brightness
are Adjustable
Remarks
COMPONENTS CORPORATION
SIZE
A
55335
FSCM NO.
DRAWING
NO.
ZCTR-06
3
OF
