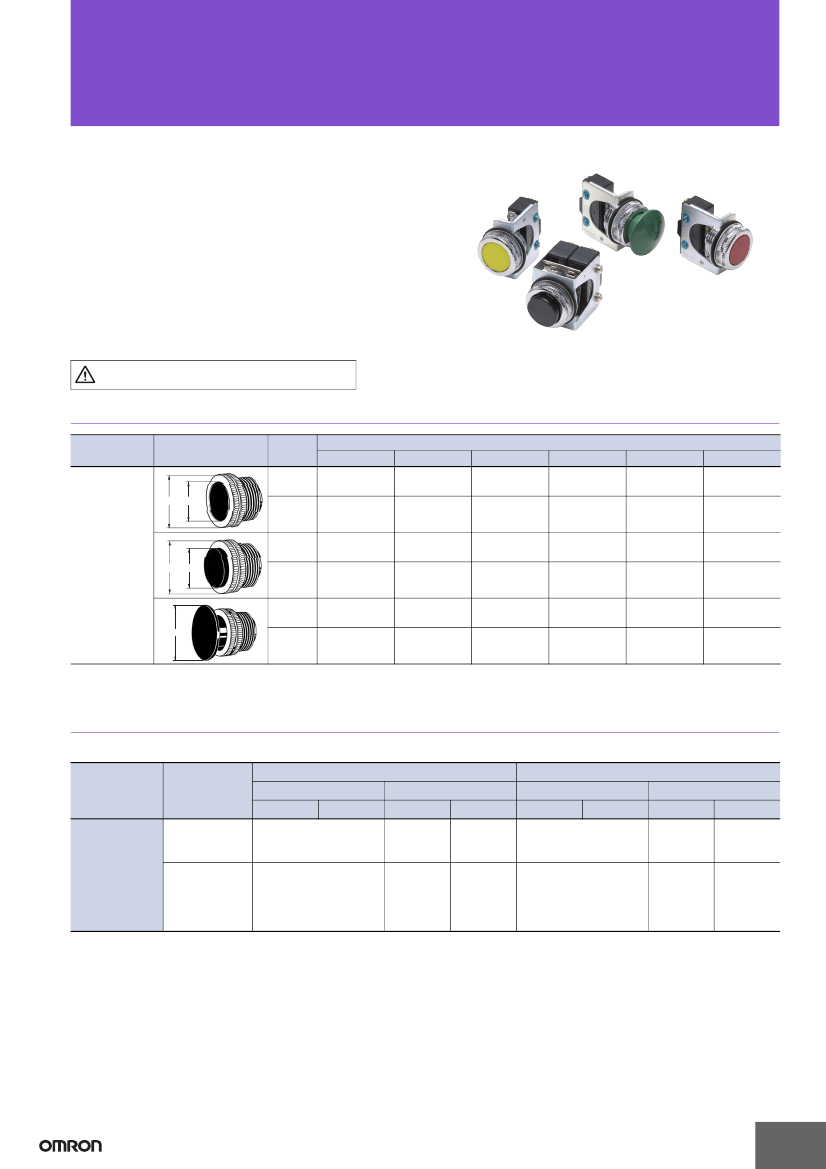

Pushbutton Switch (Cylindrical 30-dia.)
ZAP
CSM_ZAP_DS_E_2_1
Long Service Life with Built-in Z-series
Basic Switch
• Using a Basic Switch enables direct switching of large-capacity
loads
• Shock-absorbing construction of Operation Unit protects the Switch
• Drip-proof Pushbutton construction enables use in locations subject to
splashing water and oil and scattering dust.
• Pushbuttons are available in three shapes and six colors.
Refer to
Safety Precautions for All Pushbutton Switches
and Safety Precautions
on page 3.
Ordering Information
Classification
Shape of Operation
Unit
Output
1
36 dia. 25 dia.
Blue (-A)
ZAP-A
2ZAP-A
ZAP-1A
2ZAP-1A
ZAP-2A
2ZAP-2A
Black (-B)
ZAP-B
2ZAP-B
ZAP-1B
2ZAP-1B
ZAP-2B
2ZAP-2B
Operation Unit color
Green (-G)
Red (-R)
ZAP-G
2ZAP-G
ZAP-1G
2ZAP-1G
ZAP-2G
2ZAP-2G
ZAP-R
2ZAP-R
ZAP-1R
2ZAP-1R
ZAP-2R
2ZAP-2R
White (-W)
ZAP-W
2ZAP-W
ZAP-1W
2ZAP-1W
ZAP-2W
2ZAP-2W
Yellow (-Y)
ZAP-Y
2ZAP-Y
ZAP-1Y
2ZAP-1Y
ZAP-2Y
2ZAP-2Y
2
1
Momentary
operation
36 dia. 25 dia.
2
1
40 dia.
2
Note: Models with special specifications are available for use in environments with high humidity or outdoors.
Contact your OMRON representative for information.
Specifications
Ratings
Item
Rated voltage (V)
Built-in Switch
125 VAC
200 VAC
500 VAC
Z-15G5-B
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
NC
15
15
10
15
15
6
0.5
0.25
Non-inductive load (A)
Resistive load
NO
Lamp load
NC
3
2.5
1.5
3
3
3
0.5
0.25
NO
1.5
1.25
0.75
1.5
1.5
1.5
0.5
0.25
NC
15
15
6
15
10
5
0.05
0.03
Inductive load (A)
Inductive load
NO
Motor load
NC
15
3
1.5
5
5
5
0.05
0.03
NO
2.5
1.5
0.75
2.5
2.5
2.5
0.05
0.03
Note: 1.
2.
3.
4.
5.
The above values are for steady-state currents.
Inductive load: Power factor = 0.4 (AC); time constant = 7 ms (DC).
The lamp load has an inrush current of 10 times the steady-state current.
The motor load has an inrush current of 6 times the steady-state current.
Standard testing condition.
(1) Ambient temperature: 20
±2°C
(2) Ambient humidity: 65%
±5%RH
(3) Operating frequency: 20 times/min
1
ZAP
Specifications
Characteristics
Operat-
ing fre-
quency
Mechanical
Electrical
60 operations/min
20 operations/min
100 MΩ min. (at 500 VDC)
30 mΩ max. (initial value)
1,000 VAC, 50/60 Hz for 1 min
Operating Characteristics
Model
Operating characteristics
Operating force
OF
ZAP-@@
Approx. 9.81 N
2ZAP-@@
Approx. 14.7 N
Insulation resistance
Contact resistance
Between terminals of same
polarity
Contact Form
Name
Double-throw contacts
COM
NO
Contact form
NC
Dielectric
strength
Between current-carrying metal part
2,000 VAC, 50/60 Hz for
and ground, and between each termi-
1 minute
nal and non-current-carrying metal part
Malfunction
10 to 55 Hz, 1.5-mm double
amplitude (1 ms max.)
500 m/s
2
200 m/s
2
max. (1 ms max.)
1,000,000 operations min.
500,000 operations min.
Approx. 130 to 210 g
NC
NO
30 A max.
15 A max.
−25
to 80°C (with no icing or
condensation)
35% to 85%RH
−25
to 80°C (with no icing or
condensation)
IP65 (Operation Unit only)
Class II
175
3 (IEC947-5-1)
Vibra-
tion re-
sistance
Approved Safety Standards
•
The built-in Z-15G5-B Switch is approved for UL and CSA.
Shock re- Destruction
sistance Malfunction
Durabili-
ty
Weight
Inrush
current
Mechanical
Electrical
Ambient operating temperature
Ambient operating humidity
Ambient storage temperature
Degree of protection
Electric shock protection class
PTI (proof tracking index)
Pollution degree

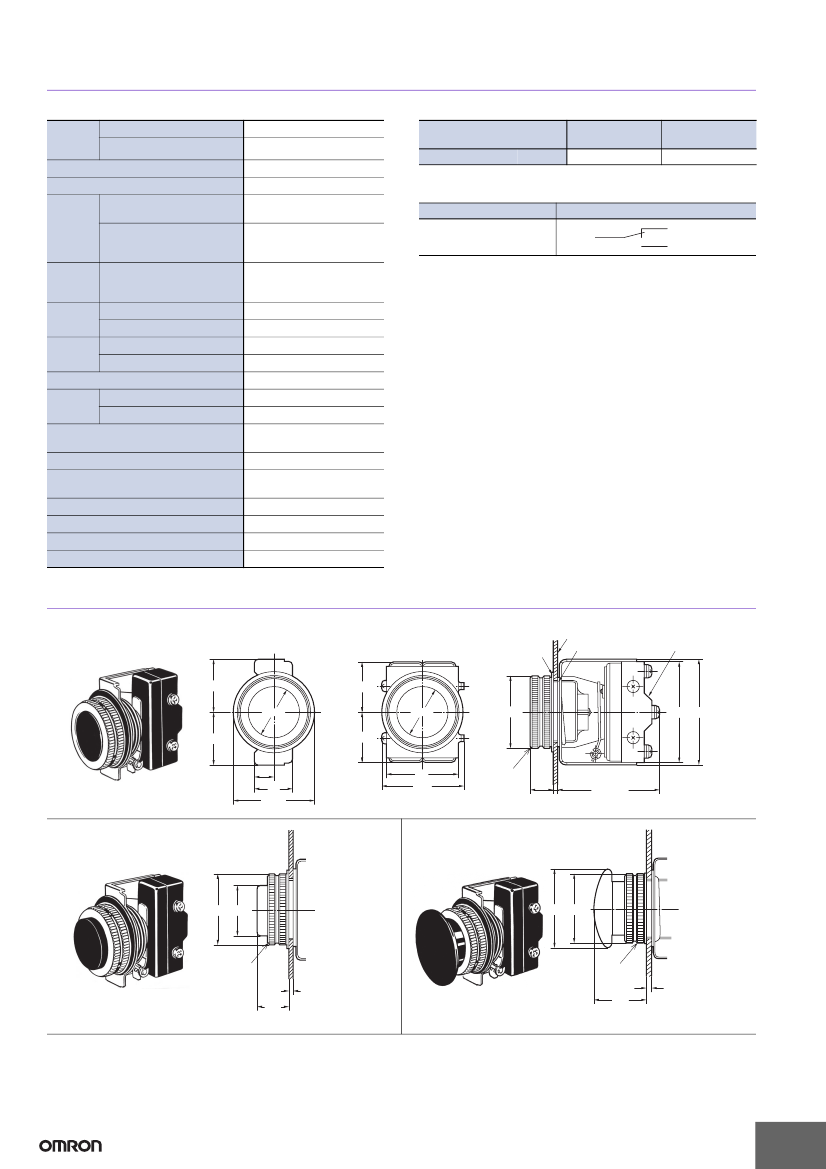

Dimensions
Insert one of the following letters into the box (@) at the end of the model number. Refer to Ordering Information for color symbols. (Unit: mm)
ZAP-@
2ZAP-@
26
ZAP-@
2ZAP-@
Washer
Mounting panel thickness:
1.6 to 6 mm
Z-15G5-B Basic Switch
Rubber packing
24.6
25 dia.
24.6
25 dia.
36 dia.
49.2
52
26
37
9.75
19
40 dia.
43.5
*
10.8 t
* Chromed plating
51.8 max.
ZAP-1@
2ZAP-1@
ZAP-2@
2ZAP-2@
36 dia. 25 dia.
40 dia. 36 dia.
*
t
15.8
* Chromed plating
Mounting panel thickness:
1.6 to 6 mm
*
t
27.6
* Chromed plating
Mounting panel thickness:
1.6 to 6 mm
2
