5962-8552511XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8552511XA

5962-8552511XA: DescriptionStandard SRAM, 8KX8, 70ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28; Categorystorage storage; File Size269KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8552511XA Overview

Standard SRAM, 8KX8, 70ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28

5962-8552511XA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	0.600 INCH, CERDIP-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
length	37.211 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum standby current	0.0008 A
Minimum standby current	2 V
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	15.24 mm
Base Number Matches	1

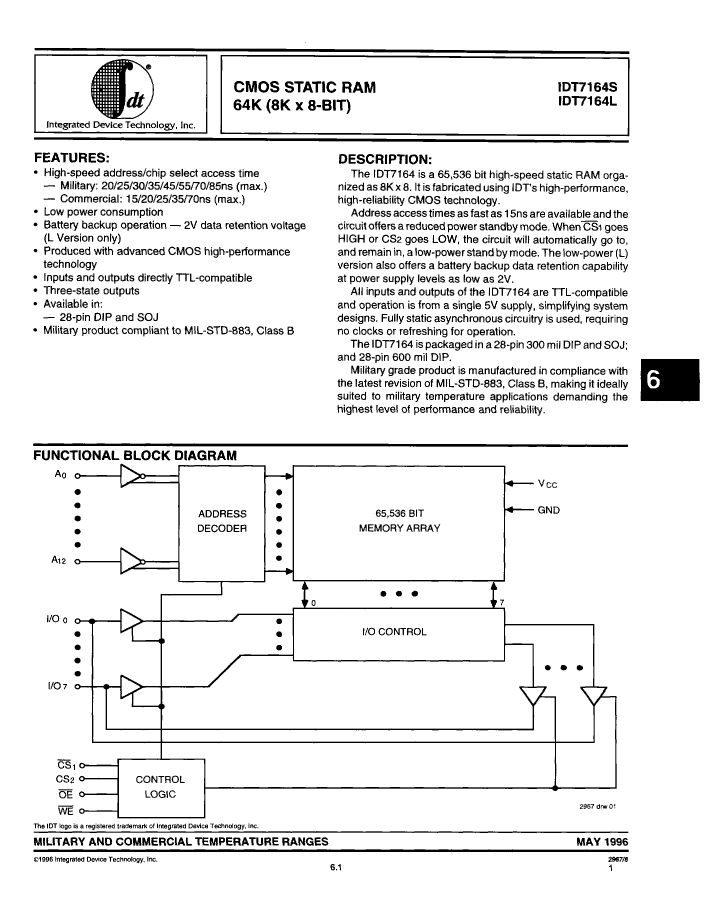

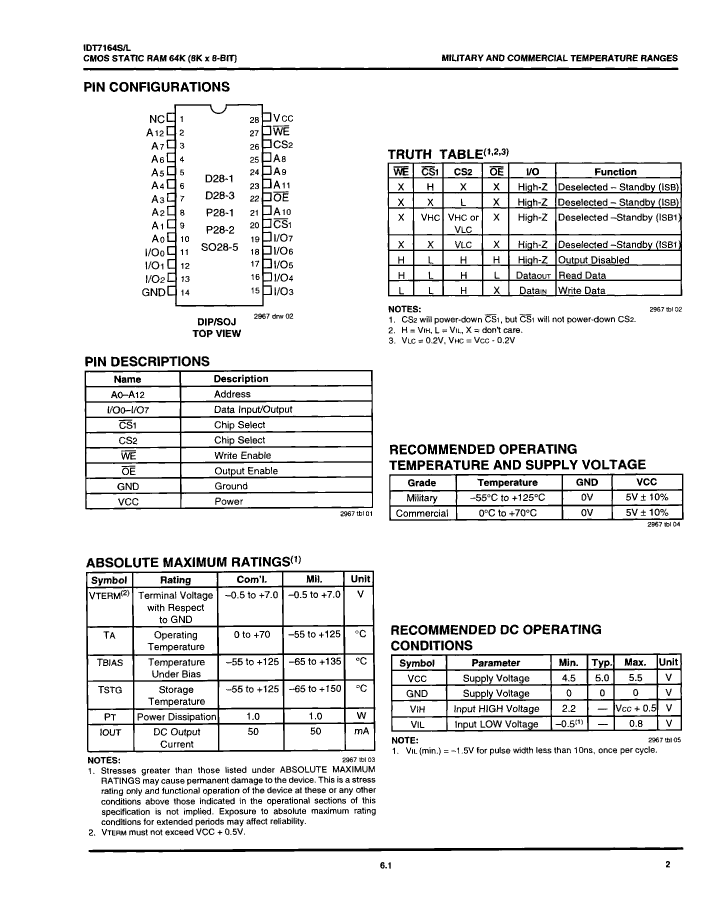

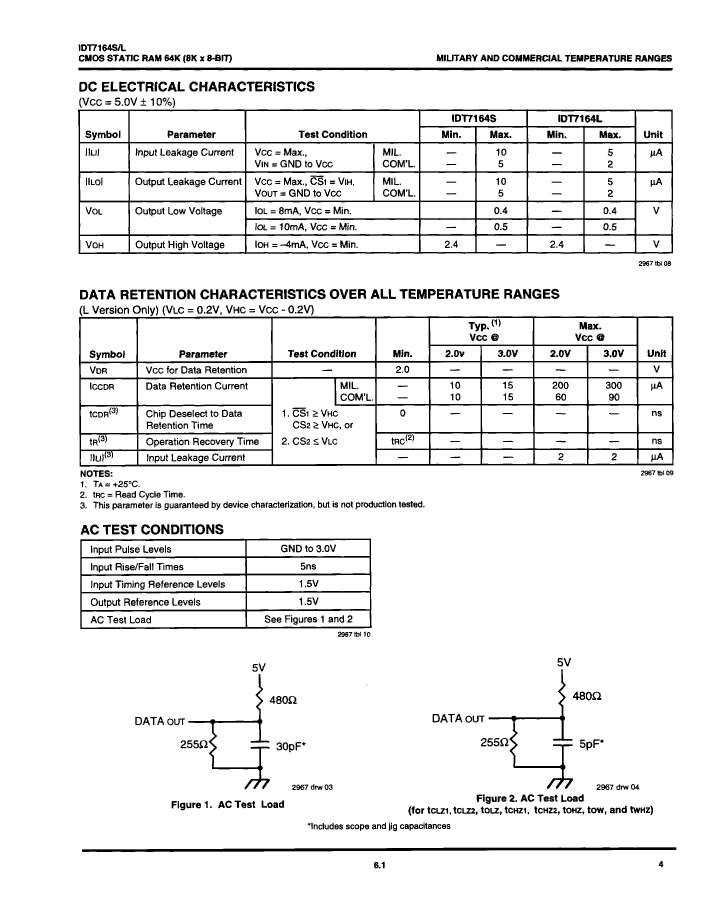

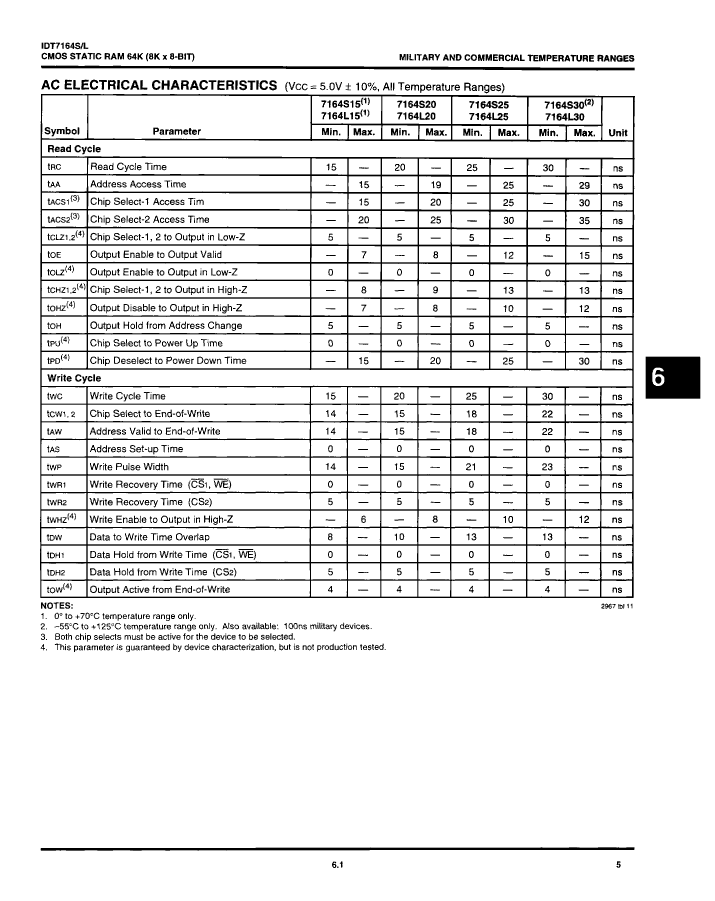

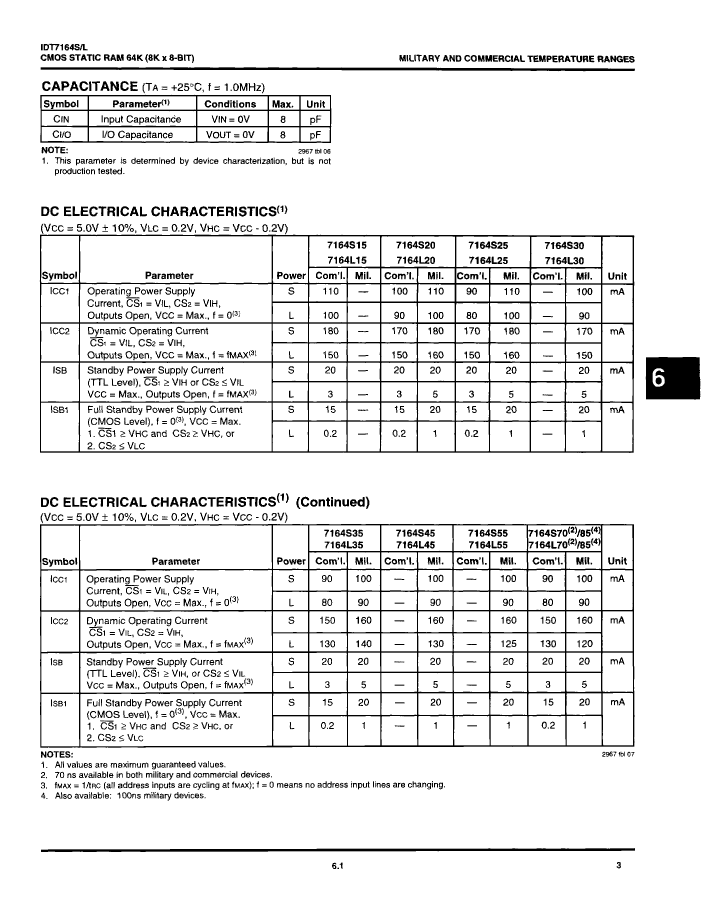

Preview

Download Datasheet

View All

5962-8552511XA Related Products

	5962-8552511XA	5962-8552507XA	5962-8552509XA	7164S35TPG	5962-8552510XA	5962-8552508XA	IDT7164L25TPG	7164L35Y
Description	Standard SRAM, 8KX8, 70ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28	Standard SRAM, 8KX8, 35ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28	Standard SRAM, 8KX8, 45ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28	Standard SRAM, 8KX8, 35ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 55ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28	Standard SRAM, 8KX8, 35ns, CMOS, CDIP28, 0.600 INCH, CERDIP-28	Standard SRAM, 8KX8, 25ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 35ns, CMOS, PDSO28, 0.300 INCH, SOJ-28
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	conform to	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	SOJ
package instruction	0.600 INCH, CERDIP-28	0.600 INCH, CERDIP-28	0.600 INCH, CERDIP-28	0.300 INCH, PLASTIC, DIP-28	0.600 INCH, CERDIP-28	0.600 INCH, CERDIP-28	DIP, DIP28,.3	0.300 INCH, SOJ-28
Contacts	28	28	28	28	28	28	28	28
Reach Compliance Code	not_compliant	_compli	not_compliant	unknown	not_compliant	not_compliant	compliant	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	EAR99	EAR99
Maximum access time	70 ns	35 ns	45 ns	35 ns	55 ns	35 ns	25 ns	35 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-PDIP-T28	R-GDIP-T28	R-GDIP-T28	R-PDIP-T28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e3	e0	e0	e3	e0
length	37.211 mm	37.211 mm	37.211 mm	34.67 mm	37.211 mm	37.211 mm	34.67 mm	17.9324 mm
memory density	65536 bit	65536 bi	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-	-
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	SOJ
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.3	DIP28,.6	DIP28,.6	DIP28,.3	SOJ28,.34
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	4.57 mm	5.08 mm	5.08 mm	4.57 mm	3.556 mm
Maximum standby current	0.0008 A	0.02 A	0.0008 A	0.015 A	0.0008 A	0.0002 A	0.00006 A	0.00006 A
Maximum slew rate	0.09 mA	0.16 mA	0.13 mA	0.15 mA	0.125 mA	0.14 mA	0.15 mA	0.13 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Matte Tin (Sn) - annealed	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Matte Tin (Sn) - annealed	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	20	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30
width	15.24 mm	15.24 mm	15.24 mm	7.62 mm	15.24 mm	15.24 mm	7.62 mm	7.5184 mm
Base Number Matches	1	1	1	1	1	1	1	1
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Lead free	-
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Number of ports	1	1	1	-	1	1	1	-
Exportable	YES	YES	YES	-	YES	YES	YES	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-
Minimum standby current	2 V	-	2 V	4.5 V	2 V	2 V	2 V	2 V
