RV16A03-10-15R1-B55: DescriptionPanel mount potentiometer linear W/SW 500k solder lugs; CategoryPassive components; File Size19KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

RV16A03-10-15R1-B55 Overview

Panel mount potentiometer linear W/SW 500k solder lugs

RV16A03-10-15R1-B55 Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	Panel mount potentiometer
RoHS	no
resistance	500 KOhms
Tolerance	20 %
Power rating	0.2 Watt (1/5 Watt)
Termination type	Lug
taper	Line
Component type	Carb
Shaft type	Round / Plai
Shaft length	0.59 i
Shaft diameter	0.25 i
product	Panel Mount Potentiometers

Preview

Download Datasheet

View All

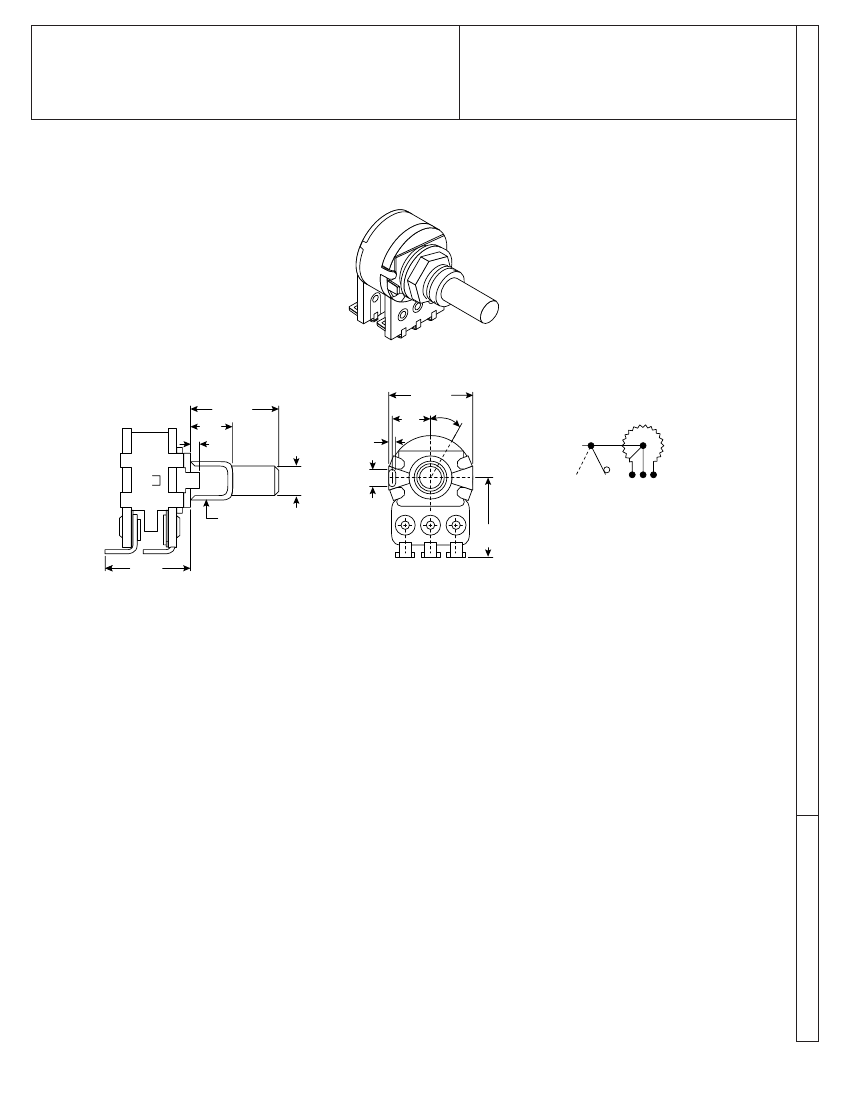

MOUSER STOCK NO.

MOUSER

®

313-1100-Value

Miniature Potentiometers

ELECTRONICS

313-1100-Value

ø.67

.59

.26

.08

.25

M7x0.75

.53

.05

.11

SW

.31

30˚

1 2 3

Schematic

Miniature Potentiometers

.59

Dimensions (In.)

Specifications:

•

Type: linear taper w/ switch

•

Switch circuit: SPST

•

Case material: zinc plated steel

•

Shaft material: zinc alloy

•

Element material: carbon

•

Rated wattage: 0.2W

•

Rated voltage: 200V

•

Withstand voltage: 500VAC for 1 minute

•

Insulation resistance: >100MΩ @ 500VDC

•

Wiper tracking: ±10%

•

Values available: 1K, 5K, 10K, 50K, 100K, 500K, 1M

•

Nominal tolerance: ±20% (1M= ±30%)

•

Switch contact resistance: 20mΩ

•

Switch rating: 12VDC/ 1A

•

Rotation life: 15,000 cycles

•

Switch working angle/stroke: 50˚±10˚

•

Switch working torque/force: 150~450gf.cm

•

Shaft stop strength: 6Kgf.cm (min.)

•

Rotational noise: 47mV

•

Rotation torque: 20~200gf.cm

•

Total rotation angle: 300˚±5˚

•

End resistance: 20Ω @ each end

8-

143126

Your source for quality electronics. Toll-free full service

8-2-96

(800) 346-6873

http://www.mouser.com

RV16A03-10-15R1-B55 Related Products

	RV16A03-10-15R1-B55	RV16A03-10-15R1-B15	RV16A03-10-15R1-B13
Description	Panel mount potentiometer linear W/SW 500k solder lugs	Panel mount potentiometer linear W/SW 100k solder lugs	Panel mount potentiometer linear W/SW 1K solder lugs
Maker	All Sensors	All Sensors	All Sensors
RoHS	no	no	no
resistance	500 KOhms	100 KOhms	1 KOhms
Tolerance	20 %	20 %	20 %
Power rating	0.2 Watt (1/5 Watt)	0.2 Watt (1/5 Watt)	0.2 Watt (1/5 Watt)
Termination type	Lug	Lug	Lug
taper	Line	Line	Line
Component type	Carb	Carb	Carb
Shaft type	Round / Plai	Round / Plai	Round / Plai
Shaft length	0.59 i	0.59 i	0.59 i
Shaft diameter	0.25 i	0.25 i	0.25 i
product	Panel Mount Potentiometers	Panel Mount Potentiometers	Panel Mount Potentiometers
Product Category	Panel mount potentiometer	-	Panel mount potentiometer
