8-1879219-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 8-1879219-3

8-1879219-3: Descriptionres 4.99k ohm 1/16w 0.1% 0603; CategoryPassive components; File Size78KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8-1879219-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-1879219-3	-	-	View	Buy Now

8-1879219-3 Overview

res 4.99k ohm 1/16w 0.1% 0603

8-1879219-3 Parametric

Parameter Name	Attribute value
Datasheets
1879219
CPF Series
Product Photos
0603 pkg
RoHS Informati
8-1879219-3 Statement of Compliance
RoHS 2 Stateme
Standard Package	5,000
Category	Resistors
Family	Chip Resistor - Surface Mou
Packaging	Tape & Reel (TR)
Resistance (Ohms)	4.99k
Tolerance	±0.1%
Power (Watts)	0.063W, 1/16W
Compositi	Thin Film
Features	-
Temperature Coefficie	±25ppm/°C
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimensi	0.061" L x 0.031" W (1.55mm x 0.80mm)
Heigh	0.022" (0.55mm)
Number of Terminations	2
Other Names	CPF0603B4K99E

Preview

Download Datasheet

View All

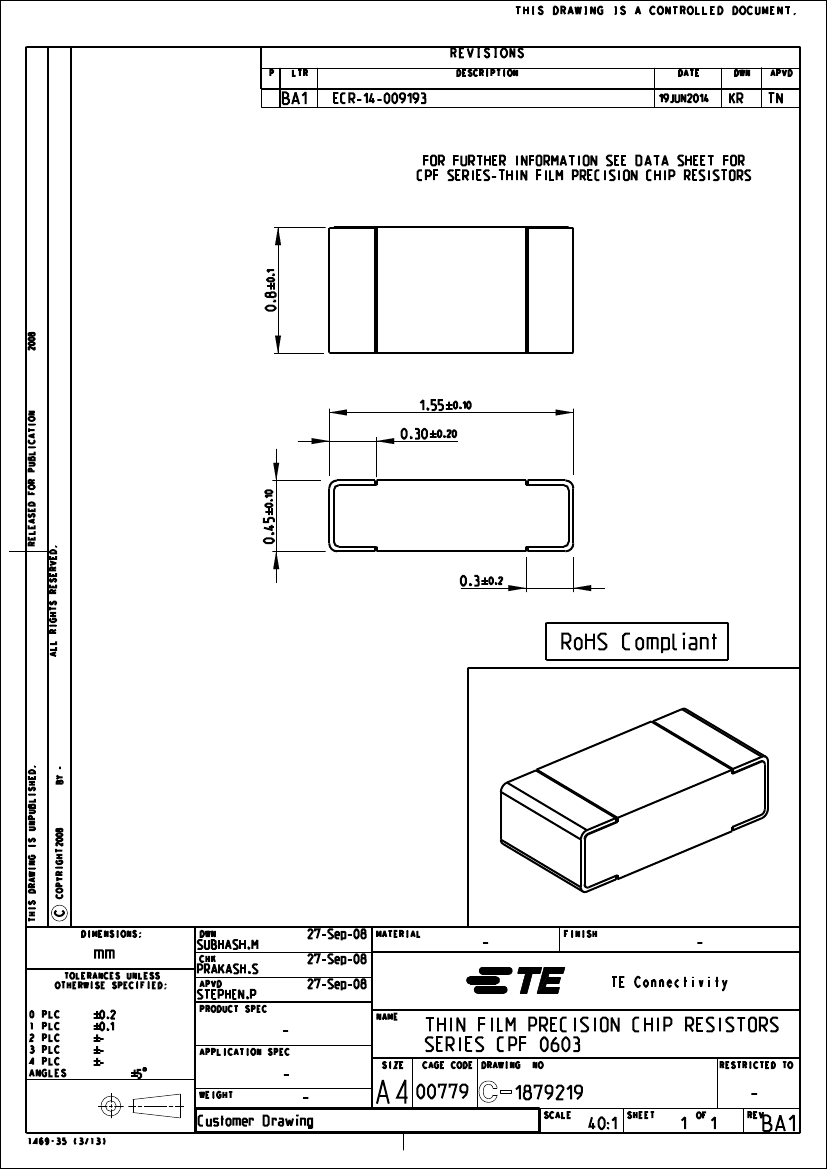

THIS DRAWING IS A CONTROLLED DOCUMENT.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BA1

ECR-14-009193

19JUN2014

FOR FURTHER INFORMATION SEE DATA SHEET FOR

CPF SERIES-THIN FILM PRECISION CHIP RESISTORS

2008

0.8

0.1

1.55

0.10

RELEASED FOR PUBLICATION

0.30

0.20

0.45

0.10

0.3

0.2

RoHS Compliant

THIS DRAWING IS UNPUBLISHED.

2008

BY -

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

SUBHASH.M

PRAKASH.S

STEPHEN.P

APVD

PRODUCT SPEC

CHK

DWN

27-Sep-08

MATERIAL

FINISH

TE Connectivity

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

0.2

0.1

APPLICATION SPEC

NAME

5 $

WEIGHT

Customer Drawing

1469-35 (3/13)

SIZE

CAGE CODE

THIN FILM PRECISION CHIP RESISTORS

SERIES CPF 0603

DRAWING

RESTRICTED TO

00779

1879219

SCALE

40:1

SHEET

REV

BA1
