D-651-38XT

Description
insulkrimp? ring tongue terminal for 8 awg wire
CategoryThe connector    terminals
File Size161KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

D-651-38XT Overview

insulkrimp? ring tongue terminal for 8 awg wire

D-651-38XT Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Manufacturer's serial numberD-651
terminal genderFEMALE
Terminal and terminal strip typesRING TERMINAL
Wire gauge8 AWG

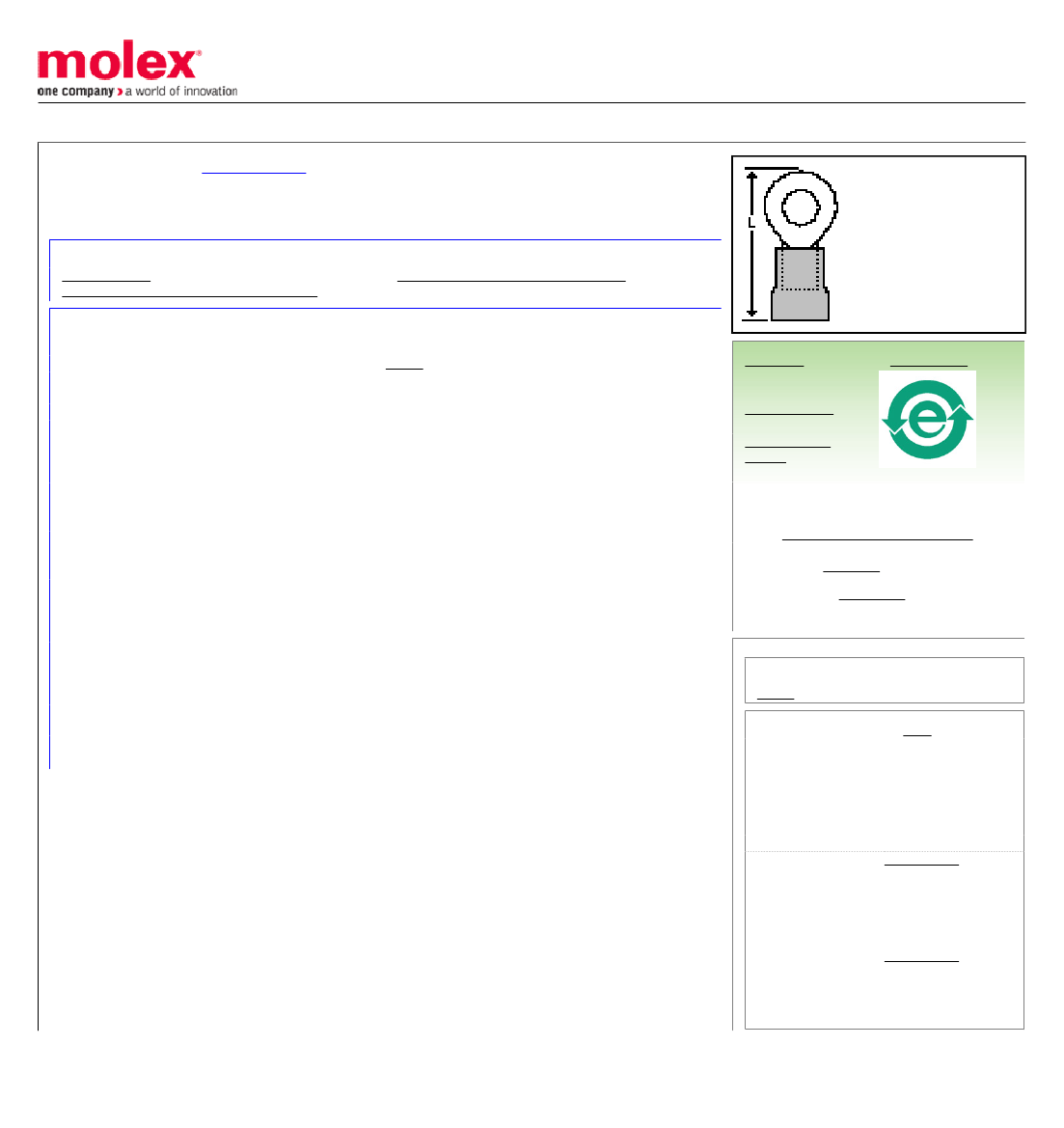

This document was generated on 03/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190710152
Active
InsulKrimp™ Ring Tongue Terminal for 8 AWG Wire, Stud Size 3/8", Length 36.25mm
(1.427"), Mylar Tape Carrier
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19071
Yes
N/A
InsulKrimp™
Ring
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Color - Resin
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed - Brazed
Natural
PVC
Tin
Adhesive Tape on Reel
3/8" (M9)
9.78mm (.385")
8
6.60 - 10.5
Electrical
Voltage - Maximum
300V
Search Parts in this Series
19071Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Crimp Dies for the 0190472030
ATP-201™ Air
Crimping Press for
Mylar Tape Mounted
Terminals designed
for large wire guages
Crimp Dies for the 0190472060
ATP-201™ Air
Crimping Press for
Mylar Tape Mounted
Terminals
Material Info
Old Part Number
D-651-38XT
Reference - Drawing Numbers
Product Specification

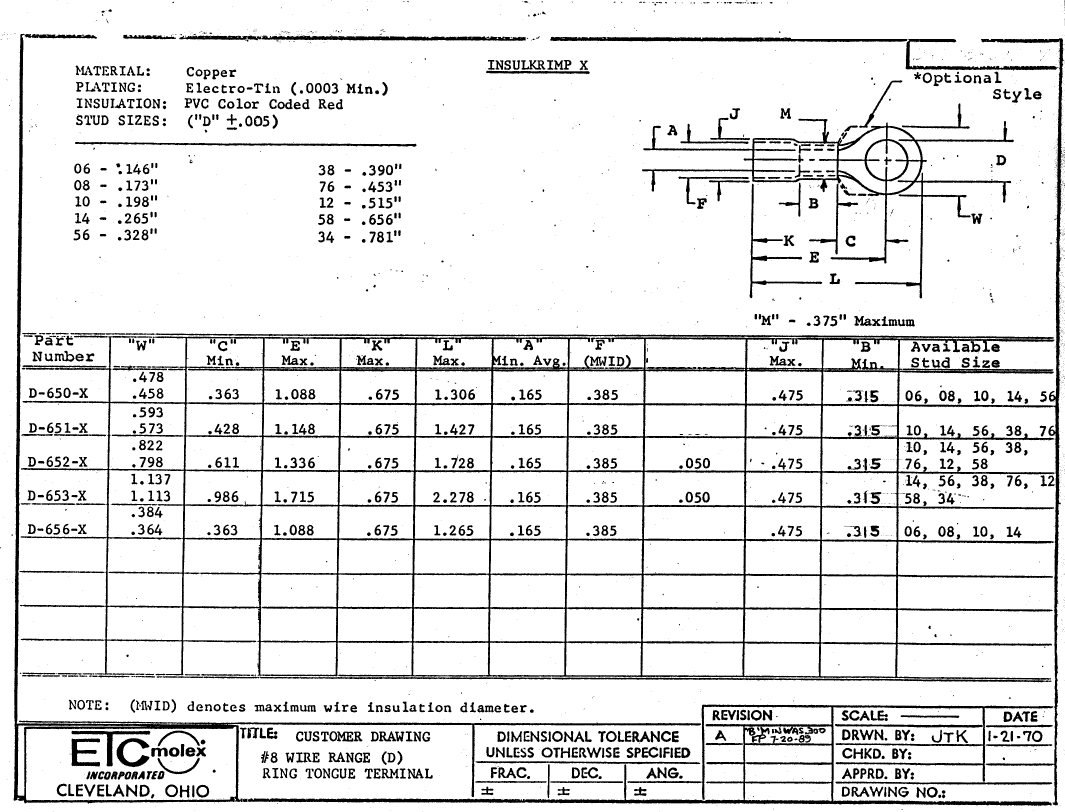

Sales Drawing
PS-19902-009
SD-19071-002
This document was generated on 03/18/2010
