Corcom Product Guide
RFI Power Line Filters for DC Applications
Catalog: 1654001
Issue Date: 08.2010
DC Series
EN
60 950
UL Recognized
CSA Certified
TUV Certified
60DCF6B
15DCF10
DC Series

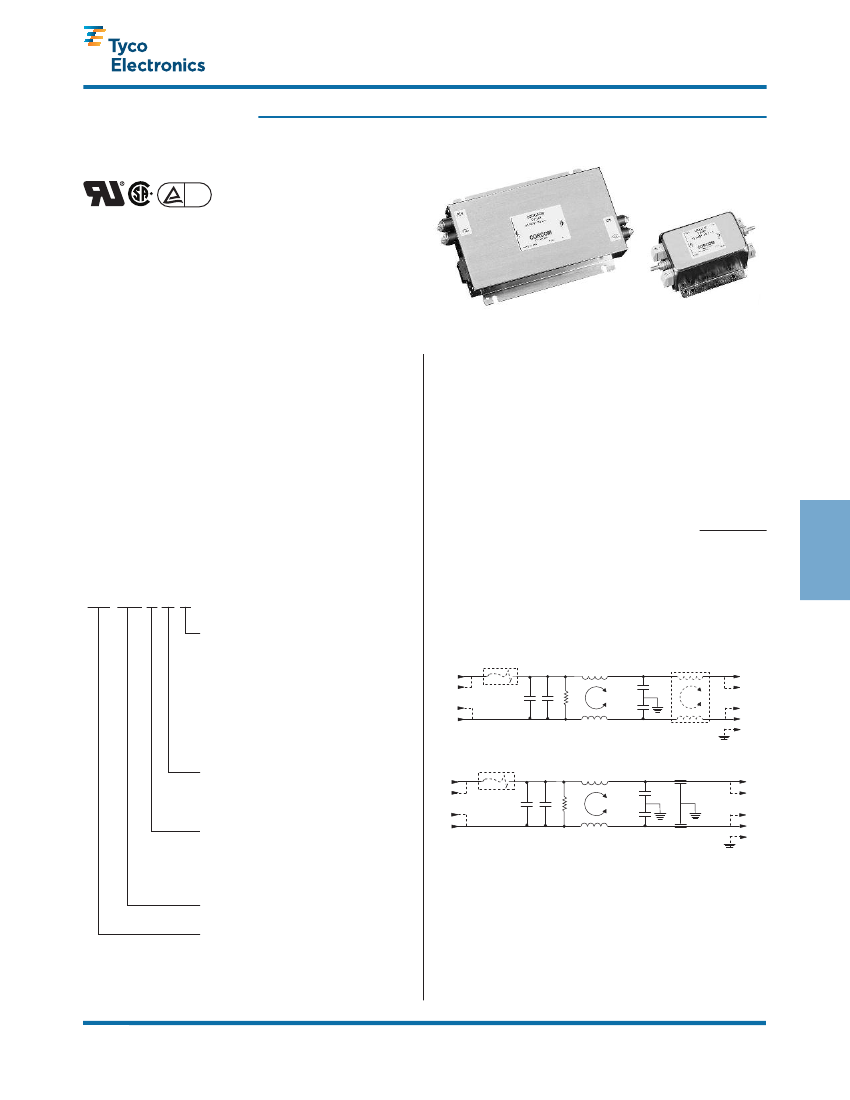

• General purpose line filters for DC applications up
to 125VDC
• Available with or without a circuit breaker
• Available with feedthrough capacitors for added
high frequency performance
• Available in both flange mound (DCF) and
bulkhead mount (DCB) configuration
Specifications
Hipot rating (one minute):
Line to Ground:
LIne to Line:
Rated Voltage (max):
Rated Current:
2250 VDC
1450 VDC
80 VDC
15 to 125A
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +55°C
In an ambient temperature (Ta) higher than +55°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/30
Ordering Information
60 DC B 6 B
Electrical Schematics
Options
B – Circuit breaker
F – Feedthrough capacitors
BF – Circuit breaker and
feedthrough
F and BF available only in
bulkhead (B) mounting style
Note 2
LINE
Note 1
Note 1
Note 3
LOAD
4
DC Filters
Omit for none
Input / Output Styles
6 – Redundant stud
10 – Phoenix terminal
Mounting Style
F = Flange
B = Bulkhead and rack
Required for F or BF options
Note 2
LINE
Note 3
Note 4
LOAD
Note 1
Note 4
DC Series
Current Rating
15, 30, 60, 100 or 125A
Resistor location for reference only.
Note 1:
Depicts redundant style 6 terminals.
Note 2:
Depicts optional circuit breaker.
Note 3:
For 100 & 125A versions delete second coil.
Note 4:
Depicts style 10 terminal versions which have separate ground stud.
217
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
RFI Power Line Filters for DC Applications
(continued)
Catalog: 1654001
Issue Date: 08.2010
DC Series
Available Part Numbers
Standard Performance
15DCF6
15DCF10
30DCF6
30DCF10
60DCF6
60DCF10
100DCF6
100DCF10
125DCF6
125DCF10
15DCF6B
15DCF10B
30DCF6B
30DCF10B
60DCF6B
60DCF10B
100DCF6B
100DCF10B
125DCF6B
125DCF10B
15DCB6
15DCB10
30DCB6
30DCB10
60DCB6
60DCB10
100DCB6
100DCB10
125DCB6
125DCB10
15DCB6B
15DCB10B
30DCB6B
30DCB10B
60DCB6B
60DCB10B
100DCB6B
100DCB10B
125DCB6B
125DCB10B
High Performance
15DCB10F
15DCB6F
30DCB10F
30DCB6F
60DCB10F
60DCB6F
100DCB10F
100DCB6F
125DCB10F
125DCB6F
15DCB6BF
30DCB6BF
60DCB6BF
100DCB6BF
125DCB6BF
15DCB10BF
30DCB10BF
60DCB10BF
100DCB10BF
125DCB10BF
Termination Options
Style 6 (15, 30 & 60A)
• Supplied with #10-32 redundant studs
• 0.625 [15.88] spacing like polarity
• 0.750 [19.05] spacing opposing polarity
• Torque specification: 27 ±3 in-lb.
Style 6 (100 & 125A)
• Supplied with 1/4-20 redundant studs
• 0.750 [19.05] spacing like polarity
• 1.00 [25.4] spacing opposing polarity
• Torque specification: 45 ±2 in-lb
Style 10 (15 & 30A)
• PHOENIX CONTACT* part number: VDFK4
• Accepts 12 AWG stranded wire
• Wire strip length: 0.315 [8.0]
• Torque specification: 5.5 – 7.0 in-lb.
• Ground stud: 8-32
Style 10 (60A)
• PHOENIX CONTACT* part number: HDFK 16-VP
• Accepts 6 AWG stranded wire
• Wire strip length: 0.630 [16.0]
• Torque specification: 17.7 – 21.2 in-lb.
• Ground stud: 10-32
Style 10 (100A)
• PHOENIX CONTACT* part number: HDFK 25-VP
• Accepts 4 AWG stranded wire
• Wire strip length: 0.748 [19.0]
• Torque specification: 35.4 – 39.9 in-lb.
• Ground stud: 1/4-20
Style 10 (125A)
• PHOENIX CONTACT* part number: HDFK 50-VP
• Accepts 1 AWG stranded wire
• Wire strip length: 0.945 [24.0]
• Torque specification: 35.4 – 39.9 in-lb.
• Ground stud: 1/4-20
*PHOENIX CONTACT is a trademark of Phoenix Contact GmbH & Co. KG.
218
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
RFI Power Line Filters for DC Applications
(continued)
Catalog: 1654001
Issue Date: 08.2010
DC Series
Recommended Panel Cutouts
DCB6(F) & DCB10(F)
Cutout Dimensions
DCB6(F) & DCB10(F)
Part No.
15DCB6(F)
30DCB6(F)
A
B
C
C
Holes: .157 [3.99] Dia. (4)
See case dimensions for spacing
15DCB10(F)
30DCB10(F)
60DCB6(F)
B
Tolerance: ±.005 [.13]
60DCB10(F)
100DCB6(F)
125DCB6(F)
100DCB10(F)
125DCB10(F)
A
1.375
34.93
1.250
31.75
1.375
34.93
1.674
42.52
1.700
43.18
1.954
49.63
2.250
57.15
1.249
31.72
1.000
25.40
1.249
31.72
1.010
25.65
1.549
39.34
1.500
38.10
1.590
40.39
3.472
88.19
3.472
88.19
3.472
88.19
3.443
87.45
3.472
88.19
2.830
71.20
2.725
69.22
DCB6B(F) & DCB10B(F) 15 to 60A
DCB6B(F) & DCB10B(F) 15 to 60A
Part No.
A
B
C
D
E
F
15DCB6B(F)
15DCF6B
D
C
Holes: .157 [3.99] Dia. (4)
See case dimensions for
spacing.
15DCB10B(F)
15DCF10B
30DCB6B(F)
30DCF6B
30DCB10B(F)
30DCF10B
60DCB10B(F)
60DCF10B
60DCF6B(F)
60DCF6B
B
F
Tolerance: ±.005/.13
A
E
1.50
38.10
1.50
38.10
1.50
38.10
1.50
38.10
1.50
38.10
1.50
38.10
0.781
19.84
0.781
19.84
0.781
19.84
0.781
19.84
0.781
19.84
0.781
19.84
1.308
33.22
1.308
33.22
1.308
33.22
1.308
33.22
1.308
33.22
1.308
33.22
3.472
88.19
3.472
88.19
3.472
88.19
3.472
88.19
3.443
87.45
3.472
88.19
1.375
34.93
1.250
31.75
1.375
34.93
1.250
31.75
1.674
42.52
1.375
34.93
1.249
31.72
1.00
25.40
1.249
31.72
1.00
25.40
1.010
25.65
1.249
31.72
4
DC Filters
DCB6B(F) & DCB10B(F) 100 to 125A
DCB6B(F) & DCB10B(F) 100 to 125A
Part No.
A
B
C
100DCB6B(F)
100DCF6B
125DCB6B(F)
125DCF6B
100DCB10B(F)
100DCF10B
1.70
43.18
1.954
49.63
2.25
57.15
2.25
57.15
1.549
39.34
1.50
38.10
1.59
40.39
1.59
40.39
4.222
107.23
4.295
109.09
4.147
105.33
2.725
105.33
219
C
Holes: .157 [3.99] Dia. (4)
See case dimensions for
spacing.
1.250
31.75
.625
15.88
.262
6.65
1.557
39.55
B
Tolerance: ±.005/.13
A
1.500 x 0.781
38.10 x 19.84
125DCB10B(F)
125DCF10B
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
RFI Power Line Filters for DC Applications
(continued)
Catalog: 1654001
Issue Date: 08.2010
DC Series

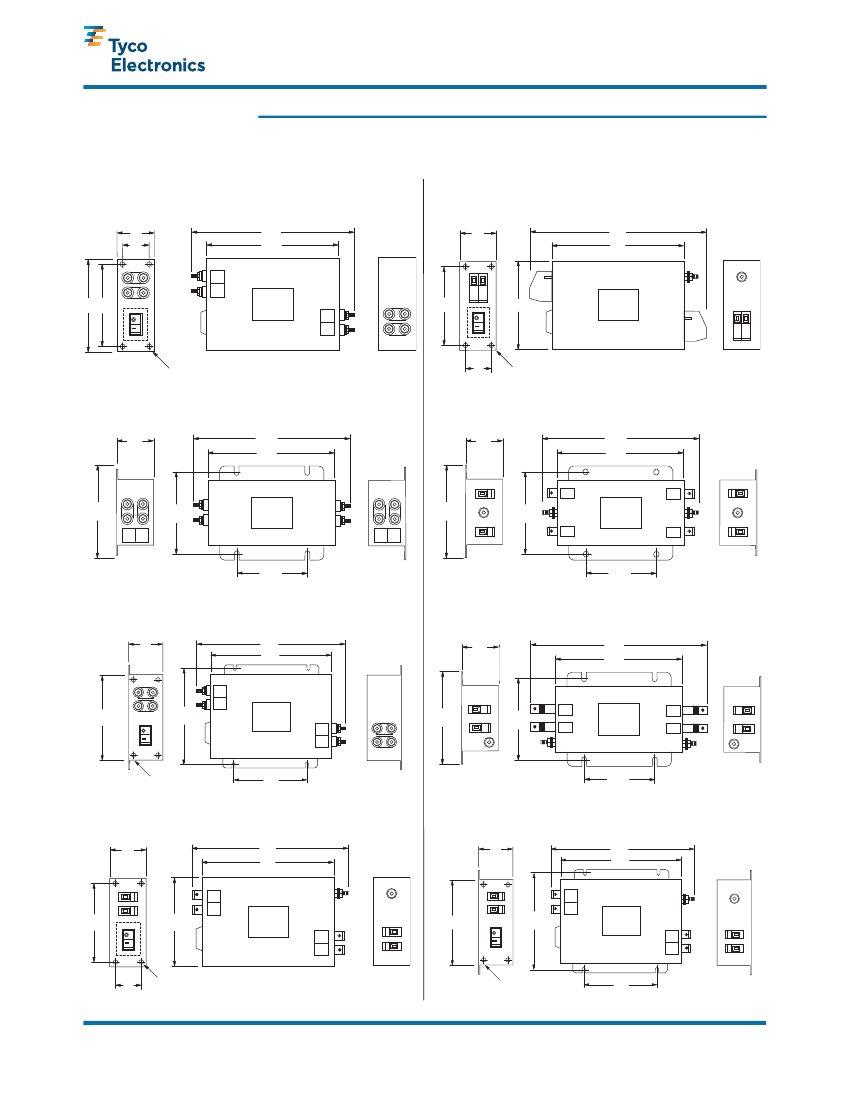

Case Styles
DCB6 & DCB6B
C
F
RTN
VDC
RTN
DCB10 & DCB10B (60 to 125A)
A
E
C
A
E
-VDC
B D
OFF
ON
L
I
N
E
L
O
A
D
D
VDC
RTN
-VDC
RTN
OFF
OFF
ON
ON
B
L
I
N
E
L
O
A
D
VDC
RTN
Tapped insert: 6-32 (4)
F
Tapped insert: 6-32 (4)
Note: Delete circuit breaker for DCB6 models
Note: Delete circuit breaker for DCB10 models
DCF6
C
A
E
DCF10 (15 & 30A)
C
A
E
RTN
RTN
B
-VDC
RTN
D
L
I
N
E
L
O
A
D
-VDC
RTN
B
D
-VDC
L
I
N
E
L
O
A
D
-VDC
F
Typical Dimensions:
Mounting Slots (4):
Mounting Holes (4)
.260 x .39 [6.6
x 9.9
] 60 to 125A versions
.203 x .156 [5.2
x 4.0]
15 & 30A versions
Typical Dimensions:
Mounting Holes (4)
F
.203 x .156 [5.2
x 4.0]
DCF6B
C
A
E
DCF10 (60 to 125A)
C
A
E
RTN
-VDC
B
OFF
ON
D
L
I
N
E
L
O
A
D
B
RTN
-VDC
RTN
D
-VDC
L
I
N
E
L
O
A
D
RTN
-VDC
Tapped insert: 6-32 (4)
Typical Dimensions:
Mounting Slots (4):
F
.260 x .39 [6.6
x 9.9
]
F
Typical Dimensions:
Mounting Slots (4):
.260 x .39 [6.6
x 9.9
]
DCB10 & DCB10B (15 to 30A)
C
A
E
DCF10B (15 & 30A)
C
A
E
RTN
-VDC
RTN
D
OFF
ON
B
L
I
N
E
L
O
A
D
-VDC
B
OFF
D
ON
RTN
-VDC
L
I
N
E
L
O
A
D
RTN
-VDC
F
Tapped insert: 6-32 (4)
Tapped insert: 6-32 (4)
Note: Delete circuit breaker for DCB10 models
Typical Dimensions:
Mounting Slots (4):
F
.260 x .39 [6.6
x 9.9
]
220
