Thermal Overcurrent Circuit Breaker 3120-F...

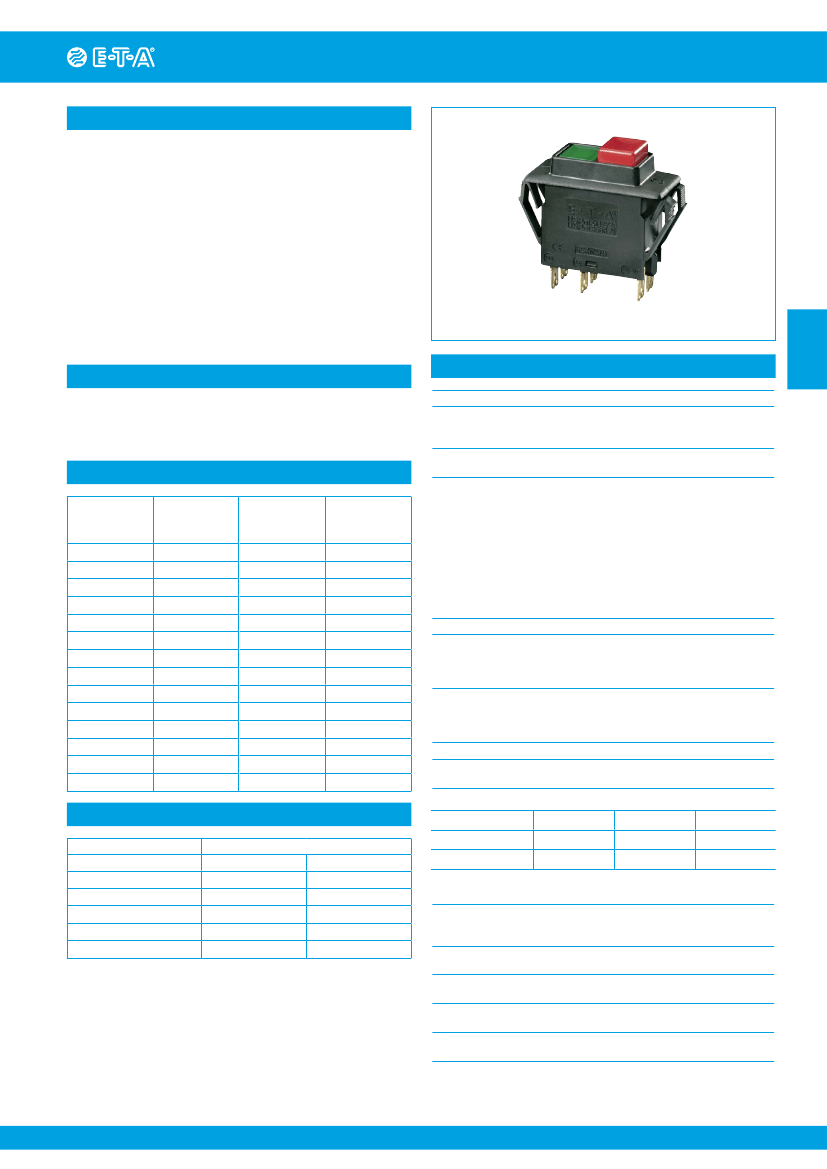

Description
Switch/thermal trip free circuit breaker (S-type TO CBE to EN 60934) with
standard isolator style two button operation. Single button press-to-reset
version also available. Both types can be supplied in single pole configuration
only, in double pole with single pole protection, and in double pole with
protection on both poles. Designed for snap-in panel mounting. There is
a choice of push button colour combinations and illumination is optional.
Any one of the following additional function modules can be supplied factory
fitted to the rear of the switch/circuit breaker:
l
Under voltage release coil (for double pole versions only).
l
Magnetic trip coil for short circuit protection.
l
Magnetic trip coil for remote relay trip.
l
Auxiliary contacts for status signalling.
Approved to CBE standard EN 60934 (IEC 60934).
Meets the requirements regarding fire resistance of EN 60335-1 : 2007-02
Safety of household and similar electrical appliances.
3120-F...
Technical data
For further details please see chapter: Technical Information
Voltage rating
AC 240 V; DC 50 V
(AC 415 V to special order)
(UL: AC 250 V; DC 50 V)
Current ratings
0.1...20 A
(up to 30 A to special order, single pole only)
2
Typical applications
Motors, transformers, solenoids, extra low voltage wiring systems, office
machines, electro-medical equipment, power supplies, communications
systems, industrial controls.
Standard current ratings and typical internal resistance values
Current rating
(A)
0.1
0.2
0.3
0.4
0.5
0.6
0.8
1
1.2
1.5
2
2.5
3
3.5
Internal
resistance
per pole (Ω)
94
24
12
5.30
4.20
2.90
1.50
0.9
0.80
0.45
0.27
0.0785
0.0595
0.0565
Current rating
(A)
4
4.5
5
6
7
8
10
12
14
15
16
18
20
Internal
resistance
per pole (Ω)
0.0435
0.0435
0.0325
0.0215
0.0165
0.0165
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
Dielectric strength
(IEC 60664 and 60664A)
operating area
between poles (2-pole)
Insulation resistance
Interrupting capacity I
cn
Typical life
AC 240 V:
DC 50 V:
DC 28 V:
AC 415 V:
AC 240 V:
0.1...20 A
0.1...4 A
4.5...16 A
0.1...20 A
0.1...16 A
0.1...16 A
17...20 A
DC 50 V:
0.1...16 A
17...20 A
Ambient temperature
Insulation co-ordination
(IEC 60664 and 60664 A
1-pole
30,000 operations at 1 x I
N
, inductive
30,000 operations at 1 x I
N
, inductive
30,000 operations at 1 x I
N
, resistive
30,000 operations at 1 x I
N
, inductive
2-pole
10,000 operations at 1 x I
N
, inductive
50,000 operations at 1 x I
N
, inductive
30,000 operations at 1 x I
N
, inductive
50,000 operations at 1 x I
N
, inductive
10,000 operations at 1 x I
N
, inductive
-30...+60 °C (-22...+140 °F)
rated impulse
pollution
withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
test voltage
AC 3,000 V
AC 1,500 V
> 100 MΩ (DC 500 V)
0.1...2 A 10 x I
N
2.5...20 A 250 A 2-pole, or 150 A 1-pole
Interrupting capacity (UL 1077)
I
N
1, 2-pole
0.1...20 A
0.1...20 A
1, 2-pole
Degree of protection
(IEC 60529/DIN 40050)
Vibration
U
N
AC 250 V
DC 50 V
I
nc
5000 A
1000 A
Illumination voltage/power consumption
operating voltage
power consumption
Y+R
G
12 V
24 V
48 V
115 V
230 V
2 mA
2 mA
2 mA
0.9 mA
0.9 mA
3.5 mA
3.5 mA
3.5 mA
2.8 mA
2.8 mA
Shock
Corrosion
Humidity
Mass
operating area IP40
terminal area IP00
8 g (57-500 Hz), ± 0.61 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
30 g (11 ms)
to IEC 60068-2-27, test Ea
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH,
to IEC 60068-2-78, test Cab
approx. 33 g (double pole)
approx. 27 g (single pole)
2015/16
www.e-t-a.de
2
- 69
Thermal Overcurrent Circuit Breaker 3120-F...

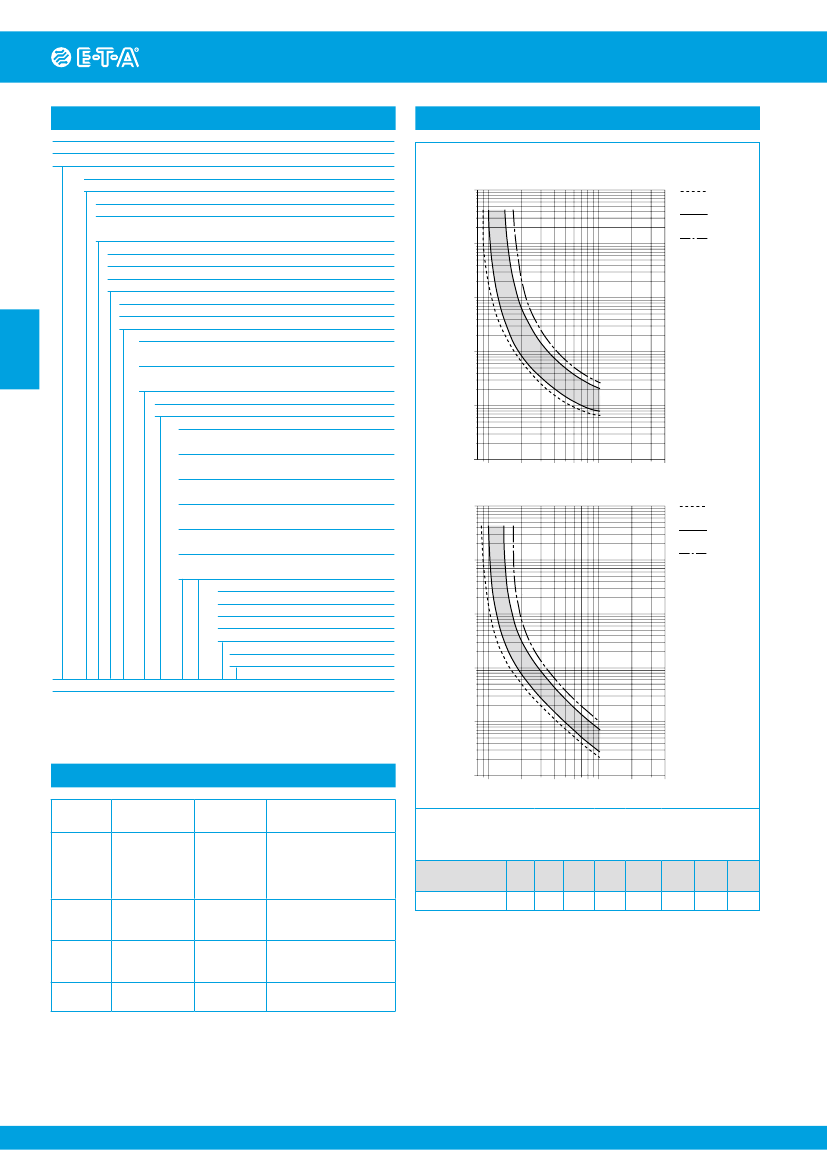

Ordering information
Type No.
3120
push button switch/circuit breaker
Mounting
F
snap in frame
Size of frame
2
flange mounting, special frame for fitting splash cover
3
to fit mounting cut-out 50.5 x 21.5 mm (1.99 x 8.47 in)
panel thickness 1 - 6.35 mm (.039 - .250 in)
Number of poles
1
1-pole, thermally protected
2
2-pole, thermally protected
5
2-pole, 1-pole thermally protected (terminals 11,12k,12i)
Mounting frame design
F
with 2 push buttons
G
with 1 push button (switch-on only)
Terminal configuration
P7
blade terminals, standard for curve T1
(thermal circuit breaker)
H7
as P7, terminals 11 and 21 with flat head screws M3.5
– standard for units with undervoltage release module
Characteristic curve
T1
thermal 1.01 - 1.4 x I
N
Switch style / colour / Illumination
D 01X
1 push button* black opaque
without illumination
D 02X
1 push button* white black opaque
without illumination
D 04X
1 push button* red opaque
without illumination
D 19XG
1 push button* green translucent
with LED illumination
SGRX
2 push buttons green/red opaque
without LED illumination
SGRXG
2 push buttons green/red translucent
with LED illumination
Illumination voltage range
1
10 - 14 V DC
2
20 - 28 V DC
3
90 - 140 V AC
4
185 - 275 V AC
Current ratings
0.1...20 A
3120 - F 3 2 F - P7 T1 - S GRXG 4 -10 A
ordering example
Typical time/current characteristics
single or double pole load
0.1…2 A
10000
+60 °C
+140 °F
+23 °C
+73.4 °F
1000
-30 °C
-22 °F
Trip time in seconds
100
2
10
1
0.1
1
2
2.5…20 A
10000
4
6 8 10
… times rated current
20
40
+60 °C
+140 °F
+23 °C
+73.4 °F
1000
Trip time in seconds
-30 °C
-22 °F
100
10
N.B.
Switch only versions must be specified with -N7 or -G7 terminals.
Terminals 12(k) and 22 (k) are not fitted.
1
Approvals
Authority
VDE
Standard
Rated
voltage
Current ratings
0.1 A…16 A (2-pole)
0.1 A…20 A
0.1 A…20 A (2-pole)
0.1 A…4 A (1-pole)
0.1 A…20 A
0.1 A…20 A
0.1 A…20 A
30 A (2 poles in parallel)
0.1 A…20 A
0.1 A…16 A
30 A (2 poles in parallel)
0.1 A…20 A
0.1 A…20 A
0.1
1
2
4
6 8 10
… times rated current
20
40
UL
CSA
CQC
IEC/EN 60934 3 AC 415 V
AC 240 V
DC 50 V
DC 50 V
DC 28 V
AC 250 V
UL 1077
DC 50 V
AC 250 V
C22.2 No 235 AC 250 V
DC 50 V
AC 250 V
AC 240 V
GB 17701
DC 50 V
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the circuit
breaker current ratings by the derating factor shown below. See also section
Technical information.
Ambient
temperature
Derating factor
°F
°C
-22
-30
0.8
-4
-20
0.76
+14
-10
0.84
+32
0
0.92
+73.4
+23
1
+104
+40
1.08
+122
+50
1.16
+140
+60
1.24
2
- 70
www.e-t-a.de
2015/16
Thermal Overcurrent Circuit Breaker 3120-F...

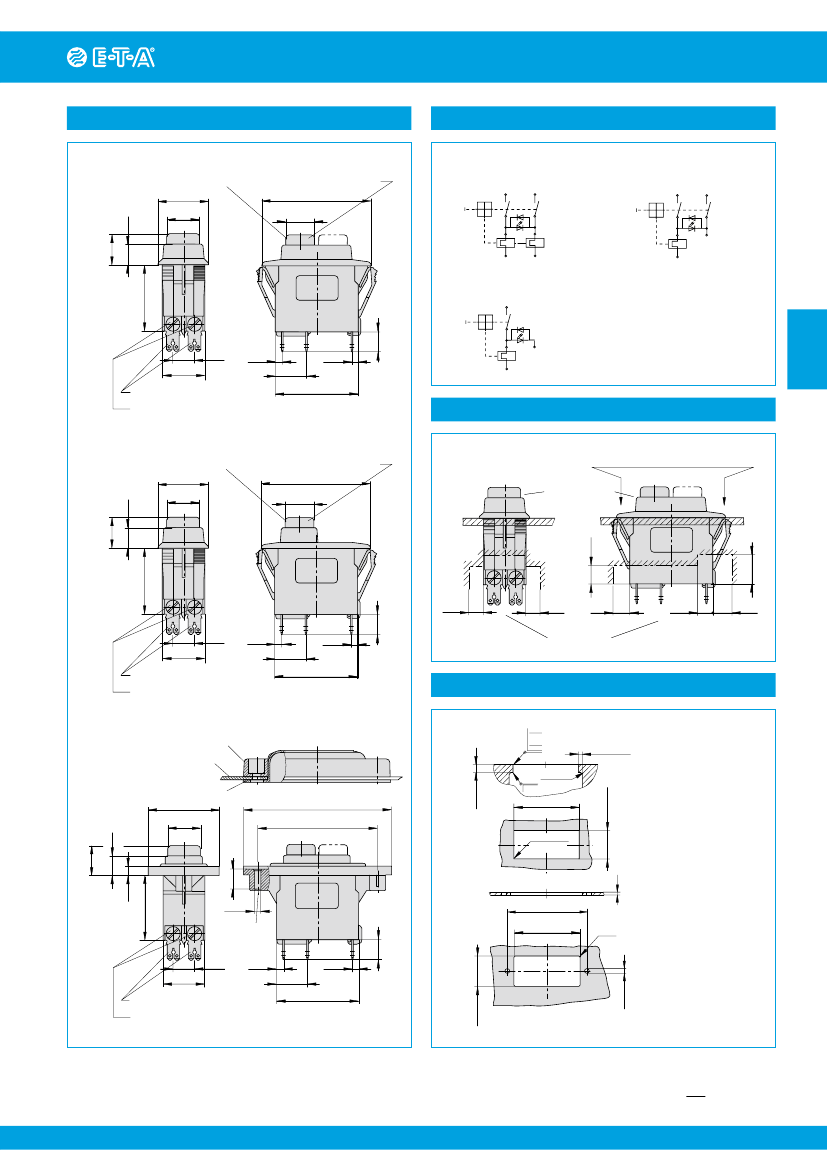

Dimensions
3120-F3.F-…-S…
OFF position
25
.984
16.2
.638
Internal connection diagrams
2-pole,
thermally protected on both poles
11
line
21
actuating force max. 35 N
optional illumination in ON position
54
2.13
14.2
.559
2-pole,
thermally protected on one pole only
11
line
21
10
.394
12(i)
12(k)
load
22(i)
22(k)
12(i)
12(k)
load
22(i)
15
.591
33
1.30
1-pole,
thermally protected
11
12(i)
12(k)
11
line
12(i)
12(k) load
22(i)
21
.827
blade terminals DIN 46244-C-Ms-S
(QC 2x.110)
flat head screw ISO1580 M3.5x5-MS
tightening torque max. 0.8 Nm
10.7
.421
3.5
.138
15.5
.610
3
.118
41
1.61
2
10
.394
Installation drawing
When installing the circuit breaker apply pressure on bezel only.
3120-F3.G-...-D...
OFF position
25
.984
16.2
.638
optional illumination in ON position
54
2.13
14.2
.559
operating area
15
.591
10
.394
.394
10
33
1.30
12(i)
12(k)
11
12(i)
12(k)
11
10.7
3.5
.421
.138
21
.827
blade terminals DIN 46244-C-Ms-S
(QC 2x.110)
flat head screw ISO1580 M3.5x5-MS
tightening torque max. 0.8 Nm
10
.394
7
.276
7
.276
8
.315
7
.276
15.5
.610
3
.118
41
1.61
mounting area
Panel cut-out
3120-F3…
- 0.4
-.016
- 0.2
-.008
3120-F2.F-...
retaining clip
panel
water splash cover
(see next page)
min. 2.5
min .098
max.R2
max .079
.846
+.008
21.5
+0.2
1-6.35
.039-.250
cover
35.4
1.39
16.2
.638
74
2.91
60
±0.1
2.36
±.004
±0.05
±.002
50.5
+0.3
1.99
+.012
max. R0.3
max .012
15
.591
10
.394
10.2
.402
4.5
.177
3120-F2…
60
±0.15
2.36
+.006
50.5
+0.5
1.99
+.020
t: metal min. 2 mm (.079 in.)
plastic min. 3 mm (.118 in.)
ø3.2
.126
PT-screw
Typ K40
ø4mm
(.157 in.)
10.7
3.5
.421
.138
12(i)
12(k)
11
33
1.30
21
.827
blade terminals DIN 46244-C-Ms-S
(QC 2x.110)
flat head screw ISO1580 M3.5x5-MS
tightening torque max. 0.8 Nm
26
+0.2
1.02
+.008
41
1.61
Edges of working parts: ISO 13715
This is a metric design and millimeter dimensions take precedence ( mm )
inch
2015/16
www.e-t-a.de
.169
+.008
ø4.3
+0.2
15.5
.610
3
.118
10
.394
R2
.079
t
15.5
.610
10
.394
2
- 71
Thermal Overcurrent Circuit Breaker 3120-F...

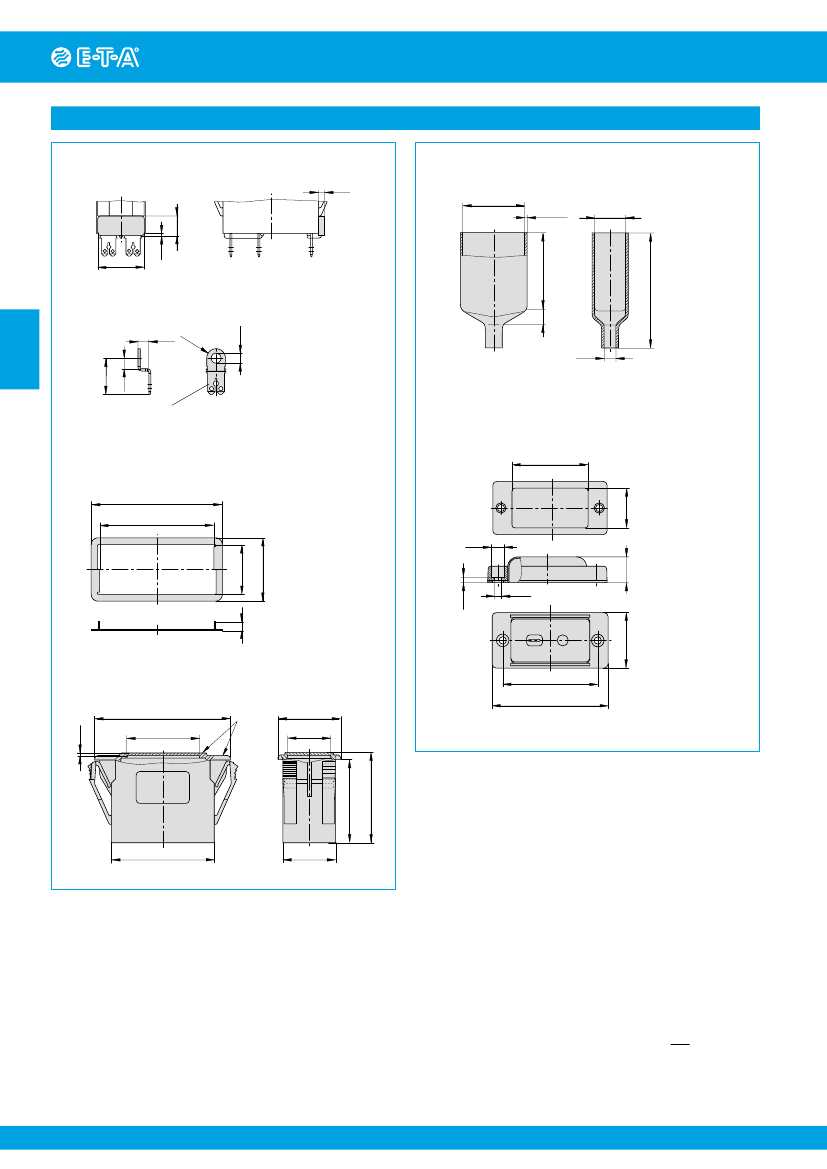

Accessories
Insulated cover
Y 303 068 01
2.5
.098
9
.354
Rear terminal shroud black
(IP64)
Y 304 275 01
40.5
1.59
1.75
-0.25
.069
+.020
-.010
+0.5
20.5
.807
50
1.97
2
13.5
.531
4
.157
R3
4
.5
.
.157
138
3.7
.146
10
.394
Terminal adapter
Y 303 862 01
ø8
.315
blade terminal DIN 46244-C-Ms-S
(QC 2x.110)
Water splash cover, transparent
(IP66)
for style 3120-F2.F-...
X 221 619 01
consisting of
- retaining clip Y 306 551 01
- cover Y 306 001 01
48
1.89
Spacer for 3120-F3...
Y 303 675 01/02
58
2.28
50.5
1.99
ø8
.315
*
Blanking piece in -F3 frame
Y 303 885 31
54
2.13
31
1.22
matt finish
25
.984
16.5
.650
60
2.36
73
2.87
1
.039
41
1.61
21
.827
33
1.30
36
1.42
This is a metric design and millimeter dimensions take precedence ( mm )
inch
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved. Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
2
- 72
www.e-t-a.de
35
1.38
* Y 303 675 01 suitable for
panel thickness < 2 mm (.079 in)
* Y 303 675 02 suitable for
panel thickness < 4 mm (.157 in)
34.4
.134
ø4.4
.173
16.5
.650
22
.866
28
1.10
25
.984
70
+5
2.76
+.197
20
.787
0.9
.035
2015/16
Auxiliary Contact Module X3120-S for circuit breaker 3120-F...
Description
A module supplied factory fitted to type 3120-F to provide electrically
separate changeover contacts which operate as the main contacts open/
wclose. Ideally suited to status signalling and sequence switching.
25.5
1.00
21
.827
10
.394
14
.551
blade terminals DIN 46244-A2.8-0.5-Ms (QC .110)
plated
8.5
.335
Dimensions
Typical applications
Monitoring of the switching position of the circuit breaker or any
connected load.
Ordering information
Type No.
X3120
Module for type 3120 and type 3140
Function
S
auxiliary contact module
Contact configuration
0
change-over contact
Terminal design
1
blade terminals 2.8 x 0.5 (QC .110), silver plated
Contact rating
AC
DC (not approved)
Voltage rating Current rating Voltage rating Current rating
12 V
0.1...4 A
24 V
0.1...4 A
A
10 V-250 V 0.1...4 A
60 V
0.1...1 A
110 V
0.1...0.5 A
220 V
0.1...25 A
B
10 V-250 V 0.05...1 A
5 V-250 V
0.05...1 A
Supply condition
M
module mounted to circuit breaker 3120-...
X3120 - S 0
1
A M
ordering example
7.5 7.5
.295 .295
19.8
.780
2
.079
2
Internal connection diagram
line
11
21
34
32
module mounted
12(i)
22(i)
31
12(k)
load
22(k)
Approvals (complete circuit breaker/module assembly)
Authority
VDE
UL
CSA
CQC
Standard
IEC/EN 60934
UL 1077
C22.2 No 235
GB 17701
AC 250 V
0.1 A…4 A
Rated voltage
AC 250 V
DC 28 V
Current ratings
0.05 A…4 A
0.05 A…4 A
Technical data
Voltage rating
Current rating
Typical life
Ambient temperature
Dielectric strength
(IEC 60664 and 60664A)
between main and
auxiliary circuit
Insulation resistance
Vibration
AC 250 V; DC 220 V
0.1...4 A / 0.05...1 A
50,000 operations
-30...+60 °C (-22...+140 °F)
test voltage
AC 3,000 V
> 100 MΩ (DC 500 V)
6 g (type X3120-S...A)
8 g (type X3120-S...B)
(57-500 Hz), ± 0.46 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
15 g (11 ms), type X3120-S...A
20 g (11 ms), type X3120-S...B
to IEC 60068-2-27, test Ea
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
approx. 38 g (complete assembly)
Shock
Corrosion
Humidity
Mass
This is a metric design and millimeter dimensions take precedence ( mm )
inch
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved. Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
2015/16
www.e-t-a.de
2
- 73
京公网安备 11010802033920号
EEWORLD
