KA79L24AZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KA79L24AZ

KA79L24AZ: DescriptionFixed Negative Standard Regulator, 24V, BIPolar, PBCY3,; CategoryPower/power management The power supply circuit; File Size184KB，5 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KA79L24AZ Overview

Fixed Negative Standard Regulator, 24V, BIPolar, PBCY3,

KA79L24AZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	, SIP3,.1,50
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	1.7 V
Maximum absolute input voltage	40 V
Maximum input voltage	38 V
Minimum input voltage	27 V
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Maximum grid adjustment rate	0.35%
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.1 A
Maximum output voltage 1	25.2 V
Minimum output voltage 1	22.8 V
Nominal output voltage 1	24 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Base Number Matches	1

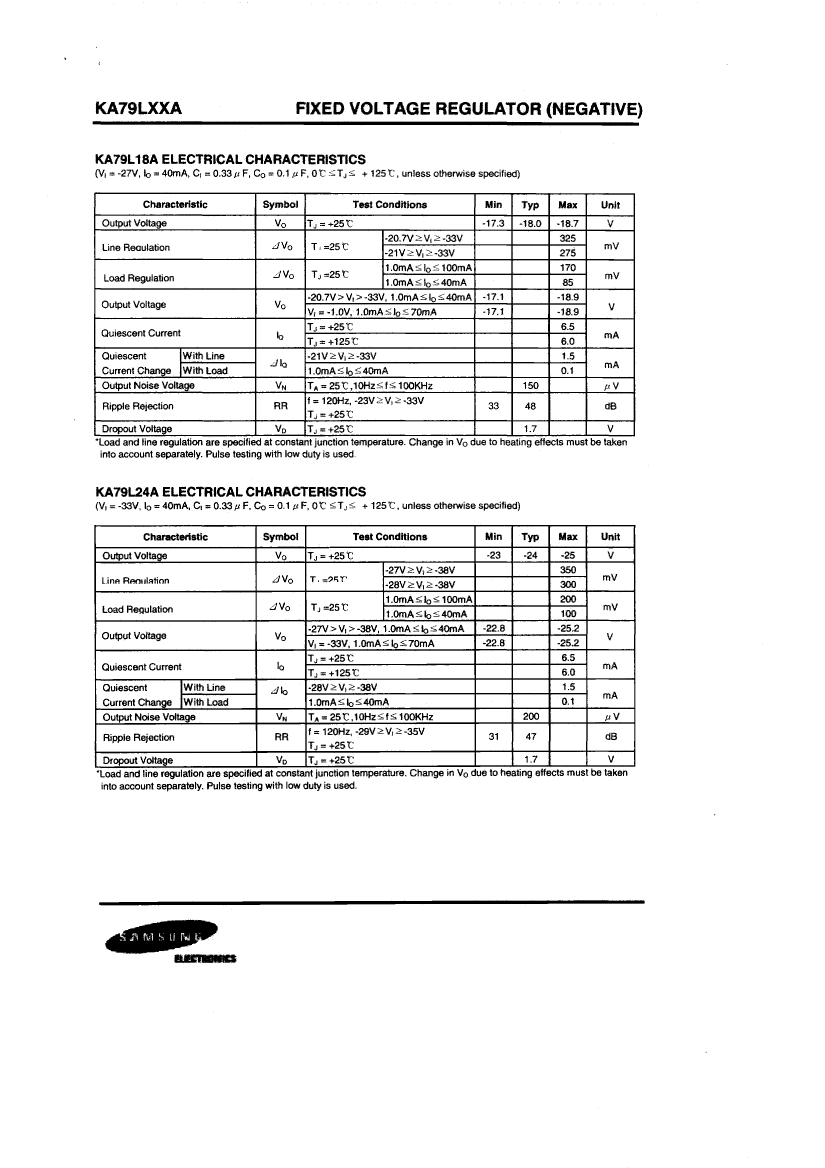

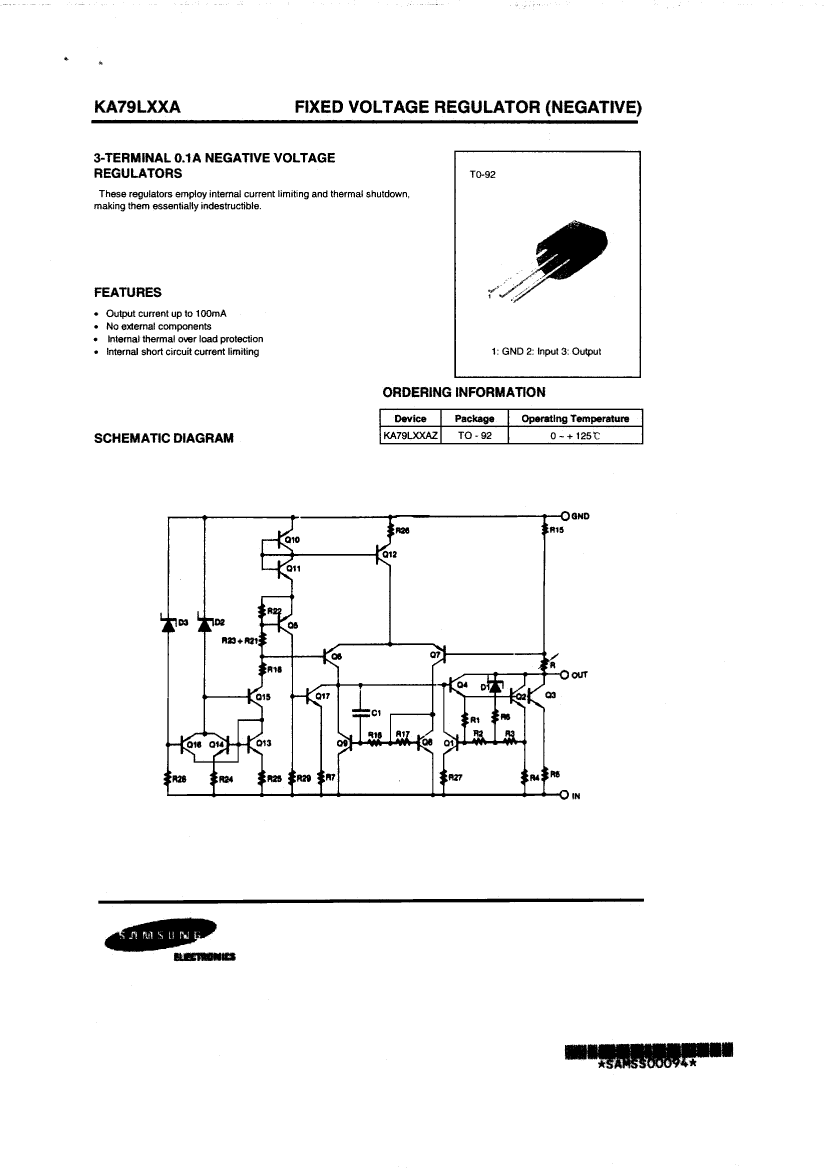

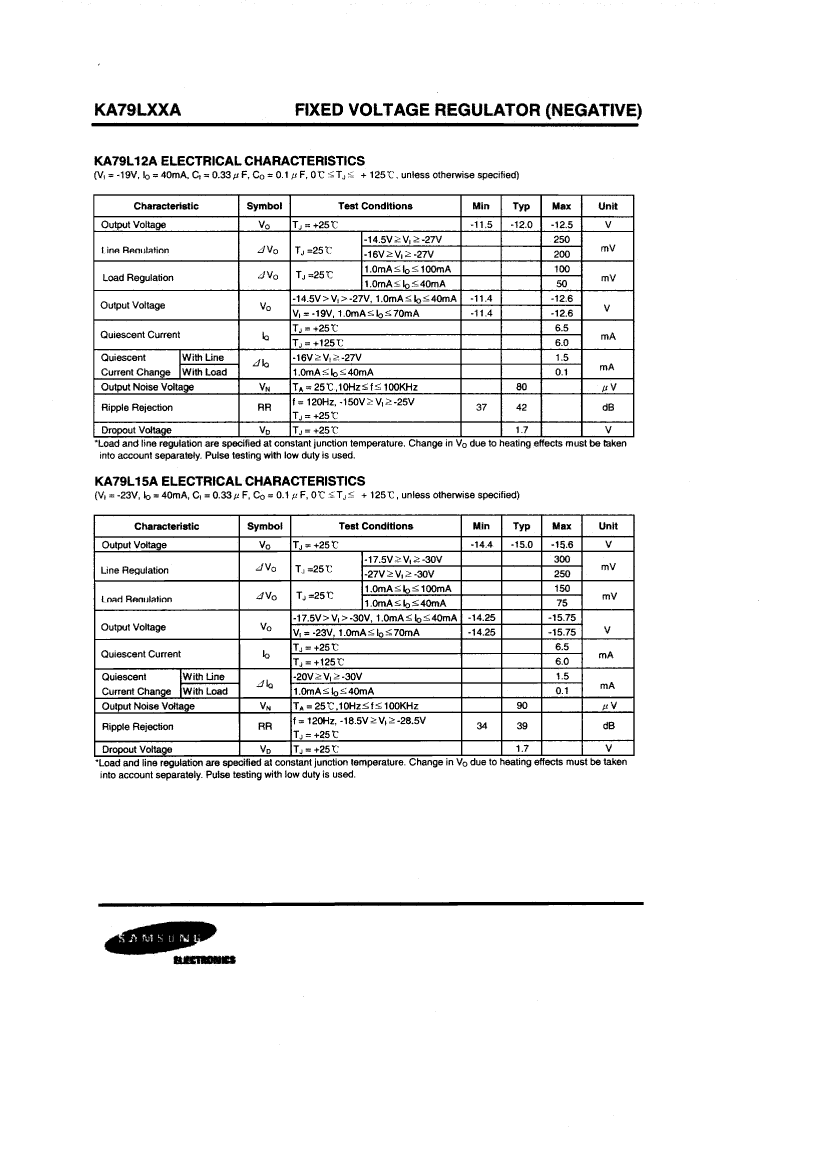

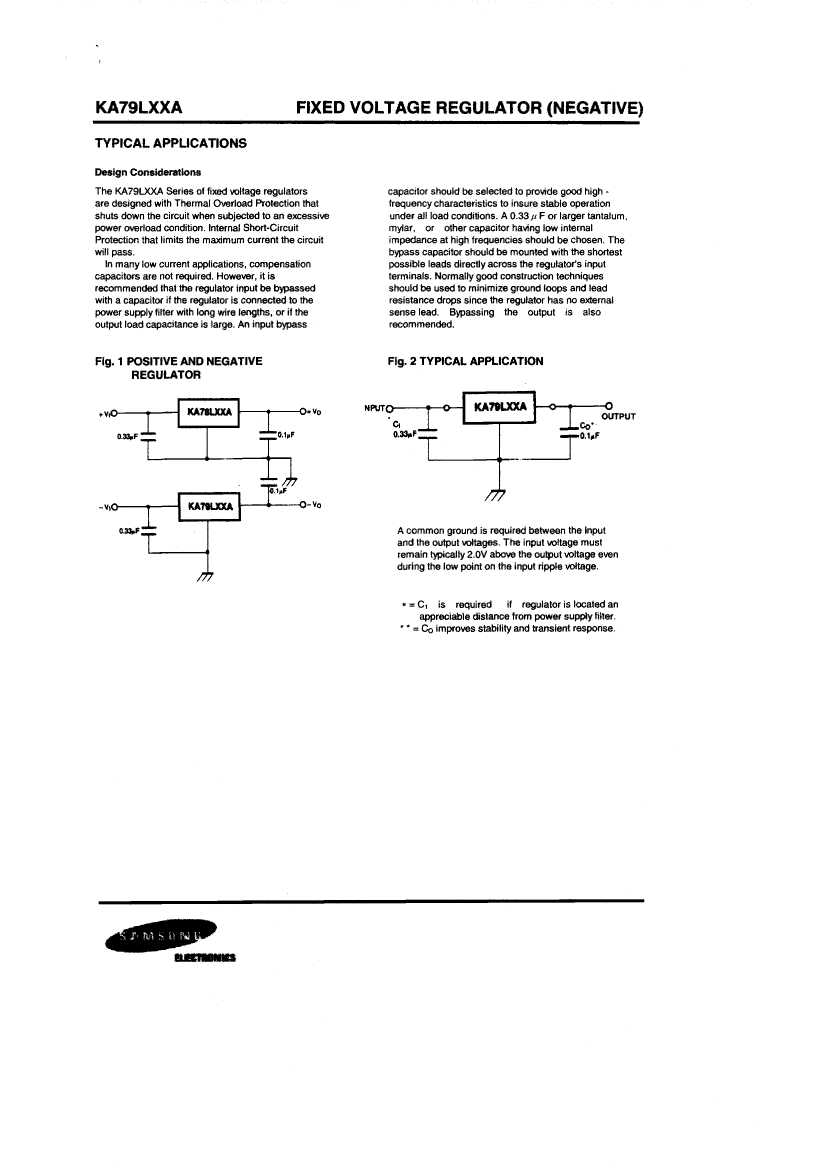

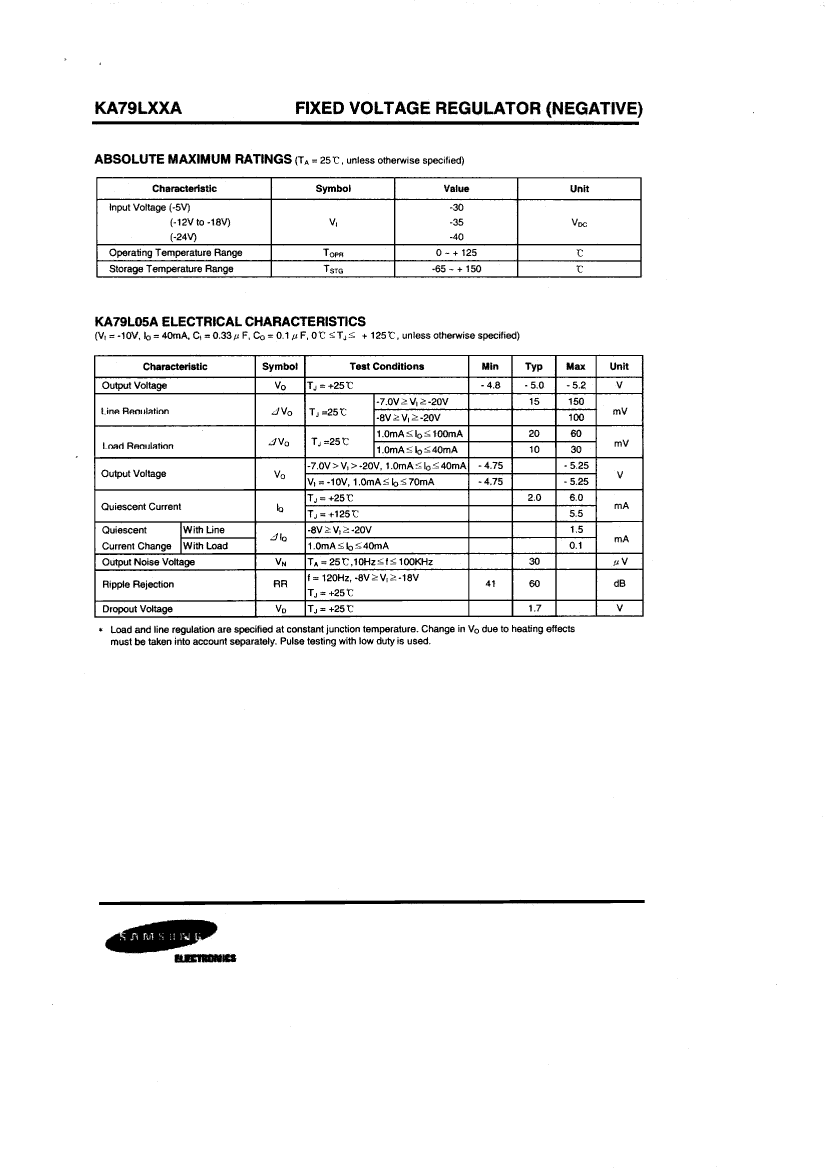

Preview

Download Datasheet

View All

KA79L24AZ Related Products

	KA79L24AZ	KA79L05AZ	KA79L12AZ	KA79L15AZ	KA79L18AZ
Description	Fixed Negative Standard Regulator, 24V, BIPolar, PBCY3,	Fixed Negative Standard Regulator, 5V, BIPolar, PBCY3,	Fixed Negative Standard Regulator, 12V, BIPolar, PBCY3,	Fixed Negative Standard Regulator, 15V, BIPolar, PBCY3,	Fixed Negative Standard Regulator, 18V, BIPolar, PBCY3,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
package instruction	, SIP3,.1,50	, SIP3,.1,50	, SIP3,.1,50	, SIP3,.1,50	, SIP3,.1,50
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
Maximum absolute input voltage	40 V	30 V	35 V	35 V	35 V
Maximum input voltage	38 V	20 V	27 V	30 V	33 V
Minimum input voltage	27 V	7 V	14.5 V	17.5 V	20.7 V
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
JESD-609 code	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.35%	0.15%	0.25%	0.3%	0.325%
Maximum load regulation	0.2%	0.06%	0.1%	0.15%	0.17%
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Number of terminals	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	25.2 V	5.25 V	12.6 V	15.75 V	18.9 V
Minimum output voltage 1	22.8 V	4.75 V	11.4 V	14.25 V	17.1 V
Nominal output voltage 1	24 V	5 V	12 V	15 V	18 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1,50	SIP3,.1,50	SIP3,.1,50	SIP3,.1,50	SIP3,.1,50
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum voltage tolerance	5%	4%	4%	5%	5%
