311-1701-5K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 311-1701-5K

311-1701-5K: DescriptionPotentiometer 16mm W/SW audio 5K; CategoryPassive components; File Size126KB，1 Pages; ManufacturerXicon Passive Components; Websitehttp://www.xicor.com

Download Datasheet Parametric Compare View All

311-1701-5K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	311-1701-5K	-	-	View	Buy Now

311-1701-5K Overview

Potentiometer 16mm W/SW audio 5K

311-1701-5K Parametric

Parameter Name	Attribute value
Maker	Xicon Passive Components
Product Category	Potentiometer
RoHS	no
resistance	5 KOhms
Tolerance	20 %
Power rating	0.1 Watt (1/10 Watt)
Termination type	Snap I
taper	Audi
Shaft type	Thumbwheel
Shaft length	4.3 mm
Shaft diameter	16 mm
type	Molded Case Rotary Potentiometer with Switch

Preview

Download Datasheet

View All

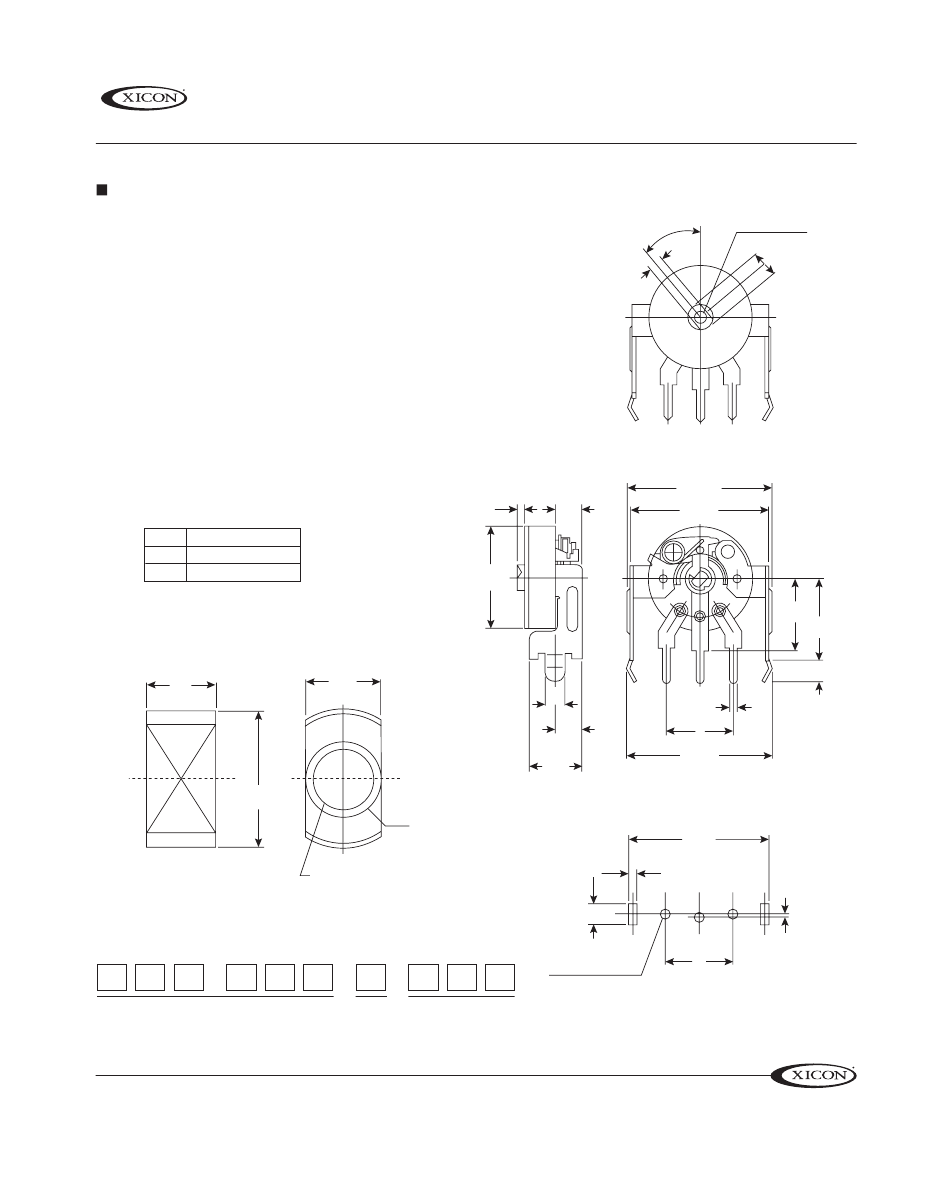

Molded Case Rotary Potentiometer with Switch

Specifications:

Electrical Characteristics:

• Total Resistance: 100Ω~ 1MΩ

• Total Resistance Tolerance: ±20%

• Max. Operation Voltage: Linear Taper B: AC 200V

• Rated Power: Linear Taper B: 0.1W

• Sliding Noise: Less than 100 mV

• Insulation Resistance: More than 50 MΩ at DC 500V

• Switch Circuit: S.P.S.T

• Switch Rated Power: 1.0 A at AC/DC 12V

Durability:

• Rotational Life: 10,000 Cycles

40°

VTW Series

M1.7XP 0.35

ø4.0

2.4

4.3

1.2 ± 0.1

21.8

1.0~5.0

2.2 ± 0/0.1

ø4.0

ø16

11.5

L 0.1

4.1

7.6

C.03

M1.7XP 0.36 Deep 3.5

+0.2

-0

3.5

1.2

2 - 1.2

+0.2

-0

2 - 3.1

0.5

Part Numbering System:

Series

Taper

Value

3 - ø1.4 - 0

+0.2

-0

Hole

Taper - 0

-1

Linear

Audio

XICON PASSIVE COMPONENTS • (800) 628-0544

XC-600009

Date Revised: 9/30/05

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
