Technical Data Sheet

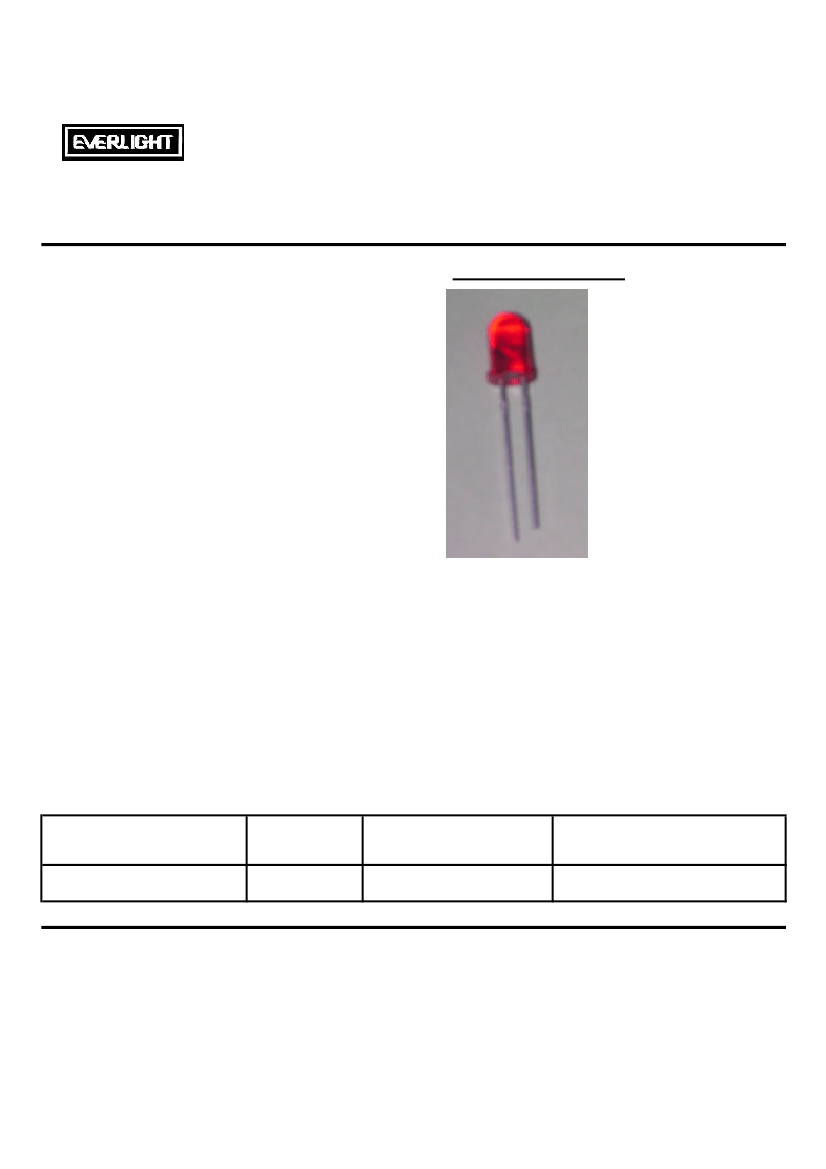

5.0mm Round Type LED Lamps
█
Features :
●
●
●
`
333-2SURT/H3/S400-A3
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities,
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
333-2SURT/H3/S400-A3
Material
AlGaInP
Emitted Color
Hyper Red
Lens Color
Red Trans
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared date:
2003/9/18
Rev.:
1
Page: 1 of 6
dzh
Device Number :
CDLE-033-1172
Prepared by:
BG0309036,R0302725
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SURT/H3/S400-A3
Package Dimensions
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
█
Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Peak Forward Current
Reverse Voltage
Symbol
I
F
Topr
Tstg
ESD
Tsol
Pd
I
F
(Peak)
V
R
Rating
50
-40 to +85
-40 to +100
2000
260
±
5
120
200
5
Unit
mA
℃
℃
V
℃
mW
mA
V
Note: *1:I
FP
Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
*2:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
http : //www.everlight.com
Prepared date:
2003/9/18
Rev.:
1
Prepared by:
Page: 2 of 6
dzh
Device Number :
CDLE-033-1172
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SURT/H3/S400-A3
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
I
R
Iv
2θ1/2
λp
λd
△λ
Condition
I
F
=
V
R
=
I
F
=
I
F
=
I
F
=
I
F
=
I
F
=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
400
800
20
632
624
20
Min.
Typ.
2.0
Max.
2.4
10
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1172
http : //www.everlight.com
Prepared date:
2003/9/18
Rev.:
1
Page: 3 of 6
Prepared by:
dzh
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SURT/H3/S400-A3

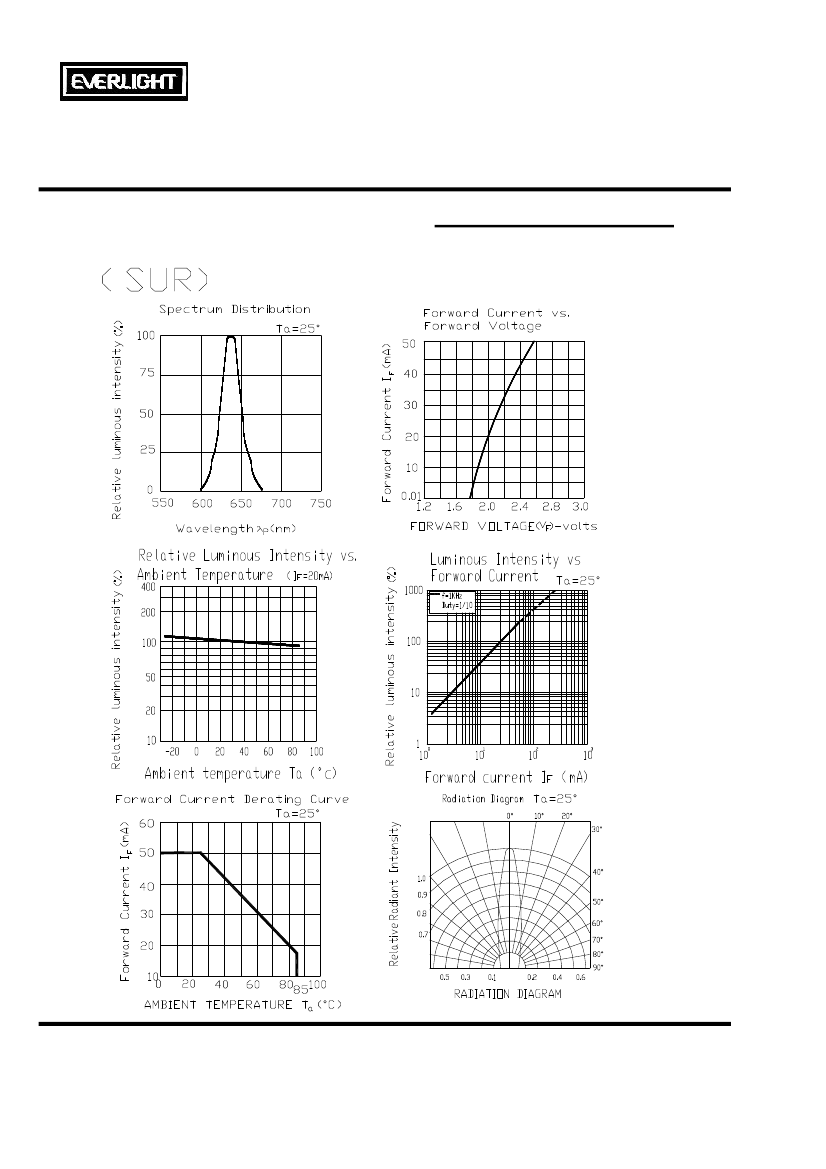

Typical Electro-Optical Characteristic Curves:
█
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
http : //www.everlight.com
Prepared date: 2003/9/18
Rev.: 1
Prepared by:
Page: 4 of 6
CDLE-033-1172
dzh
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SURT/H3/S400-A3
Reliability test items and conditions:
Test
Sample
Ac/Re
Hours/Cycle
size
SEC
76 PCS
0/1
█
NO
1
Item
Solder Heat
Test Conditions
TEMP : 260℃
±
5 ℃
H : +100℃ 15min
∫ 5 min
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
L : -10℃ 5min
TEMP : 100℃
2
Temperature Cycle
300 CYCLES 76 PCS
0/1
3
Thermal Shock
300 CYCLES 76 PCS
0/1
4
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature /
High Humidity
1000 HRS
76 PCS
0/1
5
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
76 PCS
0/1
6
1000 HRS
1000 HRS
76 PCS
76 PCS
0/1
0/1
7
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared date: 2003/9/18
Rev.:
1
Page: 5 of 6
Device Number : CDLE-033-1172
Prepared by:
dzh
