319014AG: Description3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 14 circuits; File Size90KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

319014AG Overview

3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 14 circuits

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0026222021

Active

3.96mm (.156") Pitch KK® Wire-to-Board Header, Vertical, Round Pin, with Polarizing

Wall, 2 Circuits, Gold (Au) Plating

Documents:

3D Model

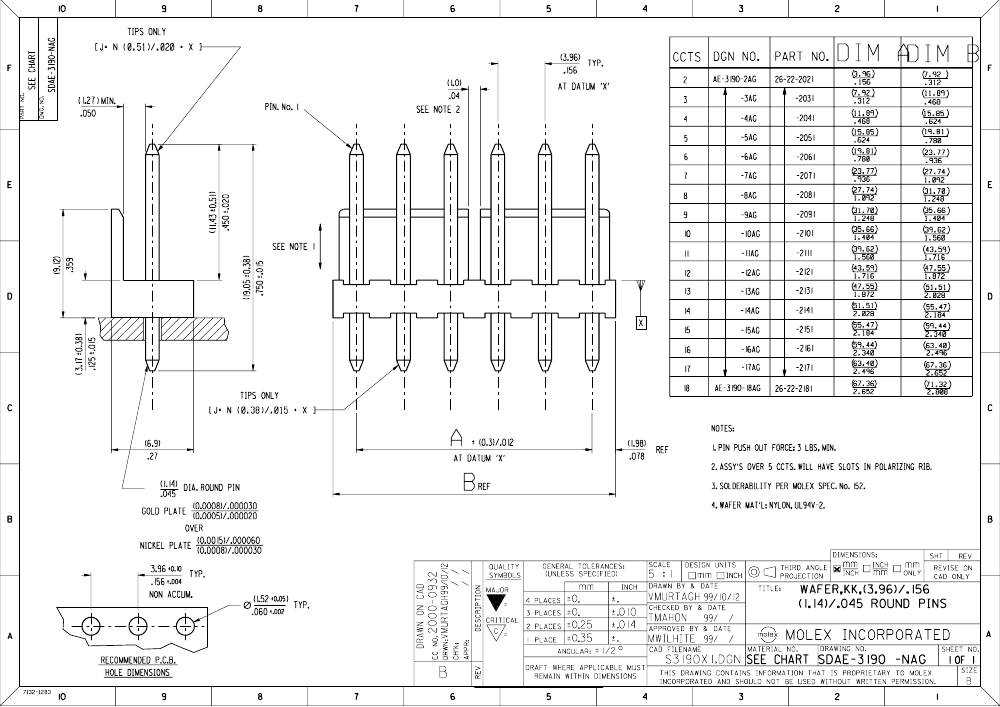

Drawing (PDF)

Product Specification PS-99020-0087 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72090224

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

3190

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-2

None

Brass

Gold

Nylon

Vertical

0.175 In

4.45 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

0.5

Partial

0°C to +75°C

Through Hole

Search Parts in this Series

3190Series

Mates With

3069 KK® Crimp Terminal Housing. 3215

KK® PC Board Connector

319014AG Related Products

	319014AG	0026222021	319007AG	319008AG	319002AG	319004AG	319011AG	319015AG	319017AG	319018AG
Description	3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 14 circuits	3.96mm	3.96mm (.156") pitch KK? wire-to-board header, vertical, round pin, with polarizing wall, 7 circuits, gold (Au) plating	3.96mm (.156") pitch KK? wire-to-board header, vertical, round pin, with polarizing wall, 8 circuits, gold (Au) plating	3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 2 circuits	3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 4 circuits	3.96mm (.156") pitch KK? wire-to-board header, vertical, round pin, with polarizing wall, 11 circuits, gold (Au) plating	3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 15 circuits	3.96mm (.156") pitch KK? wire-to-board header, vertical, round pin, with polarizing wall, 17 circuits, gold (Au) plating	3.96mm (.156") pitch KK wire-to-board header, vertical, round pin, with polarizing wall, 18 circuits
