Features
■
SMD Single-Turn / Cermet / Industrial
CO
M
PL
Open Frame
■
Cross slot rotor designs suitable
for automatic adjustment equipment
■
Supplied in 12 mm embossed tape,
compatible with automatic pick-and-place
assembly equipment
■
Recommended for reflow solder
processing only
■
RoHS compliant* - see
processing
information
on lead free surface mount
trimmers
■
For trimmer applications/processing
guidelines,
click here
*R
oH
S

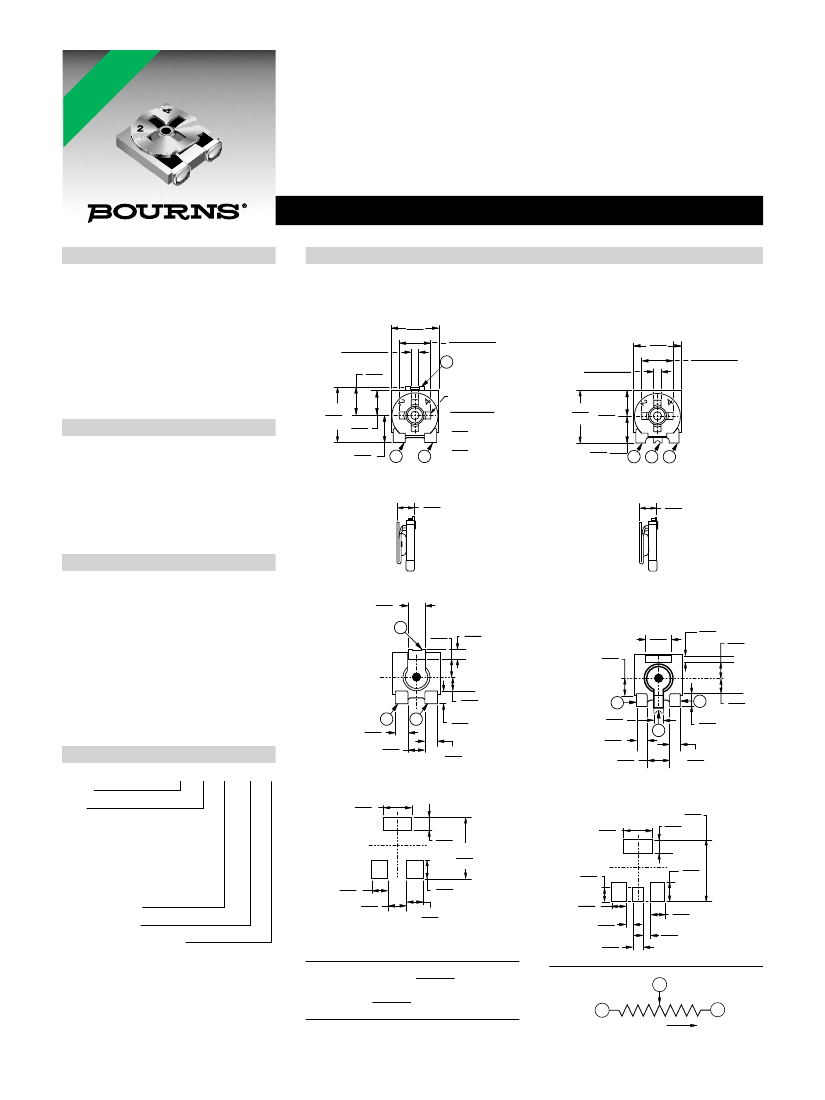

3364 - 4 mm Square Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
......................100 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ........... ±25 % std.
End Resistance
<1K............................... 20 ohms max.
>1K............................................... 2 %
Contact Resistance Variation
(Voltage Divider) .................. 5 % max.
Resolution ................................... Infinite
Adjustment Angle ..................260 °±20 °
Environmental Characteristics
Power Rating (50 volts max.)
70 °C ...................................... 0.2 watt
Temperature Range ... -40 °C to +100 °C
Temperature Coefficient ... ±250 ppm/°C
Humidity ................500 hours (5 %
ΔTR)
Load Life.................................500 hours
0.2 watt @ 70 °C (5 %
ΔTR)
Rotational Life ..... 20 cycles (15%
ΔTR)
Physical Characteristics
Torque............................ 20 to 200 g-cm
Mechanical Angle ................ Continuous
Marking....................... Resistance code,
manufacturer’s full part number
and date code on packaging
Terminals ......................... Solder coated
Standard Packaging ... 1000 pcs./7 ˝ reel
Adjustment Tool..............................H-90
Aqueous cleaning not recommended.
Reflow solder processing recommended
Product Dimensions
Common Dimensions
3364W, X
3-Terminal
3.80
(.150)
0.55
(.022
0.15
.006)
3364A, B
3-Terminal
2.50
(.098
0.15
.006)
0.55
(.022
0.15
.006)
3.80
(.150)
2
2.30
(.091)
ADJ.
CROSS SLOT
0.55 .15
WIDE X
(.022 .006)
0.35
X
DEEP X
(.014)
2.50
X
LONG
(.098)
2.50
(.098
0.15
.006)
4.50
(.177)
2.00
(.079)
2.20
(.087)
4.20 2.00
(.165) (.079)
2.20
(.087)
1
3
1
2
3
1.50
MAX.
(.059)
1.50
MAX.
(.059)
1.40
(.055)
2
1.50
(.059)
0.80
(.031)
1.40
(.055)
2.00
(.079)
0.50
(.020)
1.35
(.053)
.12
(.047)
How To Order
3
0.95
(.037)
1.60
(.063)
1
1.00
(.039)
0.95
(.037)
3364 X - 1 - 103 E
Model
Style
Orientation of parts in tape:
Styles W,A
Terminals toward sprocket holes
Styles X,B
Terminals away from sprocket
holes
Standard Product
Resistance Code
Embossed Tape Designator
E = 1000 pcs./7 ” reel (-1 standard)
G = 5000 pcs./14.5 ” reel (-1 optional)
Consult factory for other available options.
DIMENSIONS:
TOLERANCES: ±
0.25
(.010)
SUGGESTED PWB LAYOUT
2.40
(.094)
1.10
(.043)
5.10
(.201)
3
0.80
(.031)
0.80
(.031)
1.90
(.075)
1
0.99
(.039)
0.80
(.031)
1.20
(.047)
2
SUGGESTED PWB LAYOUT
2.40
(.094)
5.08
1.10 (.200)
(.043)
1.30
(.051)
1.60
(.063)
1.50
(.059)
1.20
(.047)
1.20
(.047)
0.60
(.024)
0.80
(.031)
1.50
(.059)
1.30
(.051)
1.20
(.047)
0.60
(.024)
MM
(INCHES)
EXCEPT WHERE NOTED
CCW
2
1
CLOCKWISE
WIPER
3
CW
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
