DTD100-17SX-W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> DTD100-17SX-W

Preview

DTD100-17SX-W: DescriptionPlug-in AC adapter 17vdc 100watts 5.88a; CategoryPower/power management; File Size131KB，2 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

DTD100-17SX-W Overview

Plug-in AC adapter 17vdc 100watts 5.88a

DTD100-17SX-W Parametric

Parameter Name	Attribute value
Maker	ETA-USA
Product Category	Plug-in AC adapter
RoHS	transition period
Installation style	Desk
Input voltage (nominal)	115 VAC to 230 VAC
Number of outputs	1
Output power rating	100 W
Output voltage (channel 1)	17 V
Output current (channel 1)	5.88 A

Preview

Download Datasheet

View All

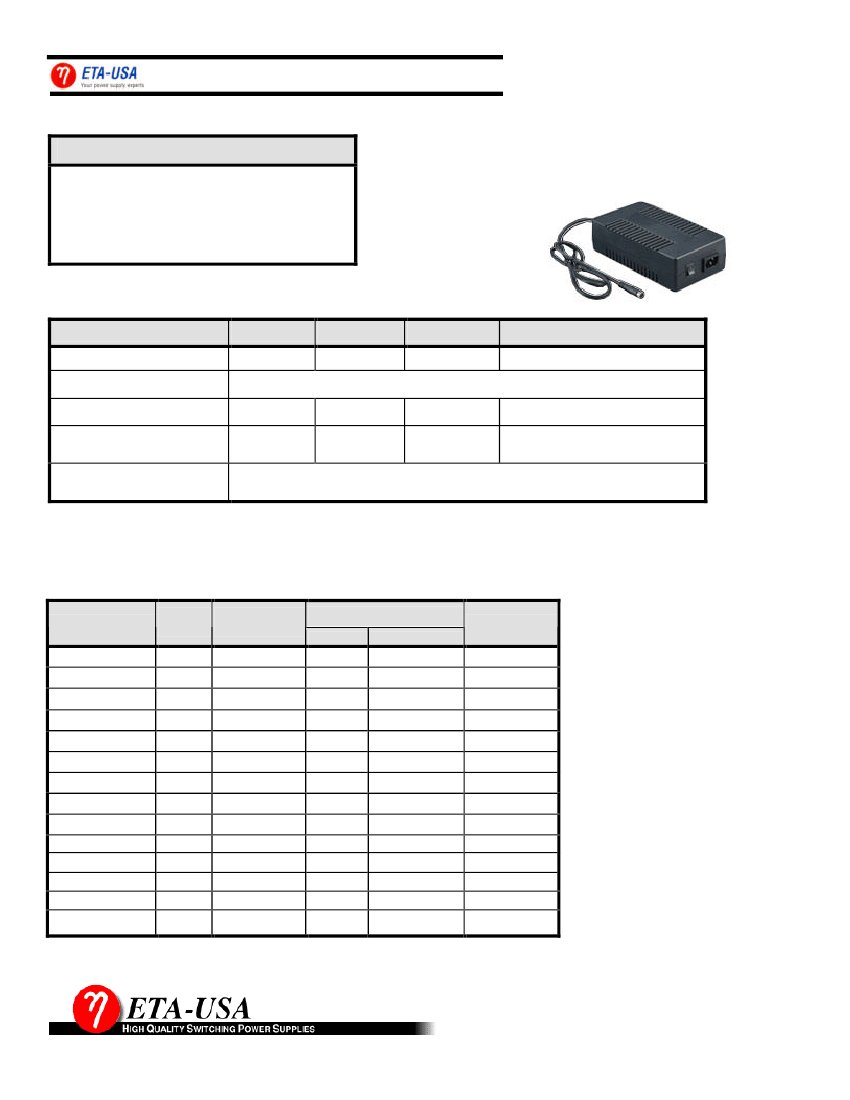

100 WATT

SINGLE OUTPUT SWITCHING

ADAPTOR

DTD100-SX-W SERIES

GENERAL SPECIFICATION

This

specification

describes

the

performance characteristics of a grounded,

single phase, 100 Watts, Single Output

Switching Adapter. With a internal cooling

fan.

1) INPUT

Description

Input Voltage

Input Current

Line Frequency

Inrush Current

Efficiency

Min.

90VAC

1A@264Vac

Nominal

115/230V

50/60Hz

-

2A@90Vac MAX.

Max.

264VAC

63Hz

60A

Condition

Auto Range; 50/60Hz

-

230VAC Cold Start

47Hz

-

>80% at full load, 115VAC (DC Conversion)

2) OUTPUT

*Hold up time:

10ms typical at full load @ 115VAC

*Current Limit:

±3%

*Voltage Regulation:

±3%

Model Name

DTD100-15SX-W

DTD100-16SX-W

DTD100-17SX-W

DTD100-18SX-W

DTD100-19SX-W

DTD100-20SX-W

DTD100-21SX-W

DTD100-22SX-W

DTD100-23SX-W

DTD100-24SX-W

DTD100-32SX-W

DTD100-33SX-W

DTD100-36SX-W

DTD100-48SX-W

Nominal

Voltage

15

16

17

18

19

20

21

22

23

24

32

33

36

48

Max.

Wattage

100W

Output Current

MIN.

0.0A

MAX.

6.66A

6.25A

5.88A

5.55A

5.26A

5A

4.76A

4.54A

4.34A

4.16A

3.13A

3.03A

2.78A

2.09A

Ripple & Noise

50mv

60mv

70mv

80mv

90mv

100mv

110mv

120mv

130mv

140mv

150mv

160mv

170mv

180mv

NOTE: 1. Peak to Peak with 20MHz bandwidth and 10uF in parallel with a 0.1uF capacitor.

2. CV-Constant Voltage: +5V~+13.8V/100W

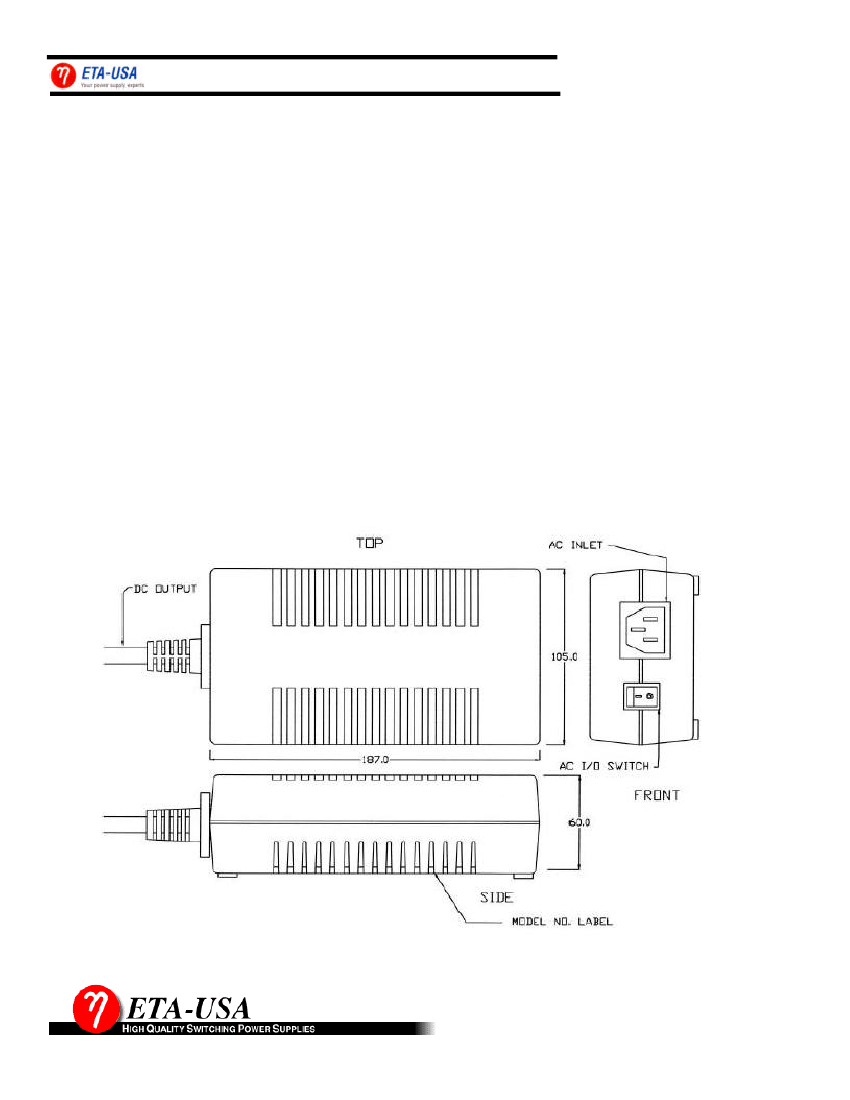

ETA-USA Tel:

408-778-2793 Fax: 408-779-2753 e-mail: sales@eta-usa.com

DTD100-17SX-W Related Products

	DTD100-17SX-W	DTD100-19SX-W
Description	Plug-in AC adapter 17vdc 100watts 5.88a	Plug-in AC adapter 100 watts 19 volts
