D C Pe r man en t
Magnet M ot o r s
Model 800

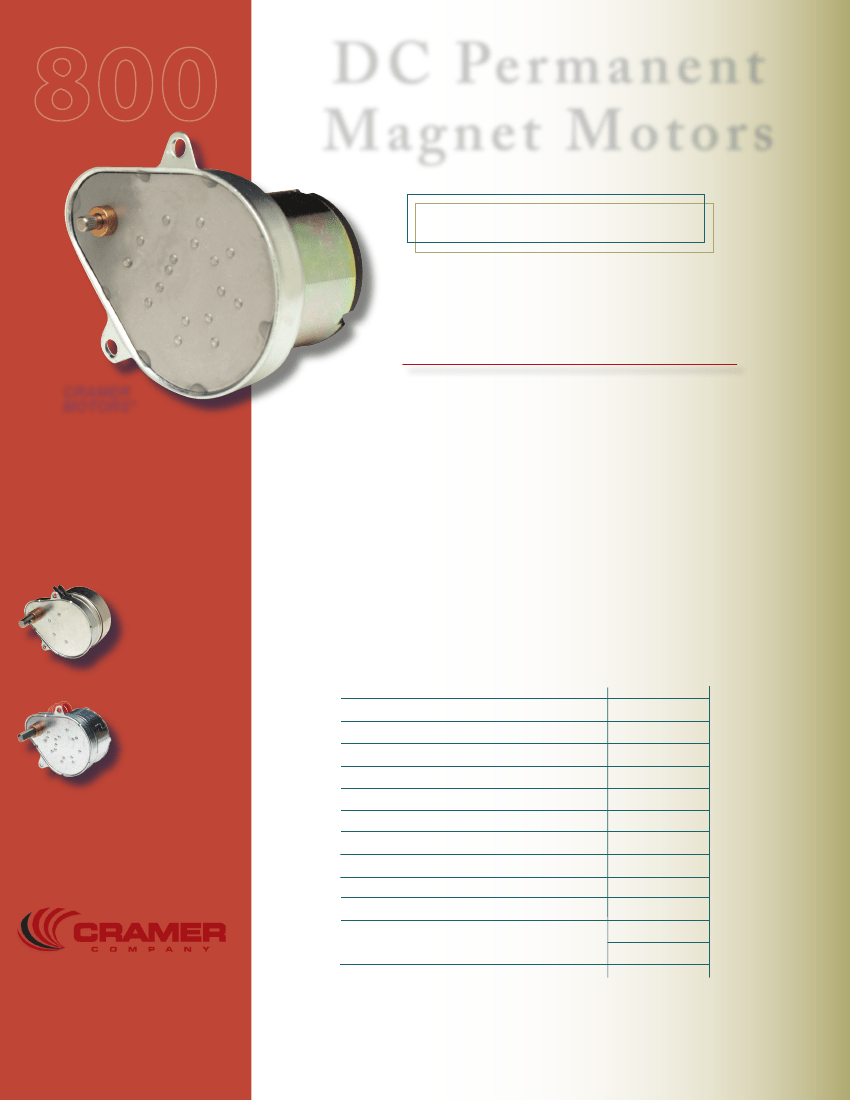

The Cramer line of DC Permanent Magnet Motors
offers application solutions requiring fast starts,
high starting torque and drive reversibility.
CRAMER
MOTORS
®
Applications Include:
•
•
•
•
•
•
Warning Lights
•
Graphic Plotters
•
Automatic Teller Machines
•
Printers
Medical Pump and Drive Values
•
Transit Ticket Dispensers
•
Card Readers
High torque capability
•
Fast starting and stops
Clockwise and Counter Clockwise rotation available
Clutches available are One-Way Incremental, or Two-Way Slip
Pear-shape and round-gear case available
Specifications:
Rating Data (Ounce Inches @ 1 RPM)
Model 800
Starting Torque* @ 1 RPM
60 oz. in.
Running Torque** @ 1 RPM
60 oz. in.
Current Input (No load)
as low as 18 ma.
Standard Voltages
4 - 24 VDC
Noise Suppression
Varistor type
Standard Mounting
2 hole
Mounting Centers (Round)
2.125 inches
Mounting Centers (Pear Shaped)
1.875 inches
Gear Train Rating - Dynamic*** (Standard Duty) 30 oz. in.
Gear Train Rating - Static**** (Standard Duty) 90 oz. in.
Operating Temperature Range
+77ºF to 185ºF
+25ºC to 85ºC
Features:
Similar Products By Cramer:
Hysteresis Motors Model 6100
AC Permanent Magnet Motors
Models 105, 107, and 113
1 0 5 N utme g R oa d Sout h
So u t h Wi n dsor, CT 06074 USA
P: 8 6 0. 2 9 1.84 0 2
F: 86 0 . 61 0 .0 8 97
c r ame r-mo to rs.co m
*
Starting Torque
is the Torque Load the motor can accelerate from rest.
**
Running torque
is the load the motor can drive after obtaining
rated motor speed.
***
Dynamic Torque
is the maximum load, that the gear train can drive continuously without undue wear.
****
Static Torque
is the maximum torque load that can be sustained without risk of damage to the gear train.
D C Pe r m a n ent M a gn et M otor s
Pear-Shaped Gear Case:
Round-Shaped Gear Case:

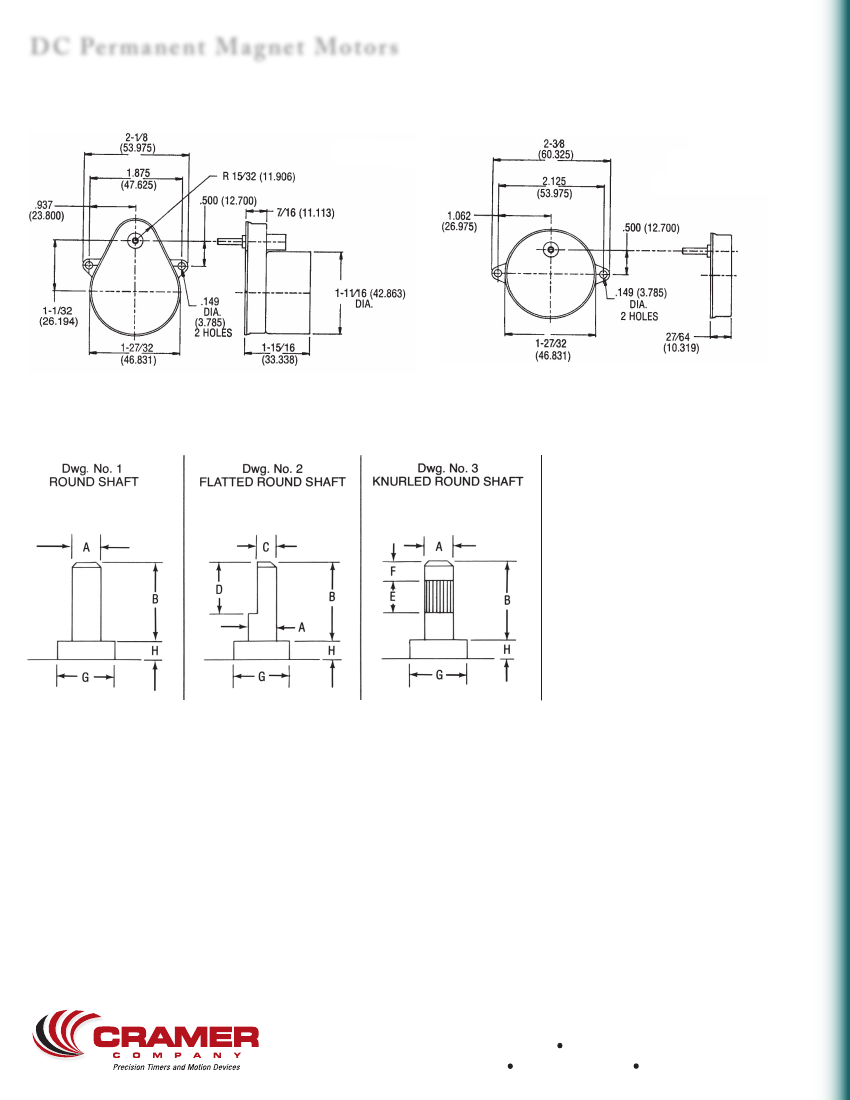

Dimensions: INCH [MM]
Shaft Selection Data:
When selecting the required shaft
for your application, please indicate
the type of shaft needed-either
round, flatted or knurled, including
other key measurements below:
Shaft diameter (A)
Shaft length (B)
Shaft width at flat (C) and length (D)
Knurl length (E) and knurl set back (F)
Bearing O.D. (G) and Bearing height (H
)
Motor Selection:
When specifying a motor for meeting your application, Cramer Company requires information such as torque, speed requirements,
voltage, shaft dimensions and shape, direction of rotation and other key performance values.
To assist you in specifying the requirements above, please visit cramer-motors.com or call our sales staff and request a specification
worksheet for completing the information.
Warranty:
Cramer warrants its products against defective material or workmanship for a period of one year from the date of shipment from factory,
providing product has been used in accordance with instructions and specified ratings. Consult factory for further details concerning our warranty policy.
1 0 5 N u tme g Ro a d S ou t h
S out h Wi nd s or, C T 06 074 US A
P : 8 6 0 .2 9 1 .8 4 0 2
F: 8 60 . 61 0. 08 97
c r a me r - m o tor s .c om
