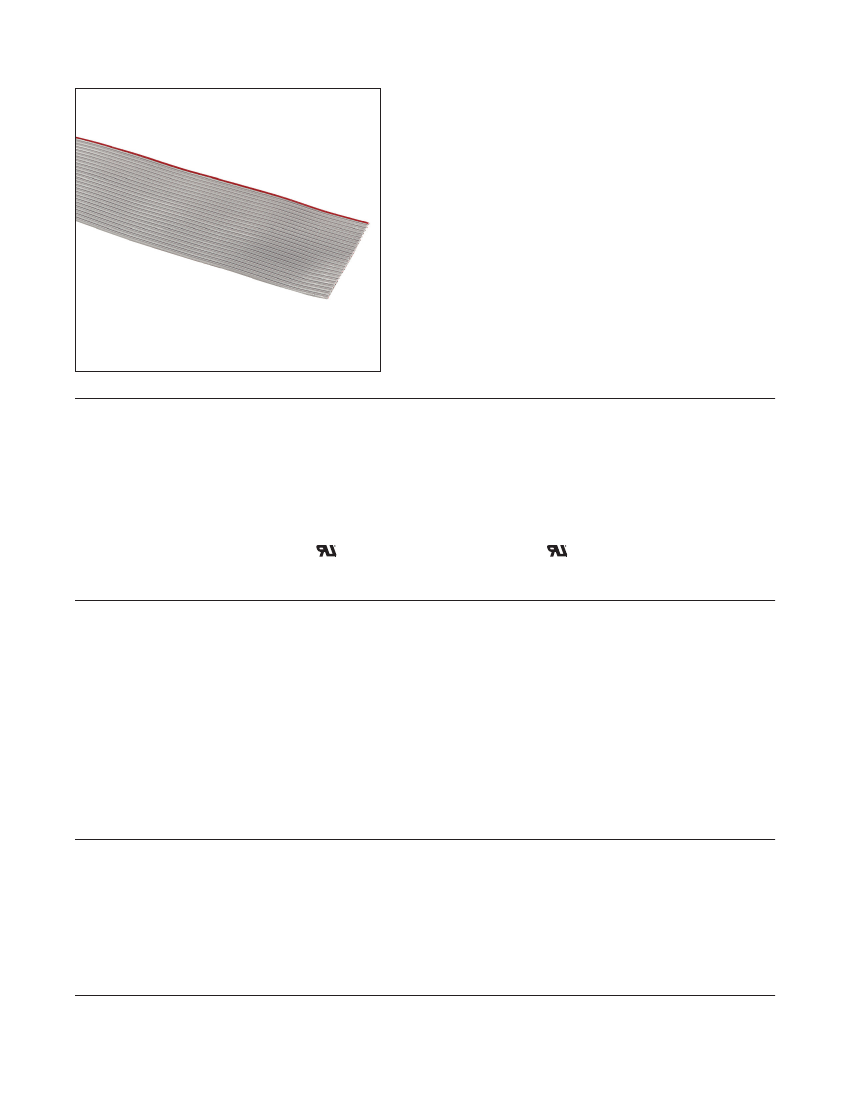

.050 inch centers permit mass termination to a broad
line of IDC connectors
•
Zippable for branching or discrete termination
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 7, 2009
TS-0066-B
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray
Marking:
Standard: None
Canadian Option:
AWM 2651 105C 300V VW1 3M NU C
AWM IA 105C 300V FT1 EU <50V
Conductors:
26 AWG [ Ø 0.404 ] Bare Solid Copper
Electrical
Voltage Rating:
USA: 300V
Canada: 300V
Insulation Resistance:
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Characteristic Impedance:
Unbalanced
Balanced
103
Ω
171
Ω
EU: <50V
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
13.6 pF/ft [ 44.62 pF/m ]
0.14 μH/ft [ 0.47 μH/m ]
1.40 ns/ft [ 4.59 ns/m ]
73%
7.9 pF/ft [ 25.91 pF/m ]
0.23 μH/ft [ 0.75 μH/m ]
1.35 ns/ft [ 4.43 ns/m ]
75%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.050" 26 AWG Solid, PVC
Number of
Conductors
C
(OPTIONAL)
3306 Series
3M Part
Number
3306/10
3306/14
3306/16
3306/20
3306/24
3306/26
3306/34
3306/40
3306/50
3306/60
Dimension A
0.500 ± .010 [ 12.70 ]
0.700 ± .010 [ 17.78 ]
0.800 ± .015 [ 20.32 ]
1.000 ± .015 [ 25.40 ]
1.200 ± .015 [ 30.48 ]
1.300 ± .015 [ 33.02 ]
1.700 ± .020 [ 43.18 ]
2.000 ± .020 [ 50.80 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
Dimension B
0.450 ± .007 [ 11.43 ]
0.650 ± .007 [ 16.51 ]
0.750 ± .011 [ 19.05 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.250 ± .011 [ 31.75 ]
1.650 ± .015 [ 41.91 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
10
14
16
20a
24
26
34
40
50
60
A
B
.025
±
.007
[ 0.64 ]
.050
±
.002 Typ
[ 1.27 ]
.035
±
.003
[ 0.89 ]
PVC Insulation
26 AWG [ Ø 0.404 ] Bare
Solid Copper Conductors
Inch
[mm]
Tolerance Unless Noted
.0
Inch
Note: Red marking on one edge of cable designates wire #1.
.00
±.01
.000
±.005
±.1
[ ] Dimensions for Reference Only
Ordering Information
3306 / XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0066-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
