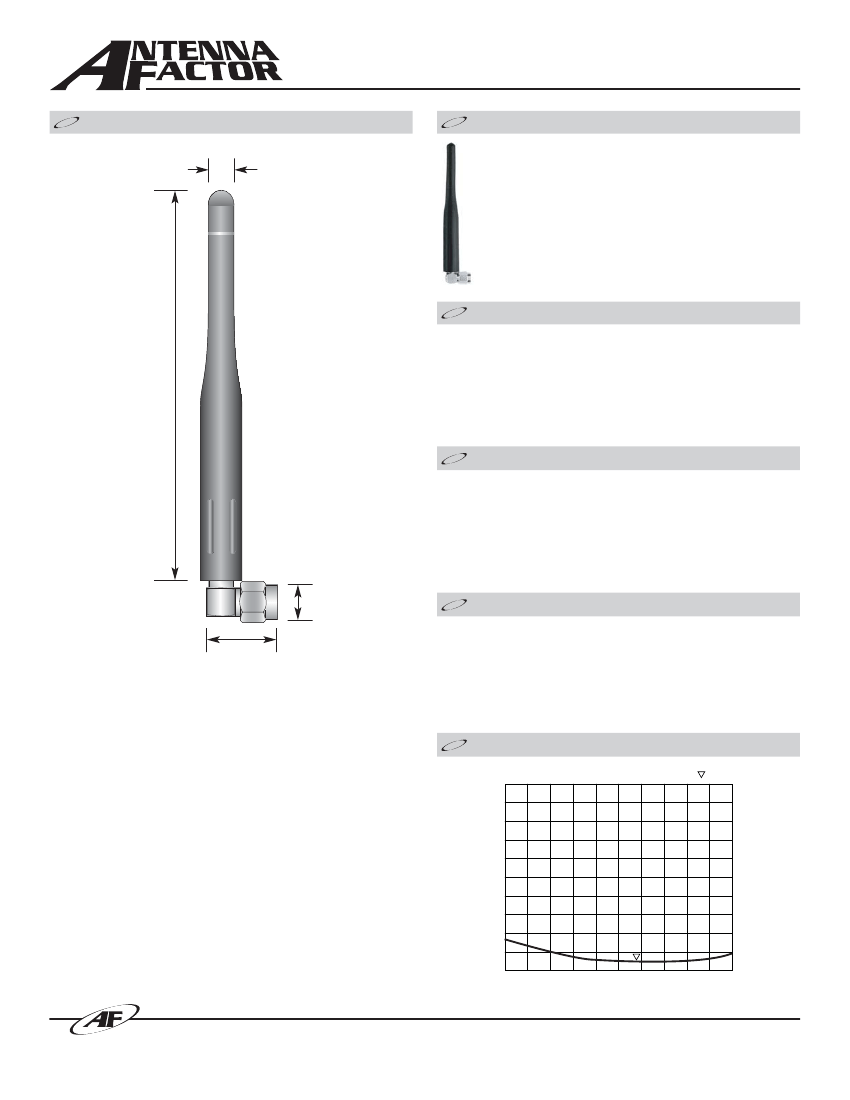

ANT-916-CW-RCL DATA SHEET
Product Dimensions
0.24”
(6.0)
Description
The RCL Series is useful in products where additional
height above the product’s case is needed or a slightly
wider operational bandwidth is desired. The 916MHz
version has a 1/4-wave element. The antennas attach
via a Part 15 compliant RP-SMA connector.
Features
•
•
•
•
•
•
•
Right-angle mount
Reduced-height whip
Excellent performance
Omni-directional pattern
Fully weatherized
Rugged & damage-resistant
Part 15 compliant RP-SMA connector
3.46”
(88.0)
Electrical Specifications
•
•
•
•
•
•
0.31”
(8.0)
Center Freq.
Bandwidth
Wavelength
VSWR
Impedance
Connector
916MHz
150MHz
1/4-wave
<1.7 typ. at center
50 ohms
RP-SMA
Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane
Ordering Information
•
ANT-916-CW-RCL
0.65”
(16.6)
VSWR Graph
S11 SWR
1.654
CENTER 900.000MHz
SPAN 200.000MHz
Typical VSWR
Antenna Factor
159 Ort Lane Merlin, OR 97532
www.antennafactor.com
541-956-0931 (phone) 541-471-6251 (fax)
Rev 07-22-08
