852-10-006-30-001

Description
IC and device socket.05 6P smt
CategoryThe connector    The connector
File Size245KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Environmental Compliance
Download Datasheet Parametric View All

852-10-006-30-001 Overview

IC and device socket.05 6P smt

852-10-006-30-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMill-Max
Reach Compliance Codecompli
Other featuresCOMPATIBLE CONTACT: 4006-0-00-15-00-00-03-0
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (10) OVER NICKEL
Contact completed and terminatedGOLD (10) OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number852
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts6
UL Flammability Code94V-0

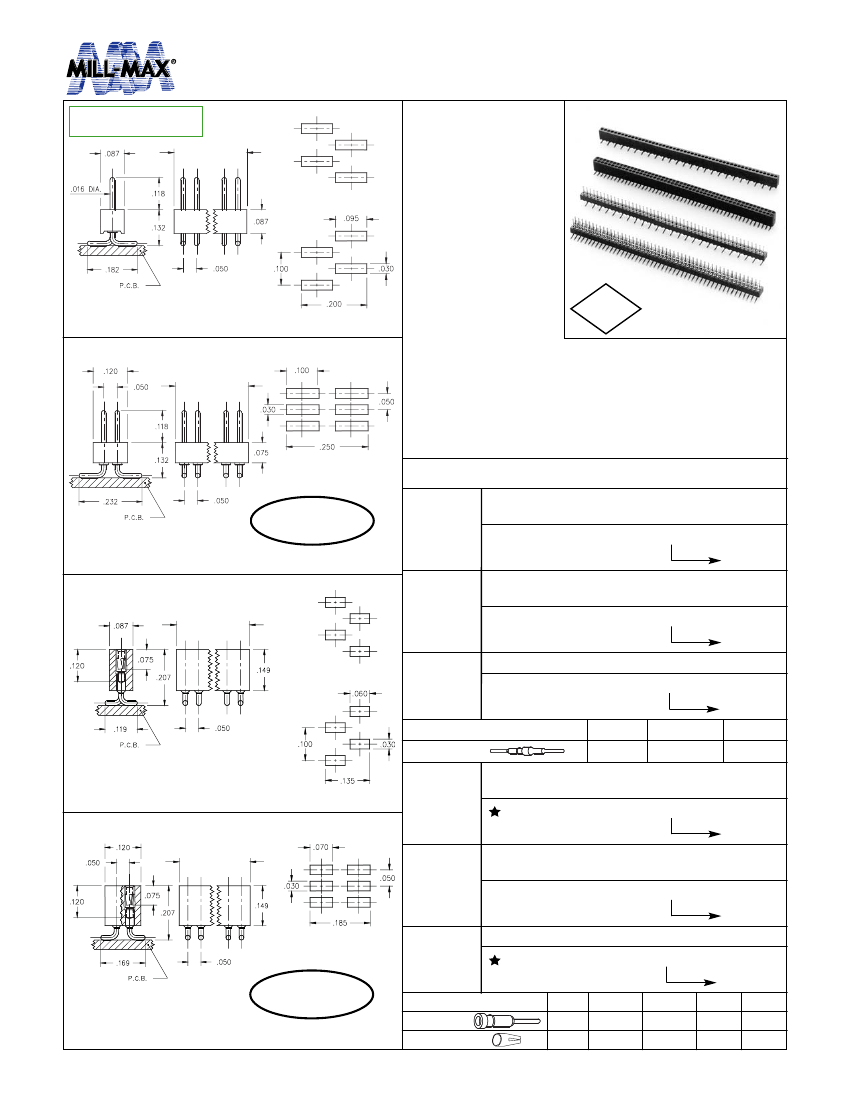

INTERCONNECTS
.050” Grid Surface Mount Headers and Sockets
Single and Double Row
For RoHS compliance
select
plating code.
(Number of Pins
X .050”) + .015”
Series 850, 851
852, 853
Left Hand
Footprint
Right Hand
Footprint
Coplanarity .005”. For Pin Counts
> 20 Consult Tech Support
Fig. 1
Footprint
(Number of Pins
X .050”/2) + .015”
Single row intercon-
nects having an
even number of pins
are now available
with a left or right
hand footprint.
Headers (850 &
852) use MM# 4006
pins. See page 175
for details.
Sockets (851 & 853)
RoHS
2002/95/EC
use MM# 4890-0
receptacles and
accept pin diameters from .015-.021. See page 131
for details.
Coplanarity .005” (Single Row max 20 pins; Double
Row max 40 pins). For higher pin counts contact
techical support .
Insulators are high temp. thermoplastic.
Ordering Information
Coplanarity .005”. For Pin Counts
> 40 Consult Tech Support
XX=Plating Code
See Below
Single Row Header, Left Hand Footprint
Odd or Even # of pins
Fig. 1L
850-XX-0_ _-30-001000
Specify # of pins
01-50
Single Row Header, Right Hand Footprint
Even # of pins
Fig. 2
Left Hand
Footprint
(Number of Pins
X .050”) + .015”
Fig. 1R
850-XX-0_ _-30-002000
Specify even # of pins
02-50
Double Row Header, Even # of pins
Right Hand
Footprint
Fig. 2
SPECIFY PLATING CODE XX=
852-XX-_ _ _-30-001000
Specify even # of pins
10
90
004-100
40
Coplanarity .005”. For Pin Counts
> 20 Consult Tech Support
Pin Plating
10μ” Au 200μ” Sn/Pb 200μ” Sn
Fig. 3
Footprint
(Number of Pins
X .050”/2) + .015”
Single Row Socket, Left Hand Footprint
Odd or Even # of pins
Fig. 3L
44 Plating
Non-Standard
851-XX-0_ _-30-001000
Fig. 3R
Specify # of pins
01-50
Single Row Socket, Right Hand Footprint
Even # of pins
851-XX-0_ _-30-002000
Specify even # of pins
02-50
Double Row Socket, Even # of pins
Fig. 4
Coplanarity .005”. For Pin Counts
> 40 Consult Tech Support
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
44 Plating
Non-Standard
853-XX-_ _ _-30-001000
004-100
99
200µ”Sn/Pb
Specify even # of pins
SPECIFY PLATING CODE XX=
13
30µ” Au
93
30µ” Au
43
44
Sleeve (Pin)
10µ” Au
200µ” Sn/Pb 200µ”Sn/Pb 200µ”Sn 200µ”Sn
30µ” Au 200µ”Sn
Fig. 4
w w w. m i l l - m a x . c o m
Contact (Clip)
68
516-922-6000
