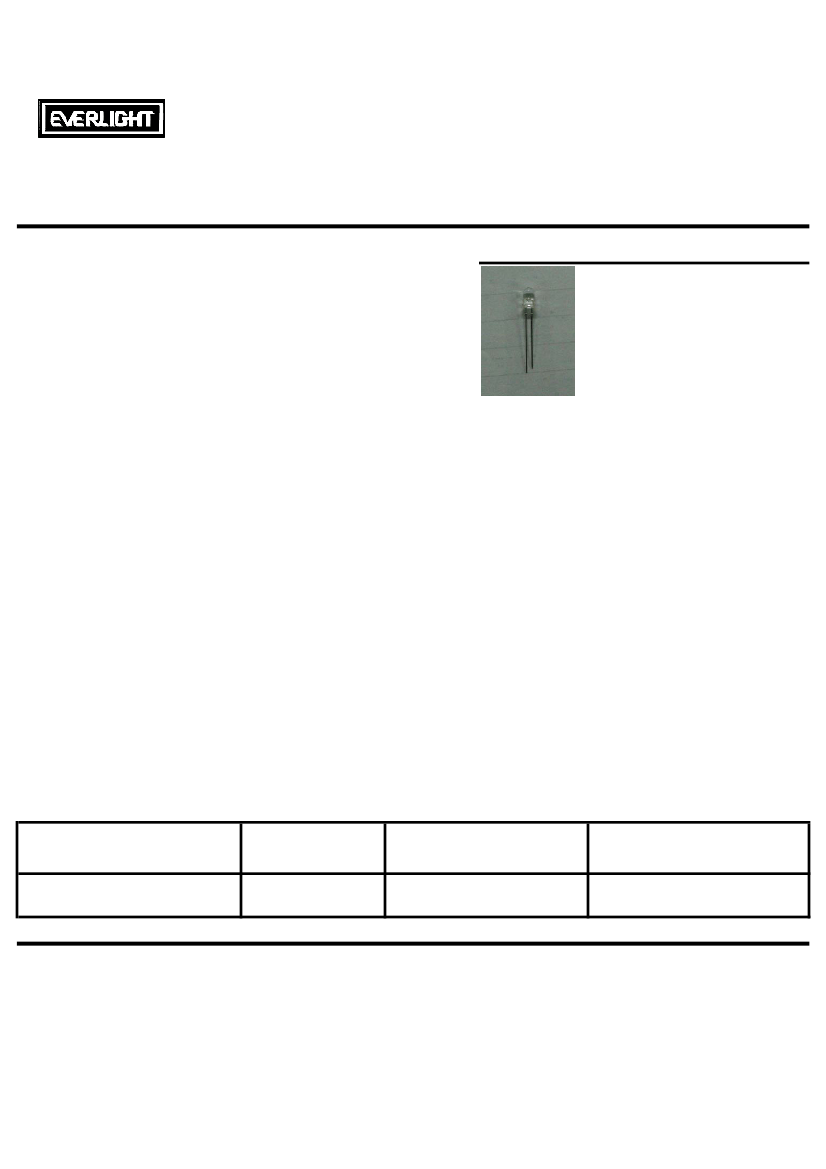

Technical Data Sheet
5.0mm Round Type LED Lamps
333-2USOC/H3/S400-A9
█
Features :
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
●
Pb free
●
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities,
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
333-2USOC/H3/S400-A9
Material
AlGaInP
Emitted Color
Super Sunset Orange
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared date: 2004/9/27
BG0409041,R0402596
Rev.:
1
Page: 1 of 6
Lan Feng
Device Number :
CDLE-033-1309
Prepared by:
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2USOC/H3/S400-A9
Package Dimensions
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
ESD
Tsol
Pd
V
R
Rating
50
-40 to +85
-40 to +100
2000
260
±
5
120
5
Unit
mA
℃
℃
V
℃
mW
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD
http : //w //www.everlight.com
:
Prepared date:
2004/9/27
Rev.:
1
Prepared by:
Page: 2 of 6
Lan Feng
Device Number :
CDLE-033-1309
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2USOC/H3/S400-A9
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
I
R
Iv
2θ1/2
λp
λd
△λ
Condition
IF=
V
R
=
IF=
IF=
IF=
IF=
IF=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
2000
／
／
／
／
Typ.
2.0
／
4000
20
621
615
18
Max.
2.4
10
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1309
http : //www.everlight.com
Prepared date:
2004/9/27
Rev.:
1
Page: 3 of 6
Lan Feng
Prepared by:
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2USOC/H3/S400-A9
█

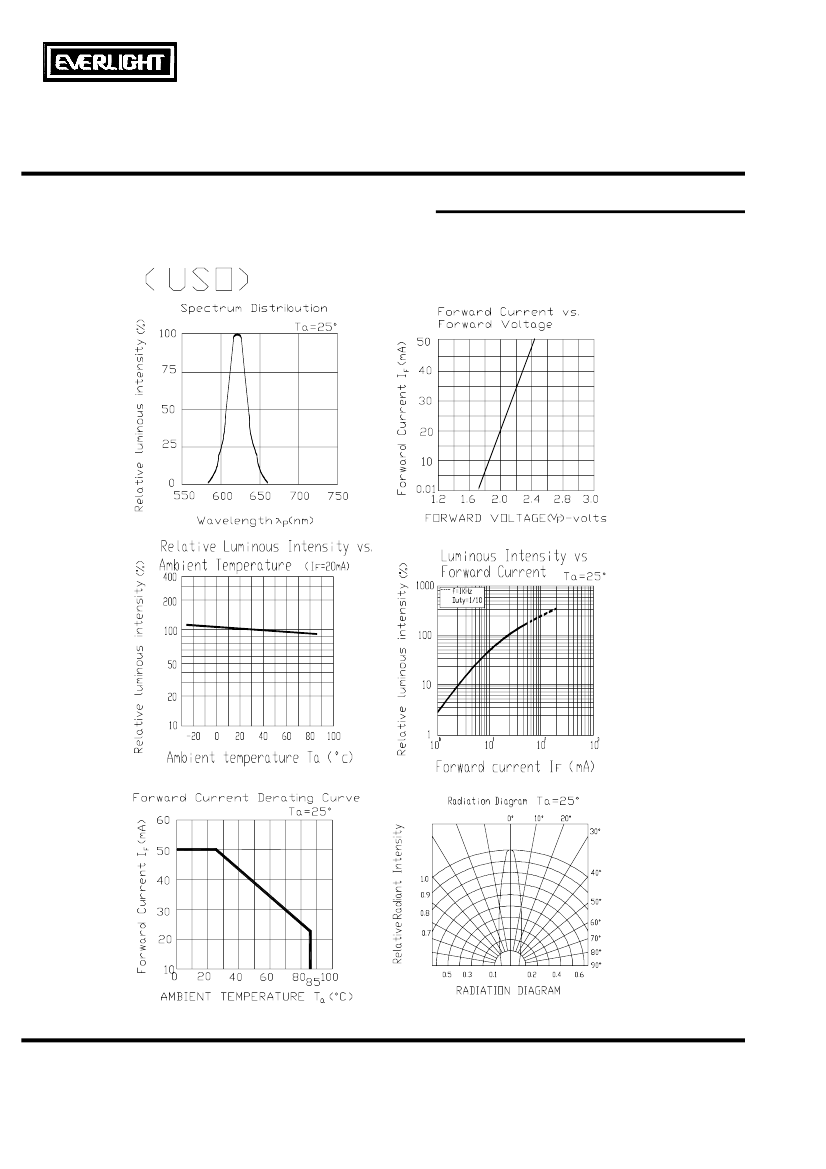

Typical Electro-Optical Characteristic Curves:
