3315Y-12-016: DescriptionEncoder 9mm SQ seal 16ppr flatted shaft; CategoryTopical application Mechanical and electrical/engineering/automation; File Size191KB，5 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

3315Y-12-016 Overview

Encoder 9mm SQ seal 16ppr flatted shaft

3315Y-12-016 Parametric

Parameter Name	Attribute value
Maker	Bourns
Product Category	Encoder
RoHS	no
pulses per revolution	16 PPR
Termination type	Solder Pi
output	2 bit Gray Code
Shaft type	Flatted
With switch	Withou
range of working temperature	- 40 C to + 125 C
product	Mechanical

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

Miniature package for design ﬂexibility

■

Long operating life

■

Conductive plastic element

■

Bushing or PC board mount

■

Quadrature output

■

RoHS compliant versions available*

3315 - 9 mm Square Sealed Incremental Encoder

Electrical Characteristics

Output .......................................................................................... 2-bit gray code, Channel A leads Channel B electrically turning clockwise (CW)

Closed Circuit Resistance .............................................................................................................................................................. 5 ohms maximum

Contact Rating ......................................................................................................................................................................... TTL compatible loads

Insulation Resistance (500 VDC) ....................................................................................................................................... 1,000 megohms minimum

Dielectric Withstanding Voltage

Sea Level .................................................................................................................................................................................. 900 VAC minimum

Electrical Travel .........................................................................................................................................................................................Continuous

Contact Bounce .................................................................................................................................................................. 5 milliseconds maximum

RPM (Operating)................................................................................................................................................................................... 120 maximum

Environmental Characteristics

Operating Temperature Range .........................................................................................................................-40 °C to +125 °C (-40 °F to +257 °F)

Storage Temperature Range ............................................................................................................................-55 ºC to +125 ºC (-67 °F to +257 °F)

Humidity ................................................................................................................................................... MIL-STD-202, Method 103B, Condition B

Vibration ...............................................................................................................................................................................................................30 G

Contact Bounce ............................................................................................................................................................ 5.0 millisecond maximum

Shock .................................................................................................................................................................................................................100 G

Contact Bounce ............................................................................................................................................................ 5.0 millisecond maximum

Rotational Life ......................................................................................................................................................................100,000 cycles @ 6 PPR

25,000 cycles @ 16 PPR

IP Rating .............................................................................................................................................................................................................. IP 67

Mechanical Characteristics

Mechanical Angle ............................................................................................................................................................................ 360 ° Continuous

Running Torque ........................................................................................................................................................ 3.53 N-cm (5 oz.-in.) maximum

Mounting Torque

Plastic Bushing................................................................................................................................................. 45.19 N-cm (4.0 lb.-in.) maximum

Metal Bushing ....................................................................................................................................................... 79 N-cm (7.0 lb.-in.) maximum

Weight .............................................................................................................................................................................................. 4.5 gm (0.15 oz.)

Terminals ............................................................................................................................................................................................ Solderable pins

Soldering Condition

Manual Soldering .................................... 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire; 370 °C (700 °F) max. for 3 seconds

Wave Soldering ............................................................. 96.5Sn/3.0Ag/0.5Cu solder with no-clean ﬂux; 260 °C (500 °F) max. for 5 seconds

Wash Processes........................................... For recommended wash processes, please refer to http://www.bourns.com/pdfs/sldclen.pdf

Marking ...............................................................................................................................Manufacturer’s trademark, part number, and date code

Hardware .................................. One lockwasher and one mounting nut are shipped with each encoder, except where noted in the part number.

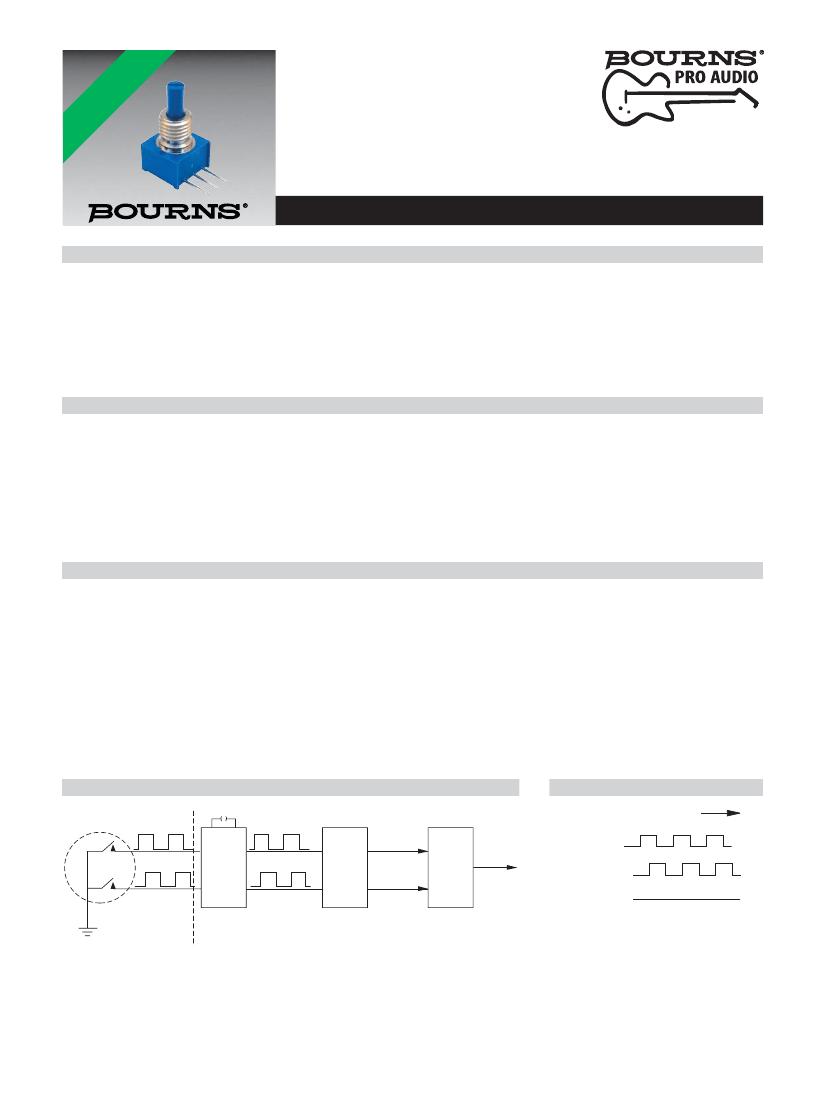

Suggested Incremental Control Diagram

.0015 f

DIRECTION

5 ms DELAY

DEBOUNCE

(MC 14490)

DECODE

LOGIC

MAGNITUDE

UP/DOWN

COUNTER

BINARY

OUTPUT

(CUSTOMER LOGIC CIRCUITRY)

Quadrature Output Table

Clockwise

Channel A

Channel B

Channel C

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
