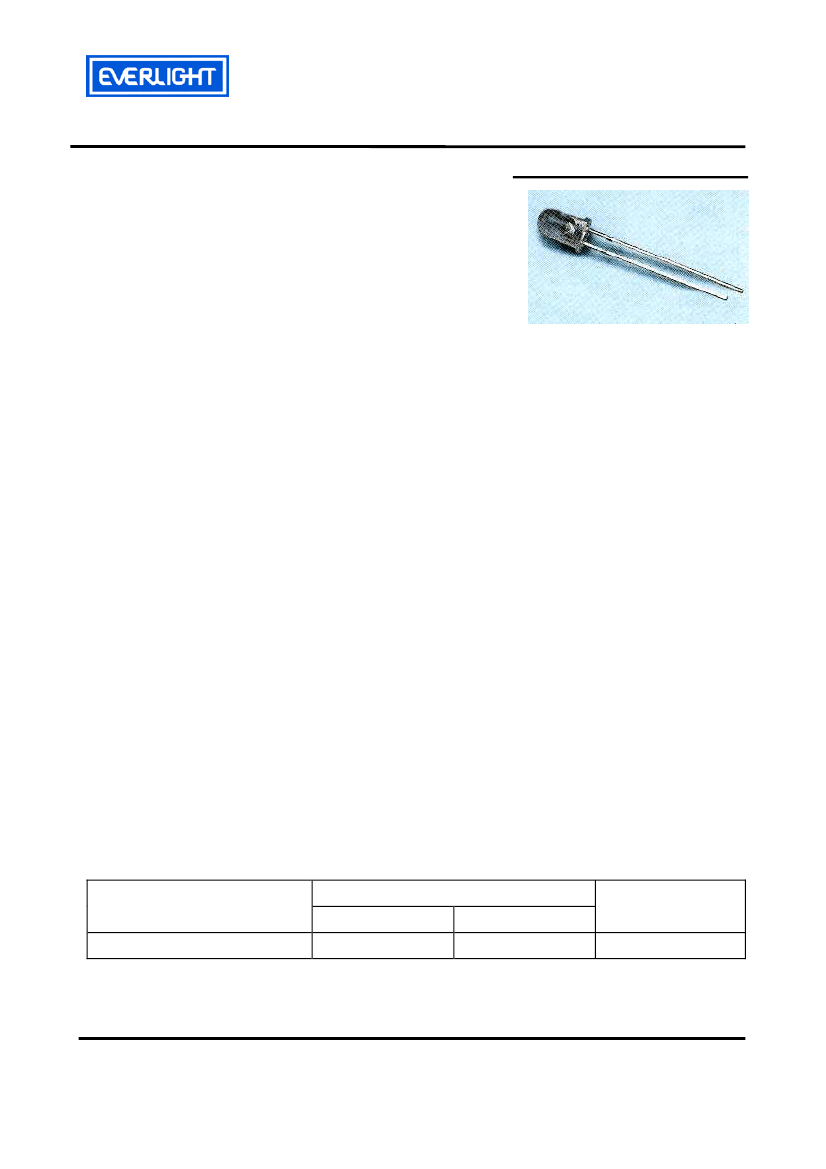

333-2SUGC/H3/S400-X6
Features
․Popular
T-1 3/4package.
․High
efficiency.
․General
purpose leads.
․Selected
minimum intensities.
․Available
on tape and reel.
․Pb
free
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
series is specially designed for applications
requiring higher brightness.
․The
LED lamps are available with different
colors, intensities, epoxy colors, etc.
․Superior
performance in outdoor environment
Applications
․Status
indicators.
․Commercial
use.
․Advertising
Signs.
․Back
lighting.
Device Selection Guide
LED Part No.
333-2SUGC/H3/S400-X6
Chip
Material
InGaN
Emitted Color
Super Green
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number : DLE-033-994
http\\:www.everlight.com
Prepared date: 07-25-2005
Rev 2
Page: 1 of 5
Prepared by: Grace Shen
333-2SUGC/H3/S400-X6
Package Dimensions
Notes:
․Other
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
V
R
Absolute Maximum Rating
25
100
-40 ~ +85
-40 ~ +100
150
260
±5
100
5
Unit
mA
mA
℃
℃
V
℃
mW
V
Notes: Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device Number : DLE-033-994
http\\:www.everlight.com
Prepared date: 07-25-2005
Rev 2
Page: 2 of 5
Prepared by: Grace Shen
333-2SUGC/H3/S400-X6
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Min.
7150
--
--
--
--
--
--
Typ.
11250
15
518
525
35
3.5
--
Max.
--
--
--
I
F
=20mA
--
--
4.0
50
V
μA
V
R
=5V
nm
Unit
mcd
deg
Condition
Everlight Electronics Co., Ltd.
Device Number : DLE-033-994
http\\:www.everlight.com
Prepared date: 07-25-2005
Rev 2
Page: 3 of 5
Prepared by: Grace Shen
333-2SUGC/H3/S400-X6

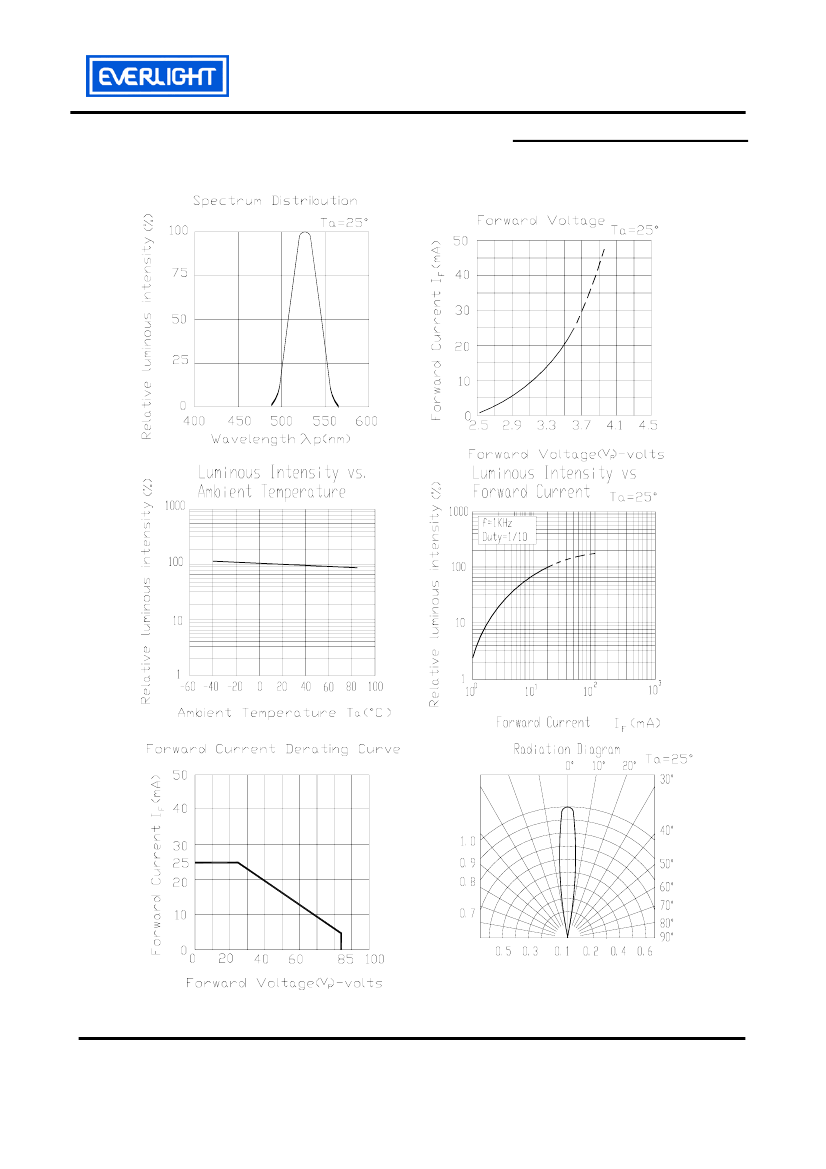

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number : DLE-033-994
http\\:www.everlight.com
Prepared date: 07-25-2005
Rev 2
Page: 4 of 5
Prepared by: Grace Shen
333-2SUGC/H3/S400-X6
Packing Quantity Specification
1.500PCS/1Bag,5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
333-2SUGC/H3/S400-AX:Production name
QTY: Packing Quantity
CAT: Ranks of Luminous and Forward Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
RoHS
333-2SUGC/H3/S400-X6
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http:\\www.everlight.com
