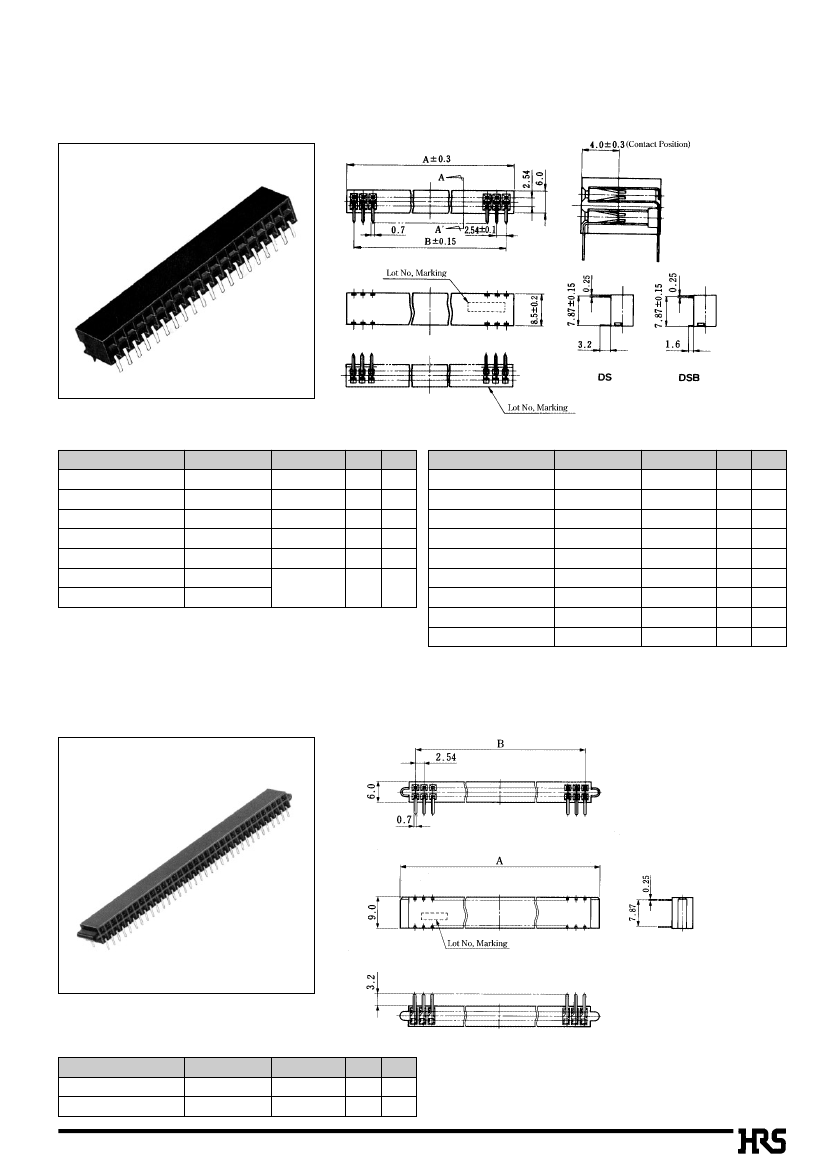

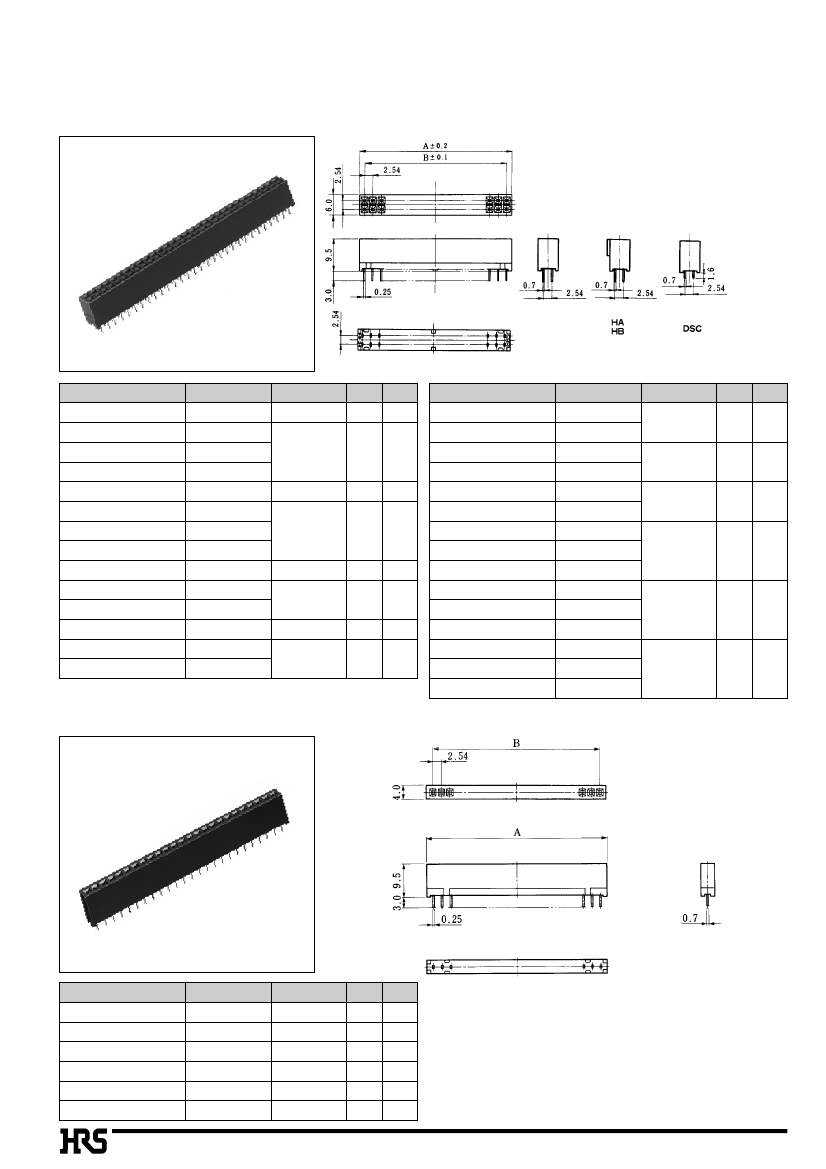

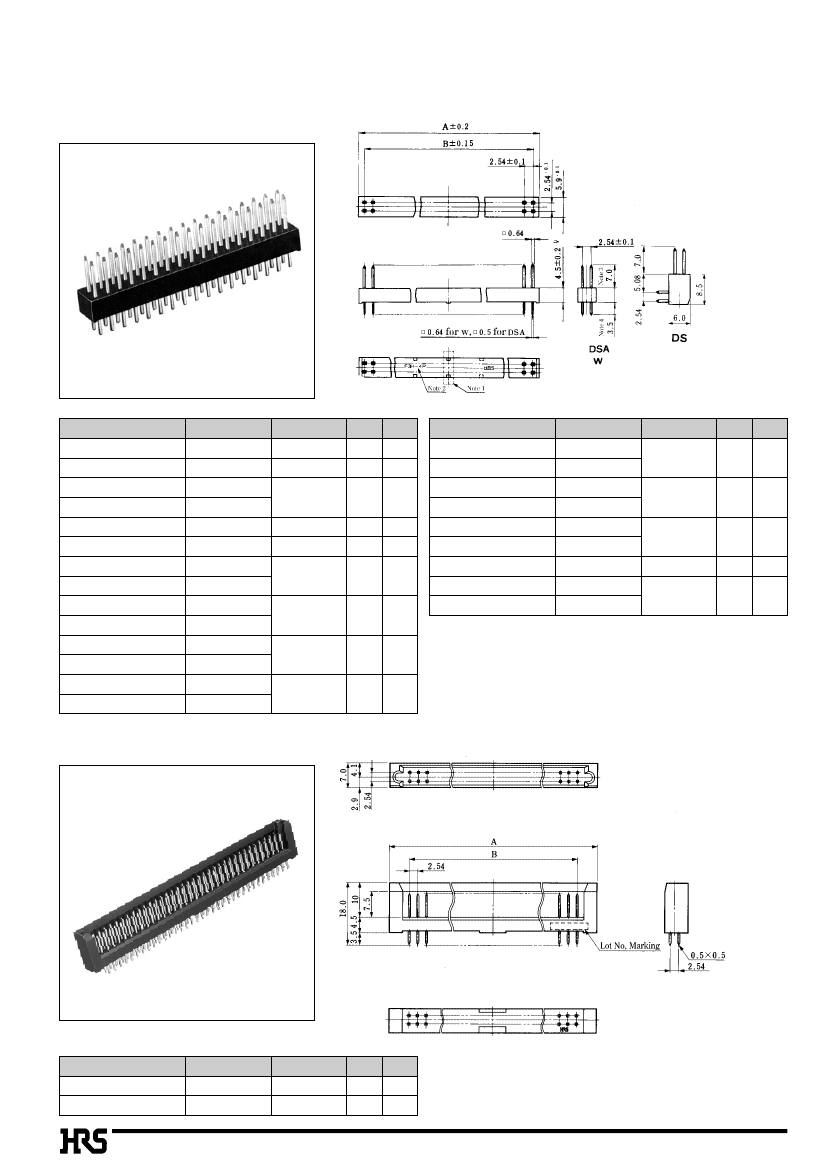

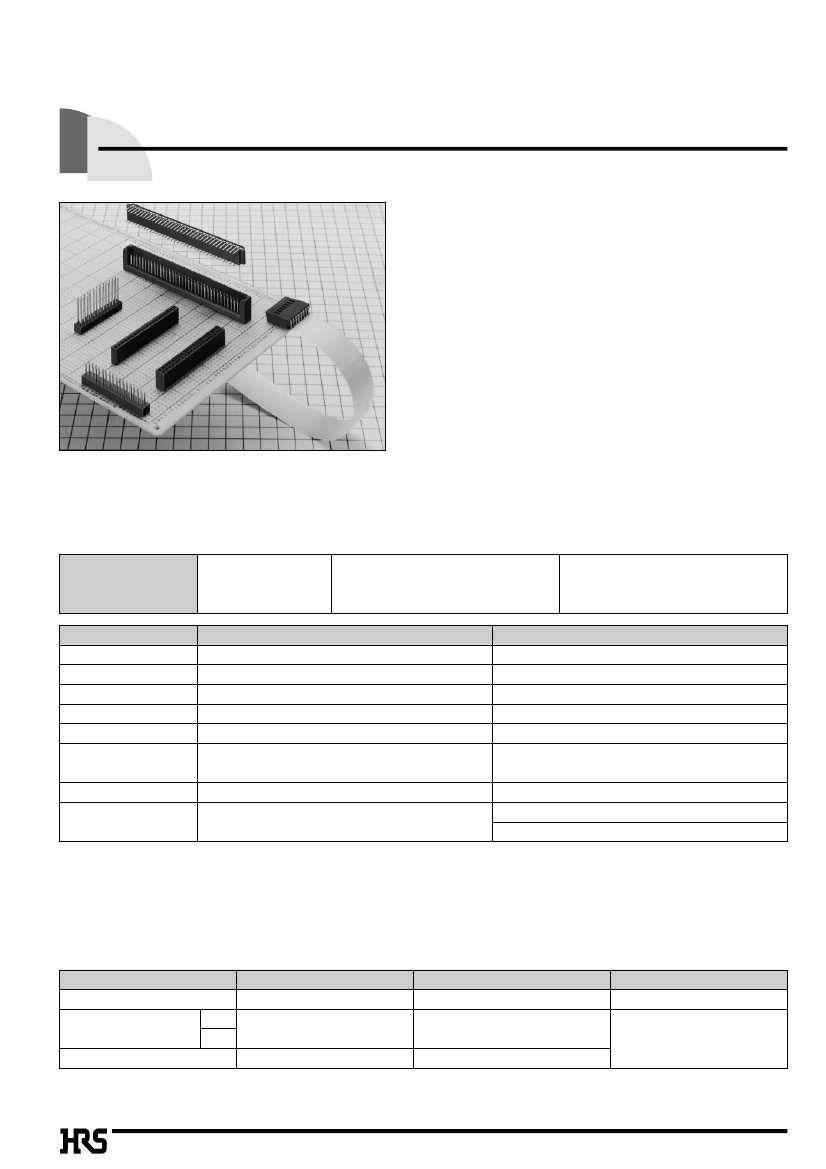

2.54mm Pitch Board to Board Connector

HIF3H Series

sFeatures

1. Product Variation

Afford to connect the board to board horizontally or vertically.

2. Compatibility

Achieve combination with other HIF3H series.

sApplications

Computers, termination equipment, various kinds of electronic equipment, Office Automation machines and so on

sProduct

Specifications

Rating

Current rating: 2A

Operating Temperature Range: -30

+85ç (Note 1)

Storage Temperature Range: -10

+60ç(Note 2)

Operating Humidity Range: 40

70% (Note 2)

Voltage rating: 300V AC Operating Humidity Range: 40

80%

Item

1. Insulation Resistance

2. Withstanding Voltage

3. Contact Resistance

4. Vibration

1000M

ohms

Specification

500V DC

1000V AC/1 minute.

Measured at 0.1A

Condition

No flashover or insulation breakdown.

15m

ohms

max.

No electrical discontinuity of 1µs or more

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

( -65ç: 30 minutes¡15

35ç: 5 minutes max.¡

(125ç:

30 minutes¡15

35ç: 5 minutes max.) 5 cycles

500 cycles

Humidity (Steady state)

Insulation resistance: 10M

ohms

min.

6. Temperature Cycle

No damage, cracks, or parts looseness.

7. Durability (Mating/un-mating) Contact resistance: 15 m

ohms

max.

8. Resistance to Soldering heat

No deformation of components affecting performance.

Flow: 260ç for 10 seconds

Manual soldering: 300ç for 3 seconds

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and

Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.

sMaterial

Parts

Insulator

Receptacle Contact

Pin header

DSA

Brass or phosphor bronze

Selective gold plated

Material

PBT

Phosphor bronze

Finish

Black

Selective gold plated

–––––––

Remarks

UL94V-0

A110
