3502-81111

Description
1.78mm (.070") tab terminal, female,14-20 awg (2.08-0.52mm?), pre-tin plated,reel
File Size107KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

3502-81111 Overview

1.78mm (.070") tab terminal, female,14-20 awg (2.08-0.52mm?), pre-tin plated,reel

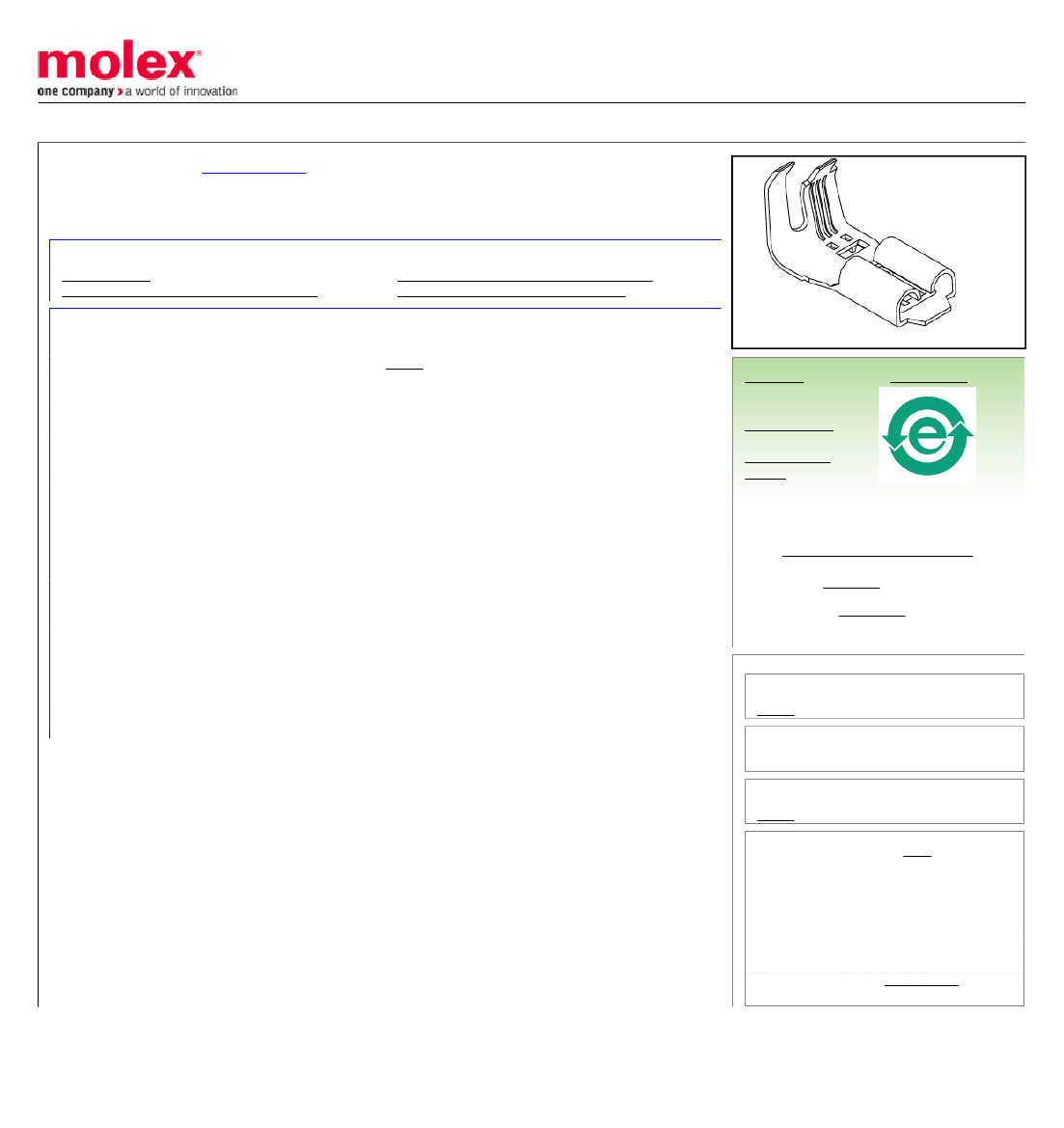

This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0350281111
Active
1.78mm (.070") Tab Terminal, Female,14-20 AWG (2.08-0.52mm²), Pre-Tin Plated,
Reel
Documents:
Drawing (PDF)
Product Specification PS-35314-001 (PDF)
Product Specification PS-35316-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Terminals
35028
Yes
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
Reel
32.00
0.800
32.00
0.80
Crimp or Compression
3.60mm (.142") max.
14, 16, 18, 20
N/A
Material Info
Reference - Drawing Numbers
Product Specification

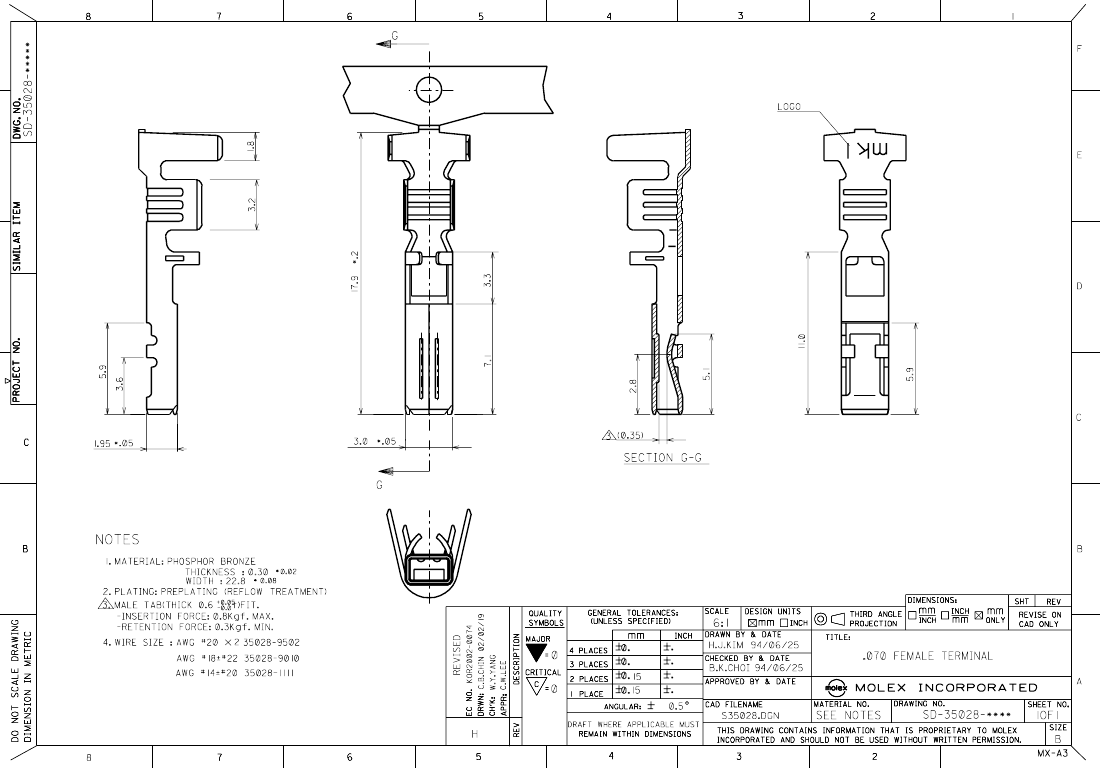

Sales Drawing
PS-35314-001, PS-35316-001
SD-35028-****
Search Parts in this Series
35028Series
Mates With
1.78mm (.070") Male Tab
Use With
35159
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
FineAdjust™
0639001800
Applicator
This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
