35408-9502 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 35408-9502

Preview

35408-9502: Description2.28mm (.090") tab terminal, 0.30mm (.012") thickness, 0.85-1.25 avss, 0.25mm(.010") thickness, pre-tin plated; File Size81KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

35408-9502 Overview

2.28mm (.090") tab terminal, 0.30mm (.012") thickness, 0.85-1.25 avss, 0.25mm(.010") thickness, pre-tin plated

Preview

Download Datasheet

View All

This document was generated on 03/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0354089502

Active

2.28mm (.090") Tab Terminal, 0.30mm (.012") Thickness, 0.85-1.25 AVSS, 0.25mm

(.010") Thickness, Pre-Tin Plated

Documents:

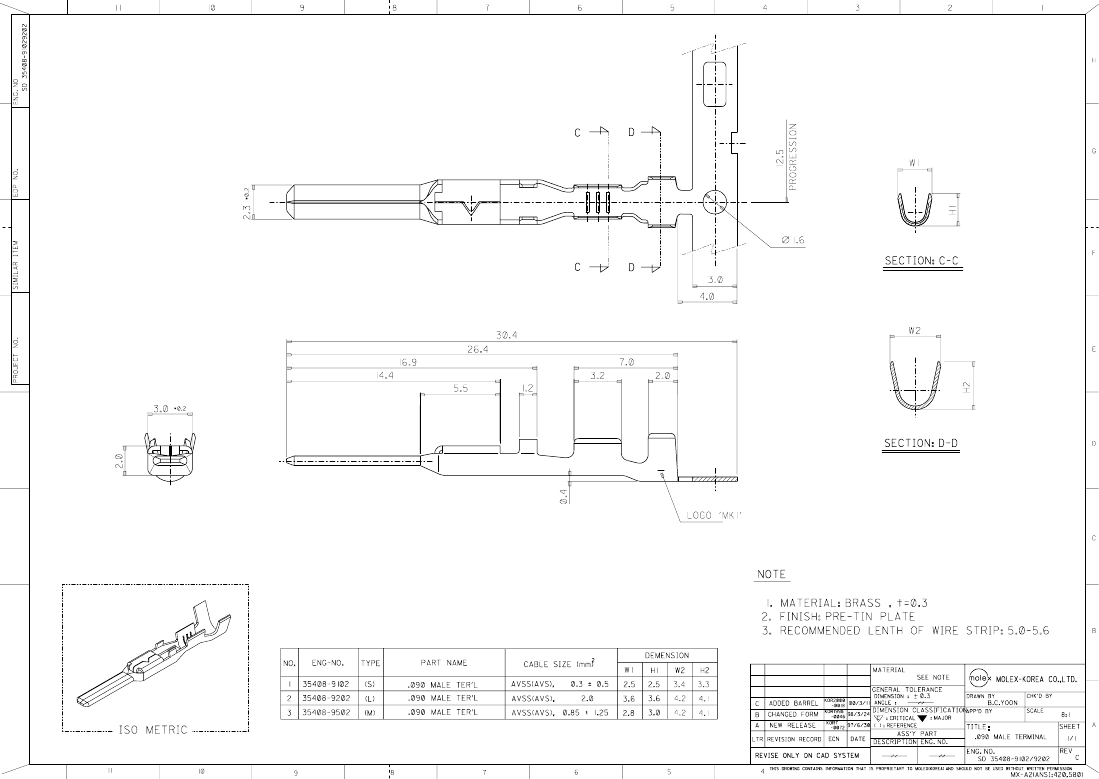

Drawing (PDF)

Product Specification PS-35519-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Product Name

Crimp Terminals

35408

Yes

N/A

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Gender

Material - Metal

Material - Plating Mating

Packaging Type

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Male

Brass

Tin

Reel

Crimp or Compression

1.90mm (.075") max.

16, 18

N/A

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35519-001

SD-35408-9102.9202

Search Parts in this Series

35408Series

Mates With

35407

This document was generated on 03/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35408-9502 Related Products

	35408-9502	0354089502
Description	2.28mm (.090") tab terminal, 0.30mm (.012") thickness, 0.85-1.25 avss, 0.25mm(.010") thickness, pre-tin plated	2.28mm
