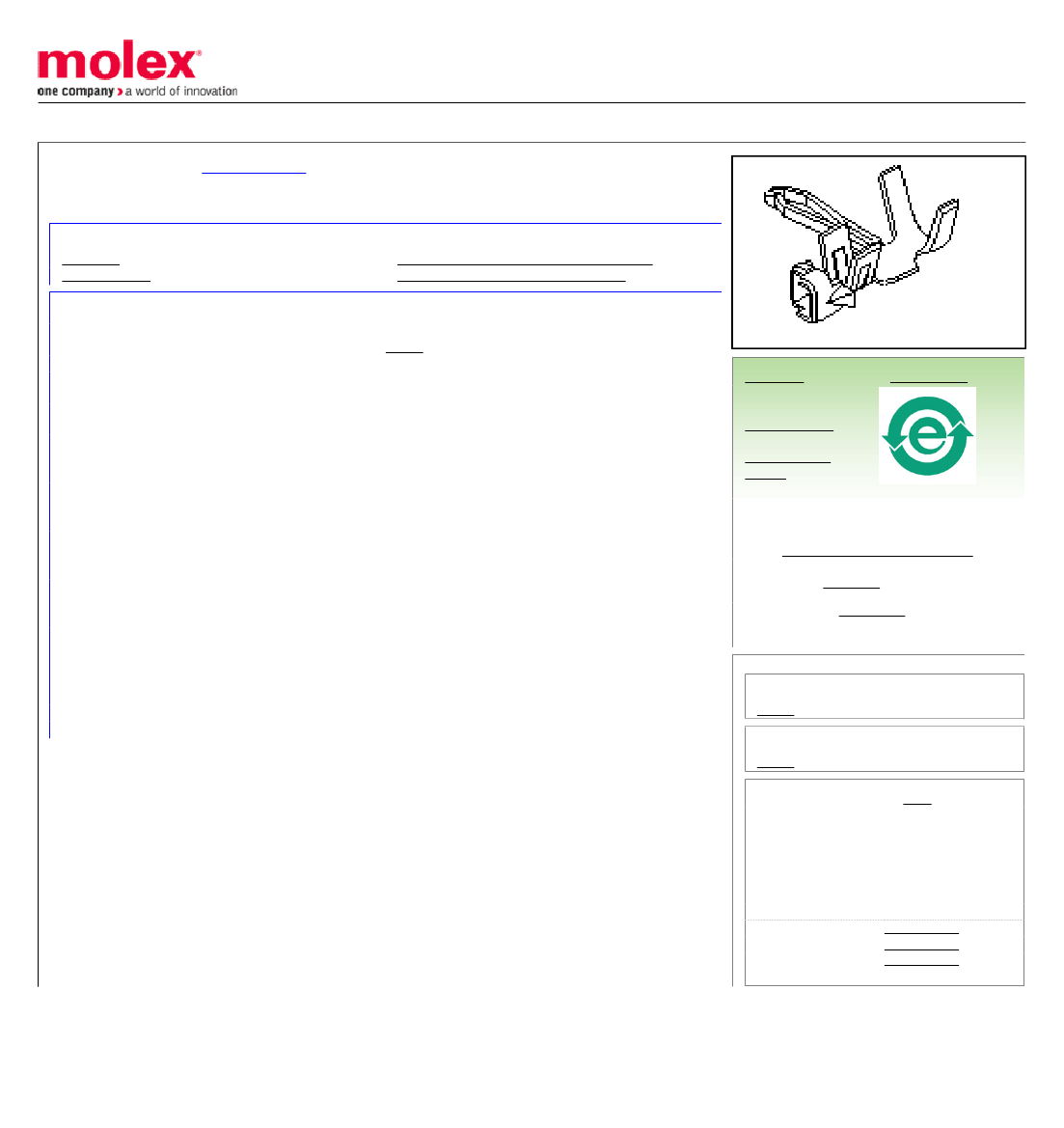

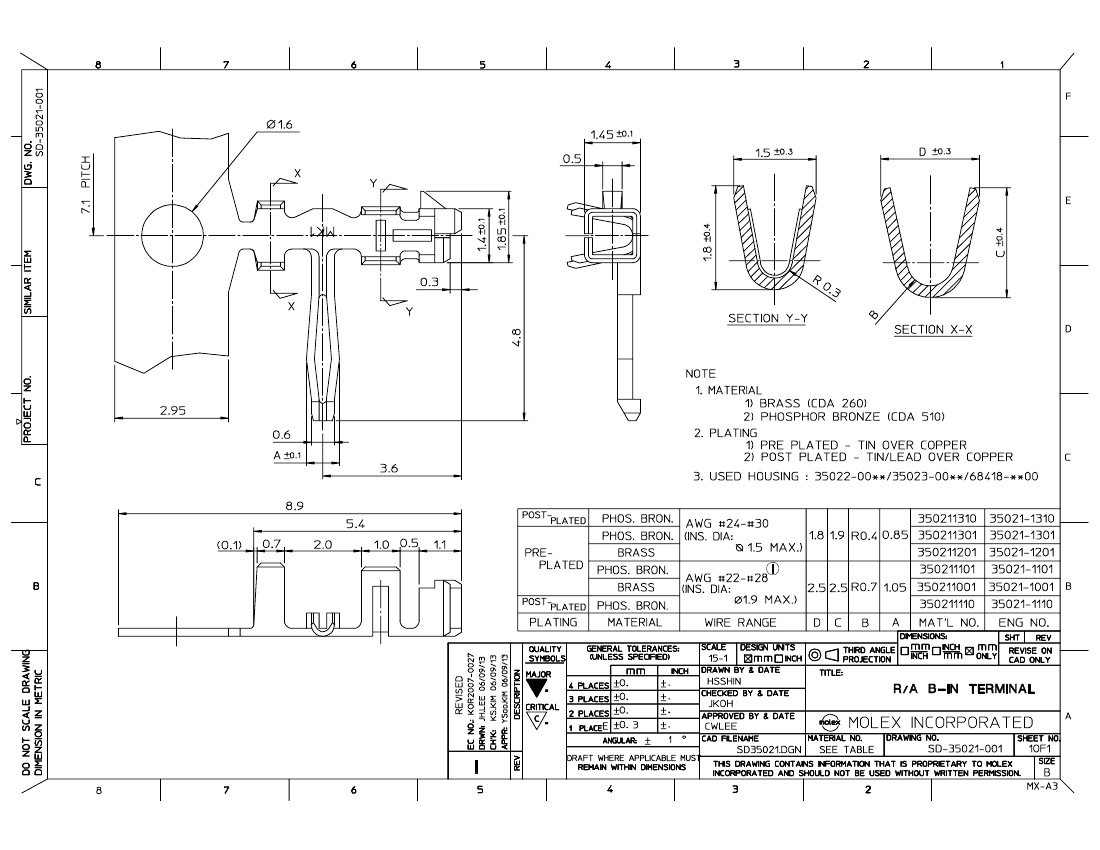

Drawing (PDF)
0350211201
Active
Board-In Right Angle Crimp Terminal 35021, Reel, Brass Tin (Sn)
Product Specification PS-35044-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Crimp Terminals
35021
Right Angle, Use with Housing 35023
Yes
Board-In
image - Reference only
Series
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Male
Brass
Tin
Tin
Reel
32.00
0.800
32.00
0.80
Crimp or Compression
1.5 mm Max (.059" Max)
24, 30
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35044-001
SD-35021-001, SD-35021-1***
Search Parts in this Series
35021Series
Use With
35023 Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
HAND CRIMP TOOL 0638116900
T2 Terminator Die 0638532000
FineAdjust™
0638632000
Applicator
