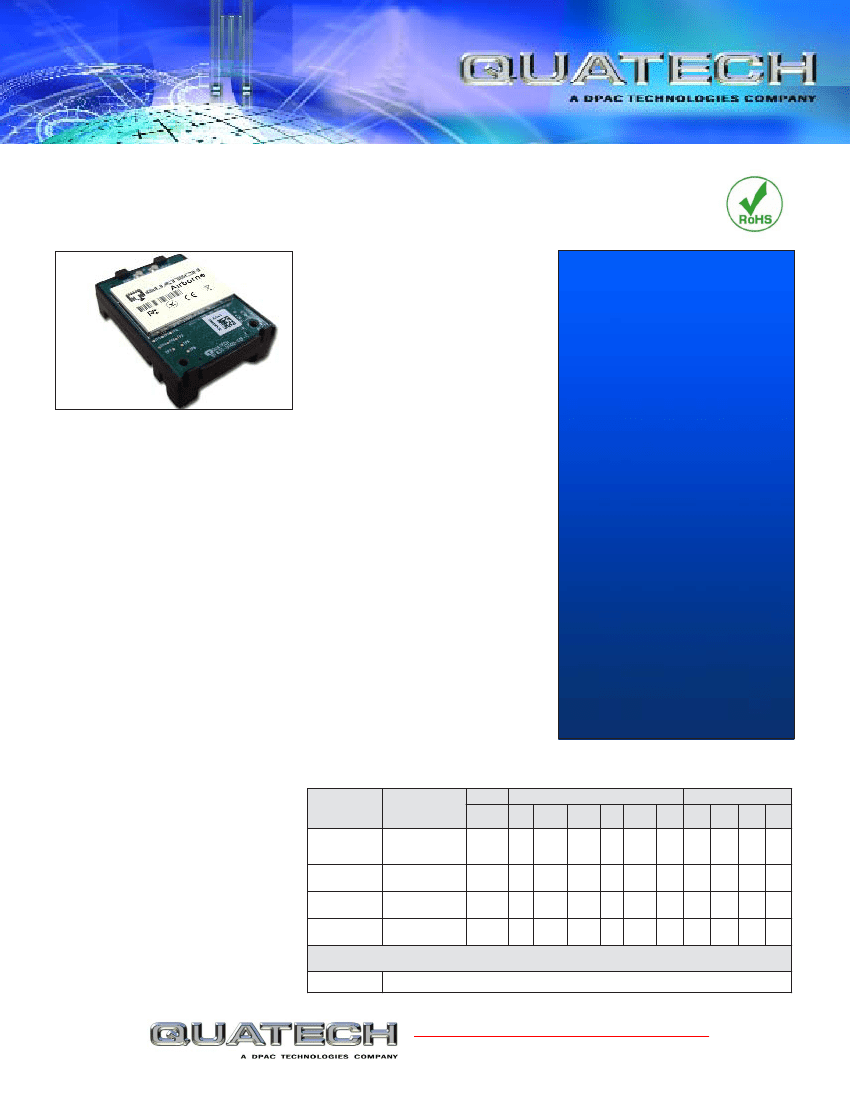

Airborne
TM
Enterprise Class Wireless Device Server
Serial to 802.11b/g & Ethernet to 802.11b/g
WLNG-XX-DP501 Series
Reliability
Designed by Quatech specifically to meet
the demands of the industrial, automotive
and medical markets, the Airborne device
server has the widest operating
temperature range and highest level of
reliability available, all backed by a five
year limited warranty. Quatech also
provides FCC Modular certification,
minimizing requirements for further
regulatory testing by original equipment
manufacturers.
Airborne
TM
is a line of highly integrated
802.11 radios and device servers,
designed to address the demands of
complex machine-to-machine (M2M)
applications. Utilizing the latest 802.11,
microprocessor
and
network
technologies, the Airborne family of
products provide a broad encompassing
solution for wireless applications requiring
performance, reliability and advanced
security.
The Airborne Wireless Device Server
family includes hardware and software
necessary to connect a serial or Ethernet
device to a high performance 802.11
network. The WLNG-XX-DP501 series
includes a full featured 802.11b/g radio
and a high performance 32bit ARM9
processor running an embedded RTOS.
The module also incorporates Quatech’s
exclusive Airborne Device Server
firmware, which can network-enable
virtually any OEM product.
Enterprise Class Security
WPA2 Enterprise (AES-CCMP + EAP) is
the emerging standard for leading edge
enterprise networks. The Airborne
Enterprise Device Server supports the
latest security standards and is fully
compliant to the WPA2 Enterprise
specification. A wide range of EAP
supplicants and legacy security standards
such as WPA, WEP and LEAP are also
supported. The new 802.11b/g module
supports 802.11i, 802.1x, WPA2-PSK,
WPA2-Enterprise with Certificates, WPA-
PSK, WPA-LEAP and WEP.
Markets
Previous generations of Airborne device
servers have been integrated and
deployed into a wide range of applications
across various industries including:
Medical equipment
Vehicle telematics & diagnostics
Material handling & logistics
Industrial Automation
Test & measurement
Security & access control
Quatech’s Airborne Enterprise Device
Server Module extends the reputation of
the family further by drawing on
experience of Quatech application
engineers across hundreds of wireless
M2M deployments.
The advanced
technologies implemented in the Quatech
Enterprise 802.11 Device Server family
provide an industry-leading solution with
breakthrough performance and security
for M2M applications and drop in
replacements for existing 802.11b and
802.11b/g networking modules.
WiFi
Model #
Description
802.11b/g, UART with
RS-232/422/485 driver
control
802.11b/g,
SPI interface
UART interface
802.11b/g,
10/100 Ethernet interface
KEY FEATURES
802.11b/g WiFi Radio with 32bit ARM9
CPU
Enterprise Class wireless security
(WPA2-Enterprise, WPA2-PSK, WPA-
PSK, WEP, EAP) with Certificates
Extended Operating Temperature
Range (-40
O
C to +85
O
C) and
environmental specifications
Fully integrated serial bridge and
network stack
Available UART, Ethernet, SPI and
RS232/422/485 interfaces
Integrated 10/100 Ethernet PHY
Configurable wireless and wired
interfaces
Removes need for RF, networking and
communications expertise
Quick time to market and reduced
integration costs
FCC Part 15 Class B Sub C Modular
Approval minimizes regulatory
requirements
Upgradable Airborne Device Server
Firmware
5 year limited warranty
Model Selection Guide
Interface
Security
802.11b/g UART RS232 RS422/ SPI Ethernet GPIO WEP WPA WPA2 EAP
485
WLNG-SE-DP501
WLNG-SP-DP501
WLNG-AN-DP501
WLNG-ET-DP501
To evaluate all available features and receive evaluation tools, order below.
WLNG-EK-DP501
1
802.11b/g Enterprise Class Device Server Module Eval Kit
1
Evaluation kit supports all models of the WLNG-XX-DP500 series
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
+1330.655.9000
www.quatech.com

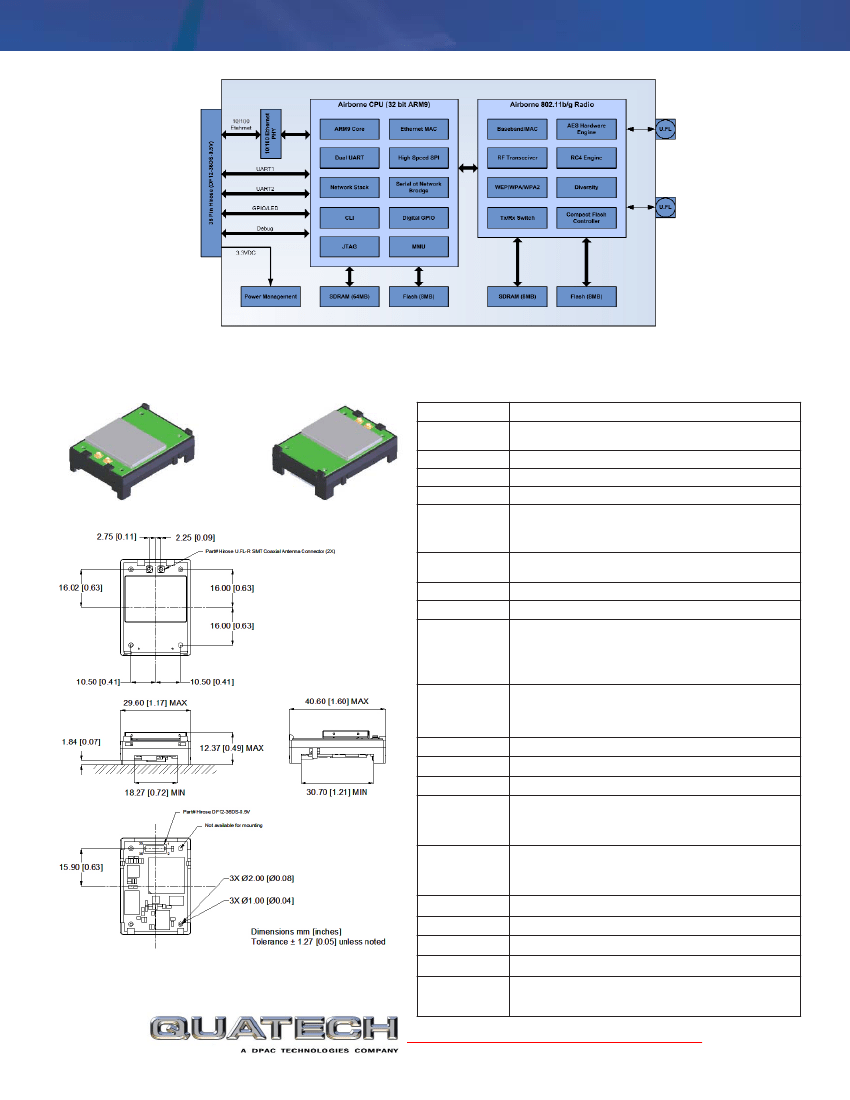

Block Diagram
Mechanical Outline
Specifications
Technology
Frequency
Modulation Technology
Modulation Type
Network Access Modes
Channels
IEEE 802.11b/g, WiFi compliant
2.4 ~ 2.4835 GHz (US/Canada/Europe)
2.4 ~ 2.497 GHz (Japan)
DSSS, CCK, OFDM
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Infrastructure, Ad Hoc
USA/Canada: 11 channels
Europe: 13 channels
France: 4 channels
Japan: 14 channels (13 channels for 802.11g)
802.11b = 11, 5.5, 2, 1 Mbps
802.11g = 54, 48, 36, 24, 18, 12, 9, 6 Mbps
CSMA/CA with ACK, RTS, CTS
TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING
54Mb/s
36Mb/s
18Mb/s
11Mb/s
5.5Mb/s
1Mb/s
=
=
=
=
=
=
-71dBm
-77dBm
-83dBm
-85dBm
-86dBm
-87dBm
Wireless Data Rate
MAC
Network Protocols
Receive Sensitivity
Security Protocols
Disabled, WEP 64 & 128bit, WPA (TKIP), WPA (AES), WPA2
(AES), 802.1x (EAP) Supplicant
Supports WPA & WPA2 Enterprise supplicants (EAP-TLS, EAP-TTLS(MSCHAPv2), EAP-
TTLS(MD5), EAP-PEAPv0(MSCHAPv2, LEAP)
Supports Certificates
Two (2) U.FL coaxial connectors, 50 ohms, supports diversity
3.3VDC +/-5%, 850mA (MAX)
3000mA (MAX) for 20ms
Operating Current (Tx, 802.11g) = 620mA Typ.
Operating Current (Rx, 802.11g) = 420mA Typ.
Power Save (Doze) = 10mA Typ.
Power Down (Sleep) = 1mA Typ.
Operating Temperature: -40
°
C - +85
O
C, Storage: -55
O
C - +150
O
C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20Hz-2KHz swept
Shock: 1500G peak-to-peak, 0.5mS duration
UART (960KBAUD), RS232, RS422, RS485, SPI (1bit/20MHz), 10/100 Ethernet
8 GPIO
4 indicator LED signals (RF_ACT, POST, CONNECT, RF_LINK)
36 pin High Density SMT connector from Hirose (DF12-36DS-0.5V), 4mm Height
North America: FCC Title 47 Part 15 Class B Sub C Intentional Radiator, IOC RSS210
Europe: CE ETSI EN300 328
RoHS & WEEE compliant
Antenna
Supply
Supply In-rush Current
DC Characteristics
Environmental
Interfaces
Digital I/O
LED Indicators
Connector
Agency Approvals
5675 Hudson Industrial Parkway Hudson, OH 44236
© 2008 Quatech, Inc.
1.800.553.1170
+1330.655.9000
www.quatech.com
Rev. B 042009
