This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0393570002
Active
3.50mm (.138") Pitch Beau Eurostyle™ Fixed Mount PCB Terminal Block, 2 Circuits
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39357
Wire-to-Board
One Piece
USA-283
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
2
2
Horizontal
94V-0
None
1
Vertical
0.138 In
3.50 mm
None
0.062 In
1.60 mm
No
0.138 In
3.50 mm
0.138 In
3.50 mm
No
Fully
Yes
No
-30°C to +85°C
16, 18, 20, 22, 24, 26, 28
0.20 - 1.00
Search Parts in this Series
39357Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
17.5A
300V
Material Info
Old Part Number
350102

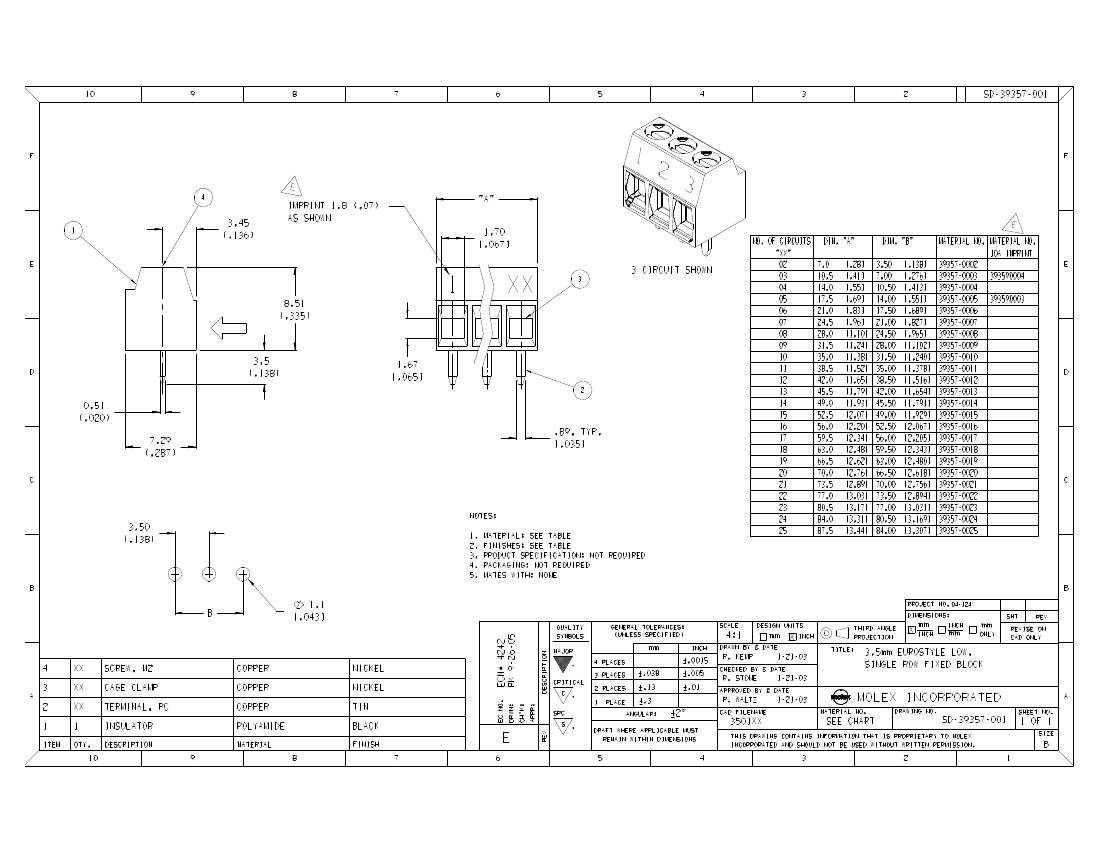

Reference - Drawing Numbers
Sales Drawing
SD-39357-001
