35430-1800: Description6.00mm (.236") tab wire-to-wire terminal, female, two-piece type, wire range avs (Cavs) 0.85-1.25 (.033-.049"); CategoryThe connector terminals; File Size100KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35430-1800 Overview

6.00mm (.236") tab wire-to-wire terminal, female, two-piece type, wire range avs (Cavs) 0.85-1.25 (.033-.049")

35430-1800 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
terminal gender	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL
Conductor cross section	1.25 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 03/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0354301800

Active

6.00mm (.236") Tab Wire-to-Wire Terminal, Female, Two-Piece Type, Wire Range AVS

(CAVS) 0.85-1.25 (.033-.049")

Documents:

Drawing (PDF)

Product Specification PS-35270-001 (PDF)

Product Specification PS-35385-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Terminals

35430

Yes

N/A

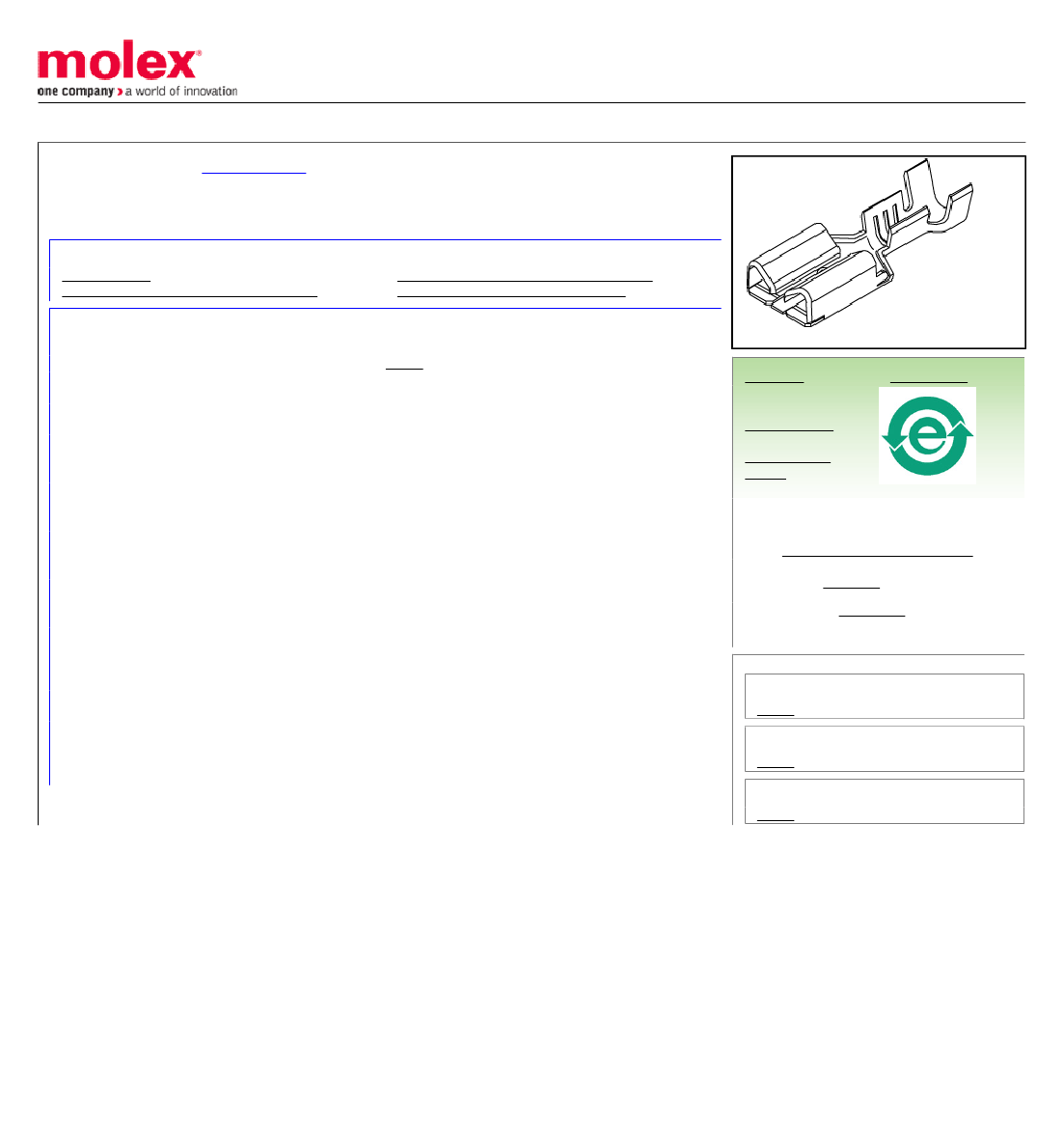

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Product Name

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Copper-Nickel-Tin, High Copper

Tin

Reel

32.00

0.800

32.00

0.80

Crimp or Compression

2.20-2.80mm (.087-.110")

16, 18

N/A

Electrical

Current - Maximum per Contact

30A

Material Info

Reference - Drawing Numbers

Product Specification

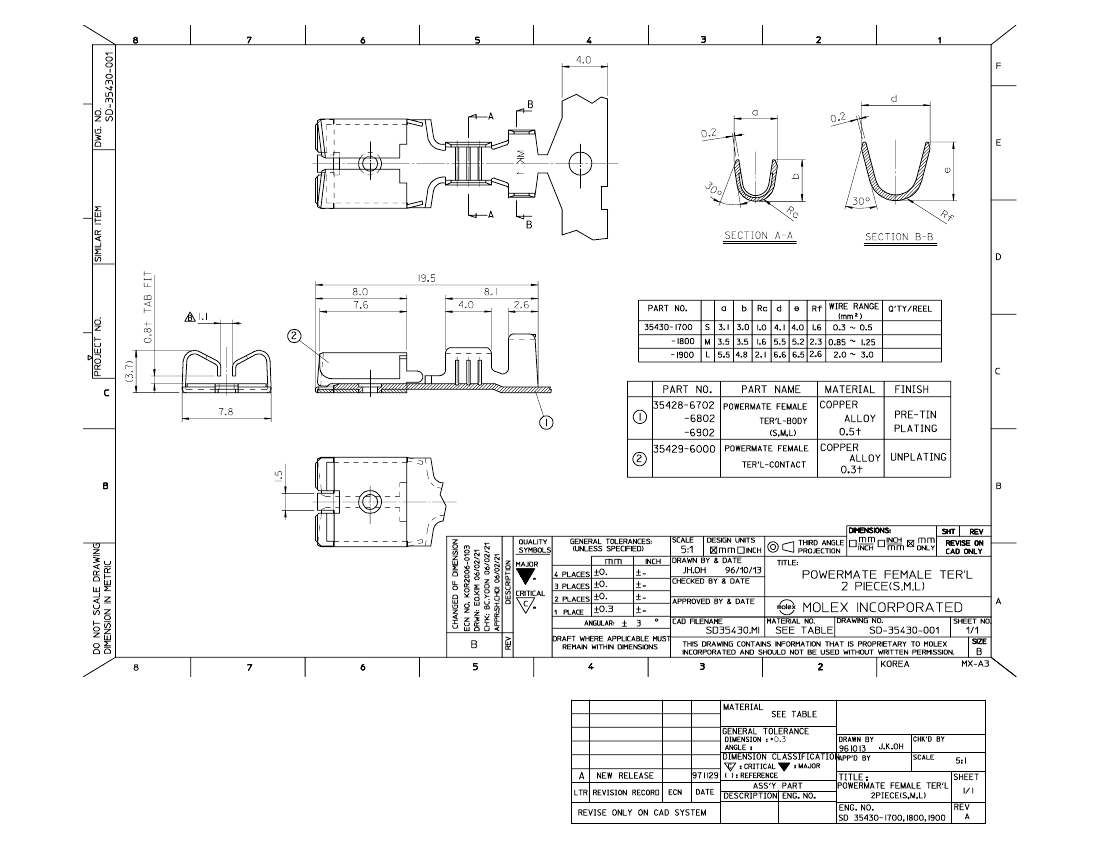

Sales Drawing

PS-35270-001, PS-35385-001

SD-35430-001

Search Parts in this Series

35430Series

Mates With

35725 Terminal

Use With

35270 Housing

This document was generated on 03/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
