35318-1820 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35318-1820

35318-1820: Description4.20mm (.165") pitch mini-fit? header, dual row, right angle, 18 circuits, papolyamide (nylon) 6/6 94v-2, white; CategoryThe connector The connector; File Size82KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35318-1820 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35318-1820	-	-	View	Buy Now

35318-1820 Overview

4.20mm (.165") pitch mini-fit? header, dual row, right angle, 18 circuits, papolyamide (nylon) 6/6 94v-2, white

35318-1820 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	13 weeks
body width	0.377 inch
subject depth	0.763 inch
body length	1.701 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P18
Contact to complete cooperation	TIN (200)
Contact completed and terminated	TIN (200)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	200u inch
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.245 inch
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

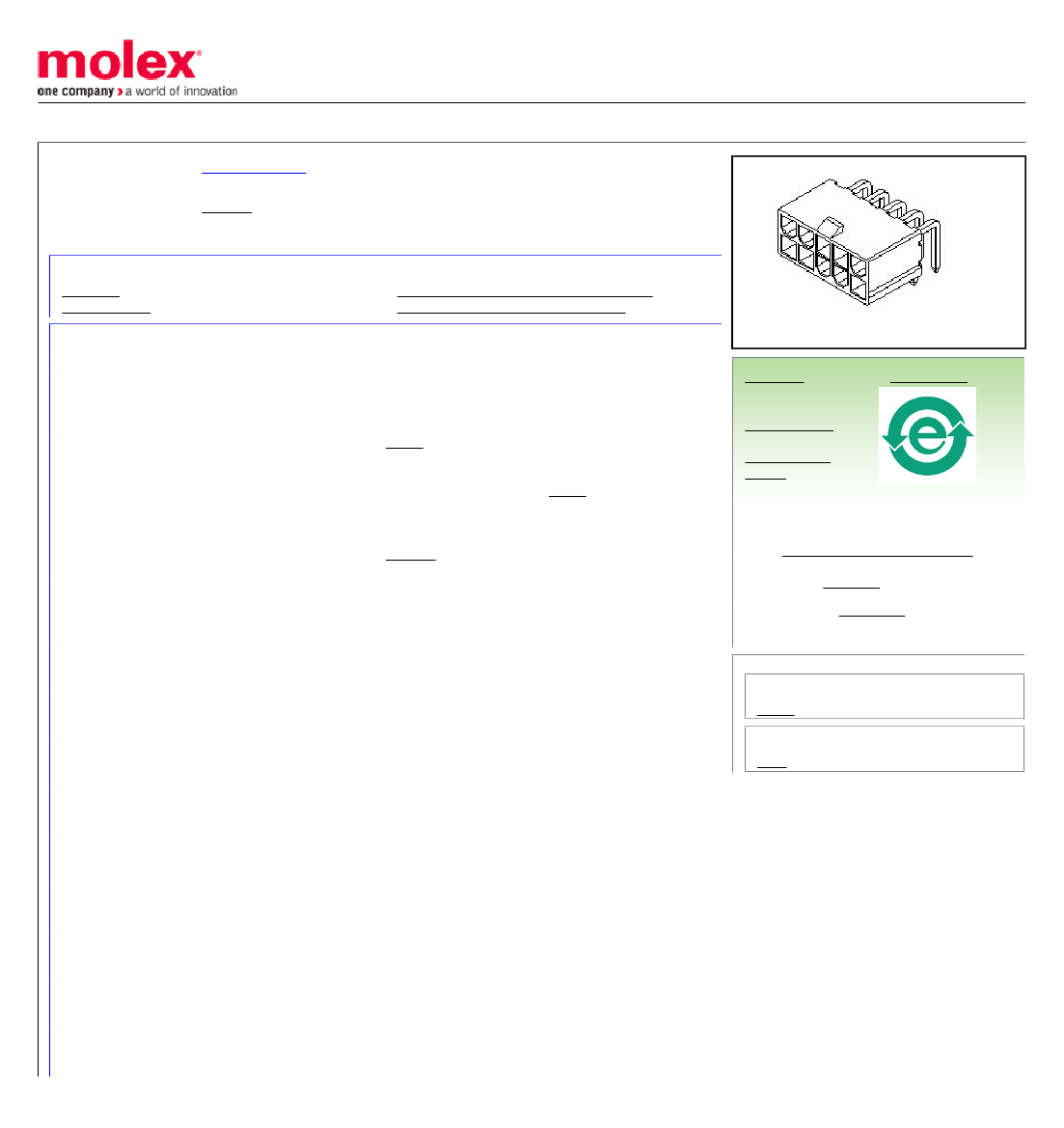

0353181820

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit® Header, Dual Row, Right Angle, 18 Circuits, PA

Polyamide (Nylon) 6/6 94V-2, White

Documents:

3D Model

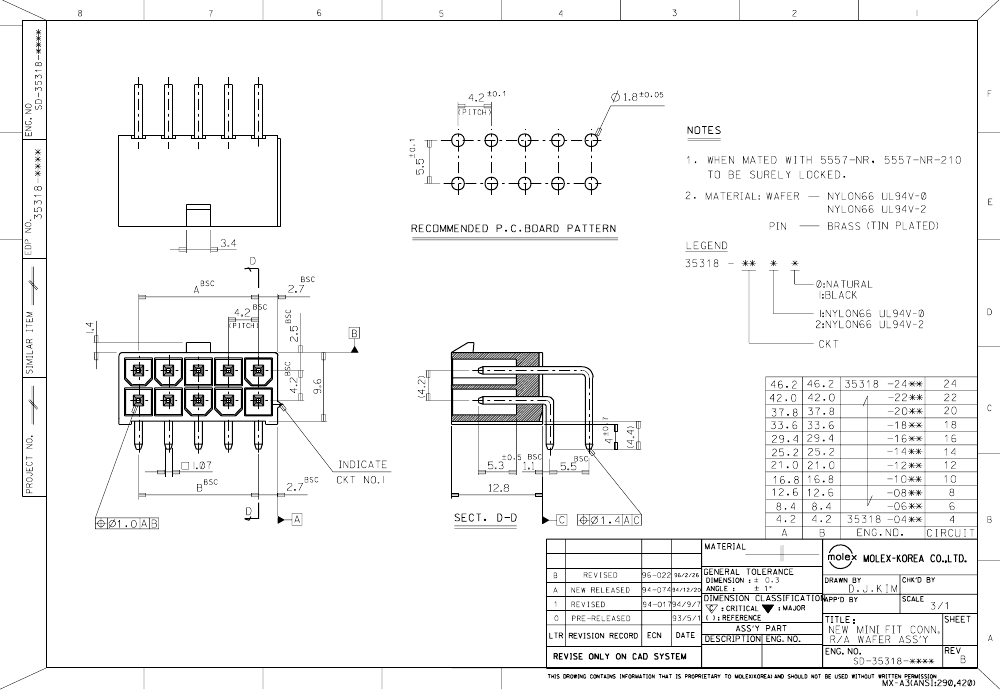

Drawing (PDF)

Product Specification PS-35317-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Comments

PCB Headers

35318

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex product specification PS-45750-001 for additional

current de-rating information.

minifit_jr

Mini-Fit®

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Natural

94V-2

None

Yes

Tin

Nylon

Right Angle

0.157 In

4.00 mm

None

0.062 In

1.60 mm

Bag

0.165 In

4.20 mm

200

Search Parts in this Series

35318Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

35318-1820 Related Products

	35318-1820	0353181820
Description	4.20mm (.165") pitch mini-fit? header, dual row, right angle, 18 circuits, papolyamide (nylon) 6/6 94v-2, white	18 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compli	compliant
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (200)	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE66	POLYAMIDE
Termination type	SOLDER	SOLDER
Total number of contacts	18	18
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
