35802-1189

Description
ffc / fpc connector 1.0 fpc/ffc(non-zif) PC/ffc(non-zif)packi
CategoryThe connector    The connector
File Size25KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

35802-1189 Overview

ffc / fpc connector 1.0 fpc/ffc(non-zif) PC/ffc(non-zif)packi

35802-1189 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts11
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 11/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Drawing (PDF)

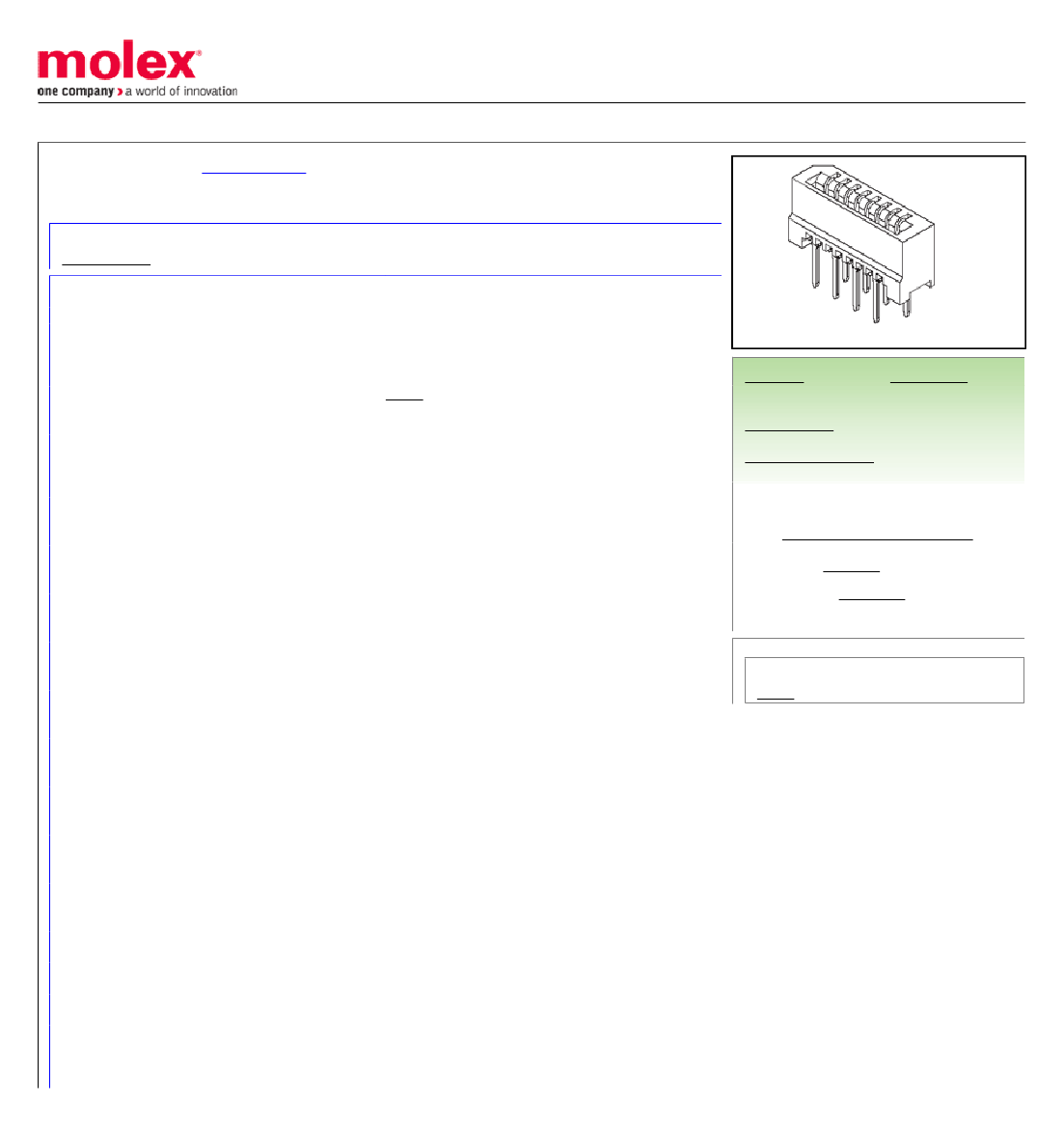

0358021189
Obsolete
1.00mm (.039") Pitch FFC/FPC Connector, Vertical, Non-ZIF, Yes, 11 Circuits
Agency Certification
CSA
UL
LR19980
E29179
Series
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Product Name
FFC/FPC Connectors
35802
Use Pre-Notched
N/A
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
11
11
Natural
Top
10
Vertical
94V-0
5.20mm (.205")
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
2.50mm (.098")
No
Yes
1.60mm (.063")
Tube
1.00mm (.039")
1.00mm (.039")
0.813µm (32µ")
0.813µm (32µ")
Yes
No
No
-20°C to +80°C
Through Hole - Kinked Pin
FFC/FPC
Search Parts in this Series
35802Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V AC (RMS)/DC
Material Info
Country of Origin
KR
Reference - Drawing Numbers
Packaging Specification
PK-35802-001
