85003-3495 Overview

2.54mm (.100) pitch din 41612 C style male header, right angle, through hole, 0.60??m (24??) selective gold (Au) plating, 64 circuits, without mounting clips

This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0850033495
Active
din_41612
2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole,
0.60µm (24µ") Selective Gold (Au) Plating, 64 Circuits, without Mounting Clips, No Flux
Proof, Lead free
Documents:
Drawing (PDF)
Product Specification PS-85003-0001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Backplane Connectors
85003
Backplane
No Mounting Clips. No Flux Proof. 5.4mm(.213") First-
Mate-Last-BreakContacts. 4.8mm(.189") Normal
Contacts
PCB Header
din_41612
IEC 603-2/DIN 41612
C
Search Parts in this Series
85003Series
Component Type
Overview
Product Name
Style
Physical
Circuits (Loaded)
Circuits (maximum)

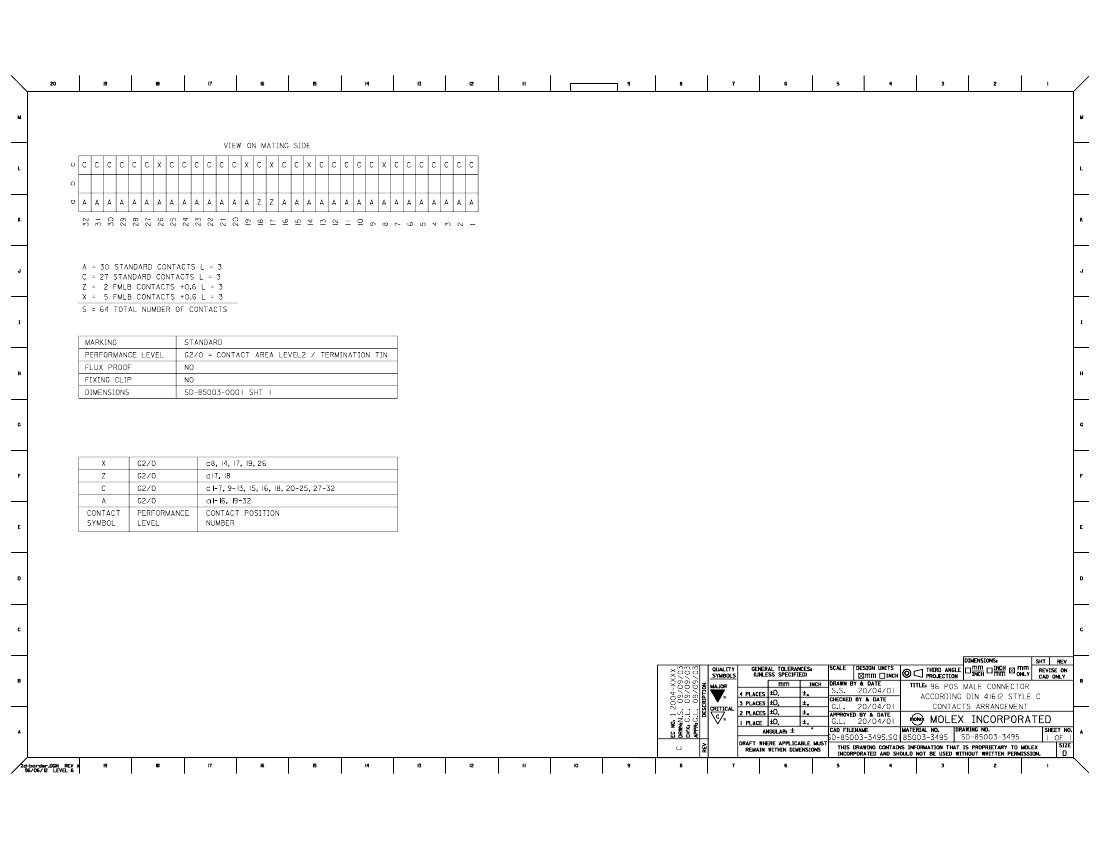

Circuits Detail
64
96
Standard Contacts at: A:a1-a16,a19-a32; C:c1-c7,c9-
c13,c15,c16,c18,c20- c25,c27-c32. First-Mate-Last-
Break Contacts at: X:c8,c14,c17,c19,c26; Z:a17,a18
Gray
400
Yes
94V-0
No
Yes
Brass
Gold
Tin
Polyester
16
Open Pin Field
3
Right Angle
0.118 In
3.00 mm
No
Yes
0.062 In
1.60 mm
Carton
0.100 In
2.54 mm
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
