35896-2415 Overview

1.02/2.28mm (.040/.090") tab, hybrid wire-to-wire housing, female, 24 circuits

Preview

Download Datasheet

View All

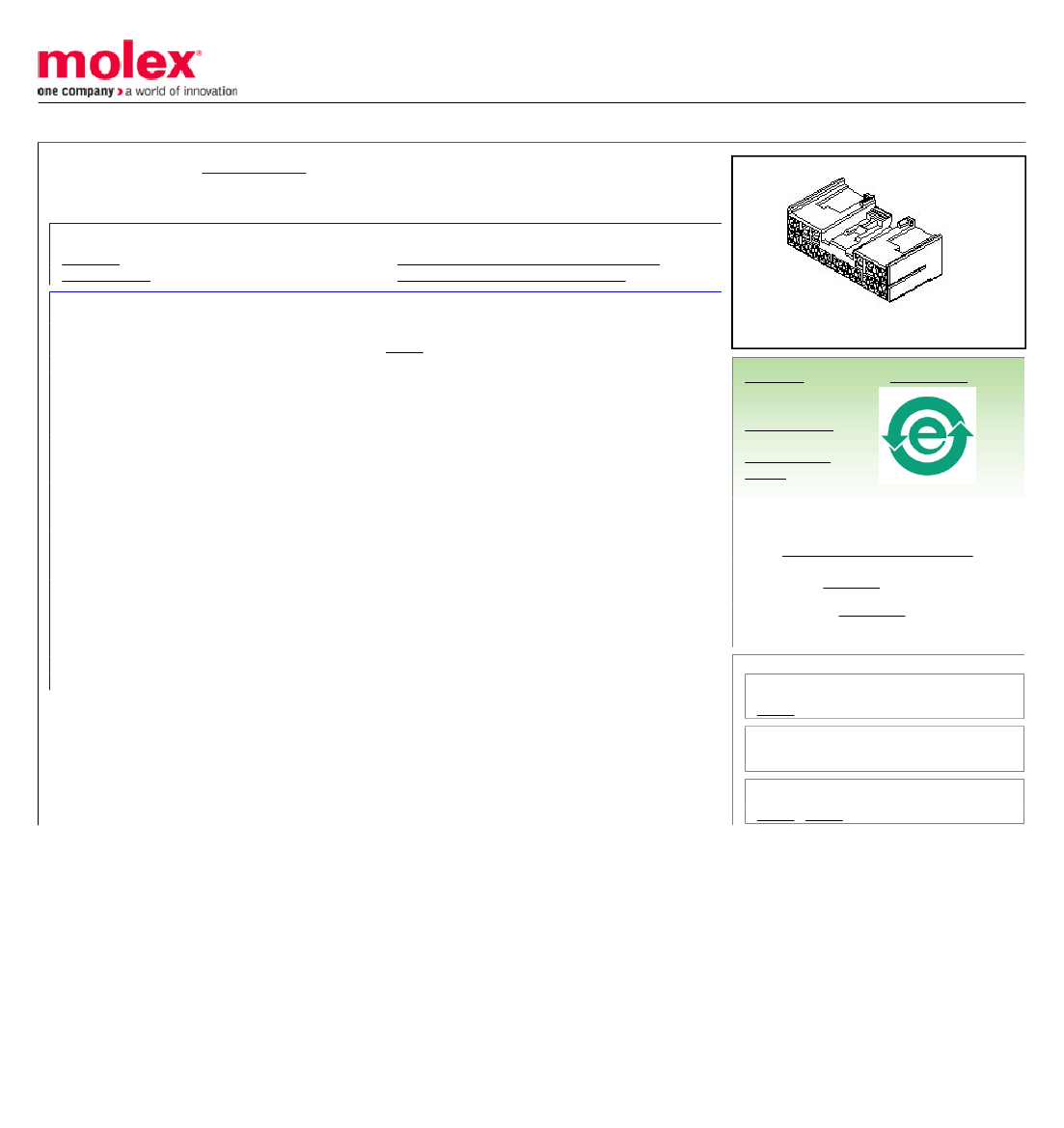

This document was generated on 04/09/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0358962415

Active

1.02/2.28mm (.040/.090") Tab, Hybrid Wire-to-Wire Housing, Female, 24 Circuits

Product Specification PS-35896-2090 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Product Name

Crimp Housings

35896

N/A

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Series

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Gray, Yellow

Female

Polyester

Bag

Yes

0.098 In

2.50 mm

-40°C to +80°C

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Reference - Drawing Numbers

Product Specification

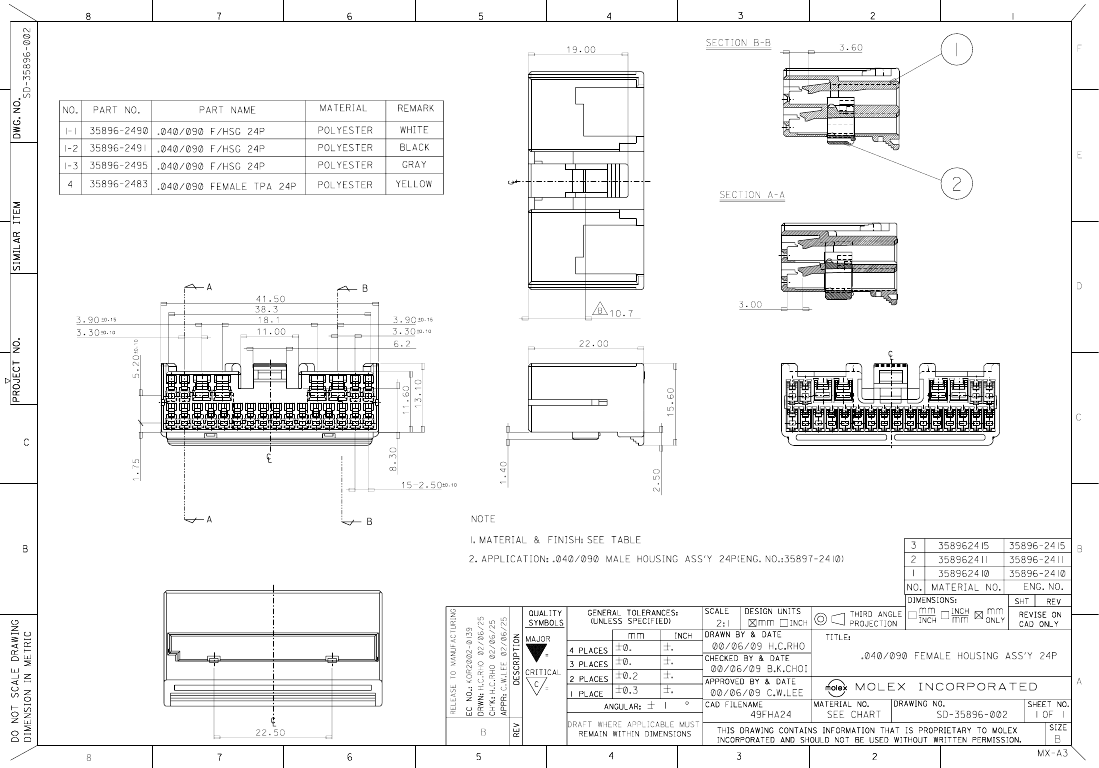

Sales Drawing

PS-35896-2090

SD-35896-002

Search Parts in this Series

35896Series

Mates With

35897

Use With

50654 , 50660

This document was generated on 04/09/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
