36511-0123 datasheet, PDF - EEWORLD Datasheet

36511-0123: Description2.54mm (.100") pitch din 41612 header, style R, through hole, vertical, 0.30??m (12??") gold (Au) plating, tail length 4.50mm (.177"), 64 circuits; File Size207KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

36511-0123 Overview

2.54mm (.100") pitch din 41612 header, style R, through hole, vertical, 0.30??m (12??") gold (Au) plating, tail length 4.50mm (.177"), 64 circuits

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0365110122

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Header, Style R, Through Hole, Vertical, 0.60µm

(24µ") Gold (Au) Plating, Tail Length 4.50mm (.177"), 64 Circuits

Documents:

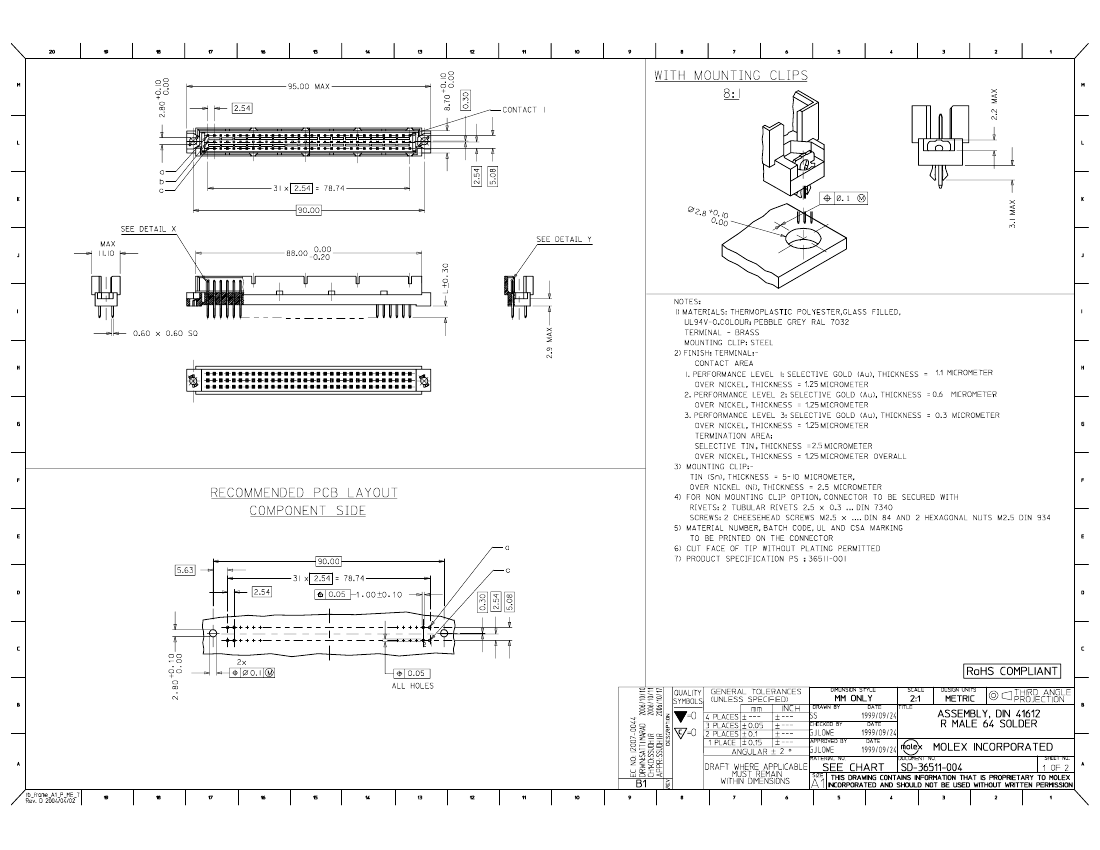

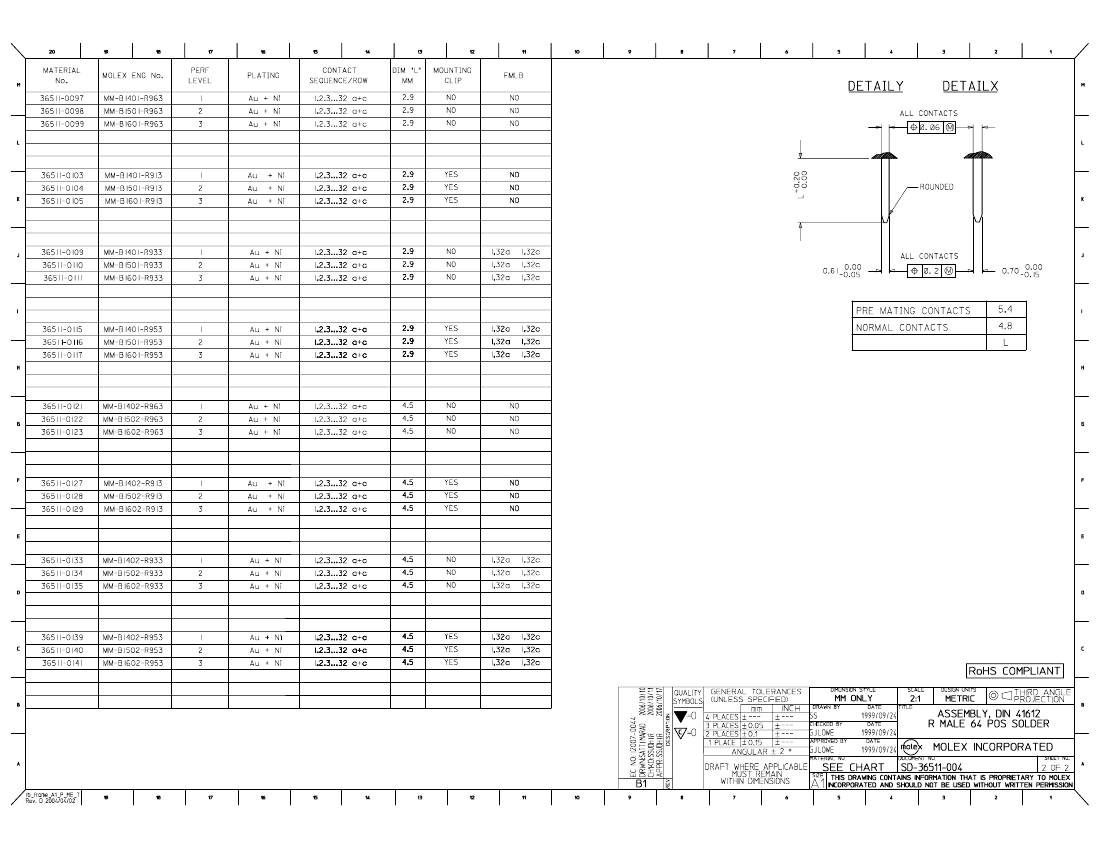

Drawing (PDF)

Product Specification PS-36511-001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36511

Backplane

No Mounting Clip

PCB Header

din_41612

IEC 603-2/DIN 41612

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

1,2,3,…32; a+c

Gray

400

None

Brass

Gold

Tin

Polyester

Open Pin Field

Vertical

0.177 In

4.50 mm

Yes

0.062 In, 0.125 In

1.60 mm, 3.20 mm

Carton

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

-55°C to +125°C

Search Parts in this Series

36511Series

Electrical

36511-0123 Related Products

	36511-0123	MM-B1502-R963	MMB1502R963	PS8502L3-E3	36511-0122
Description	2.54mm (.100") pitch din 41612 header, style R, through hole, vertical, 0.30??m (12??") gold (Au) plating, tail length 4.50mm (.177"), 64 circuits	64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER	64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER	HIGH SPEED ANALOG OUTPUT TYPE 8 mm CREEPAGE 8-PIN PHOTOCOUPLER	2.54mm (.100") pitch din 41612 header, style R, through hole, vertical, 0.60??m (24??") gold (Au) plating, tail length 4.50mm (.177"), 64 circuits
