36500-0099: Description2.54mm (.100") pitch din 41612 C style female receptacle, vertical, through hole, 0.30??m (12??") selective gold (Au) plating, 64 circuits, without mounting clips, solder tail length 2.90mm (.114"), No flux proof, lead free; CategoryThe connector The connector; File Size207KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

36500-0099 Overview

2.54mm (.100") pitch din 41612 C style female receptacle, vertical, through hole, 0.30??m (12??") selective gold (Au) plating, 64 circuits, without mounting clips, solder tail length 2.90mm (.114"), No flux proof, lead free

36500-0099 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0365000099

Active

din_41612

2.54mm (.100") Pitch DIN 41612 C Style Female Receptacle, Vertical, Through Hole,

0.30µm (12µ") Selective Gold (Au) Plating, 64 Circuits, without Mounting Clips, Solder

Tail Length 2.90mm (.114"), No Flux Proof, Lead Free

Documents:

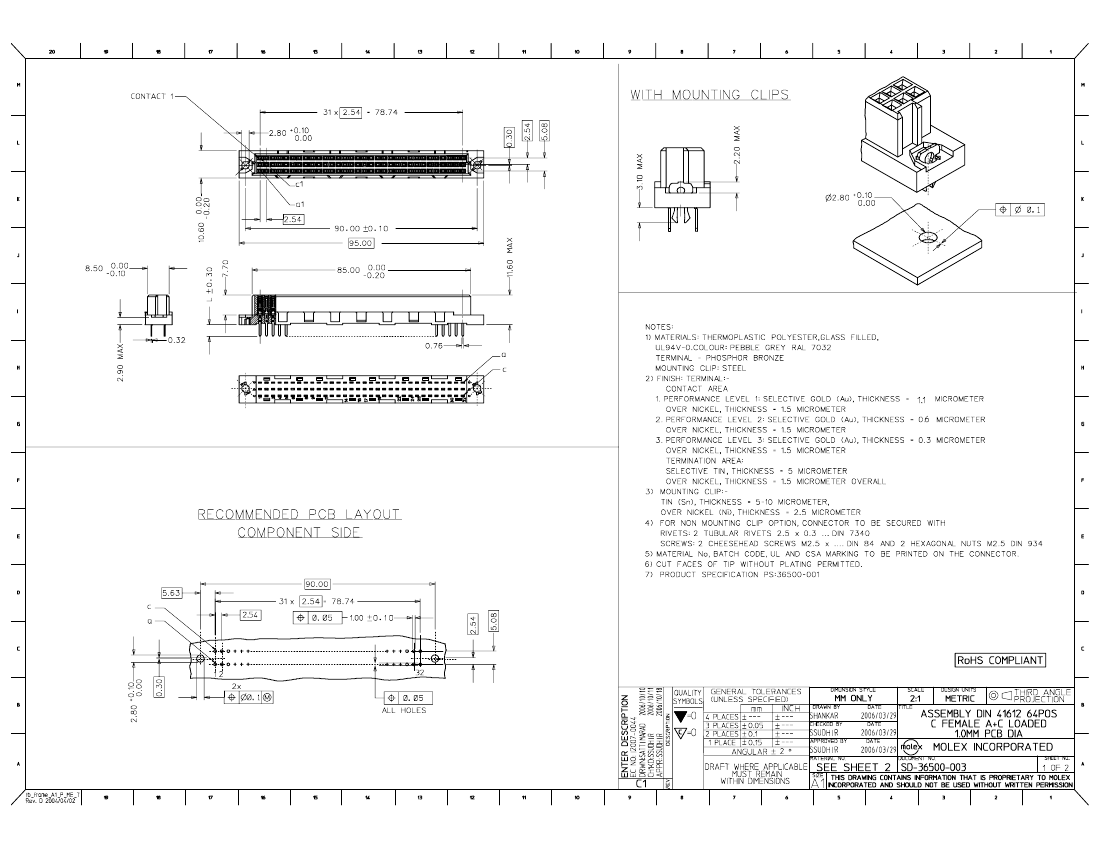

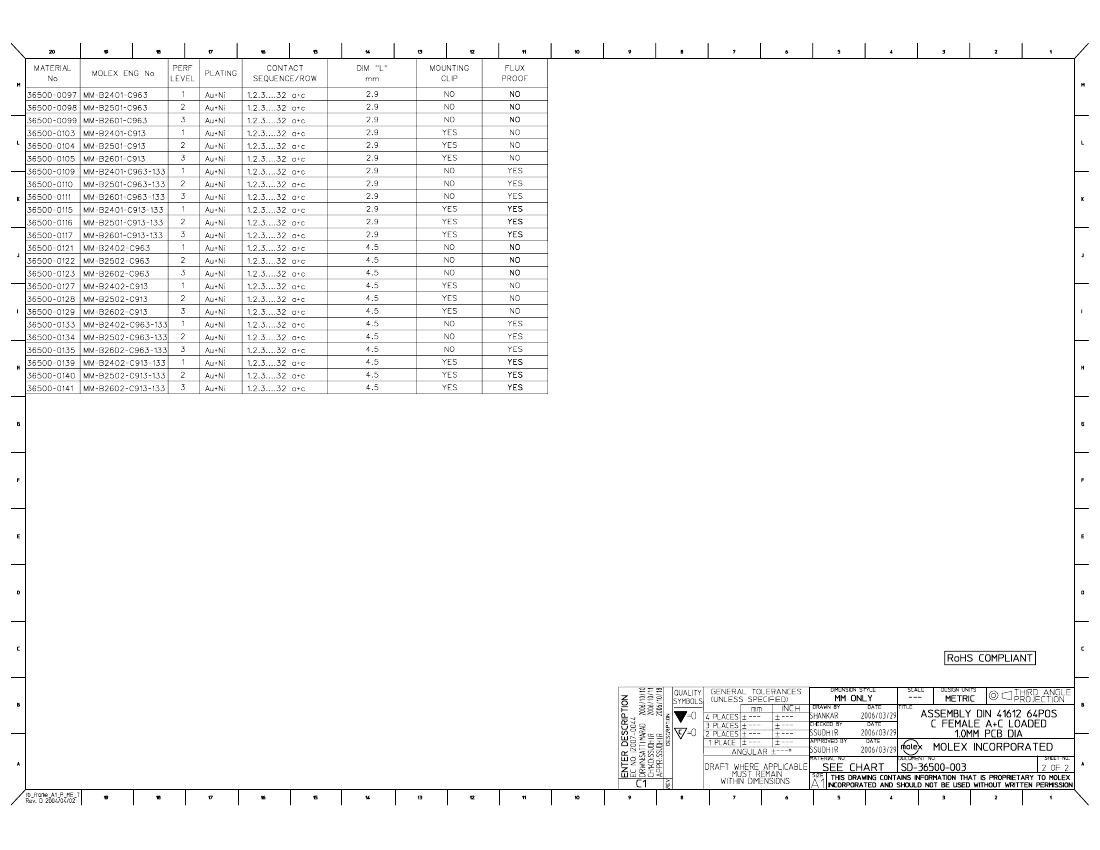

Drawing (PDF)

Product Specification PS-36500-001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36500

Backplane

No Mounting Clips, Secured with Tubular Rivets/

Cheesehead Screws. No Flux Proof

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

Search Parts in this Series

36500Series

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

1,2,3,...32; a+c

Gray

400

Yes

Phosphor Bronze

Gold

Tin

Polyester

Open Pin Field

Vertical

0.114 In

2.90 mm

Yes

0.063 In

1.60 mm

Carton

0.100 In

2.54 mm

0.100 In

2.54 mm

0.30

200

5.00

Yes
