36757-0144 datasheet, PDF - EEWORLD Datasheet

36757-0144: Description6.35mm (.250) pitch mlx? power connector header, vertical, 6 circuits; File Size364KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

36757-0144 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36757-0144	-	-	View	Buy Now

36757-0144 Overview

6.35mm (.250) pitch mlx? power connector header, vertical, 6 circuits

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0367570144

Active

mlx

6.35mm (.250) Pitch MLX™ Power Connector Header, Vertical, 6 Circuits, Nylon 6/6

94V-2, Tin (Sn) Plating, Natural, Lead free, Glow Wire compatible with CTI of 325V

Documents:

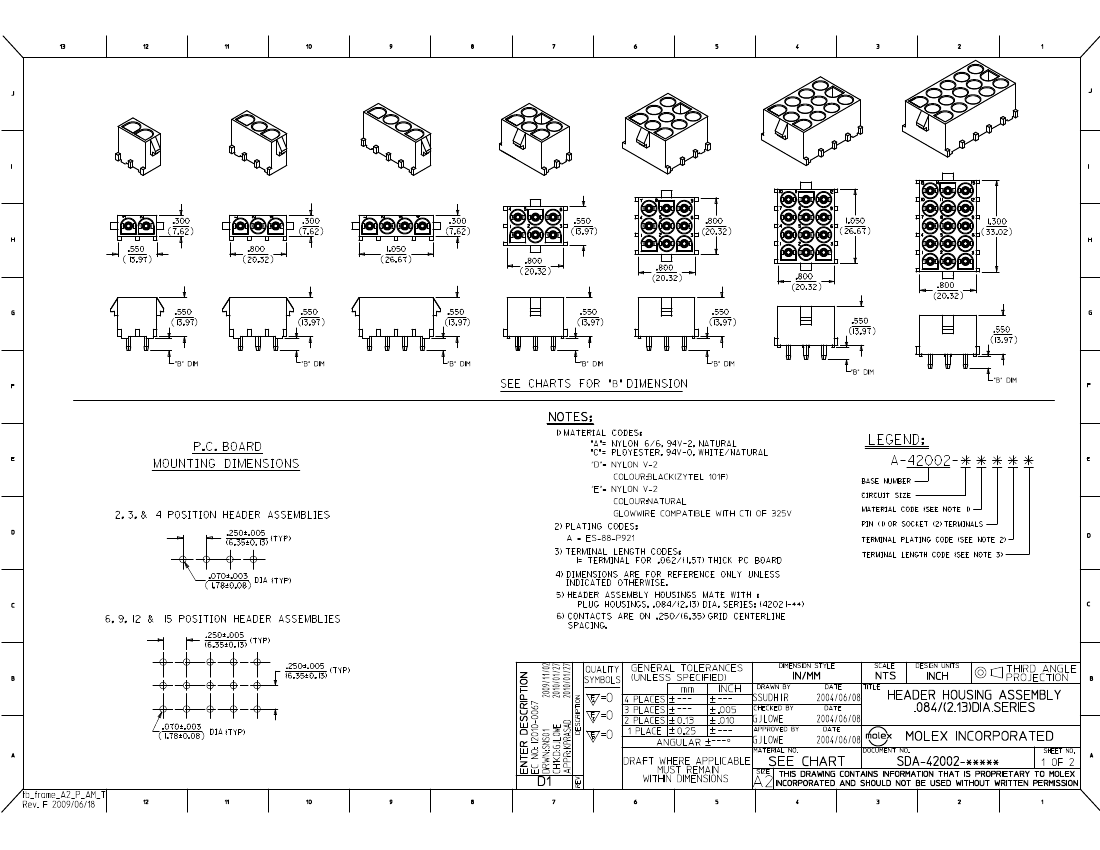

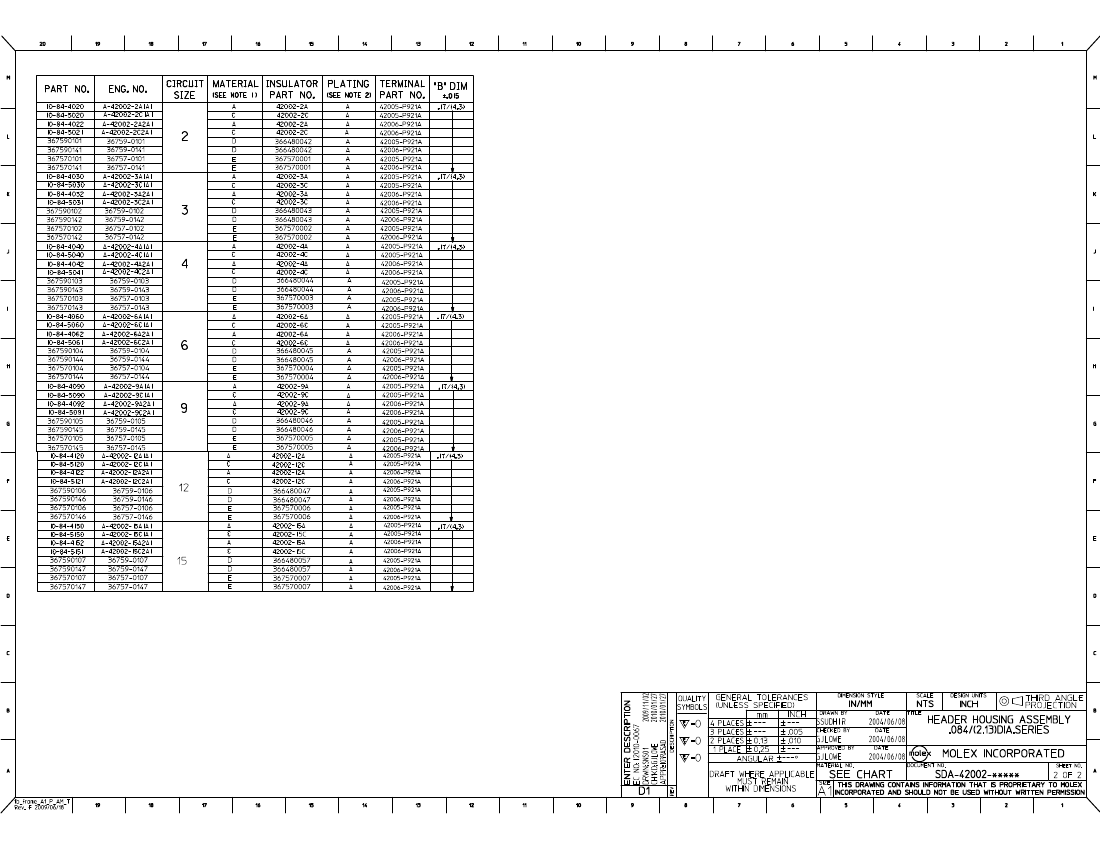

Drawing (PDF)

Product Specification PS-42022-0001 (PDF)

Product Specification PSX-42002-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

42002

Wire-to-Board

Glow Wire compatible with CTI of 325V

mlx

MLX™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Shrouded

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

Yes

Phosphor Bronze

Tin

Nylon

Vertical

0.168 In

4.27 mm

Yes

0.125 In

1.60 mm

Bag

0.250 In

6.35 mm

Yes

Fully

-55°C to +105°C

Through Hole

Search Parts in this Series

42002Series

Mates With

42021 Plug

Electrical

Current - Maximum per Contact

13.5A

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-43255-002

PS-42022-0001, PSX-42002-0001

SDA-42002-*****

36757-0144 Related Products

	36757-0144	BAP51-03_15	0367570144
