• .050 inch centers permit mass termination to a broad
line of IDC connectors
• Zippable for branching or discrete termination
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 12, 2009
TS-0419-B
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray
Marking:
Standard: None
Canadian Option:
AWM 2651 105C 300V VW1 3M NU C
AWM IA 105C 300V FT1 EU <50V
Conductors:
28 AWG, [ Ø 0.32 ] Tinned Solid Copper
Electrical
Voltage Rating:
USA: 300V
Insulation Resistance:
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Characteristic Impedance:
Unbalanced
114
Ω
Canada: 300V
Balanced
188
Ω
7.4 pF/ft [ 24.3 pF/m ]
0.26 μH/ft [ 0.87 μH/m ]
1.40 ns/ft [ 4.59 ns/m ]
73%
EU: <50V
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
12.8 pF/ft [ 42.0 pF/m ]
0.17 μH/ft [ 0.54 μH/m ]
1.45 ns/ft [ 4.76 ns/m ]
70%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

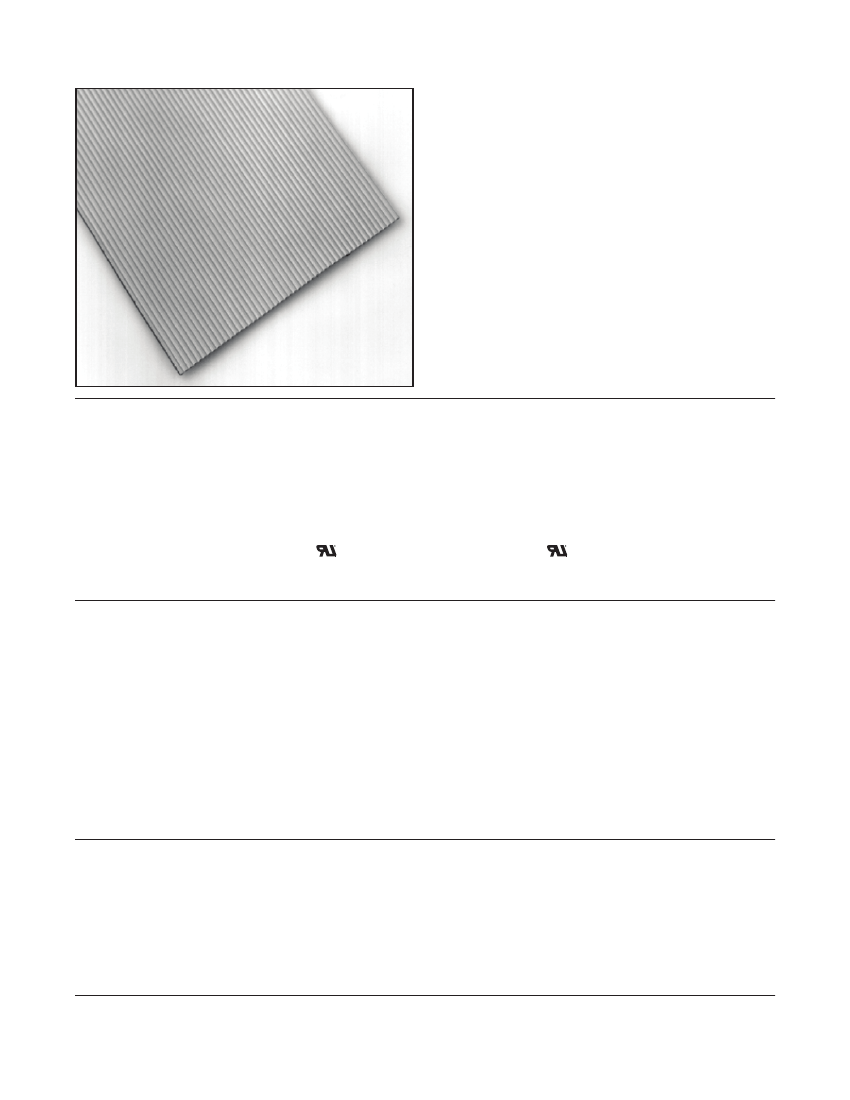

Round Conductor Flat Cable
.050" 28 AWG Solid, PVC
Number of
Conductors
09
10
14
15
3M Part
Number
3709/09
3709/10
3709/14
3709/15
Dimension A
0.500 ± .010 [ 12.70 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
0.450 ± .010 [ 11.43 ]
3709 Series
Dimension B
0.400 ± .007 [ 10.18 ]
0.450 ± .007 [ 11.43 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.850 ± .011 [ 21.59 ]
0.950 ± .011 [ 24.13 ]
C
16
18
20
24
25
26
3709/16
3709/18
3709/20
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
30
34
36
37
40
50
60
64
3709/24
3709/25
3709/26
0.800 ± .015 [ 20.32 ]
0.900 ± .015 [ 22.86 ]
1.000 ± .015 [ 25.40 ]
3709/30
3709/34
3709/36
3709/37
3709/40
3709/50
3709/60
3709/64
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.300 ± .015 [ 33.02 ]
1.500 ± .020 [ 38.10 ]
1.700 ± .020 [ 43.18 ]
1.800 ± .020 [ 45.72 ]
1.850 ± .020 [ 46.99 ]
2.000 ± .020 [ 50.80 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
3.200 ± .020 [ 81.28 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
[ ] Dimensions for Reference Only
A
B
.025
±
.007
[ 0.64 ]
.050
±
.002 Typ
[ 1.27 ]
.033
±
.003
[ 0.84 ]
PVC Insulation
28 AWG [
ø
0.32 ] Tinned Solid
Copper Conductors
Note: Red marking on one edge of cable designates wire #1.
Ordering Information
3709 / XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0419-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
