36WR100LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 36WR100LF

36WR100LF: DescriptionTrimmer resistor - single turn 6mm 100 open type trimmer; CategoryPassive components; File Size69KB，3 Pages; ManufacturerBITECH; Websitehttp://www.bitechnologies.com/; Environmental Compliance

Download Datasheet Parametric View All

36WR100LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36WR100LF	-	-	View	Buy Now

36WR100LF Overview

Trimmer resistor - single turn 6mm 100 open type trimmer

36WR100LF Parametric

Parameter Name	Attribute value
Maker	BITECH
Product Category	Trimmer Resistor - Single Turn
RoHS	yes
resistance	100 Ohms
Tolerance	20 %
Power rating	0.3 W
range of working temperature	- 30 C to + 100 C
Component type	Cerme
Encapsulation	Bulk
size	6.8 mm W x 8.4 mm L x 7.8 mm H
product	Trimmer Resistors - Single Tu
Termination type	Solder Pi

Preview

Download Datasheet

View All

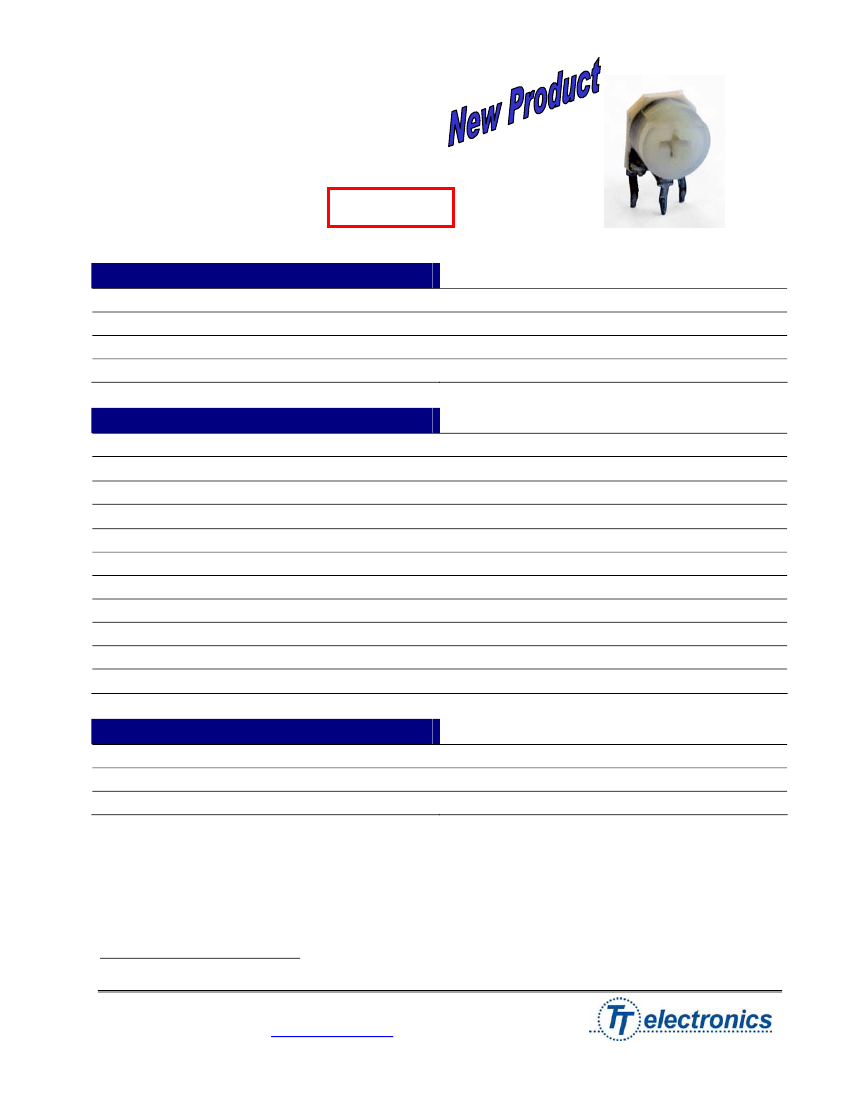

Model 36

6 MM SINGLE-TURN

Open Frame

Cermet Trimming

Potentiometer

RoHS Compliant

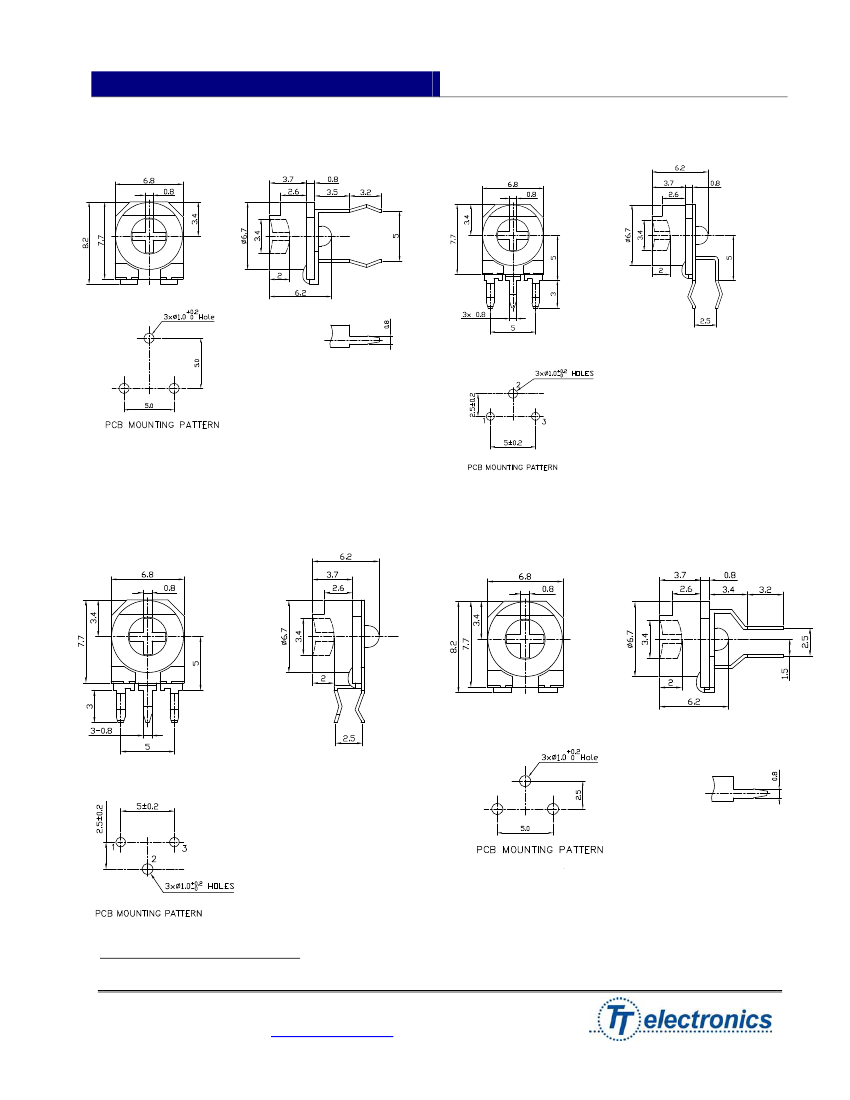

STYLES AVAILABLE

Top Adjust

Side Adjust

Top Adjust (2.5 mm pin spacing)

36F

36K

36W

36P

ELECTRICAL

Resistance Range

Standard Resistance Tolerance

Input Voltage, Maximum

Power rating, Watts

End Resistance, Maximum

Actual Electrical Travel

Mechanical Travel

Insulation Resistance, Minimum

Resolution

Contact Resistance Variation

Temperature Coefficient of Resistance

100 to 1,000,000 Ohms

20%

100 V

0.3 @ 70°C

<500 ohms: 10 Ohms Max; > 500 ohms: 2% Max.

215° ±5°

240° ±20°

100 Megohms

Essentially infinite

5% Max.

±250 ppm/°C

MECHANICAL

Torque, Maximum

Weight, Approx.

Wiper Position

2.1 in. oz.

0.01 oz.

Approx. 50%

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

May 21, 2009

Website:

www.bitechnologies.com

page 1 of

BI technologies
