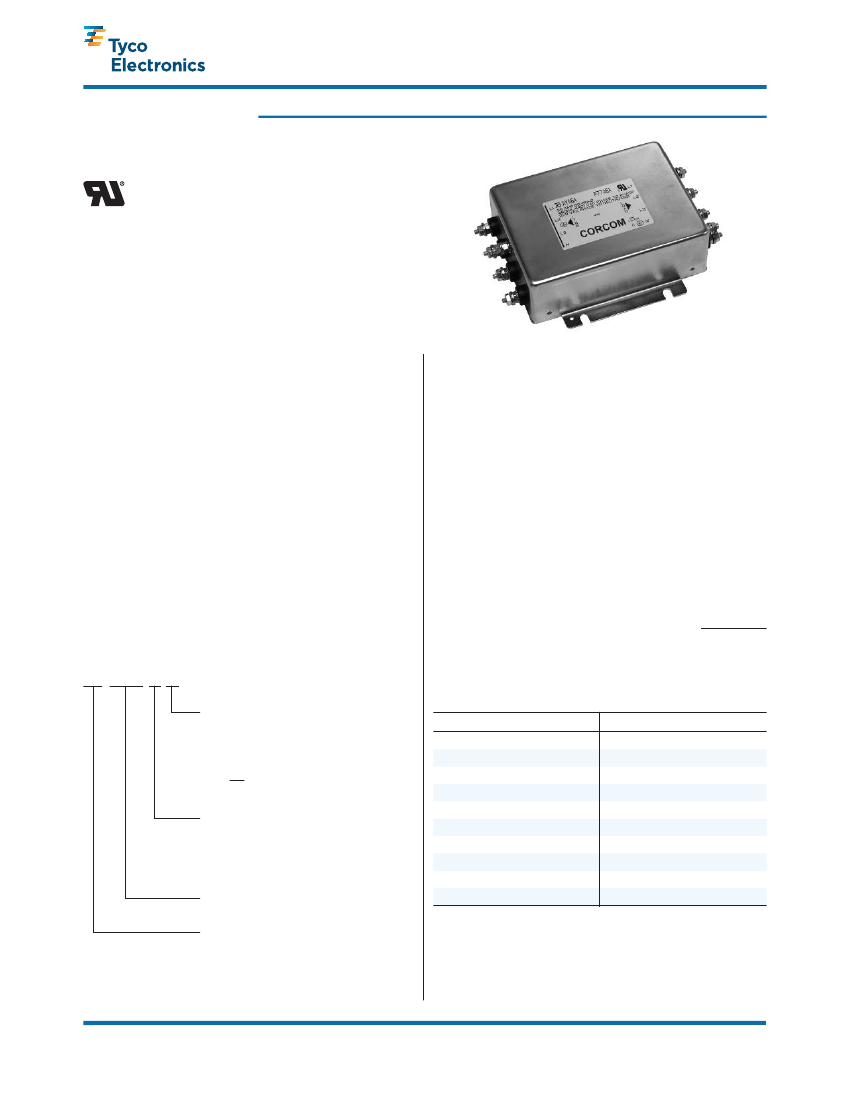

Corcom Product Guide
3-phase WYE RFI Power Line Filters
Catalog: 1654001
Issue Date: 08.2010
AYA Series
UL Recognized*
25AYA6A
AYA Series
• For 3-phase, four wire, WYE applications
• Cost-effective, universal 3-phase filters
• Good attenuation over the complete frequency
range of 10kHz to 30MHz
• Two different mounting styles available
Specifications
Maximum leakage current each Line to Ground:
@ 120 VAC 60 Hz:
1.62 mA
@ 250 VAC 50 Hz:
2.82 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Phase to Phase:
Phase to Ground:
Operating Frequency:
Rated Current:
1500 VAC
1450 VDC
440 VAC
250 VAC
50/60 Hz
16 to 100A*
Ordering Information
36 AYA 6 A
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
Available Part Numbers
Suffix
A – Flange Mounted
(for threaded bolt style only)
Omit for bulkhead mount
or for Terminal Blocks
(flange mount only)
Input / Output Style
6 – Threaded bolt
10 – Terminal block
(flange mount only)
Flange Mount
16AYA6A
16AYA10
25AYA6A
36AYA6A
36AYA10
50AYA6A
63AYA6A
63AYA10
100AYA6A
Bulkhead Mount
16AYA6
25AYA6
36AYA6
50AYA6
AYA Series
Current Rating
16, 25, 36, 50, 63 or 100A
*UL Approvals for all models except:
16AYA10, 36AYA10, 63AYA10, 63AYA6, 63AYA6A and 100AYA6A
104
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
3-phase WYE RFI Power Line Filters
(continued)
Catalog: 1654001
Issue Date: 08.2010
AYA Series

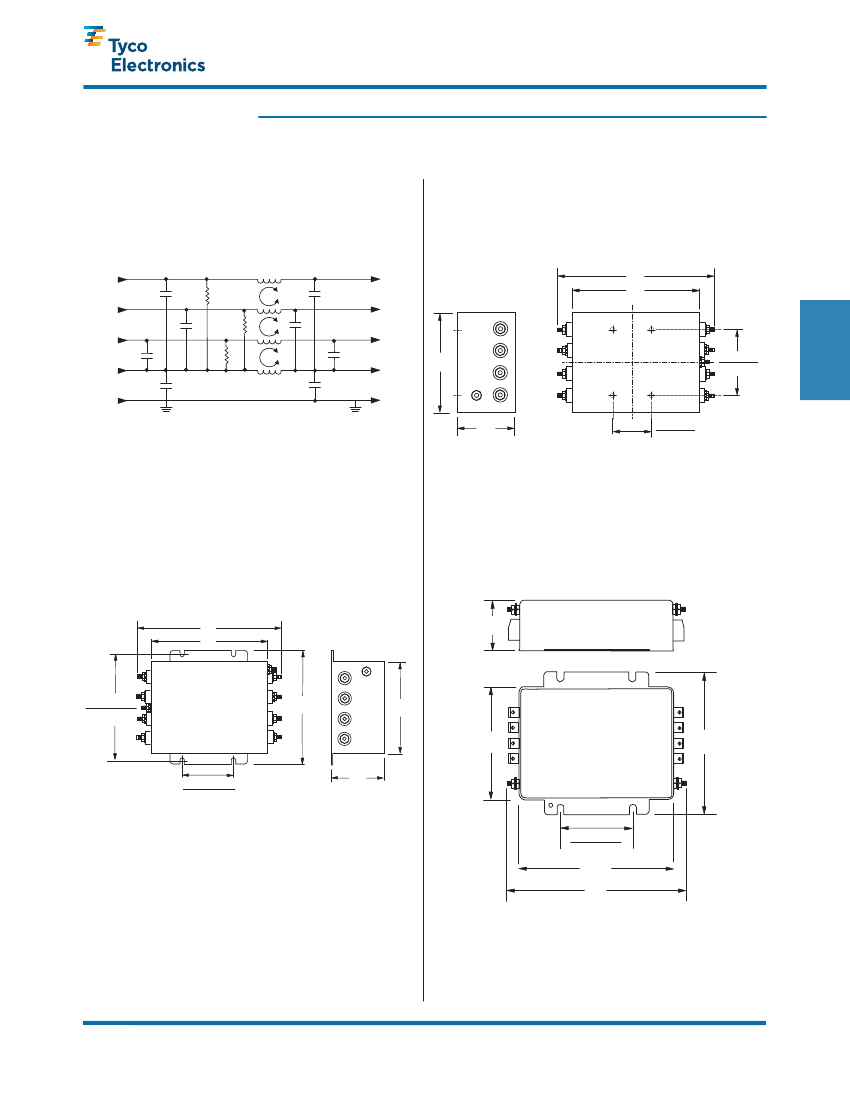

Electrical Schematics
A
B
C
N
GND
LINE
LOAD
A
B
C
N
GND
C
1.73
± 0.01
44.0
± 0.3
2.95
± 0.01
75.0
± 0.3
AYA6
(Bulkhead mount with screw terminals)
A
D
B
2
Three Phase Filters
Typical Dimensions:
Threaded mounting holes(4): M5 x 8
16 & 25A Terminals(8):
8-32, Torque (max.) 26 lbf-in [2.94 N-m]
36A Terminals(8):
10-32, Torque (max.) 27 lbf-in [3.05 N-m]
50A Terminals(8):
1/4-20, Torque (max.) 56 lbf-in [6.33 N-m]
Case Style
AYA6A
(Flange mount with screw terminals)
16AYA10
C
A
D
4.92
± 0.02
125.0
± 0.5
E
B
B
2.76
± 0.012
70.0
± 0.3
Typical Dimensions:
Mounting slots (4):
16 & 25A Terminals(8):
36A Terminals(8):
50A Terminals(8):
E
C
.425 x .254 [10.8
x 6.6]
8-32, Torque (max.) 26 lbf-in [2.94 N-m]
10-32, Torque (max.) 27 lbf-in [3.05 N-m]
1/4-20, Torque (max.) 56 lbf-in [6.33 N-m]
2.76
± 0.012
70.0
± 0.3
D
A
Typical Dimensions:
Mounting slots (4):
Terminal blocks(8):
Ground terminal(1):
.425 x .254 [10.8
x 6.6]
4 mm² Torque (max.) 7.08 lbf-in [0.8 N-m]
M5, Torque (max.) 26.58 lbf-in [3.0 N-m]
105
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
3-phase WYE RFI Power Line Filters
(continued)
Catalog: 1654001
Issue Date: 08.2010
AYA Series
36AYA10
C
Case Dimensions
Part No.
16AYA6 /A
25AYA6 /A
36AYA6 /A
50AYA6 /A
63AYA6 /A
100AYA6A
2.76
± 0.012
70.0
± 0.3
A
(max.)
B
(max.)
C
(max.)
D
(max.)
E*
(max.)
B
E
16AYA10
36AYA10
63AYA10
D
A
Typical Dimensions:
Mounting slots (4):
Terminal blocks(8):
Ground terminal(1):
.425 x .254 [10.8
x 6.6]
10 mm² Torque (max.) 15.93 lbf-in [1.8 N-m]
M5, Torque (max.) 26.58 lbf-in [3.0 N-m]
7.91
201.0
7.91
201.0
7.91
201.0
6.97
177.0
7.88
200.0
10.98
279.0
4.37
111.0
4.37
111.0
4.37
111.0
4.37
111.0
4.37
111.0
5.08
129.0
1.97
50.0
2.56
65.0
2.56
65.0
1.97
50.0
2.56
65.0
2.52
64.0
5.94
151.0
5.94
151.0
5.94
151.0
5.94
151.0
5.99
151.0
8.43
214.0
5.51
140.0
5.51
140.0
5.51
140.0
5.51
140.0
5.51
140.0
6.26
159.0
*Does not apply for bulkhead models
63AYA10
C
B
E
4.53
± 0.012
115.0
± 0.3
D
A
Typical Dimensions:
Mounting slots (4):
Terminal blocks(8):
Ground terminal(1):
.425 x .254 [10.8
x 6.6]
16 mm² Torque (max.) 20.35 lbf-in [2.3 N-m]
M6, Torque (max.) 53.1 lbf-in [6.0 N-m]
106
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
3-phase WYE RFI Power Line Filters
(continued)
Catalog: 1654001
Issue Date: 08.2010
AYA Series

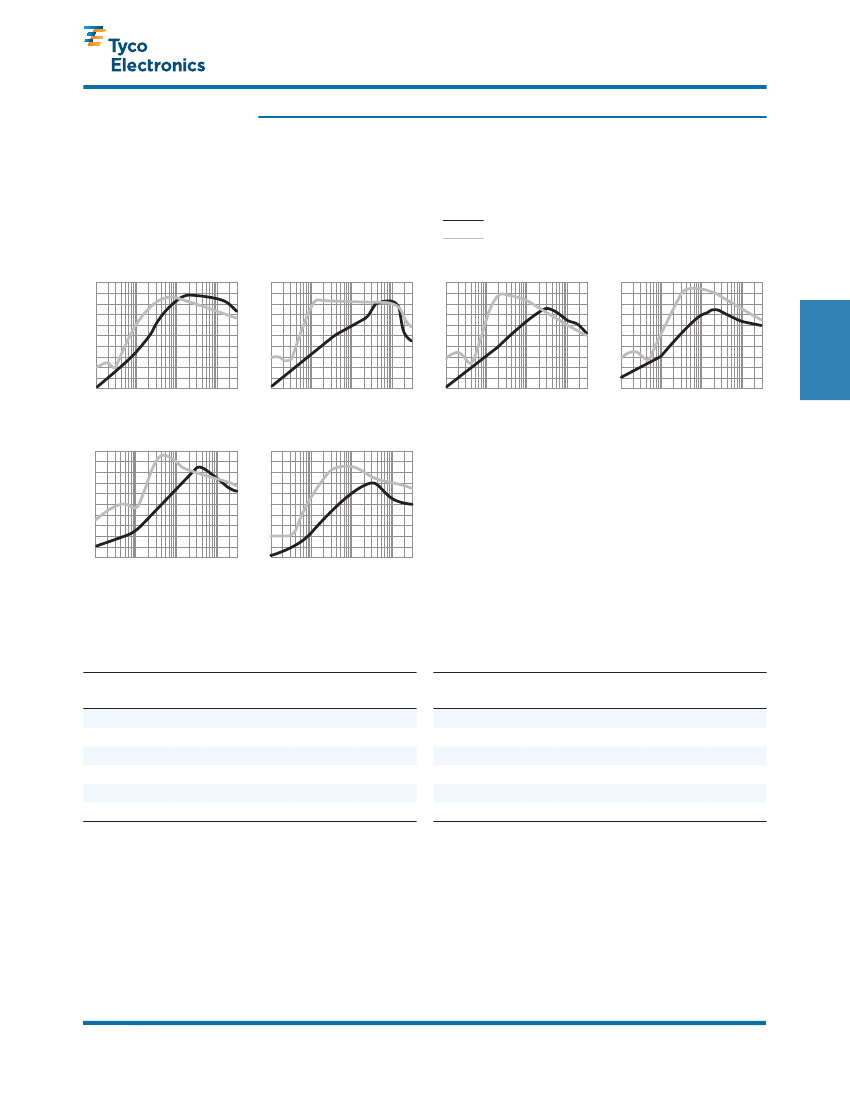

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
16AYA
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
25AYA
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
36AYA
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
50AYA
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
2
Three Phase Filters
63AYA
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
100AYA
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Current
Rating
16A
25A
36A
50A
63A
100A
.01 .05
2
2
1
1
2
1
11
12
10
8
10
15
Frequency –MHz
.1
.5
1
5
19
19
18
14
22
22
52
46
49
43
50
55
53
49
54
47
60
60
70
64
63
63
75
65
10
61
54
57
53
70
55
30
30
27
32
29
55
50
Differential Mode / Symmetrical (Line to Line)
Current
Rating
16A
25A
36A
50A
63A
100A
.01 .05
14
20
20
20
30
20
31
36
39
30
40
35
Frequency –MHz
.1
.5
1
5
30
38
36
38
45
45
82
85
86
85
90
80
87
81
78
82
85
80
76
68
65
67
70
65
10
77
69
62
66
70
60
30
47
33
35
38
60
55
107
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
