37024

Description
Analog panel table cur xfmr screw 500/5
CategoryTopical application    Test and measurement
File Size183KB,1 Pages
ManufacturerSimpson Electric Company
Download Datasheet Parametric Compare View All

37024 Online Shopping

Suppliers Part Number Price MOQ In stock
37024 - - View Buy Now

37024 Overview

Analog panel table cur xfmr screw 500/5

37024 Parametric

Parameter NameAttribute value
MakerSimpson Electric Company
Product CategoryAnalog panel meter
RoHSno
size89.66 mm L x 96.01 mm H
Number of outputs1
Power rating20 VA
Primary voltage rating500 V
Termination typeScrew Terminals

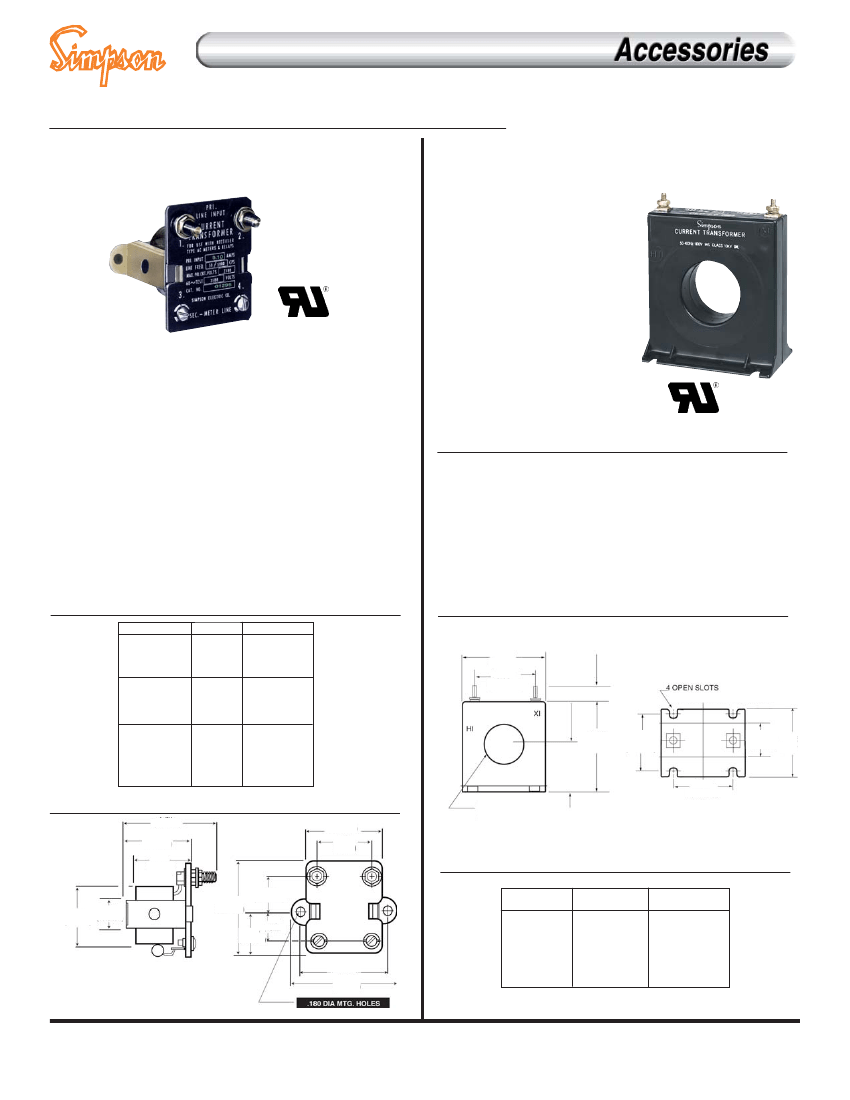

Current Transformers
Model 186 Current Transformer
Current Transformers with Terminals
• Reduces high AC
current signal to 5
amp AC signal
• Use with analog and 5
amp AC digital indi-
cators
• Optimal for remote sensing of AC current
signals
• Converts AC current signal to 0-10 ACV
signal
• For use with rectifier type analog panel
meters or digital indicators
• Perfect for low current measurement
where a donut current transformer would
not sense a signal
Ordering Information
Range
0-100mA
0-500mA
0-5Amp
0-10Amp
0-15Amp
0-20Amp
0-25Amp
0-30Amp
0-40Amp
0-50Amp
VA
0.50
0.53
0.40
1.45
1.05
1.04
1.50
1.10
1.09
1.90
Cat. Number
01295
01304
01312
01314
01315
01316
01317
01318
01319
01321
1.56” DIA
2.43”
1.75”
1.40”
2.00”
1.38”
1.83”
2.75”
3.78”
1.77”
1.09”
2.15
3.53”
3.00”
0.44”
0.21” X 0.31”
Specifications
Accuracy
Frequency
Insulation Class
Weight
±2.0% (100 Amp)
±1.0% (100-1000 Amp)
50-400 Hz
0.6kV BIL
10kV full wave
1.0lb (453.59g)
Dimensions
Dimensions
Ordering Information
.94”
2.43”
1.75”
.69”
.75”
1.12”
2.375”
2.81”
Range
100:5
150:5
200:5
300:5
500:5
1000:5
Burden
VA@60Hz
2.0
5.0
5.0
12.5
20.0
25.0
Catalog Number
37020
37021
37022
37023
37024
37025
For more information, visit www.simpsonelectric.com

37024 Related Products

37024 37022 37025
Description Analog panel table cur xfmr screw 500/5 Analog panel table cur xfmr screw 200/5 Analog panel table cur xfmr screw 1000/
Maker Simpson Electric Company Simpson Electric Company Simpson Electric Company
Product Category Analog panel meter Analog panel meter Analog panel meter
RoHS no no no
size 89.66 mm L x 96.01 mm H 89.66 mm L x 96.01 mm H 89.66 mm L x 96.01 mm H
Number of outputs 1 1 1
Power rating 20 VA 5 VA 25 VA
Primary voltage rating 500 V 200 V 1 KV
Termination type Screw Terminals Screw Terminals Screw Terminals
