8J-54.000MDBC-B datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 8J-54.000MDBC-B

8J-54.000MDBC-B: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size773KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

8J-54.000MDBC-B Overview

Parallel - Fundamental Quartz Crystal,

8J-54.000MDBC-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TXC Corporation
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Other features	BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.005%
frequency tolerance	20 ppm
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	54 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)
Series resistance	150 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

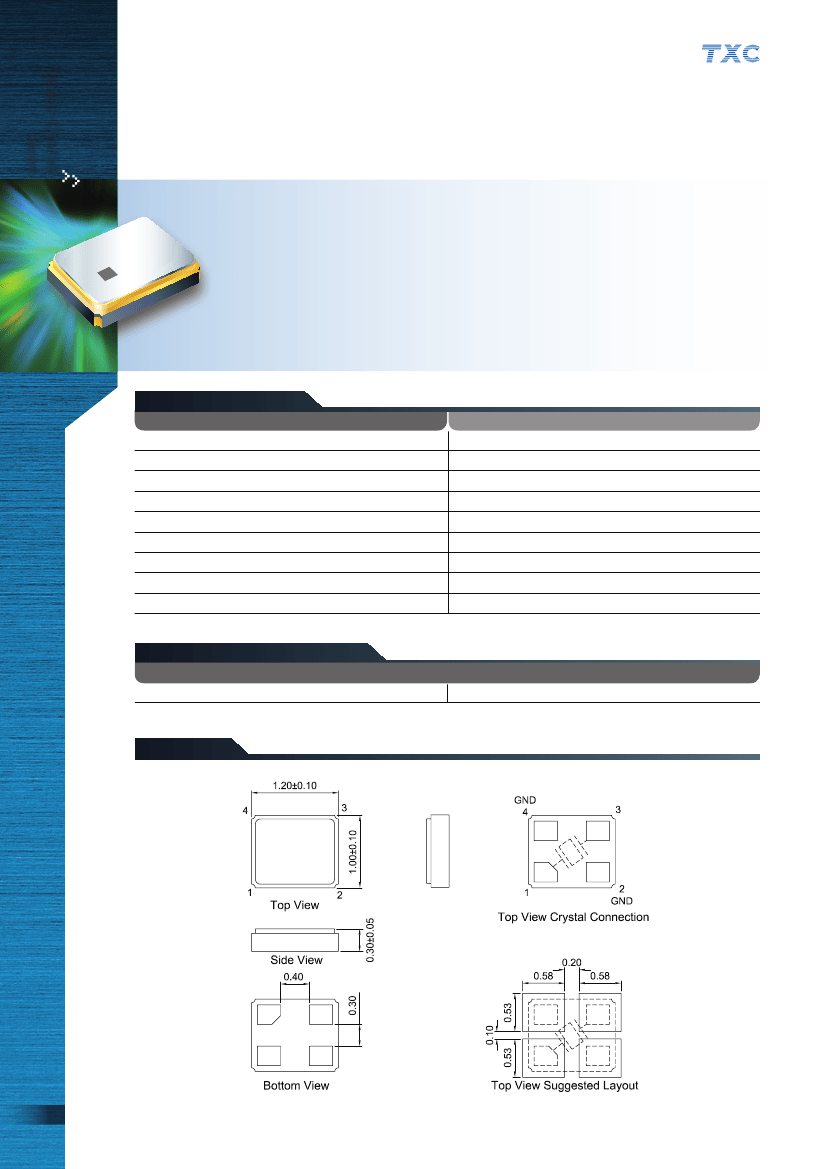

SMD Seam

Sealing Crystals

1.2 x 1.0 x 0.30 mm 8J Series

Features

Think of Frequency Think of

come visit our site http://www.txccorp.com

Quartz Crystals

Series

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

37 0 2

T d

．

xtremely small SMD type crystal units.

．

pplication for smart phone, sip module, variety of compact

portable consumer products reference clocks.

．

igh precision and high frequency stability.

．

igh reliable environmental performance.

．

oHS Compliant / Pb Free.

Electrical Specifications

Item / Type

Frequency Range

Frequency Tolerance (at 25

℃

)

Frequency Stability Over Operating Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Drive Level

Load Capacitance

Aging (at 25

℃

)

Storage Temperature Range

36 ~ 54 MHz

15 ppm,

30 ppm, or specify

15 ppm,

30 ppm, or specify

-10 ~ + 70

℃

, or specify

3 pF Max.

1 ~ 100

W ( 50

W typical)

8 pF, 10 pF, or specify

3 ppm / year Max.

- 40 ~ + 85

℃

Equivalent Series Resistance(ESR)

Fundamental

36 ~ 54 MHz

150

Max.

Dimensions

Units: mm

8J-54.000MDBC-B Related Products

	8J-54.000MDBC-B	8J-36.000MDFC-T	8J-54.000MCGL-B	8J-36.000MBHV-T	8J-36.000MDBC-B	8J-54.000MDFC-T	8J-36.000MBHV-B	8J-36.000MDBC-T	8J-54.000MCEV-B
Description	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,	Parallel - Fundamental Quartz Crystal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	TXC Corporation	TXC Corporation	TXC Corporation	TXC Corporation	TXC Corporation	TXC Corporation	TXC Corporation	TXC Corporation	TXC Corporation
package instruction	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	BULK	TR	BULK	TR	BULK	TR	BULK	TR	BULK
Ageing	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	1 µW	1 µW	1 µW	1 µW	1 µW	1 µW	1 µW	1 µW	1 µW
frequency stability	0.005%	0.01%	0.005%	0.003%	0.005%	0.01%	0.003%	0.005%	0.001%
frequency tolerance	20 ppm	20 ppm	100 ppm	50 ppm	20 ppm	20 ppm	50 ppm	20 ppm	100 ppm
load capacitance	9 pF	9 pF	22 pF	8 pF	9 pF	9 pF	8 pF	9 pF	8 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	54 MHz	36 MHz	54 MHz	36 MHz	36 MHz	54 MHz	36 MHz	36 MHz	54 MHz
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	70 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-40 °C	-40 °C	-40 °C	-20 °C	-40 °C	-40 °C	-20 °C	-20 °C
physical size	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)	L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)
Series resistance	150 Ω	150 Ω	150 Ω	150 Ω	150 Ω	150 Ω	150 Ω	150 Ω	150 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1	1	1	-
