This document was generated on 04/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0398800716
Active
5.08mm (.200") Pitch Beau™ Eurostyle™ High Profile, Two Level Terminal Block,
Modular, 16 Circuits
Documents:
3D Model

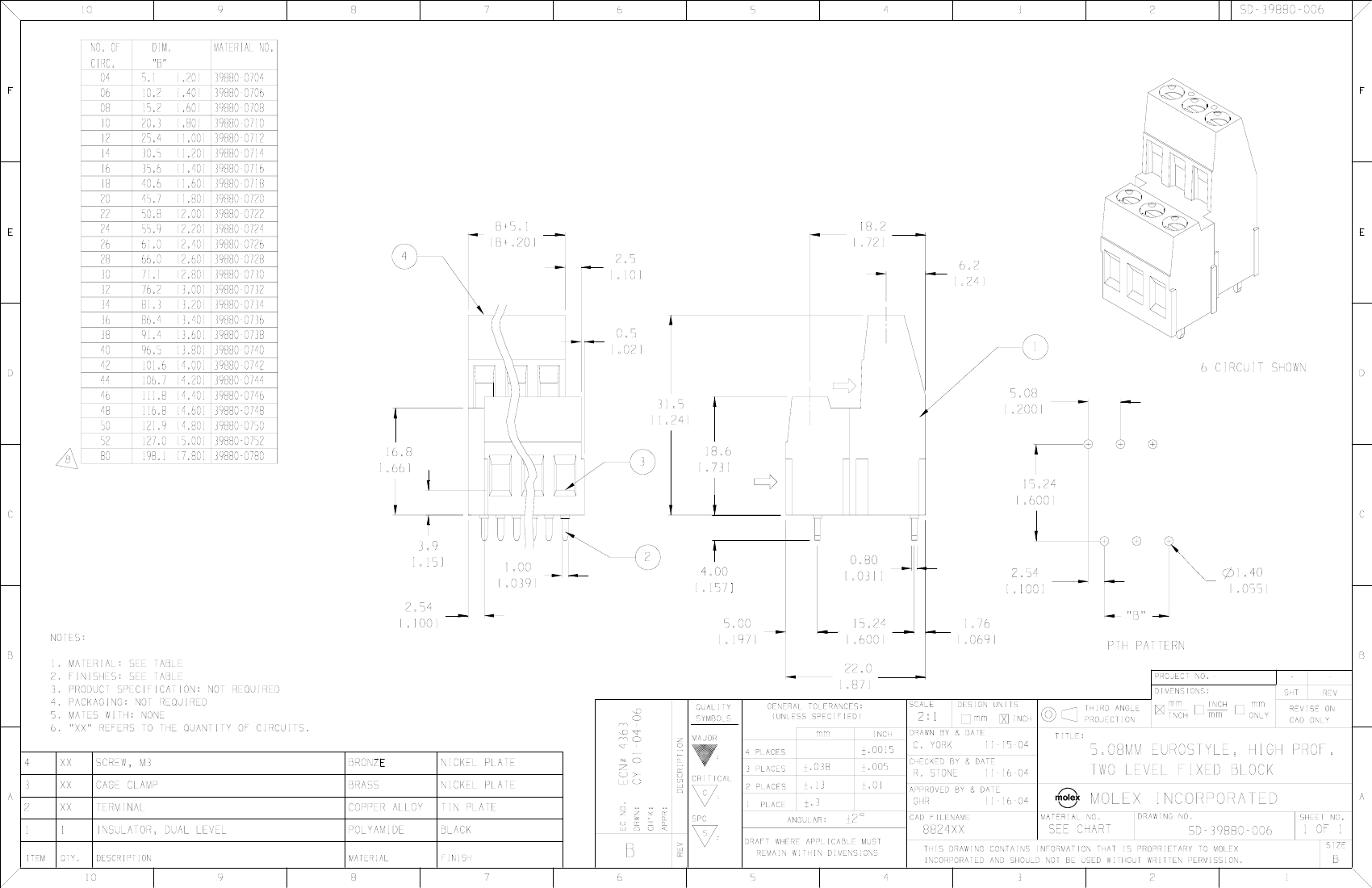

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR25562
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39880
Wire-to-Board
One Piece
USA-263
Eurostyle™Multi-Level
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
16
Horizontal
94V-0
None
2
Vertical
0.157 In
4.00 mm
None
0.093 In
2.40 mm
No
0.200 In
5.08 mm
0.200 In
5.08 mm
N/A
Fully
Yes
110°C
12, 14, 16, 18, 20, 22, 24, 26, 28, 30
0.20 - 2.50
Search Parts in this Series
39880Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
24A
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
882416
Reference - Drawing Numbers
