Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010

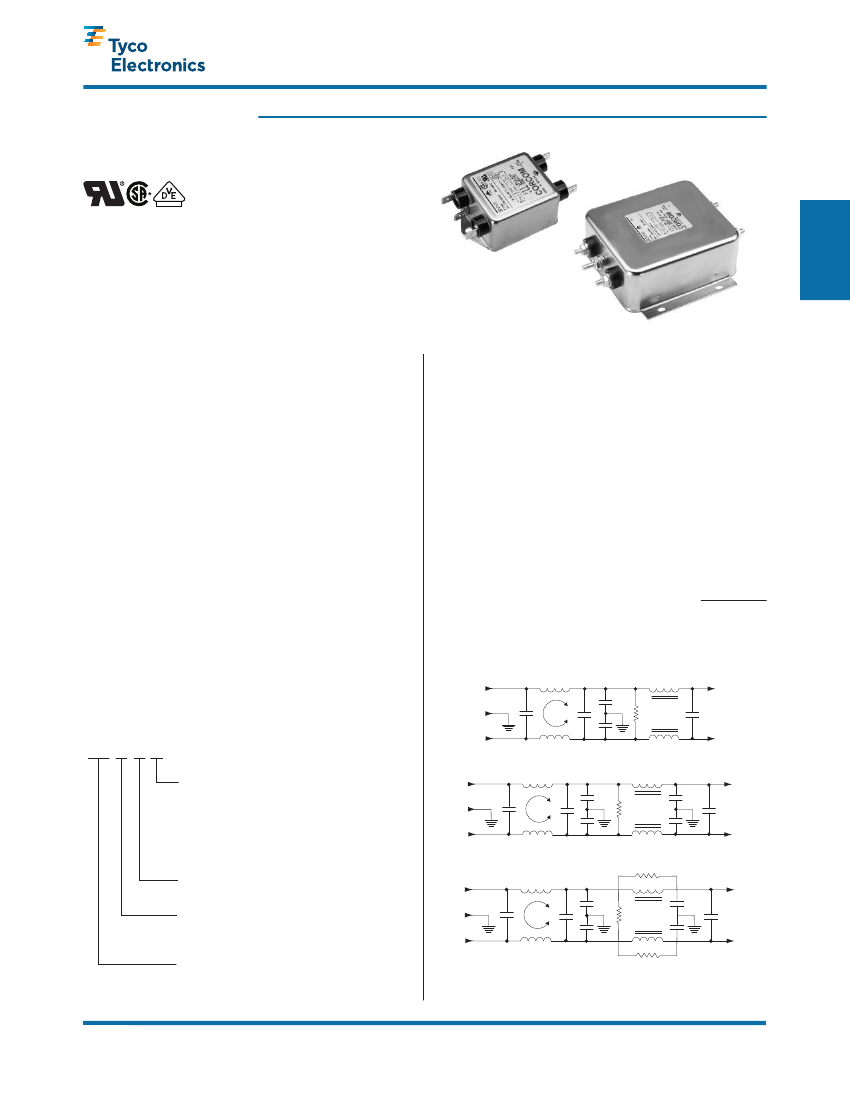

Multipurpose Power Line RFI Filter for Emission Control
V and W Series
UL Recognized
CSA Certified
VDE Approved
VV1 / VW1
1
RFI Power Line Filters
VV6 / VW6
Both the V and W series are effective to control
emissions in equipment using SCR and T
2
L circuits
for compliance with FCC Part 15, Subpart J and
EN55022, Level A, down to 150kHz
Specifications
Maximum leakage current each Line to Ground:
@ 120 VAC 60 Hz:
.5 mA
@250 VAC 50 Hz:
.82 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Operating Frequency:
Rated Current:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
3 to 20A*
V Series
• Offers an N = 3 (“T”) Line to Ground impedance to
common mode and an N = 5 “Dbl. Pi”) impedance
for Line to Line differential mode interference
• Designed for susceptibility use when equipment
impedance at RF frequencies is low
W Series
• Offers an N = 4 (“Dbl. L”) Line to Ground
impedance for common mode and an N=5 (“Dbl.
Pi”) impedance for Line to Line differential mode
interference
• Designed for use when equipment impedance at
RF frequencies is high
• Two stage construction provides excellent
suppression at high frequencies
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
Electrical Schematics
V Series
LINE
LOAD
Ordering Information
20 V V 6
Input / Output Style
1 – .250 [6.3] spade terminals
6 – Threaded bolt
7 – IEC inlet*
(line side)
.250 [6.3] spade terminals
(load side)
W Series
(3, 6 & 10A)
LINE
LOAD
W Series
(20A)
LINE
LOAD
V or W Series
Leakage current designation
V – Standard
Current Rating
3, 6, 10 or 20A
*IEC 60320-1 C20 inlet mates with C19 connector
20VW7, 20A model tested by Underwriters Laboratories
to US and Canadian requirements and is
VDE approved at 16A, 250VAC
85
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Multipurpose Power Line RFI Filter for Emission Control
(continued)
V and W Series
Available Part Numbers
3VV1
6VV1
10VV1
20VV1
20VV6
3VW1
3VW1
10VW1
20VW1
20VW6
20VW7*

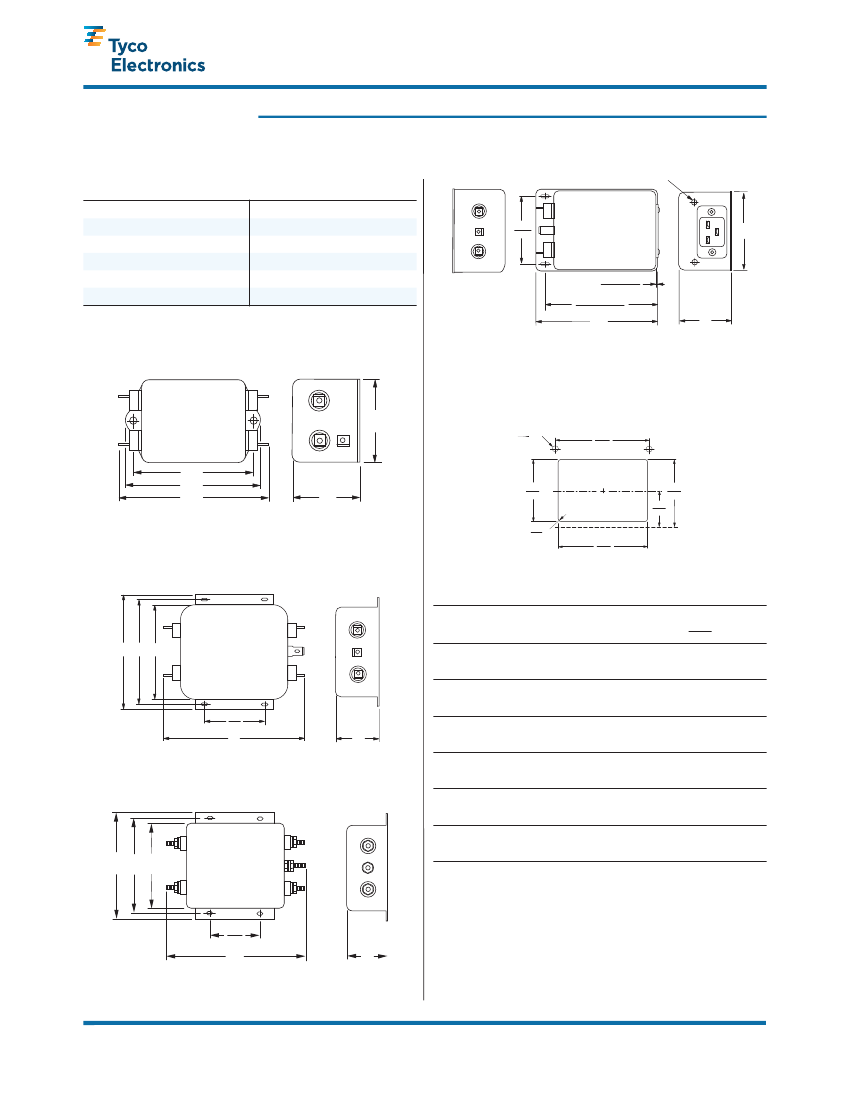

Case Styles
(continued)
VW7
Threaded inserts
2.25
57.15
B
.047 ± .010
1.19 ± .25
5.33 ± .025
135.38 ± .635
Case Styles
V1 / W1
(3, 6 & 10A)
Typical Dimensions:
Load Terminals (2):
Ground Terminal (1):
Line Inlet (1):
Tapped Inserts (2):
A
C
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
IEC 60320-1 C20
6-32 x 1/4
B
Recommended Panel Cutout
.157
Dia.
3.98
2.30
58.42
D
E
A
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Holes (2):
C
1.22
30.99
C
L
.75
19.05
1.60
40.46
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.188 [4.78] Dia.
.219
R
5.56
Mounting Plane
2.12
53.85
V1 / W1
(20A)
Case Dimensions
Part No.
A
(max)
B
(max)
C
(max)
± .015
± .38
D
E
(max)
E D B
3VV1, 3VW1
2.00
50.8
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Slots (4):
A
C
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.250 x .156 [6.35
x 3.96]
Dia.
V6 / W6
E D B
3.36
1.82
85.3
46.2
3.86
2.08
6VV1, 6VW1
98.0
52.8
3.86
2.08
10VV1, 10VW1
98.0
52.8
5.23
3.38
20VV1, 20VW1
132.8 85.9
5.34
3.38
20VV6, 20VW6
135.64 85.9
5.65
3.12
20VW7
143.51 79.25
1.28
32.5
1.53
38.9
1.53
38.9
1.53
38.9
1.53
38.9
2.29
58.17
2.375
60.33
2.938
74.63
2.938
74.63
3.75
95.25
3.76
95.5
—
2.78
70.6
3.34
84.8
3.34
84.8
4.20
106.7
4.20
106.7
—
2.00
50.8
A
Typical Dimensions:
Terminals (5):
Mounting Slots (4):
C
*20VW7, 20A model tested by Underwriters Laboratories
to US and Canadian requirements and is
VDE approved at 16A, 250VAC
8-32, Torque 18 lbf-in. [2.03 N-m] max. ± 2 [.22]
.250 x .156 [6.35
x 3.96]
Dia.
86
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Multipurpose Power Line RFI Filter for Emission Control
(continued)
V and W Series

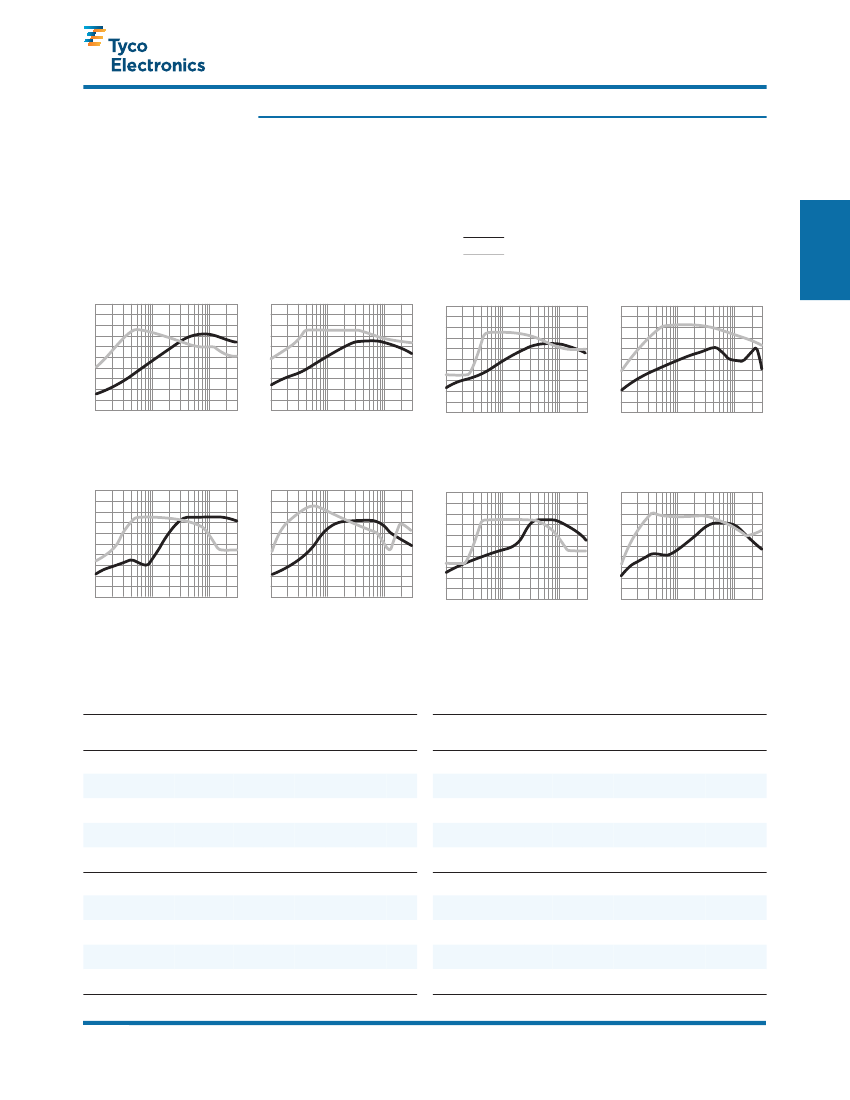

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
1
RFI Power Line Filters
3VV
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6VV
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10VV
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20VV
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3VW
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6VW
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10VW
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20VW
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Current
Rating
V Series
3A
6A
10A
20A
W Series
3A
6A
10A
20A
13
18
18
18
25
30
30
30
20
34
34
34
45
40
40
40
60
65
65
65
65
65
65
65
65
57
57
57
63
47
47
47
15
15
15
15
27
27
27
30
38
28
38
41
47
47
47
49
55
55
55
55
55
55
55
46
50
50
50
36
48
48
48
30
.15
.5
Frequency – MHz
1
2
5
10
20
30
Differential Mode / Symmetrical (Line to Line)
Current
Rating
V Series
3A
6A
10A
20A
W Series
3A
6A
10A
20A
25
30
25
25
40
54
25
25
65
65
65
65
65
65
65
65
62
60
65
65
55
55
50
50
35
38
45
45
35
38
45
45
87
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
