70541-9075: Description2.54mm (.100) pitch SL? header, single row, vertical, .120" pocket, shrouded, with straight plastic peg, 6 circuits, 0.76??m (30??) gold (Au) selective plating; CategoryThe connector The connector; File Size158KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

70541-9075 Overview

2.54mm (.100) pitch SL? header, single row, vertical, .120" pocket, shrouded, with straight plastic peg, 6 circuits, 0.76??m (30??) gold (Au) selective plating

70541-9075 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Board mount options	SPLIT BOARD LOCK
body width	0.26 inch
subject depth	0.45 inch
body length	0.62 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

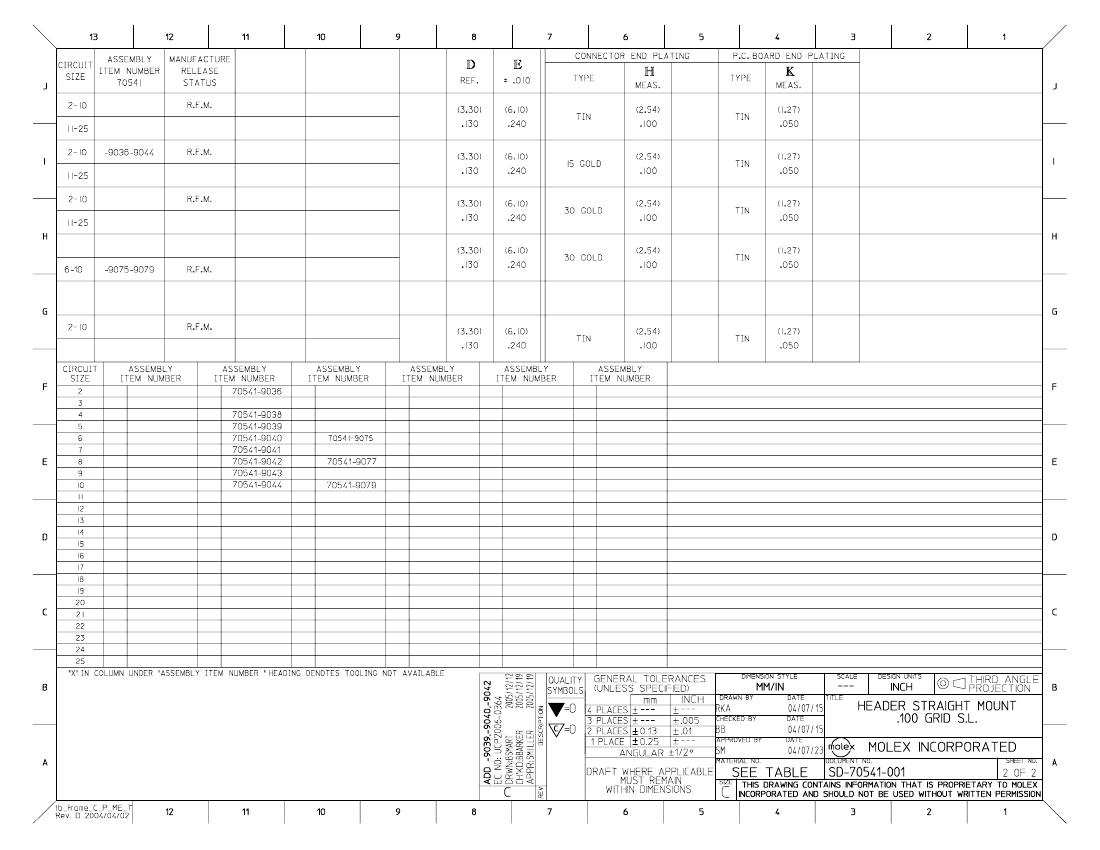

Preview

Download Datasheet

View All

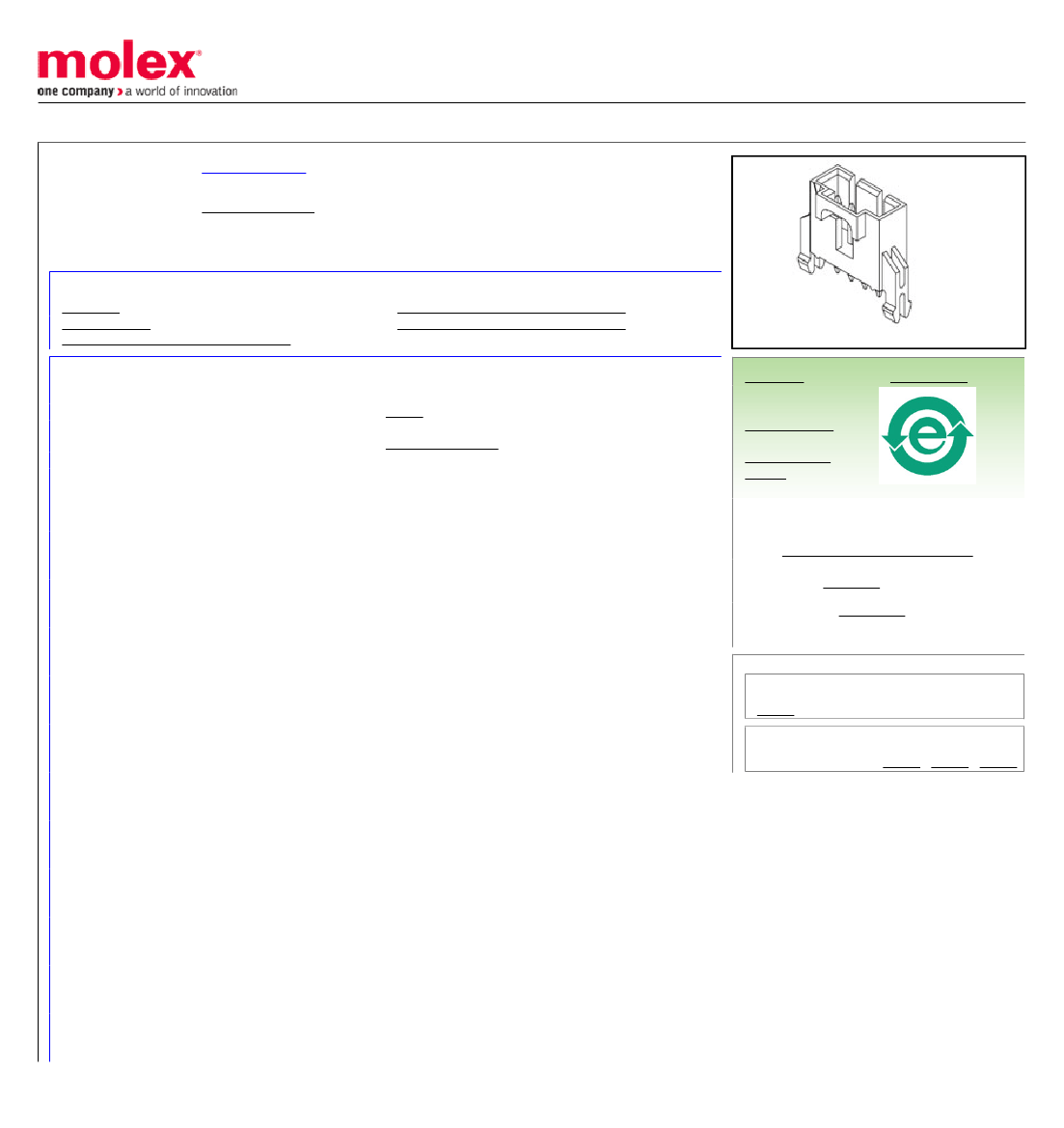

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0705419075

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Header, Single Row, Vertical, .120" Pocket, Shrouded, with

Straight Plastic Peg, 6 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating, Tin (Sn) PC

Tail Plating

Documents:

3D Model

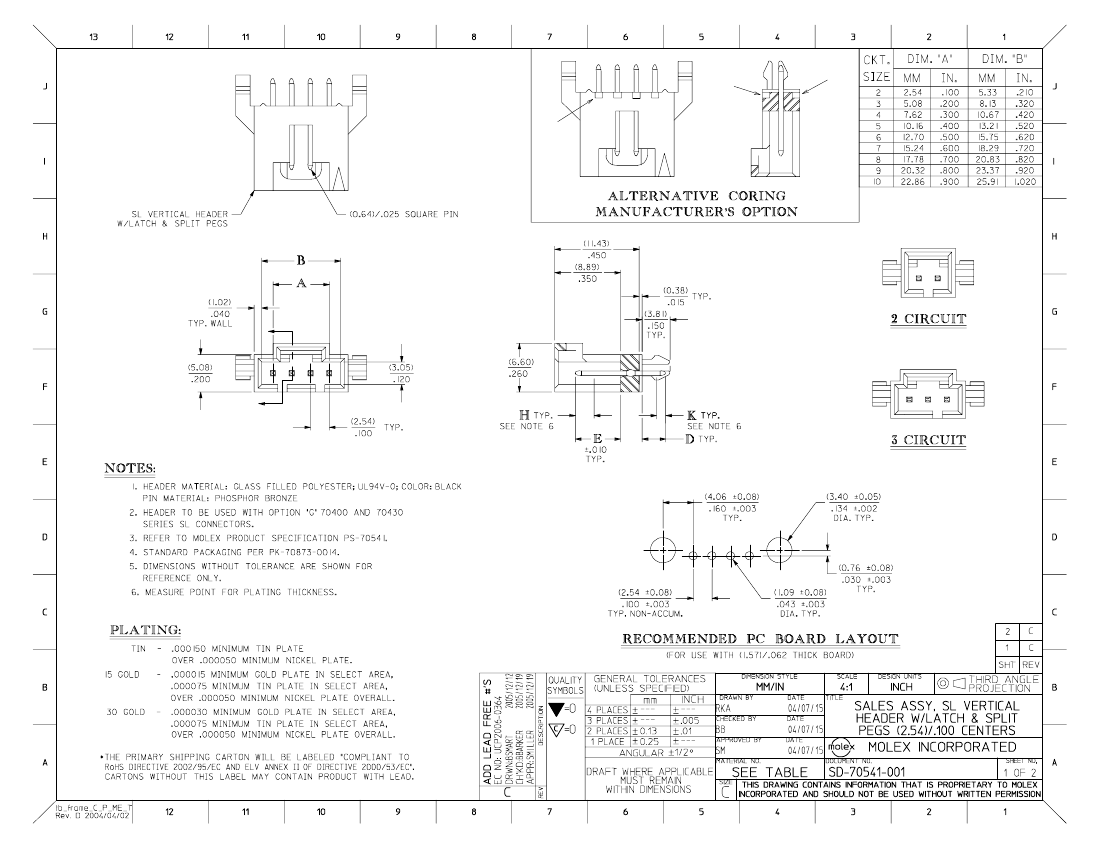

Drawing (PDF)

Product Specification PS-70400 (PDF)

Product Specification PS-70541 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

70541

Wire-to-Board

cgrid__sl_products

SL™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

None

Yes

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

0.130 In

3.30 mm

Yes

0.062 In

1.60 mm

Tube

0.100 In

2.54 mm

0.75

1.875

Yes

Fully

Yes

-40°C to +105°C

Through Hole

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

70541Series

Mates With

SL™ Crimp Housing 70066 , 70430 , 70400

70541-9075 Related Products

	70541-9075	0705419075
Description	2.54mm (.100) pitch SL? header, single row, vertical, .120" pocket, shrouded, with straight plastic peg, 6 circuits, 0.76??m (30??) gold (Au) selective plating	2.54mm (.100) Pitch SLâ¢ Header, Single Row, Vertical,
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compli	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL	Tin (Sn)
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
Durability	25 Cycles	50 Cycles
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	THERMOPLASTIC
Plug contact pitch	0.1 inch	0.098 inch
Installation option 1	LATCH	LOCKING
Number of connectors	ONE	ONE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
Guideline	UL	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.129 inch
Total number of contacts	6	6
