42865-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42865-0001

42865-0001: Descriptionflat blade appliance dryer motor crimp housing, 10 circuit; CategoryThe connector The connector; File Size188KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

42865-0001 Overview

flat blade appliance dryer motor crimp housing, 10 circuit

42865-0001 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	42865
Mixed contacts	NO
Options	GENERAL PURPOSE
Total number of contacts	10
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

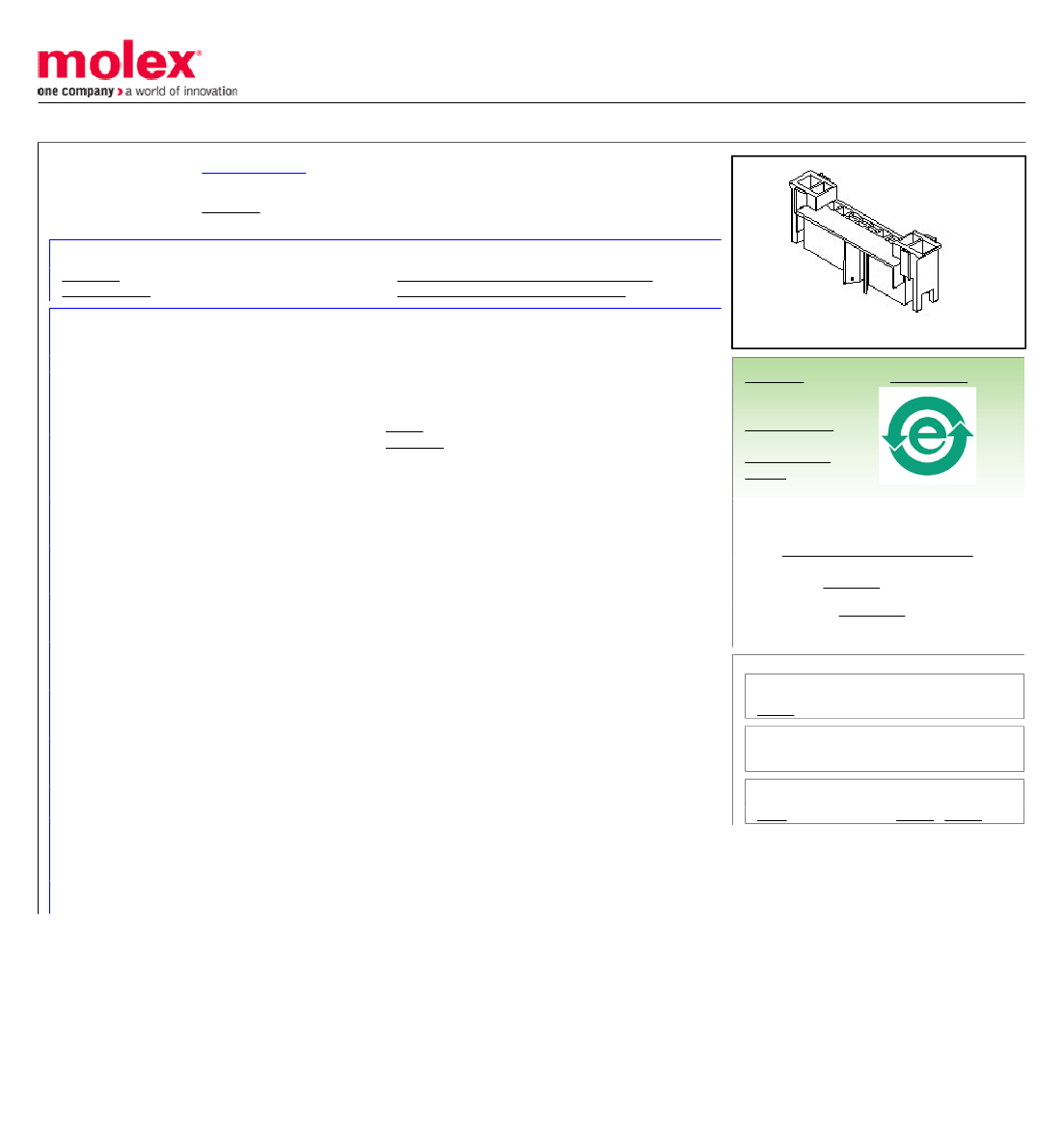

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0006023104

Active

flat_blade

Flat Blade Appliance Dryer Motor Crimp Housing, 10 Circuit

Product Specification PS-43374-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Overview

Product Name

Crimp Housings

42865

flat_blade

Flat Blade

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Female

Yes

Nylon

Bag

0.228 In

5.80 mm

0.228 In

5.80 mm

Yes

-40°C to +75°C

Search Parts in this Series

42865Series

Mates With

Dryer Motor

Use With

1508 Crimp Terminals, 43374 , 41422

Material Info

Old Part Number

42865-0001

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-42865-001

PS-43374-001

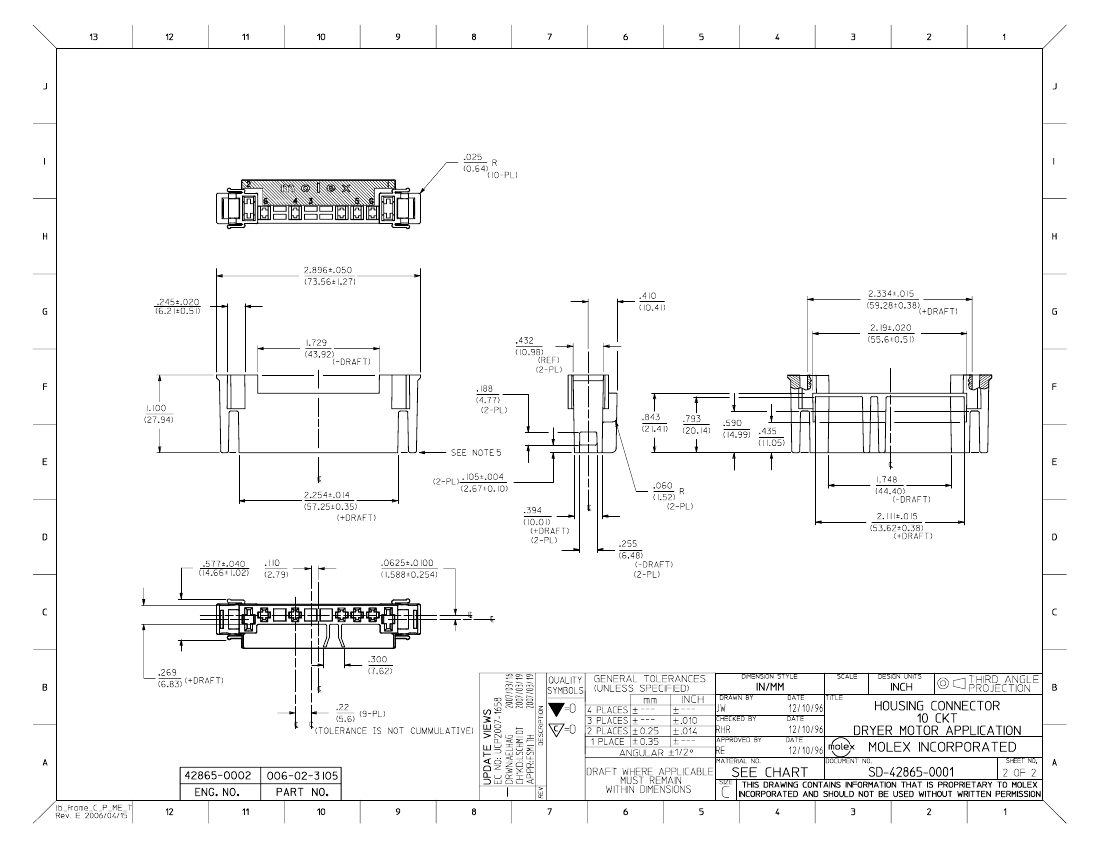

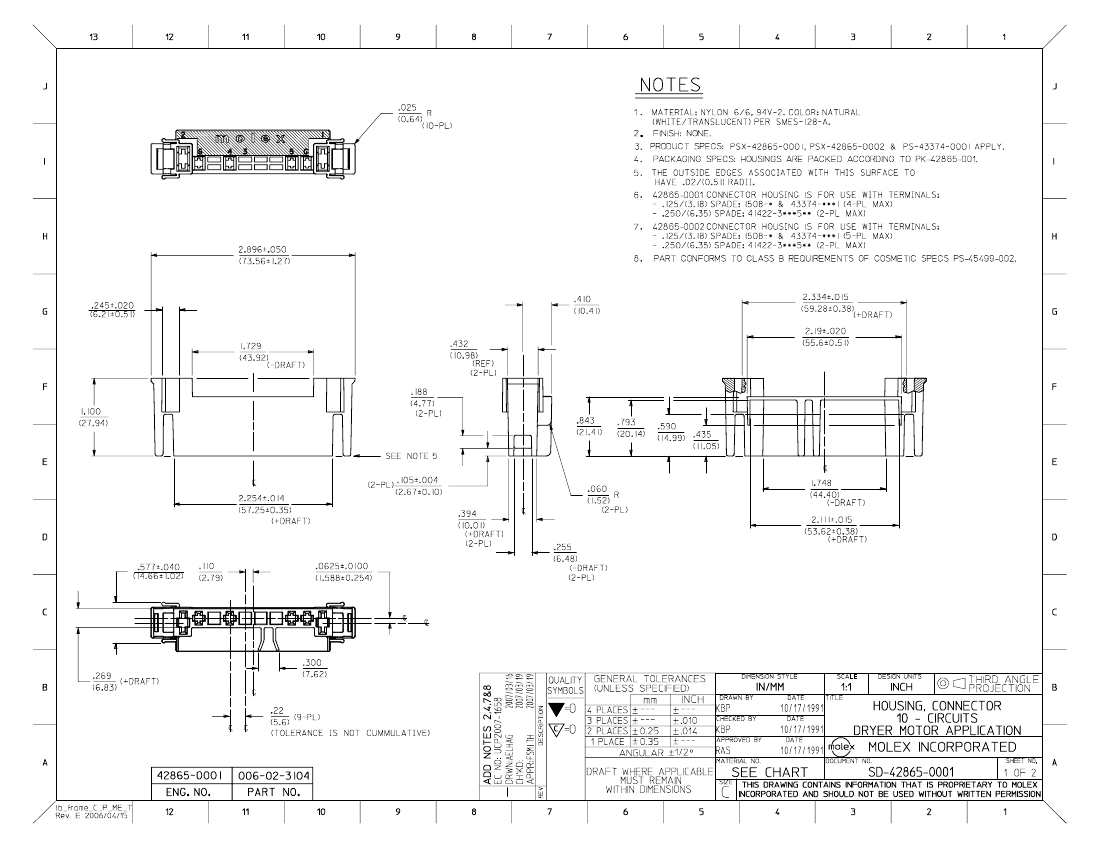

SD-42865-0001

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

42865-0001 Related Products

	42865-0001	006-02-3104
Description	flat blade appliance dryer motor crimp housing, 10 circuit	flat blade appliance dryer motor crimp housing, 10 circuit
Maker	Molex	Molex
Reach Compliance Code	unknown	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	10	10
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
