LPC-L2294-8MB

Description
mcu, mpu and dsp development tools dev brd for lpc2294 256kb flash 16kb ram
CategoryModule/solution
File Size275KB,3 Pages
ManufacturerOlimex
Websitehttps://www.olimex.com
Environmental Compliance
Download Datasheet Parametric View All

LPC-L2294-8MB Online Shopping

Suppliers Part Number Price MOQ In stock
LPC-L2294-8MB - - View Buy Now

LPC-L2294-8MB Overview

mcu, mpu and dsp development tools dev brd for lpc2294 256kb flash 16kb ram

LPC-L2294-8MB Parametric

Parameter NameAttribute value
MakerOlimex
RoHSyes
Processor to evaluateLPC2294 ARM7TDMI-S
Data bus width16 bit, 32 bi
Interface TypeRS-232, Ethernet, CAN, I2C, JTAG, SPI, UART
size118 mm x 101 mm
Working power voltage1.8 V, 3.3 V
LPC-L2294
rev 1.00/07-2006
LPC-L2294
is compact development board
with LPC2294 ARM7DTMI microcontroller
from Philips Semiconductors Inc. with
512KB internal flash, 64KB internal RAM,
There are two options:1MB external RAM +
2MB external Flash and 8MB external RAM
+ 4 MB external Flash.
Board have CAN, RS232, 10 Mbit Ethernet,
SD/MMC card connector, external memory
bus is available on connector.
eCos port is available for this board and
ucLinux port is preparing.
The board features are:
-
-
-
-
-
-
-
-
-
-
LPC2294
ARM7TDMI microcontroller 256KB internal Flash, 16KB internal RAM
10 MBit Ethernet with CS8900A in 16 bit mode and interrupts
CAN 2.0 driver and interface
RS232 driver and interface
SD/MMC connector (on bottom side)
External memory bus connector
UEXT Olimex’s standard connector with I2C, RS232, SPI and power supply
JTAG connector
PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
Dimensions: 118x101 mm (4.65 x 3.97")
1MB RAM version is capable to run eCos with many application including TCP-IP
8MB RAM version is capable to run ucLinux

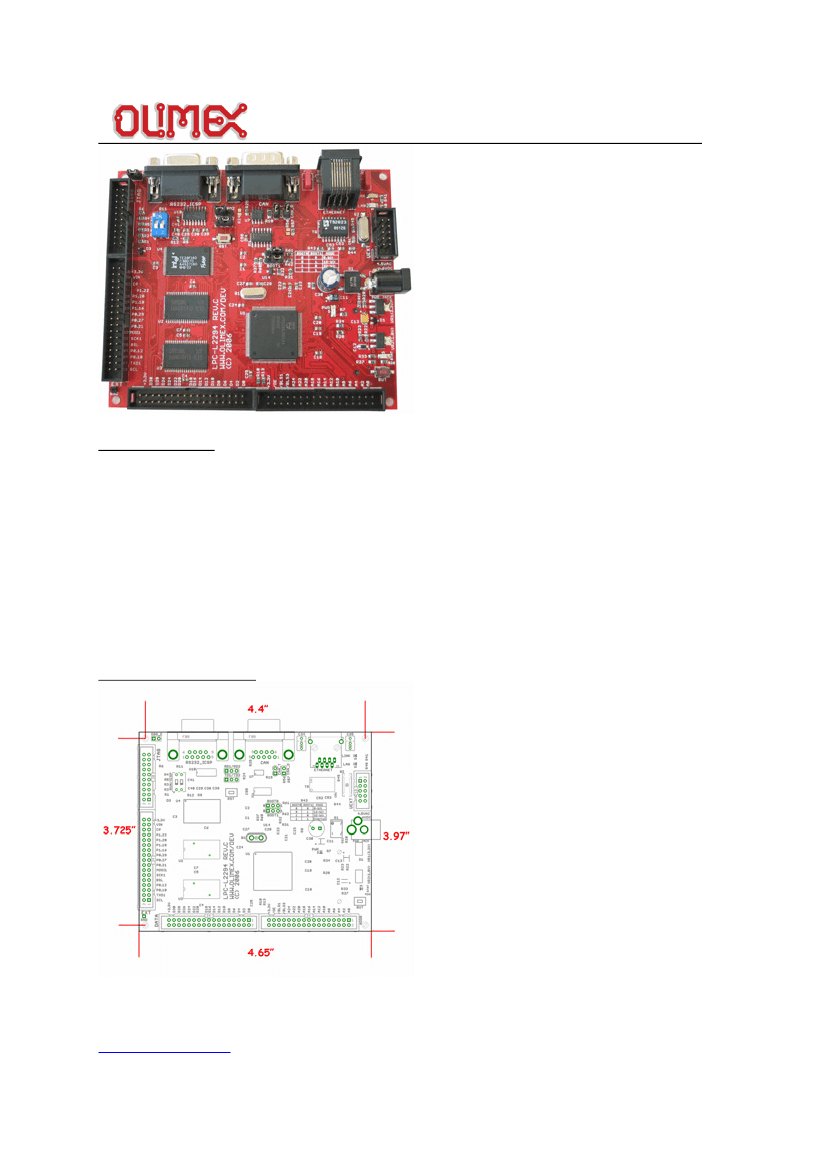

Board dimensions and fix holes:

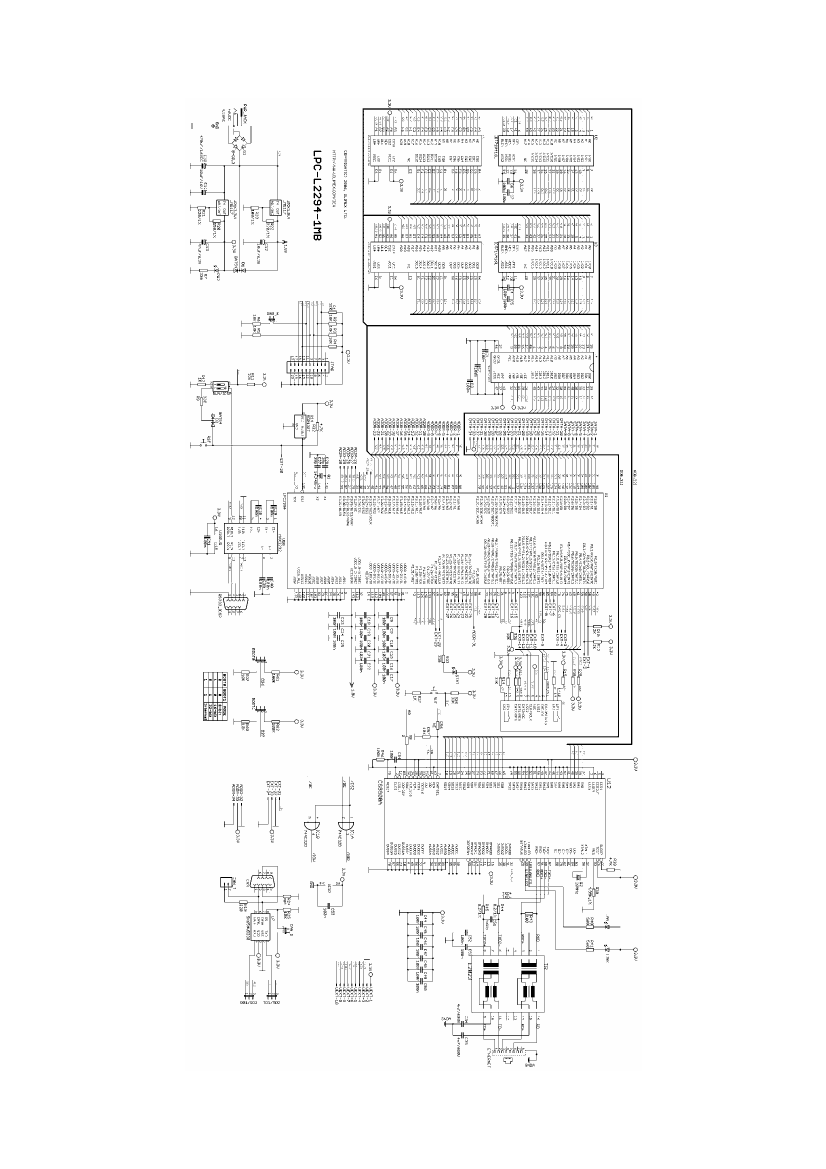

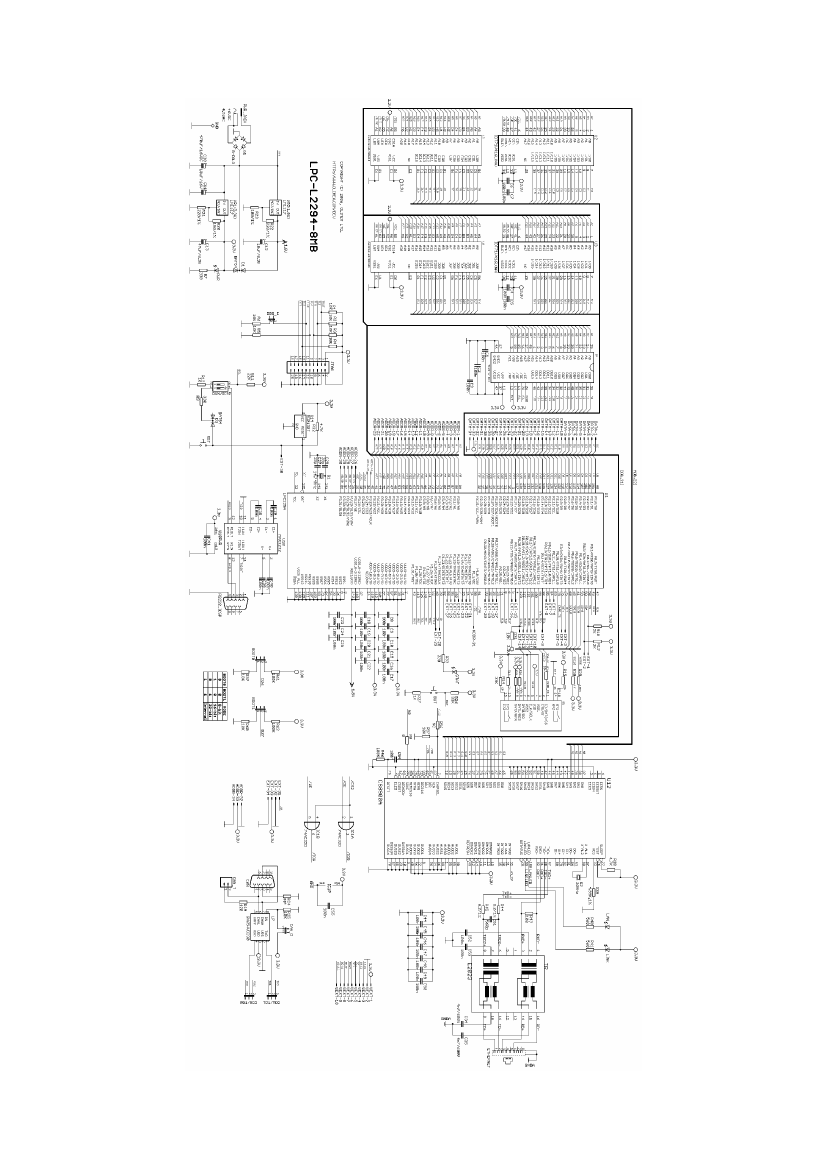

Copyright © 2006, OLIMEX Ltd. All right reserved.
http://www.olimex.com/dev
